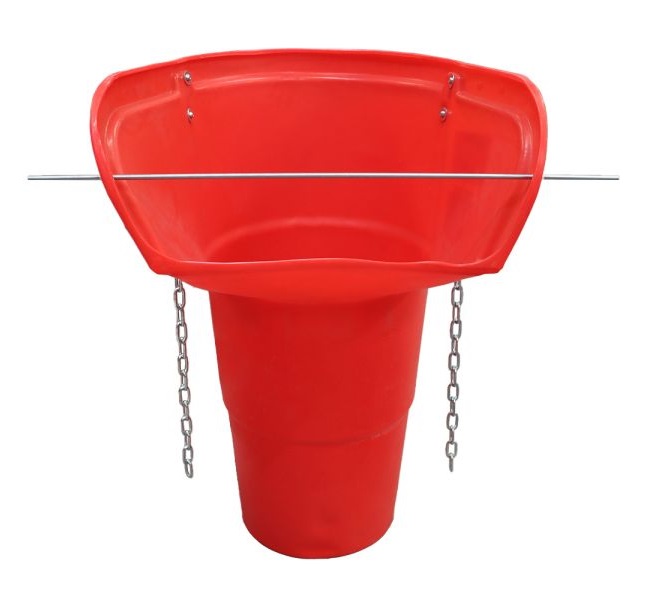

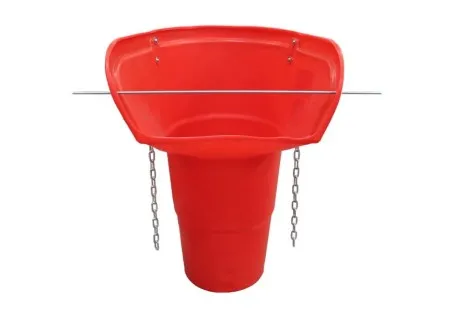

20" Rubbish Chute Side Hopper

20" Rubbish Chute Side Hopper that is to be used in conjunction with the 20" Chute Sections to create a full system for the safe disposal of debris, rubble, or builder's waste materials from multiple floors within a building or structure down to the floor and into a suitable skip. The Red Side loading rubbish hopper can be connected to the standard 1m long rubbish chute main sections via the supplied connection chains. These Rubbish Chute side entry Sections are stackable for compact storage and easy transportation between sites when not in use.

The Oaklands 20" Red Rubble Side Hopper Chute is supplied 1100mm long and lightweight yet very robust at only 10kgs per section. Fitted with galvanized brackets and chains that easily connect to the RCST 20" Rubbish Chute Middle Sections to create a versatile rubbish chute system that is ideal for any situation where a rigid rubbish chute system is practical. The RCSE 20" Side Hopper is designed with an enlarged opening to the side, which will make the loading of rubble or waste easier and eliminates overspilling or missing the hopper. Also available is the 20" Red Rubble Top Hopper RCTH that is used as a top entry point of a Skip Chute System.

ULS Lifting also supplies a universal top fixing frame to support the 20" Rubbish Chute System. Can easily secure a top hopper or the straight sections to the fixing frame via the two supplied chains. Then secure it onto the scaffolding. It is also good to practice adding a fixing support frame for every 10m of the rubbish chute, (One frame per 10 chutes).

How to create the desired Rubbish Chute setup - Firstly, work out the height required and calculate how many 1m sections of straight rubble chute sections are required. Add a 1m long top hopper and secure the fixing frame if required. When connected, the whole rubble chute system will become a versatile yet flexible kit that can bend or flex a little to compensate for the building or scaffolding. Ideal for when a rigid system is not practical or feasible.

Why use a Rubbish Chute - Rubbish Chutes provide an easy and safe solution to remove any type of waste, excess materials, building materials, or renovation waste from buildings, construction sites, or any other structure. Commonly called scaffold Chutes, Skip Chutes, Rubble Chutes or refuse chutes, and garage chutes, these multi-use chute systems are manufactured from high-quality plastic which is highly resistant to abrasion and stays rigid and strong on impact. the Oaklands Rubbish Chutes supplied by Ultimate lifting Solutions Limited can be used in both warm and cold weather conditions as the MDPE and HDPE plastic is not affected by seasonal conditions.

Components to make up a Rubbish Chute System

Rubbish Chute Fixing Frame - The Rubbish Chute Fixing Frame is secured at the top of the system, onto the scaffolding, and held securely in place by utilizing two horizontal scaffold ledger beams.

Rubbish Chute Top Hopper - Fitted as the top piece of the Rubbish Chute System and has an extra wide opening that enables the Rubble, site waste, or rubbish to be easily entered into the funnel.

Rubbish Chute Section - These 1m straight sections are the main chute component, these are fixed to the top hopper to generate the height required for the chute system.

Why use the 20" Rubble System? The 20" Red Chute System is our best seller and is an ideal solution for when a rigid chute system is not suitable or practical. ULS LIFTING can also supply a Heavy Duty 22" Rubbish Chute System. Once erected these systems become heavy-duty semi-rigid units providing extra strength, and minimizing damage and dust. Designed with a tapered body to give an increased top diameter that will prevent blockages when in use. These systems are supplied with wire rope and snap hooks to secure scaffolding easily without the need for a fixing frame. And just like the Red 20" Rubble Chute System, the yellow 22" Scaffolding Chute System is stackable for easy storage and transportation.

For clearance of larger debris or bulkier materials, then our largest rubbish chute system may be suitable, this larger 30" diameter rubbish chute system is manufactured from high-quality MDFE and HDPE Plastic to create a semi-rigid chute ideal for bulkier and larger pieces of waste or rubble. Just like the 22" Chute System, the black 30" Rubble System is supplied with Wire Rope and snap hook fixing kits for easy fixing straight to the scaffolding. and again these kits are stackable.
