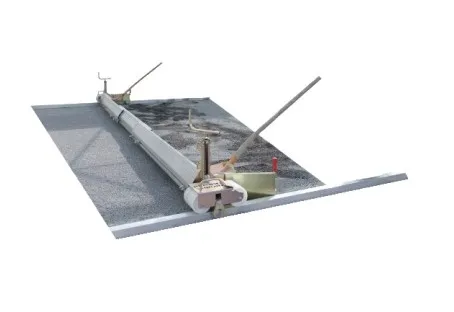

Probst Telescopic Screeding System TAS-UNI

Telescopic Screeding System TAS-UNI-450 and TAS-UNI-600

Scope of supply within each system

TAS-UNI-450: Recommended basic configuration: 4 Aluminium-Profiles of 750mm, 1,000mm, 1,750mm, 2,000mm long complete with integrated clamping adjustment. 1 set = 2 side positioned, height-adjustable roller units complete with metal step on area and sheet-metal wipers with integrated fastener for the required segments. also supplied with hook-in-system for shovel. 2 pulling chains, including hooks for attachment to powered assisted vehicle.

TAS-UNI-600: standard configuration: system supplied with everything as above, plus 1 extra Aluminium Profile 3,000 mm long.

Further information on the telescopic Screeding System from Probst (TAS-UNI)

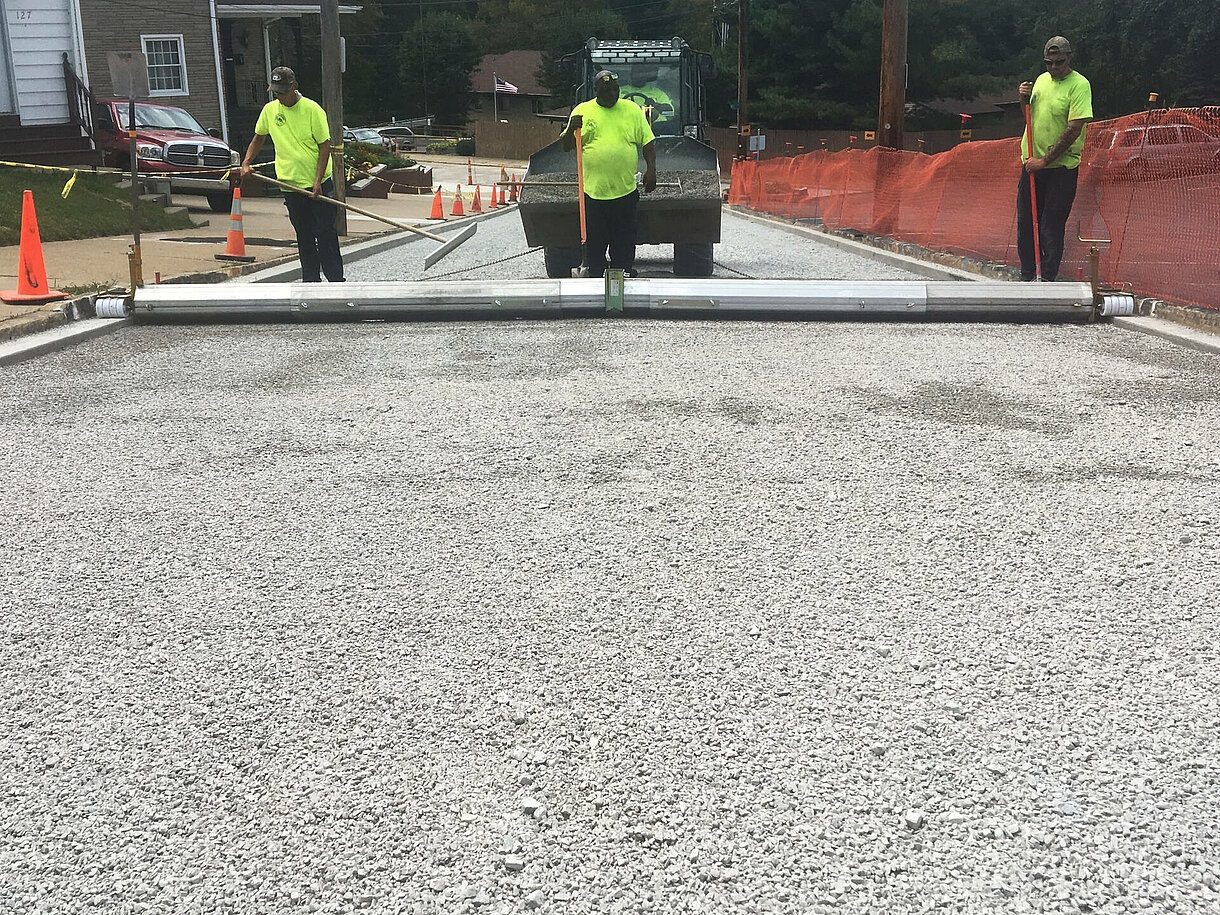

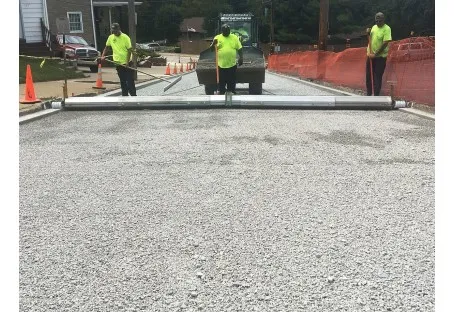

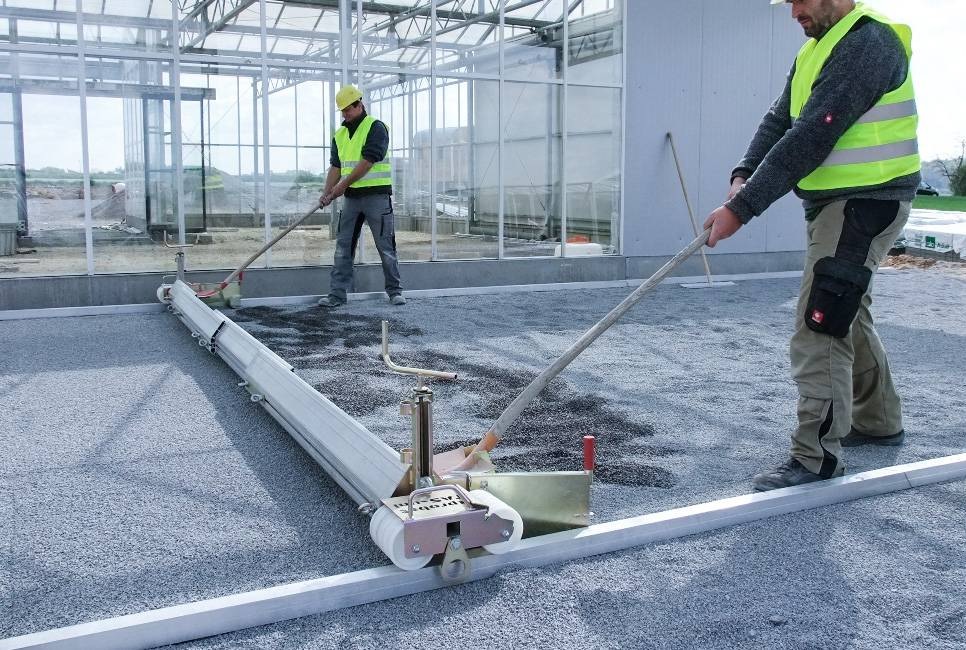

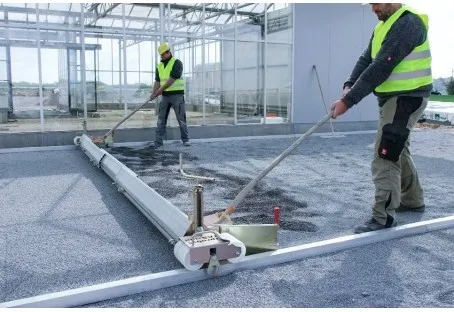

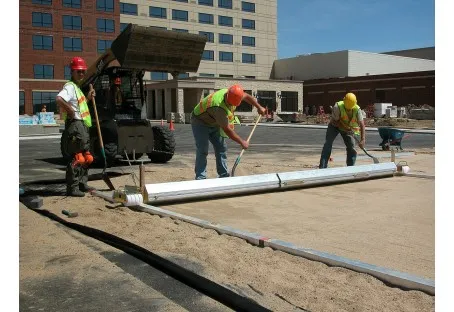

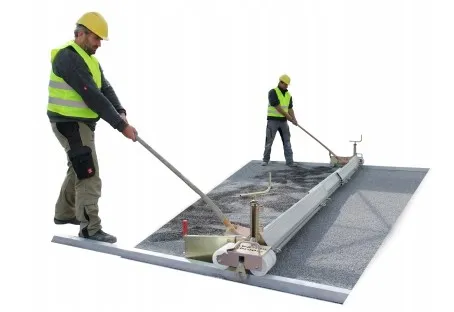

Universally suitable for precise and flexible screeding to create that prefect base on both large and small construction and building sites alike. can be used by hand by two operators in comfortable upright working position or by attaching to powered site machinery such as a telehandler, JCB or digger.

The aluminium profile has been optimized. So the device does neither move upwards when pulled by hand nor when pulled with chains mechanically. In one run a clean and exact screed can be produced.

The profile was increased in order to be able to move more material when the pre-distribution of the screeding material is very rough.

Working width up to 6,000 mm (20 feet) by duplicating the profile.

Special aluminium profiles, consisting of a low wear, high-tensile alloy are designed to be fully telescopic with one another, seamlessly. With integrated jam system to lock the telescopic parts in any desired position.

All metal parts are galvanized.

Proper height adjustment can be read from a scale (0 – 25 cm / 0 – 9¾ inch).

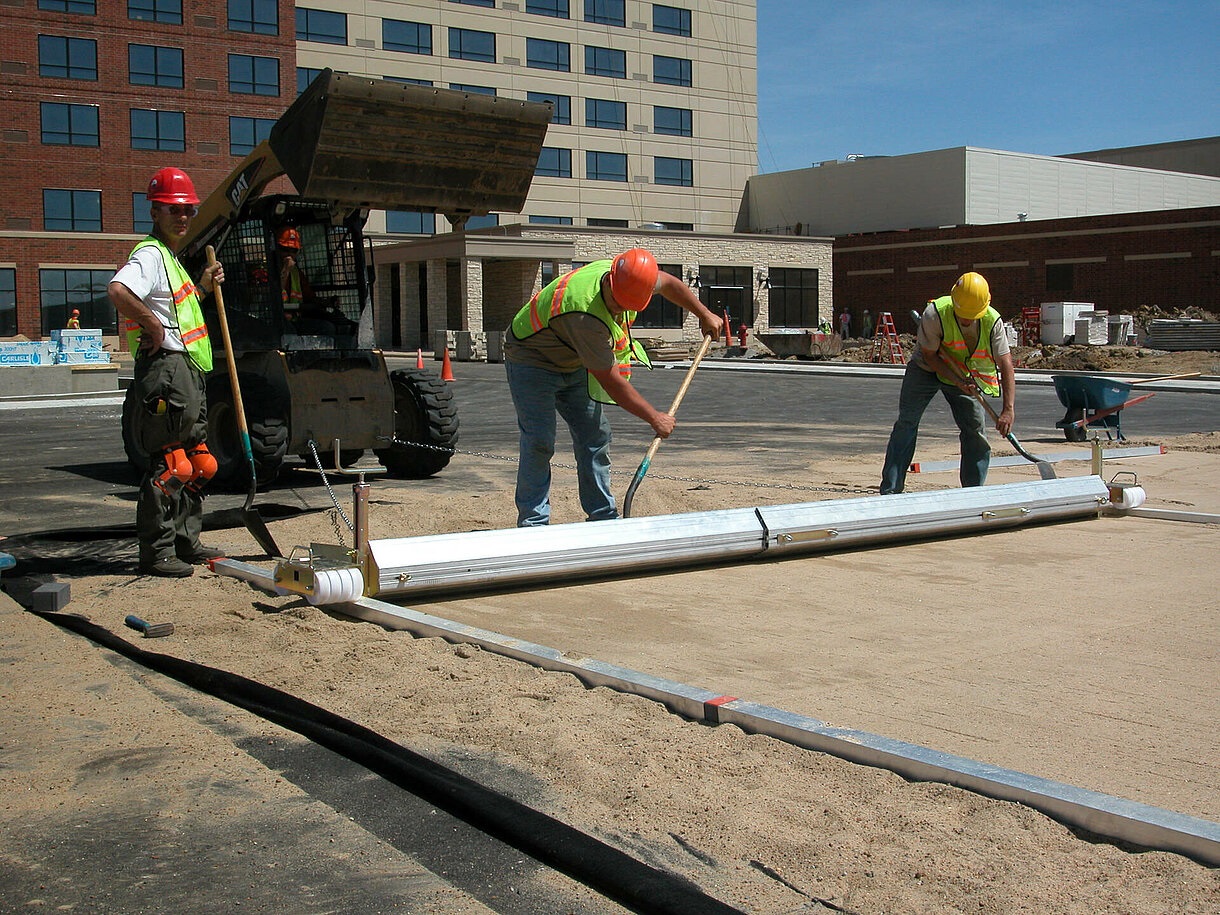

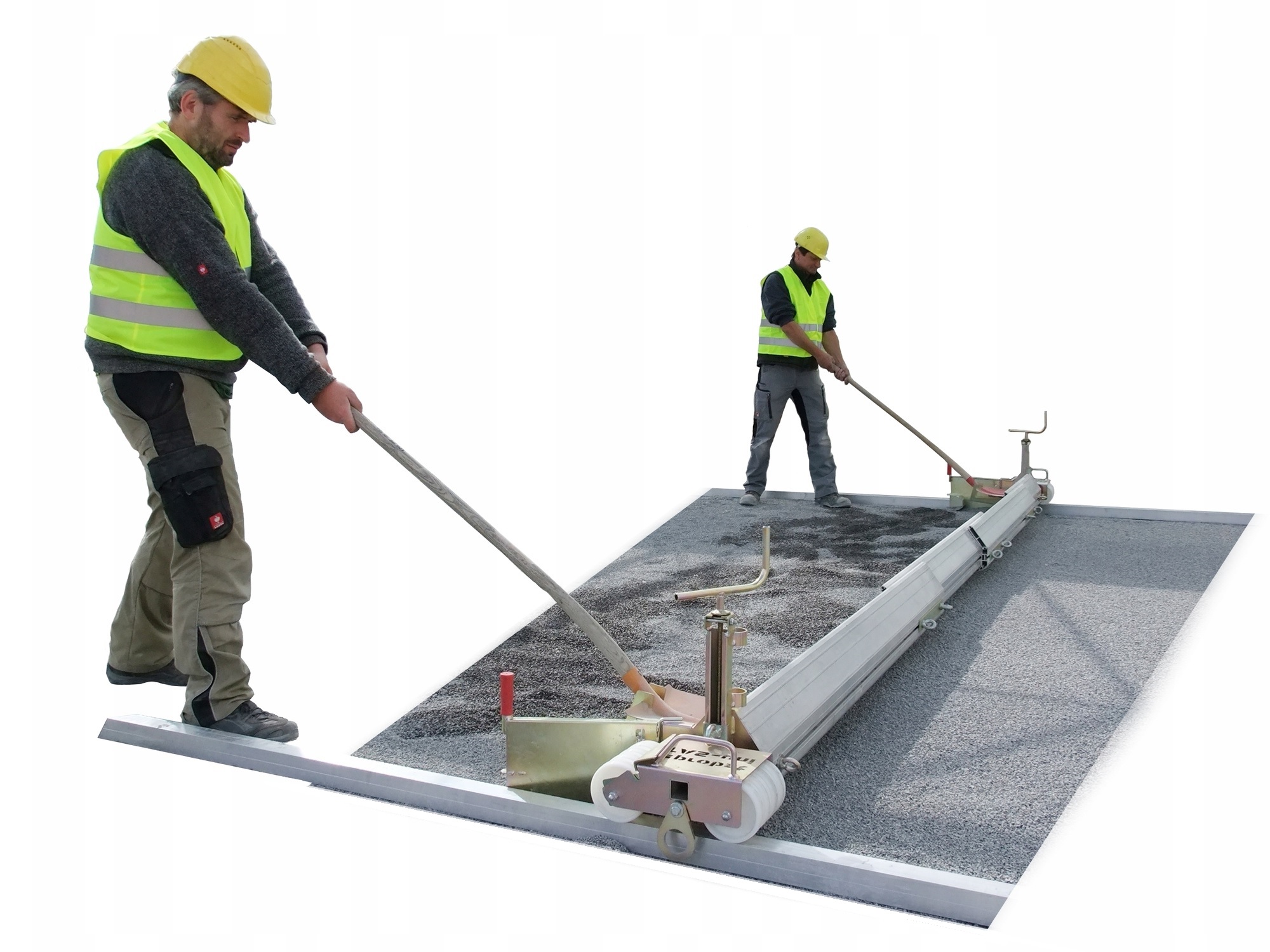

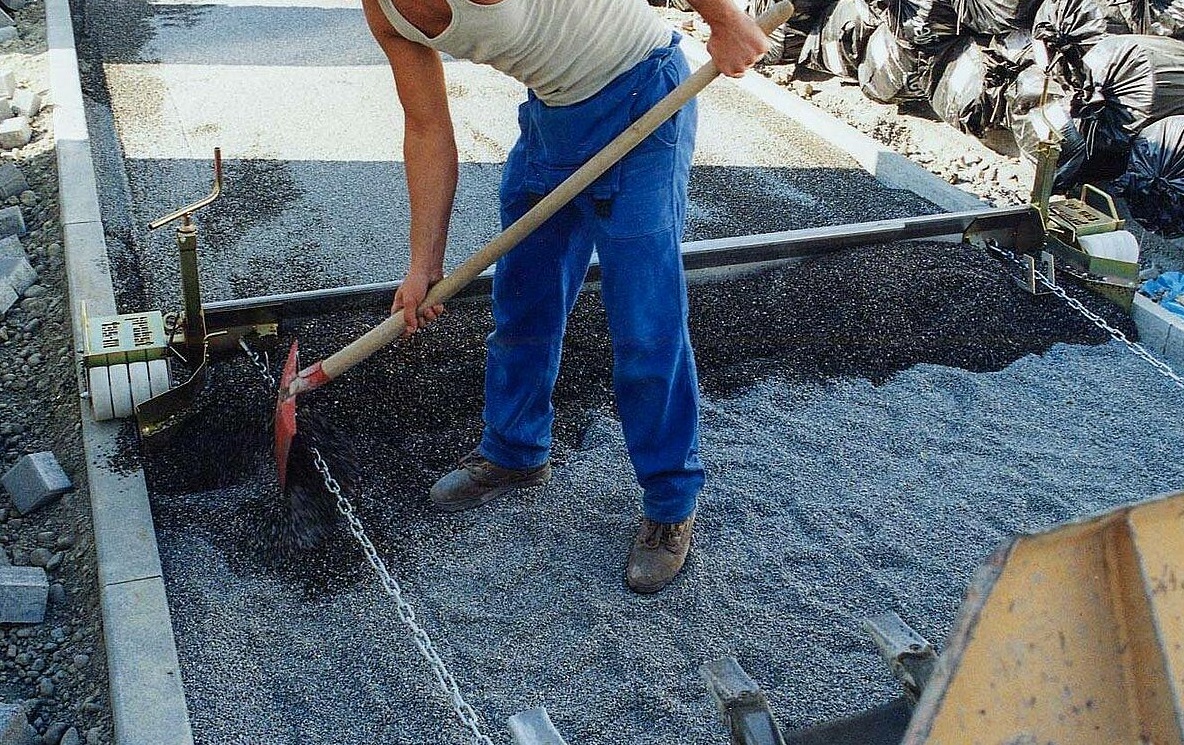

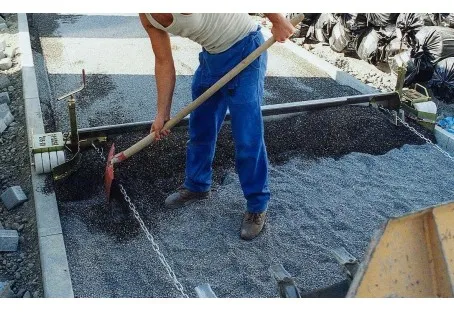

For hand operation the TAS can be easily pulled by means of standard shovels while standing in comfortable upright position.

What do you get in the Telescopic Screeding System TAS-UNI

TAS-UNI-450 Basic configuration:

1 Aluminium-Profile each of 750mm, 1,000mm, 1,750mm, 2,000mm long (30'', 40'', 69'', 80'') with integrated clamping adjustment.

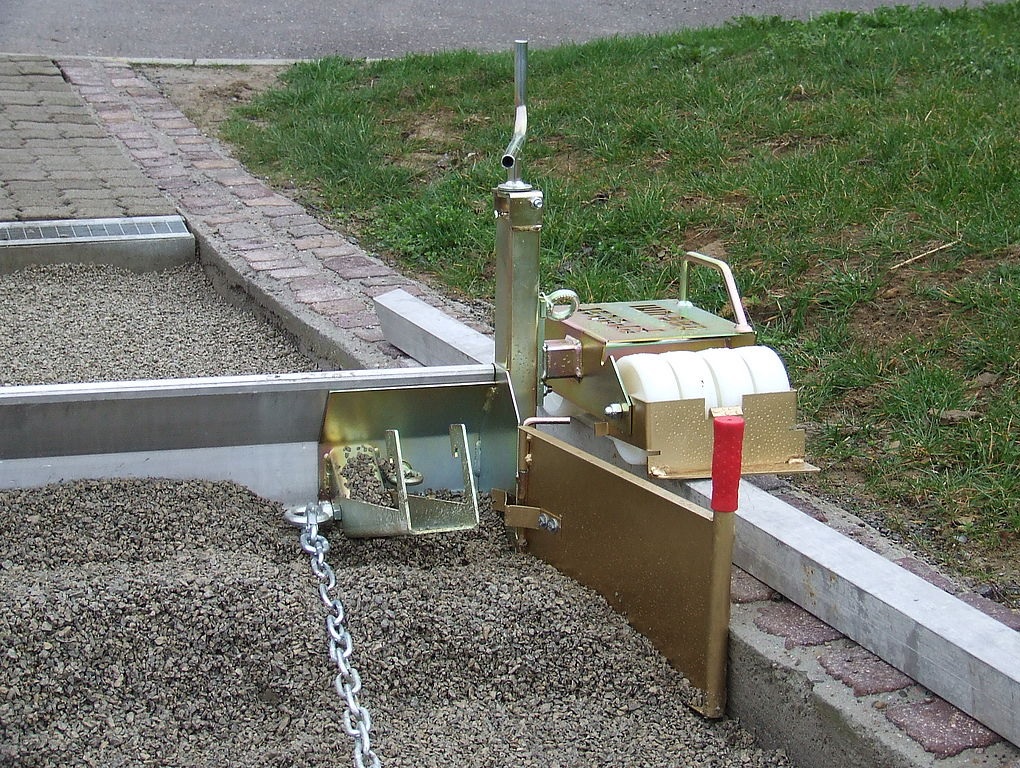

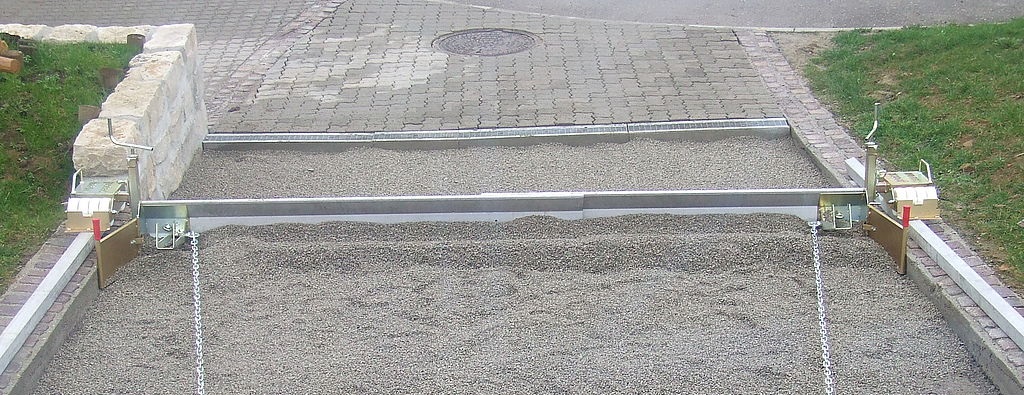

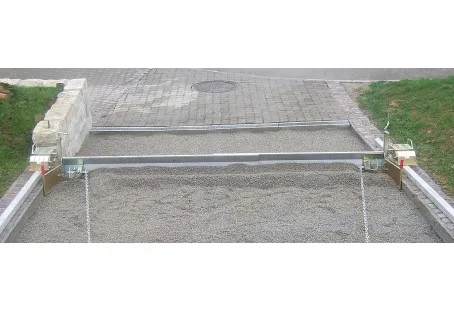

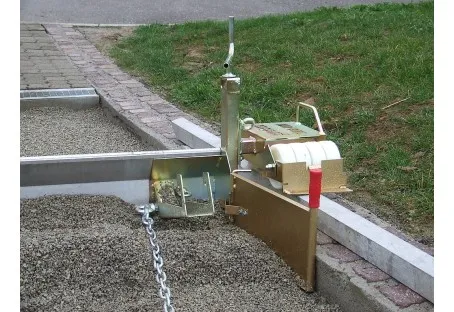

1 Set = 2 side positioned, height-adjustable roller units, both with metal steps and sheet-metal wipers with integrated fastener for required segments with hook-in-System for shovel.

2 Pulling Chains, including hooks.

Adjustable Working Width : 750mm - 4,500mm (29½'' - 177'').

Weight : 78 kg / 170 lbs.

TAS-UNI-600 Standard configuration:

1 Aluminium-Profile each of 750mm, 1,000mm, 1,750mm, 2,000mm long (30'', 40'', 69'', 80'') with integrated clamping adjustment.

Plus 1 Aluminium Profile 3,000m long (118").

1 Set = 2 side positioned, height-adjustable roller units, both with metal steps and sheet-metal wipers with integrated fastener for required segments with hook-in-System for shovel.

2 Pulling Chains, including hooks.

Adjustable Working Width : 750mm - 6,000mm (29½'' - 236'')

Weight : 110 kg / 245 lbs

Optional Extra for the TAS-UNI Handscreeding Systems

Screeding Rail Kits - Available in three sizes 20m, 24m kit or 60m kit

AZL-SET-24 - Probst Part Number 51000039 - Screeding Rail Kit x 24m total length (Kit comprises 2 x 1m, 6 x 3m = Total of 20m)  For the daily use on small projects. (This kit is not purchased very often)

AZL-SET-24 - Probst Part Number 51000014 - Screeding Rail Kit x 24m total length (Kit comprises 2 x 1m, 2 x 2m, 6 x 3m = Total of 24m)  For the daily use on both, small and medium sites.

AZL-SET-60- Probst Part Number 51000015 - Screeding Rail Kit x 60m total length (Kit comprises 4 x 1m, 4 x 2m, 12 x 4m Rails = Total of 60m) Recommended set for bigger sites and mechanical installation.

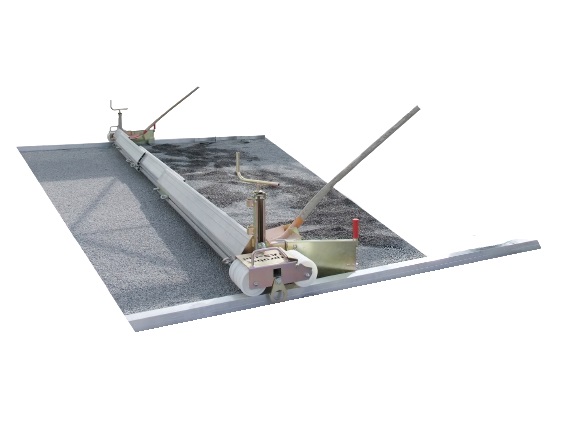

When used in conjunction with the Probst TAS-UNI-450 or TAS-UNI-600 Screeding Systems. The rollers on the screeding system will glide easily and effortlessly along the rails whether being drawn by hand or by being dragged along by powered assistance. The screeding kit and rail set combination will aid the setting of a consistent and accurate level and width for screeding materials, giving a level finish ready for laying concrete blocks or slabs. The Kit supplied consists of various lengths of noncorroding aluminium Screeding rails.
