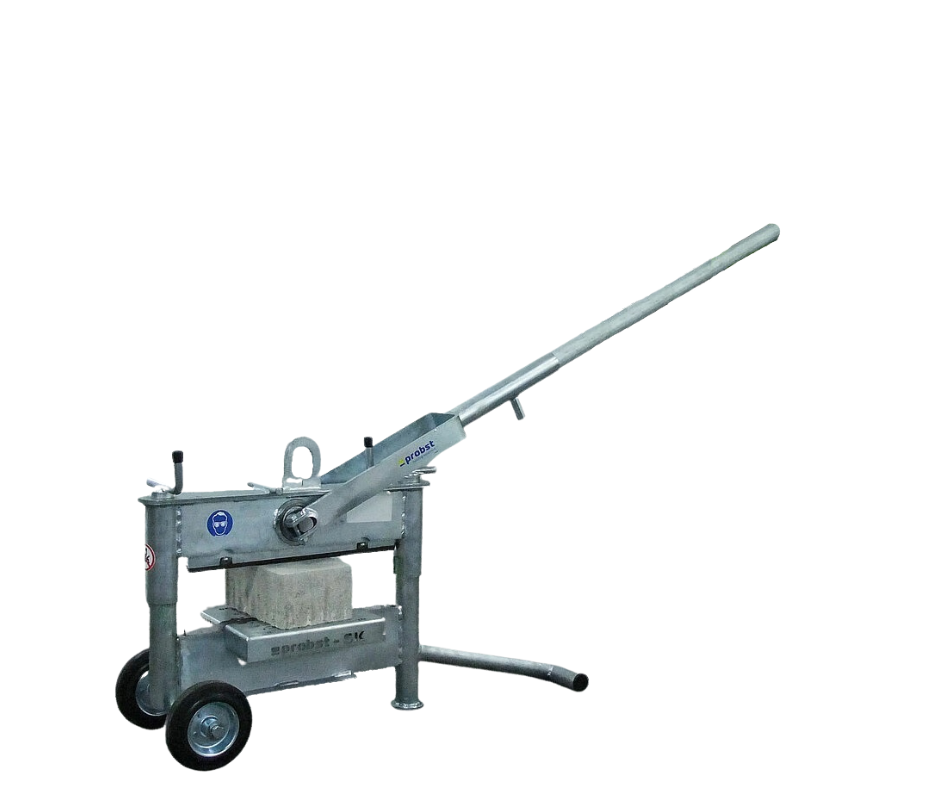

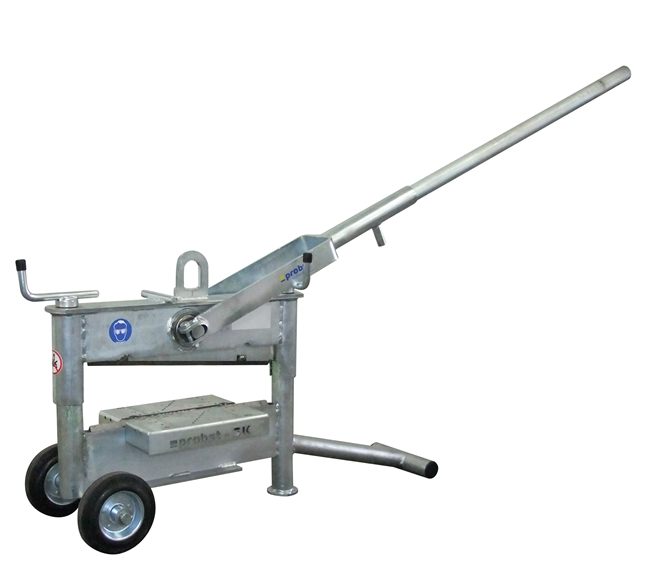

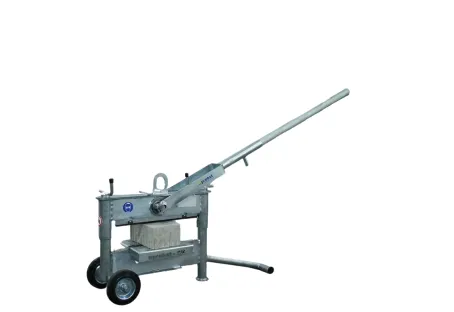

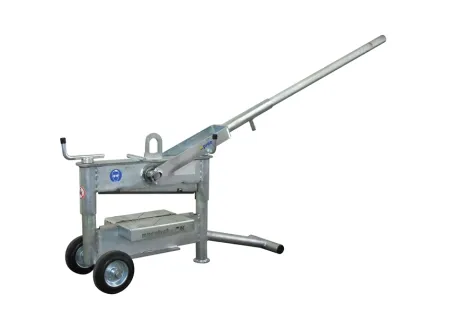

Probst STS-43-H Large Stone Splitter

The Probst STS 43-H Stone Splitter is ideal for cutting larger and longer concrete blocks, kerbstones, and similar products due to its 430mm cutting blade and internal cutting height of 300mm. The STS-43-H is the big brother to the very popular STS-33-F and STS-43 Stone Splitters from the Probst STS range of block cutters. Supplied with one set of top and bottom cutting blades, therefore it is ready to use as soon as it has been unpacked.

What is different with the STS-43-H compared to the Probst STS-33-F and STS-43?

The STS-33-F is the standard and most popular Block Cutter and is supplied with a 330mm blade and 10mm to 120mm cutting height.

The STS-43 Block and Stone Cutter is supplied with a 430mm blade and 10mm to 120mm cutting height.

The new STS-43-H Stone Splitter is supplied with a 430mm blade and 10mm to 300mm cutting height.

This new range of Stone Splitters from Probst has been designed to give more splitting force with a reduced effort to the operator, which will create a clean cut on Concrete Blocks, kerbstones, Breeze Blocks, Paving Blocks, and similar products and new STS43H Stone Splitter has a longer cutting area (compared to the STS-33-F) and a higher cutting range of up to 300mm that enables the operator to cut blocks up to 440mm long and maximum height of 300mm, which is ideal for Concrete blocks, kerbstones and Breeze Blocks.

This newly redesigned block and stone Splitter from Probst has been developed to cut or snap blocks easily by using less force by the operator. This simple and easy-to-use device will give a clean, perfectly formed new edge to your kerb-stones without creating excessive dust, no noise pollution, and no need for water to aid in the cutting operation. Therefore no particulate emissions occur, so it is safer for the operator to use, and better for the environment, and very little setting up and packing away time lost.

The Probst STS-43-H Block Cutter is fitted with the newly designed triangular-shaped cutting blade, which gives a cleaner more accurate cut over the older square-style blade that was fitted to the discontinued Probst AL33 Block Cutter

The Probst STS-43-H Stone and Block Cutter are supplied with spring mounted supporting table (One-half tilts, the other half fixed rigid) allowing clean undercut for precise laying without uneven or large gaps between blocks.

The Probst STS 43-H Stone Splitter is fitted with the Probst triangular-shaped cutting blade that is usable on all three sides.

To speed up work enormously the STS-43-H Probst Stone Splitter has a size indicator (both cm & Inch shown) on the cutting table as well as a 45-degree angle indicator on both support plates.

Probst STS-43-H Block Cutter spare blades .

Probst STS-43-H Block Cutter spare blades are available from the Ultimate Lifting Solutions Probst Spare parts section of the ulslifting.com website. The Probst STS-43-H Block Splitter Spare blade part number 33000030. Triangular-shaped blade. two are needed in total, one for the top blade and one for the bottom blade. One blade can be changed independently on its own.

What is a Block Splitter?

A block splitter commonly called a block cutter, stone cutter, or even guillotine is used to cut or split most small paving elements such as paving blocks, slabs, and stones. Once split the block will be left with a nice clean straight edge ready to be laid in position.

Which is better Block Splitter or Power Saw?

This argument amongst professionals has been discussed for many years and will continue for many years, and contractors are split 50%-50% - some prefer the manual block splitter while others will choose the Power saw. If using a power saw to cut through a block it is as simple as following a marked line set on the block, and a standard block will take anywhere between 15 seconds up to a minute to cut by a trained contractor. Using a block cutter will take a lot less time, probably only a few seconds, but it takes more skill to learn how to use a block splitter.

Difference between using a block splitter compared to a power saw.

The main difference between splitting paving blocks when using a block splitter over a power saw basically comes down to the amount of dust and noise created. A power saw will be noisy, not a good idea to use it first thing in the morning or if working late into the night, and the dust created is high and if used properly some sort of dust suppression equipment should be used. If a manual block splitter is used, firstly the noise created by the split is very low in comparison, but the biggest difference is the amount of dust generated is very low and no dust suppression equipment will be required to comply with government guidelines when it comes to controlling dust when cutting paving materials. another point to consider when using a power saw is the constant changing of cutting discs and even the lifespan of a power tool will be a lot less than a quality block splitter such as the Probst STS-43 block Splitter.

If you need more help with block cutters, feel free to call Ultimate Lifting Solutions today on 01384 986 026 to discuss your requirements.

The new block cutters from the Probst STS range – more splitting force with reduced effort.

Snap blocks and stones without any great force: easy! With the perfect combination of lever and eccentric transmission and the triangular knife, the huge splitting force with minimal operating force is created with all mechanical block and brick cutters. Blocks can therefore be split cleanly without much dust, noise, or wastewater. No particulate emissions at all occur, which could be harmful to health.

The Full STS Range of Probst Stone Splitters.

STS-33 / STS-43: Spring-mounted supporting table (both halves of the table tiltable) allows clean undercut for precise laying without uneven large gaps.

STS-33-F: With a tilted, rigid supporting table, so that the block is cut at a constant angle.

STS-43-H / STS-65-H: Designs also suitable for concrete kerbstones or limestones.

STS-43-H / STS-65 / STS-65-H: Spring-mounted supporting table (one-half of the table tiltable, one-half rigid) allows clean undercut for precise laying without uneven large gaps.
