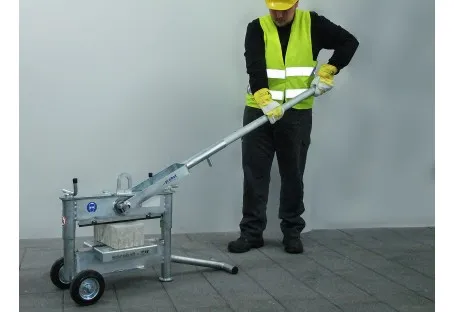

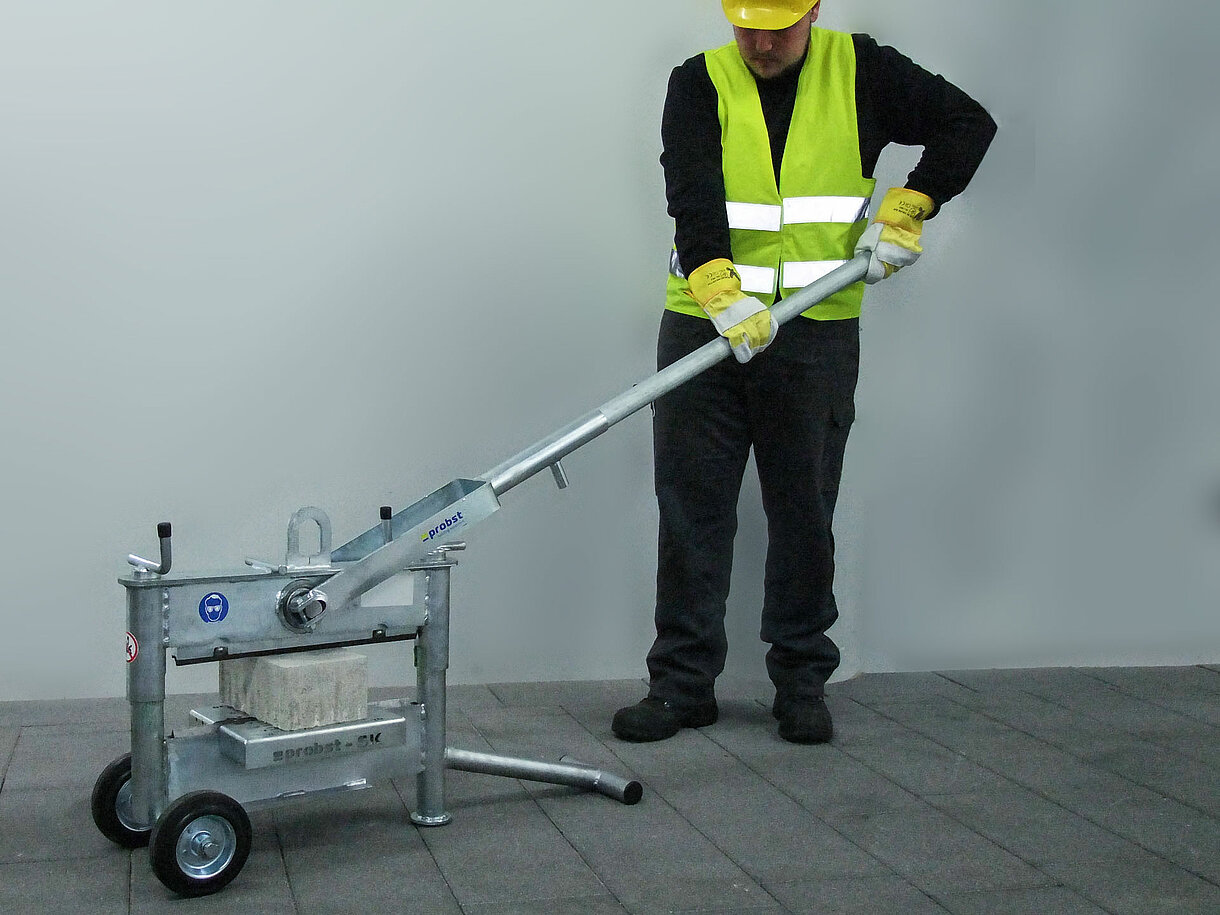

Probst STS-43 Stone Splitter

The Probst STS-43 Stone Splitter and Cutter are fitted with an extra-long cutting blade to suit larger concrete blocks and similar products. This new style Stone Splitter from Probst has been designed to give more splitting force with a reduced effort to the operator, creating clean cuts on Concrete Blocks, Breeze Blocks, Paving Blocks, and similar products. Supplied with one set of cutting blades.

The Probst Stone Splitter STS-43 has a longer cutting area (compared to the STS-33-F) and enables the operator to cut blocks up to 440mm long and a maximum height of 120mm, which is ideal for Concrete blocks and Breeze Blocks.

This newly redesigned block and stone Splitter from Probst has been developed to cut or snap blocks easily by using less force by the operator. This simple and easy-to-use device will give a clean, perfectly formed new edge to your blocks without dust, without noise and no water is needed to aid in the operation. Therefore no particulate emissions occur, so it is safer for the operator to use, and better for the environment, and very little setting up and packing away time lost.

The Probst STS-43 Block Cutter is fitted with the newly designed triangular-shaped cutting blade, which gives a cleaner more accurate cut over the older square style blade that was fitted to the discontinued Probst AL33 Block Cutter

The Probst STS-43 Stone and Block Cutter are supplied with a tilted, rigid supporting table, this makes sure all blocks are cut at the same angle.

The Probst STS 43 Stone Splitter is fitted with a triangular-shaped cutting blade that is reversible.

To speed up work enormously the STS Probst Splitter has a size indicator (both cm & Inch shown) on the cutting table as well as a 45-degree angle indicator on both support plates.

Probst STS-43 Block Cutter spare blades .

Probst STS-43 Block Cutter spare blades are available from the Ultimate Lifting Solutions Probst Spare parts section of the ulslifting.com website. The Probst STS-43 Block Splitter Spare blade part number 33000030. Triangular-shaped blade. two are needed in total, one for the top blade and one for the bottom blade. One blade can be changed independently on its own.

What is a Block Splitter?

A block splitter commonly called a block cutter, stone cutter, or even guillotine is used to cut or split most small paving elements such as paving blocks, slabs, and stones. Once split the block will be left with a nice clean straight edge ready to be laid in position.

Which is better Block Splitter or Power Saw?

This argument amongst professionals has been discussed for many years and will continue for many years, and contractors are split 50%-50% - some prefer the manual block splitter while others will choose the Power saw. If using a power saw to cut through a block it is as simple as following a marked line set on the block, and a standard block will take anywhere between 15 seconds up to a minute to cut by a trained contractor. Using a block cutter will take a lot less time, probably only a few seconds, but it takes more skill to learn how to use a block splitter.

Difference between using a block splitter compared to a power saw.

The main difference between splitting paving blocks when using a block splitter over a power saw basically comes down to the amount of dust and noise created. A power saw will be noisy, not a good idea to use it first thing in the morning or if working late into the night, and the dust created is high if used properly some sort of dust suppression equipment should be used. If a manual block splitter is used, firstly the noise created by the split is very low in comparison, but the biggest difference is the amount of dust generated is very low and no dust suppression equipment will be required to comply with government guidelines when it comes to controlling dust when cutting paving materials. another point to consider when using a power saw is the constant changing of cutting discs and even the lifespan of a power tool will be a lot less than a quality block splitter such as the Probst STS-43 block Splitter.

If you need more help with block cutters, feel free to call Ultimate Lifting Solutions today on 01384 986 026 to discuss your requirements.

The new Stone Splitter from Probst STS range – More splitting force with reduced effort.

Snap blocks and stones without any great force: easy! With the perfect combination of lever and eccentric transmission and the triangular knife, huge splitting force with minimal operating force is created with all mechanical block and brick cutters. Blocks can therefore be split cleanly without much dust, noise, or wastewater. No particulate emissions at all occur, which could be harmful to health.

The Full Range of Probst STS Stone Splitters.

STS-33 / STS-43: Spring-mounted supporting table (both halves of the table tiltable) allows clean undercut for precise laying without uneven large gaps.

STS-33-F: With a tilted, rigid supporting table, so that the block is cut at a constant angle.

STS-43-H / STS-65-H: Designs also suitable for concrete kerbstones or limestones.

STS-43-H / STS-65 / STS-65-H: Spring-mounted supporting table (one half of the table tiltable, one-half rigid) allows clean undercut for precise laying without uneven large gaps.
