Probst EP-UNI Hand Screeding System

Probst EP-UNI Hand Screeding System

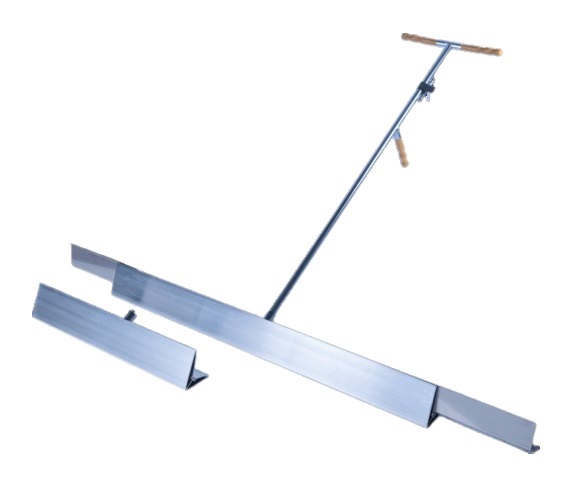

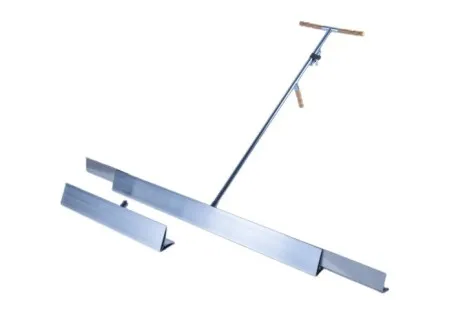

The Probst EP-UNI Hand Screeding System is a versatile and high-performance tool designed for efficiently levelling screed and preparing land for block paving. Widely regarded for its precision and ease of use, this screeding system is a top choice for professionals seeking a reliable hand screed tool.

Product Options

EP-UNI-Set 90/230 EASYPLAN EP-UNI Hand Screeding System

Probst Part Number: 51000040

EP-UNI-Set 230/300 EASYPLAN EP-UNI Hand Screeding System

Probst Part Number: 51000041

Key Features

Telescopic Adjustability

The system’s telescopic elements allow for continuous adjustment to accommodate various working widths, making it a highly adaptable screeding tool.

Versatile Screeding System

One screeding system covers multiple working widths, ensuring efficiency and precision:

- EP-UNI-Set 90/230: Adjustable between 900mm and 2.3m.

- EP-UNI-Set 230/300: Adjustable between 2.3m and 3.0m.

Durable and Sturdy Construction

Crafted from strong aluminium profiles, the Probst screeder resists flexing even at maximum width, ensuring durability and consistent performance.

Ergonomic Design

The screeding profile stays securely on the screeding rail, even when handling large amounts of material.

The EP 230/300 handle features an adjustable angle and a 3-dimensional grip design for comfortable operation, enabling operators to use body weight efficiently.

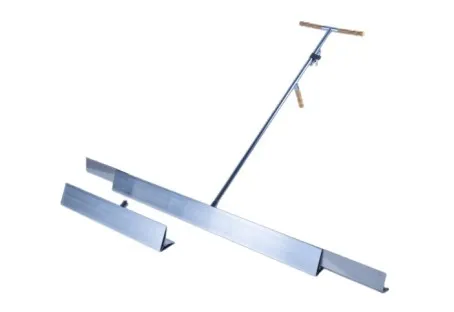

Kit Contents

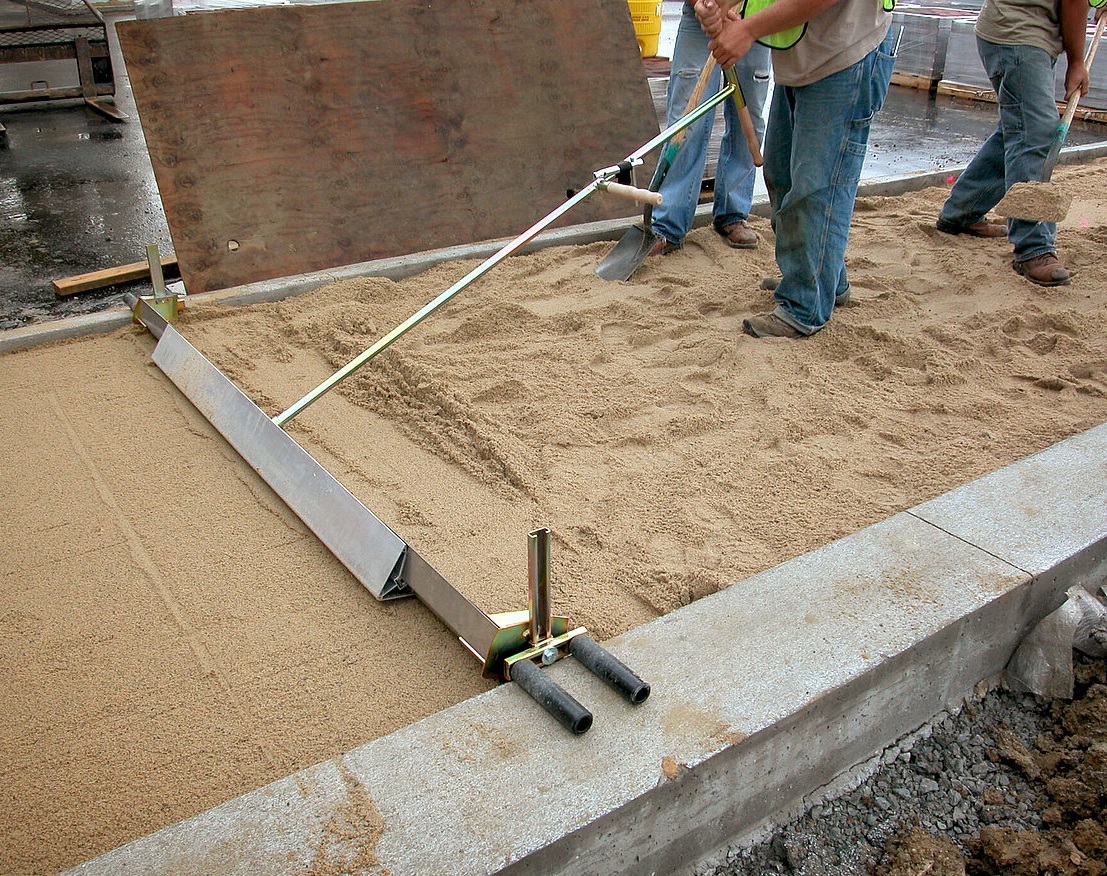

EP-UNI-Set 90/230 (51000040)

- 2 aluminium profiles (900mm and 1,600mm)

- 1 handle

- 2 telescopic extensions (350mm each)

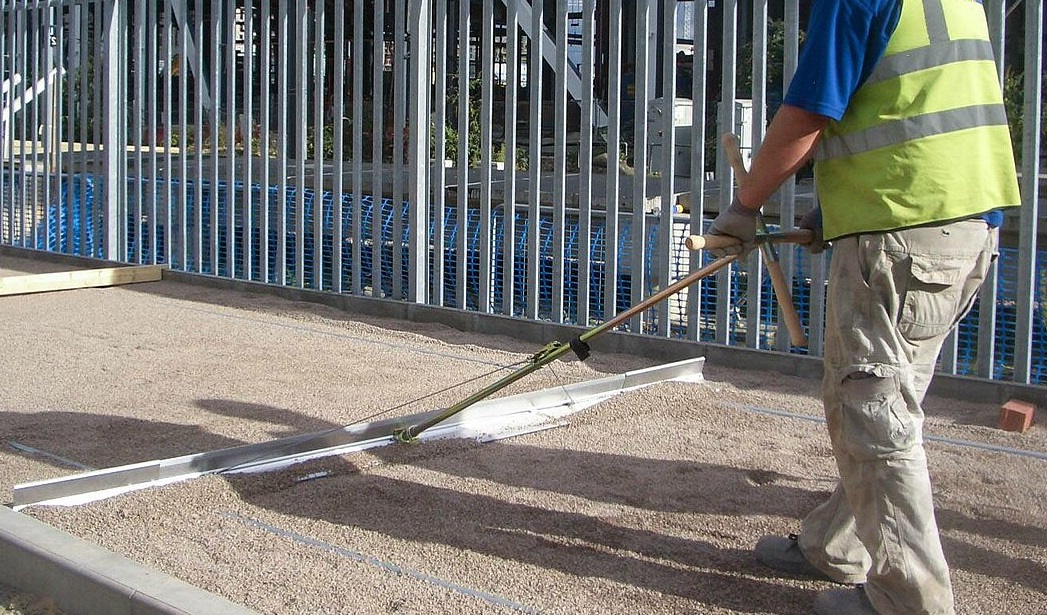

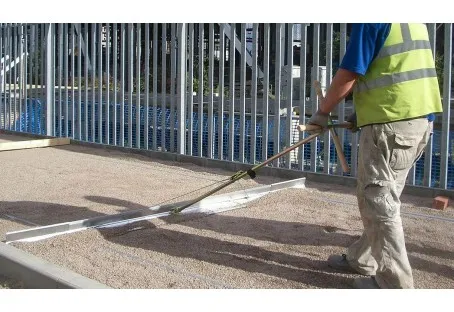

EP-UNI-Set 230/300 (51000041)

- 1 aluminium profile (2,300mm)

- 1 3-dimensional handle

- 2 telescopic extensions (350mm each)

Additional Features:

- Handles are removable for easy transport.

- Includes a special key for quick mounting of telescopic elements and roller units.

Optional Accessory

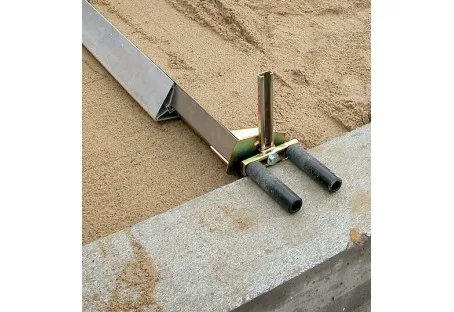

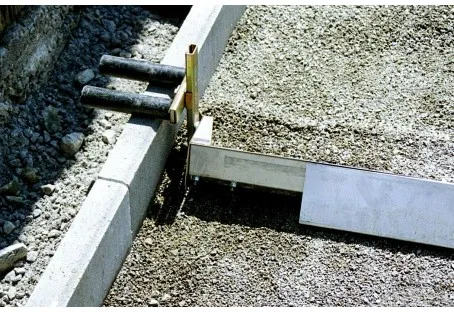

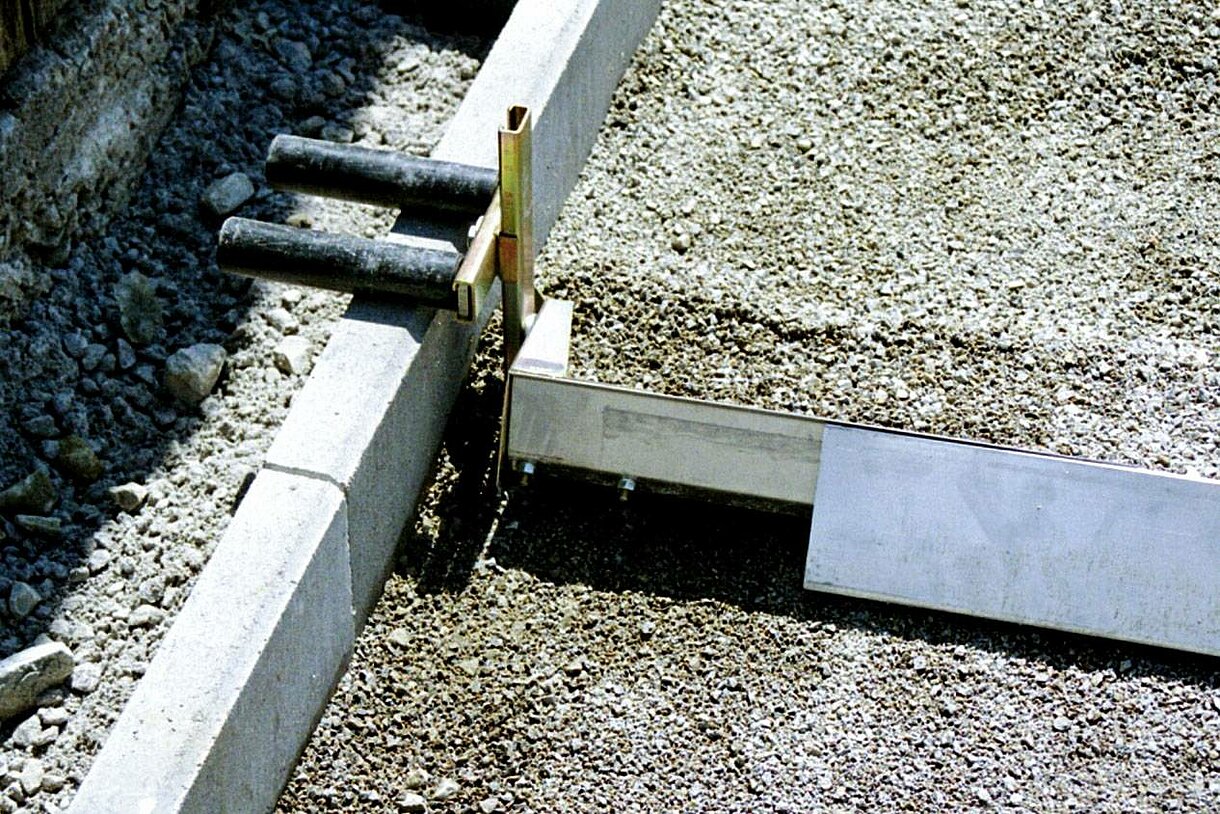

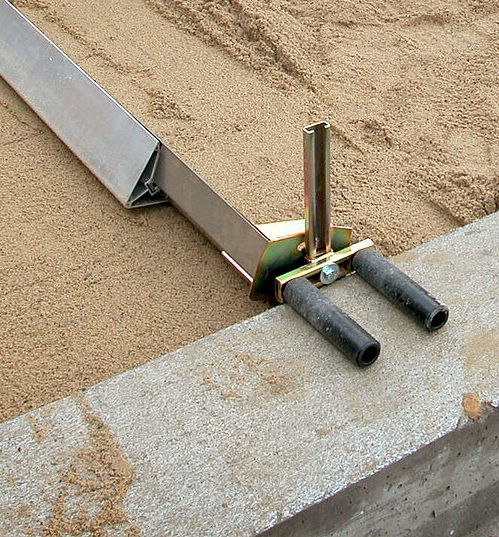

EP-UNI-RS Roller Units

Probst Part Number: 41000165

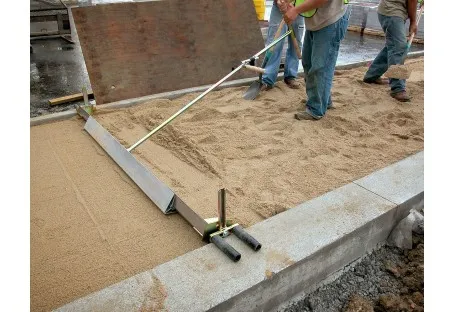

These height-adjustable roller units enable working heights to be taken from existing kerbstones, concrete pavers, or similar surfaces, eliminating the need for additional rail gauges.

Compatible with both EP-UNI-Set 90/230 and EP-UNI-Set 230/300.

Screeding Rail Kits

Lightweight screeding rail kits complement the Probst EP-UNI Hand Screeding System, ensuring effortless movement of the screeding blade along the rails for a consistently even finish.

Available Kits:

1. AZL-EP SET-13 (Probst Part Number: 5100089)

   • Total Length: 13m
   • Includes: 2 x 1.5m and 4 x 2.5m rails

2. AZL-EP SET-25 (Probst Part Number: 5100057)

   • Total Length: 25m
   • Includes: 2 x 1.5m, 4 x 2.5m, and 4 x 3.0m rails

Features:

• Corrosion-resistant galvanised finish
• Integrated plug-in connection for quick assembly

Benefits of Using the Screeding Rail Kit:

When paired with the Probst Easyplan EP Screeding System, the AZL-EP Screeding Rail Kits allow smooth gliding of the aluminium screeding board along the rails. This reduces physical strain and ensures a consistent level for concrete blocks or slabs.

FAQ's on the Probst Easyplan EP-UNI

1. What is a Probst screeder used for?
A Probst screeder like the EP-UNI is designed for precise levelling of materials such as sand, cement, and screed, making it ideal for preparing surfaces for block paving or slab laying.

2. How wide can the Probst EP-UNI screed?
The Probst Easy Screed system can screed widths of up to 3 metres, depending on the kit you choose.

3. Is the Probst screed easy to use?
Yes, the Probst EP-UNI is designed for one-person operation and features an ergonomic handle that reduces strain, allowing for quick and efficient screeding.

4. What are screeding rails and how do they work?
Screeding rails are used as guides for the screeding blade, ensuring a level surface. The Probst AZL-EP Screeding Rail Kit complements the EP-UNI system for even greater precision.

5. Can I use the Probst EP-UNI for large projects?
Yes, the Probst EP-UNI is versatile enough for small to medium-sized sites, making it ideal for projects like driveways, walkways, and car parks.

6. How does the Probst Easyplan EP-UNI save time?
Unlike traditional methods that require multiple workers, the Probst Easyplan system allows a single operator to complete screeding tasks efficiently, saving time and labour costs.
