Altrad Belle Megavib+ Handheld Poker Drive
Estimated lead time:1 to 3 Days
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Altrad Belle Megavib+ Handheld Poker Drive
Brand:
Capacity
110volt and 240 volt versions available
Motor Speed 16,000rpm unloaded - 12,000rpm loaded
Description

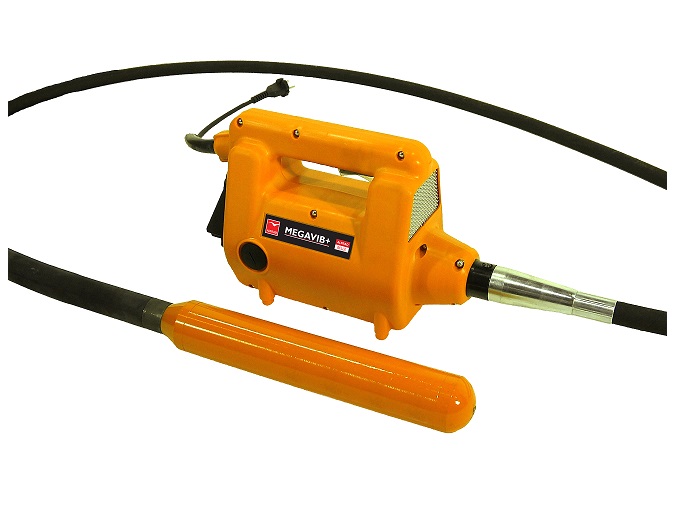

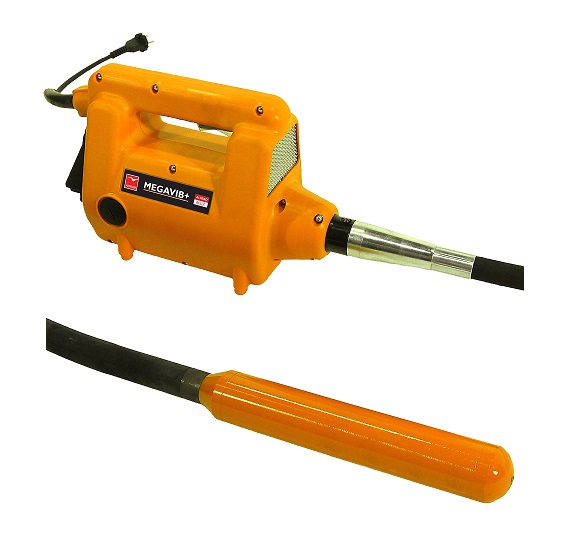

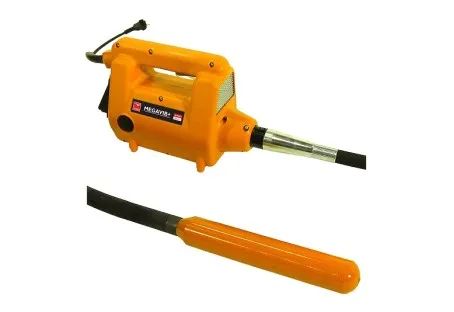

Altrad Belle Megavib+ Handheld Poker Drive unit is a compact high-frequency handheld vibrating poker system. Select from four interchangeable poker heads that allow the user to select the best size poker shaft for the application of air removal from concrete
Add to cart
Add to quoteRelated products

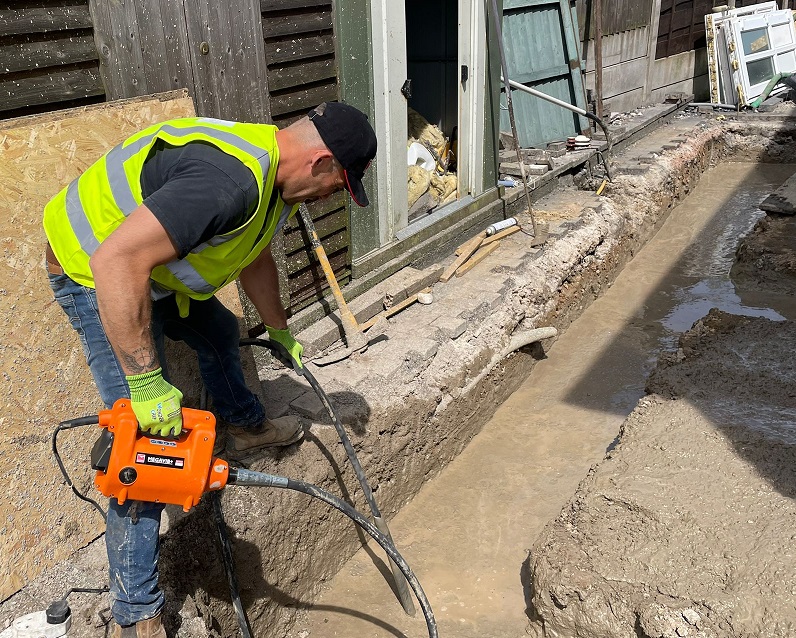

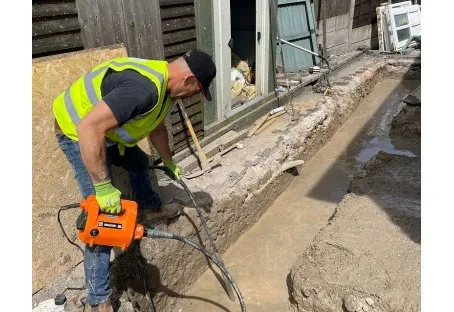

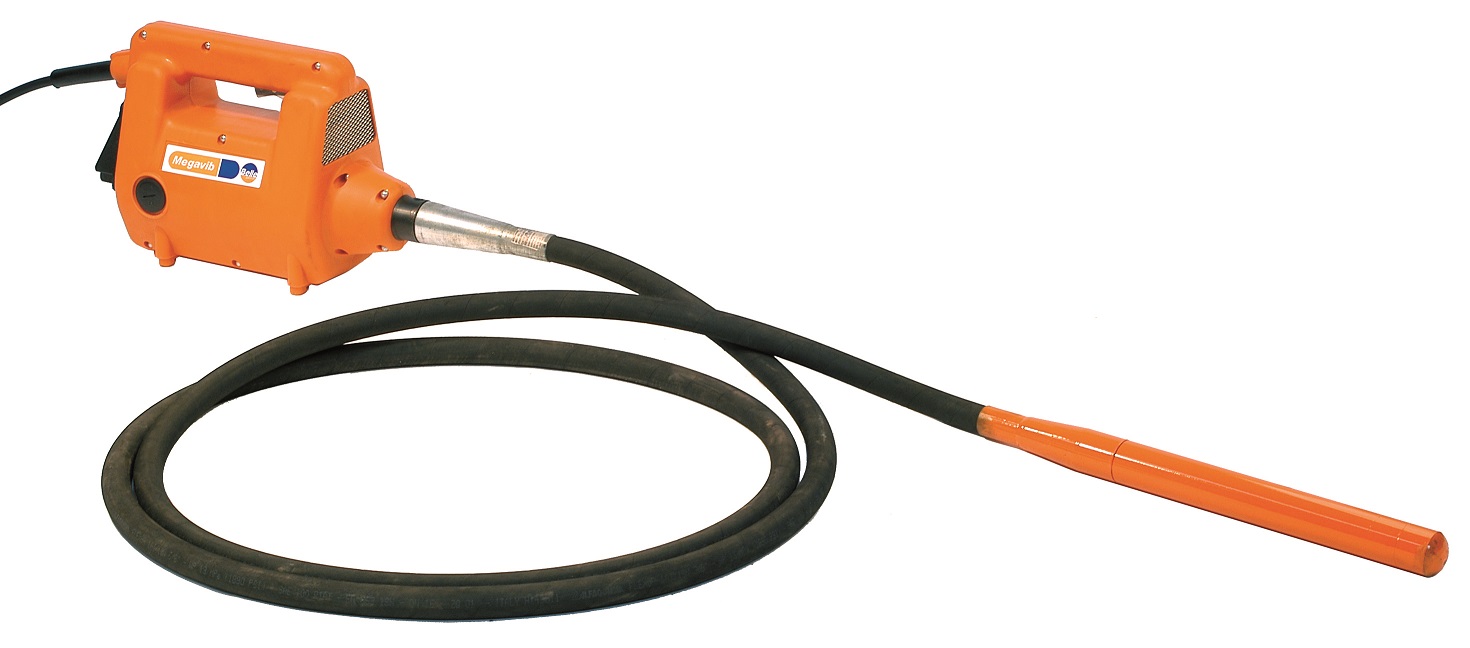

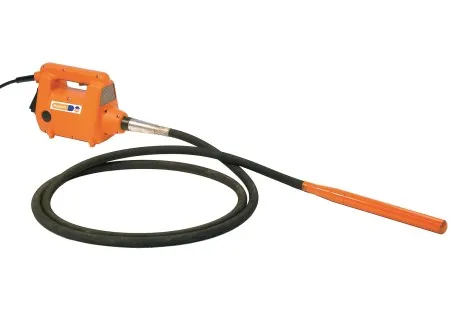

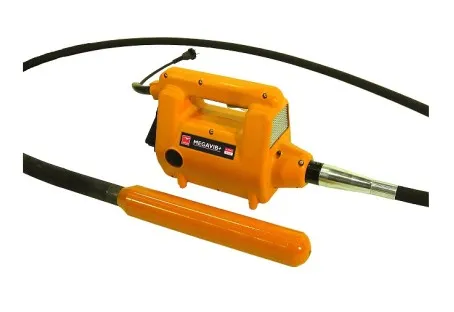

Altrad Belle Megavib+ Handheld Poker Drive Unit is a compact high-frequency handheld vibrating poker system. There are four interchangeable poker heads available that allow the user to select the best size concrete poker for the application of air removal from wet concrete, available in both 110-volt and 240-volt versions.

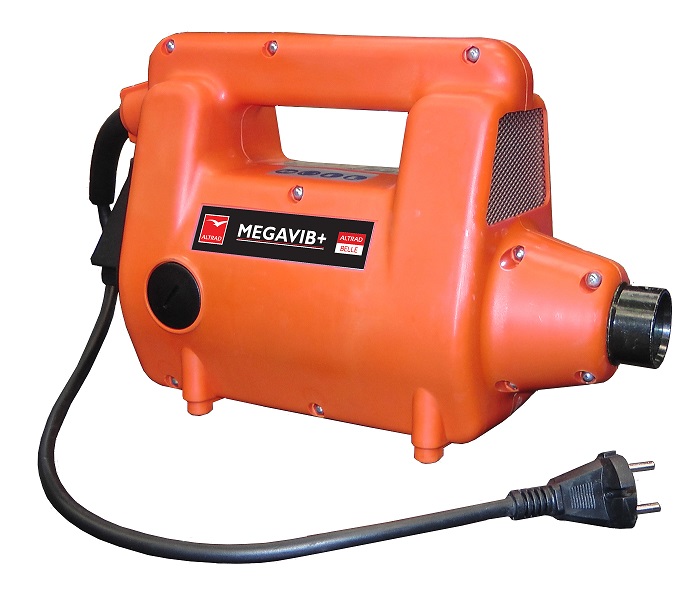

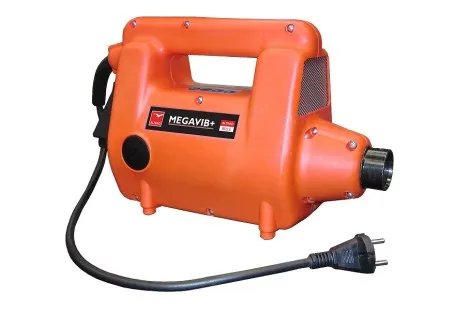

The lightweight and compact MEGAVIB+ Drive Unit is very compact in size making it easy to handle and supplied with a shoulder strap as standard. the drive unit is manufactured with a high-impact motor housing for high durability. Double-insulated for electrical and operator safety.
| Model | Belle Part No | Motor Speed Unloaded | Motor Speed Loaded | Power | Loading | Weight |
| Megavib+ Drive Unit - 110Volt | 244/00100 | 16,000 rpm | 12,000 rpm | 1.6 kW | 13 Amps | 4.8 Kg |
| Megavib+ Drive Unit - 240Volt | 244/00300 | 16,000 rpm | 12,000 rpm | 1.6 kW | 13 Amps | 4.8 Kg |
The Megavib+ Vibrating Poker Drive Unit is supplied with a female output shaft that is suitable for use with the Belle interchangeable MEGADIV+ Poker Heads
| Model | Belle Part No | Poker Dia | Head Length | Shaft Length | Frequency | Centrifugal Force | Weight |

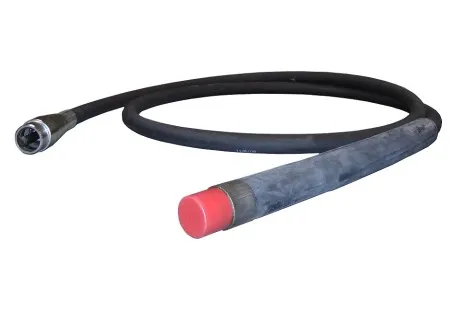

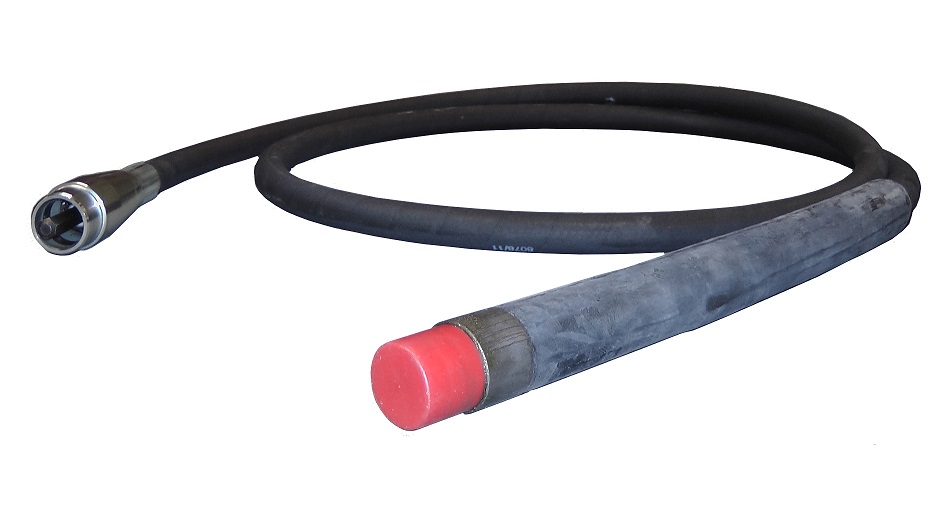

| Megavib+ Flexible Shaft - 3m | 244/00500 | -------- | -------- | 3m | -------- | -------- | 5.0Kg |
| Megavib+ Poker Head - 36mm | 244/00700 | 36mm Dia | 292mm | 3m | 217Hz | 4018N | 1.9Kg |
| Megavib+ Poker Head - 50mm | 244/00800 | 50mm Dia | 327mm | 3m | 200Hz | 5039N | 3.7Kg |
| Megavib+ Poker Head - 57mm | 244/00900 | 57mm Dia | 346mm | 3m | 192Hz | 648N | 5.0Kg |
Megavib+ Poker Head - 25mm Including 3m Shaft | 244/01100 | 25mm Dia | 300mm | 3m | 225Hz | 882N | 5.5Kg |
Altrad Belle Megavib+ Handheld Poker Drive Key Points
Lightweight and compact for ease of handling.
High-impact motor housing for high durability.
Double-insulated for electrical safety.
High-frequency vibration for productivity.
Interchangeable heads and shafts.
Comes complete with a shoulder strap.
Altrad Belle Megavib+ Handheld Poker Drive Key Points
Lightweight and compact for ease of handling.
High-impact motor housing for high durability.
Double-insulated for electrical safety.
High-frequency vibration for productivity.
Interchangeable heads and shafts.
Comes complete with a shoulder strap.
| Model | Belle Part No | Motor Speed Unloaded | Motor Speed Loaded | Power | Loading | Weight |
| Megavib+ Drive Unit - 110Volt | 244/00100 | 16,000 rpm | 12,000 rpm | 1.6 kW | 13 Amps | 4.8 Kg |
| Megavib+ Drive Unit - 240Volt | 244/00300 | 16,000 rpm | 12,000 rpm | 1.6 kW | 13 Amps | 4.8 Kg |
The Megavib+ Vibrating Poker Drive Unit is supplied with a female output shaft that is suitable for use with the Belle interchangeable MEGADIV+ Poker Heads
| Model | Belle Part No | Poker Dia | Head Length | Shaft Length | Frequency | Centrifugal Force | Weight |
| Megavib+ Flexible Shaft - 3m | 244/00500 | -------- | -------- | 3m | -------- | -------- | 5.0Kg |
| Megavib+ Poker Head - 36mm | 244/00700 | 36mm Dia | 292mm | 3m | 217Hz | 4018N | 1.9Kg |
| Megavib+ Poker Head - 50mm | 244/00800 | 50mm Dia | 327mm | 3m | 200Hz | 5039N | 3.7Kg |
| Megavib+ Poker Head - 57mm | 244/00900 | 57mm Dia | 346mm | 3m | 192Hz | 648N | 5.0Kg |
Megavib+ Poker Head - 25mm Including 3m Shaft | 244/01100 | 25mm Dia | 300mm | 3m | 225Hz | 882N | 5.5Kg |
