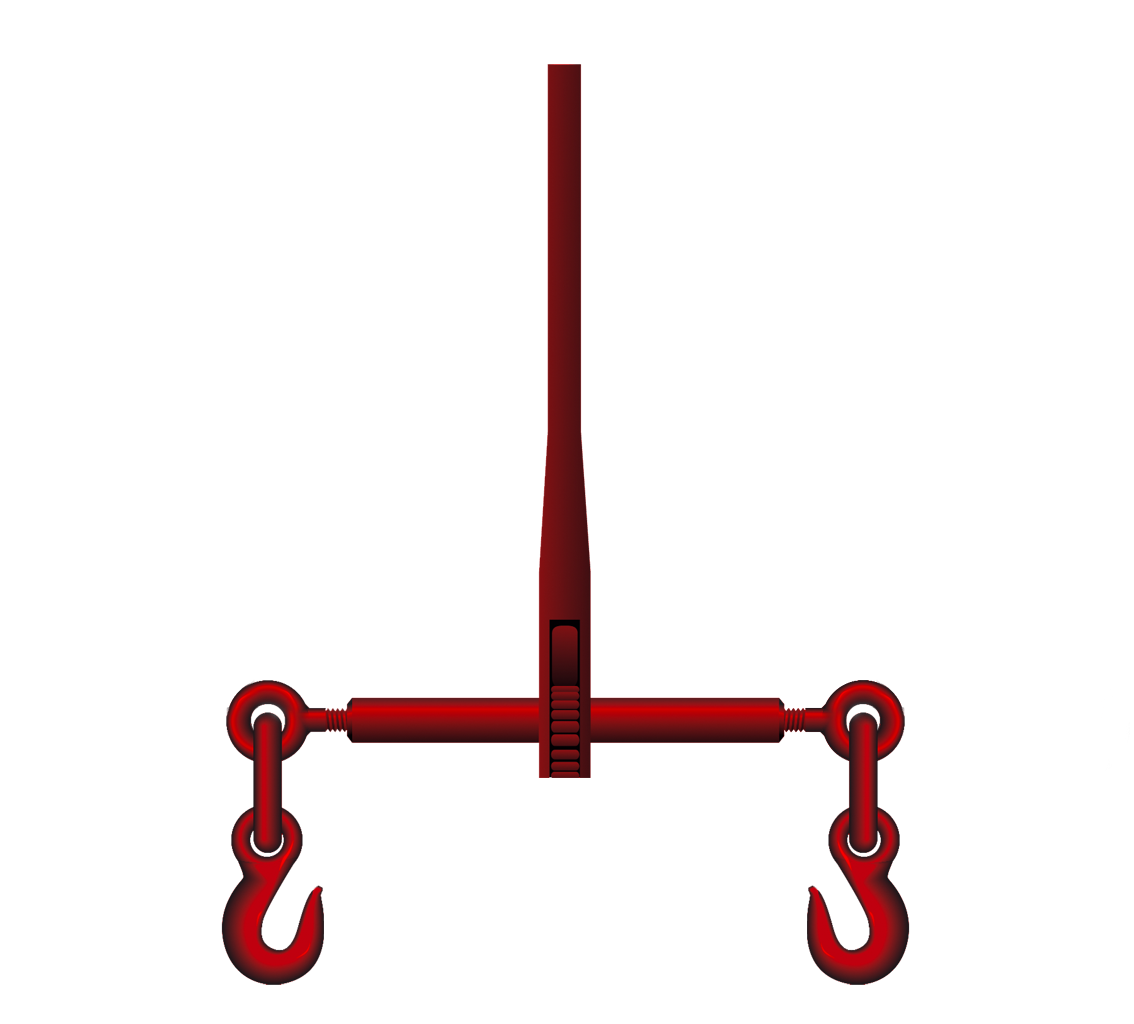

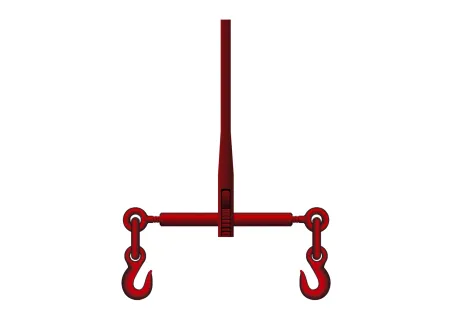

Ratchet Load Binder with Grab Hooks
Key notes for ordering:
supplied with certification
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Ratchet Load Binder with Grab Hooks
Brand:
Capacity
Lashing Capacity 2,450Kgs up to 5,900Kgs
(2.45 tone up to 5.9 tonne)
Description
Ratchet Load Binder with Grab Hooks that are used to tension lashing chains on trailers and low loaders. matching chain sets available from ULS Lifting. Once under tension, these load binders with hook ends will not unscrew meaning your valuable load is secure for the full trip
Add to cart
Add to quoteRelated products
Lashing Chains with Hook Ends
LS1L
Lashing Chains with Hook Ends are perfect when transporting heavy and bulky loads such as diggers, JCBs, Machinery, and steel plate & sections. Our lashing chains can be assembled to suit your requirements, choose your capacity, choose your length, and choose your style of hooks - All slings come with certification.
£11.45 ex VAT
£13.74 inc VAT
Ratchet Load Binder with Grab Hooks that are used to tension lashing chains on trailers and low loaders. matching chain sets available from ULS Lifting. Once under tension, these load binders with hook ends will not unscrew meaning your valuable load is secure for the full trip, perfect when securing heavy and bulky loads.

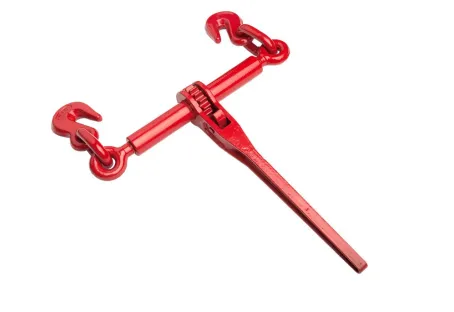

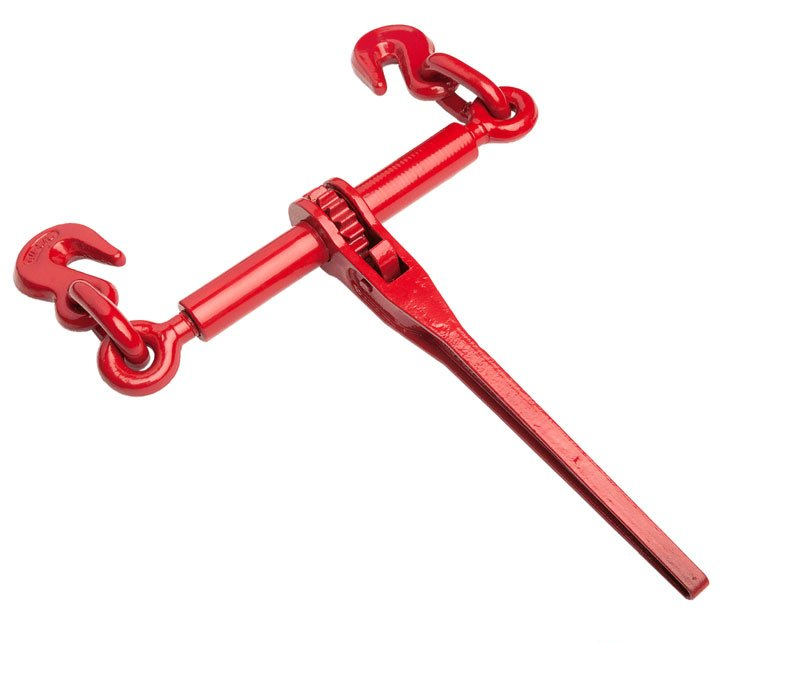

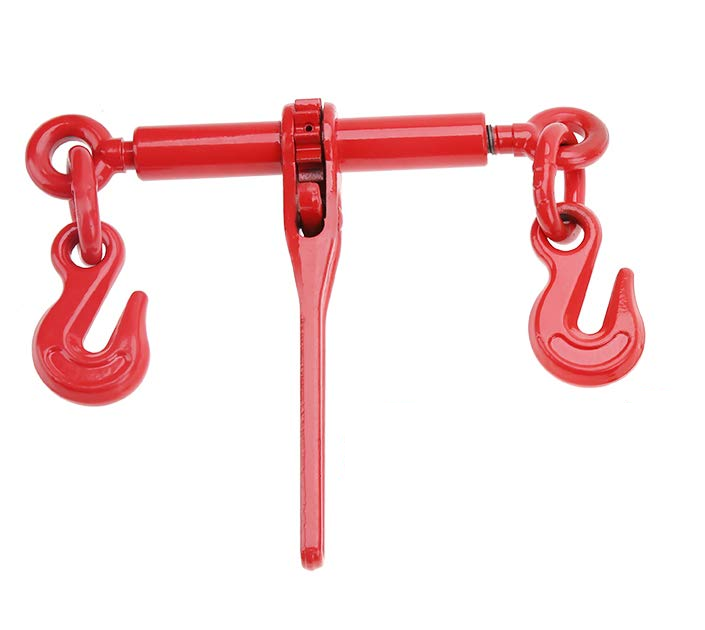

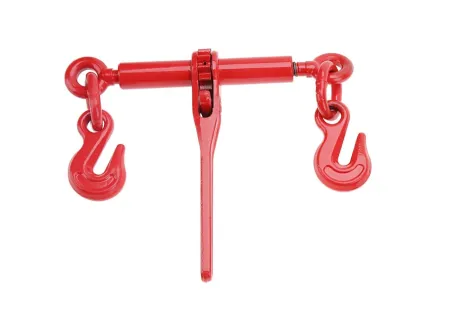

Manufactured from cast/ forged steel gives high strength and comes painted to help protect against the elements. The ratchet mechanism and long handle aid the operator to tighten the lashing chains with ease effortlessly in increments giving the confidence that the correct tension is applied and in turn making sure the load is secure. the chain hooks or grab hooks fitted are designed to hold between individual links of the chain, so care should be taken when orders load binders to make sure the correct ones are selected to suit the chains.
| Model | To suit Chain Size | Lashing Capacity | Min Break Load | Weight |
| RLB8-10 | 8 & 10mm | 2,450Kgs | 8,575Kgs | 4Kg |
| RLB10-13 | 10 & 13mm | 4,175Kgs | 14,700Kgs | 5Kgs |
| RLB13-16 | 13 & 16mm | 5,900Kgs | 20,650Kgs | 8Kgs |
We can also offer the Chain hooks with Locking pins rated to EN12195 - Please see the alternative page.
| Model | To suit Chain Size | Lashing Capacity | Min Break Load | Weight |
| RLB8-10 | 8 & 10mm | 2,450Kgs | 8,575Kgs | 4Kg |
| RLB10-13 | 10 & 13mm | 4,175Kgs | 14,700Kgs | 5Kgs |
| RLB13-16 | 13 & 16mm | 5,900Kgs | 20,650Kgs | 8Kgs |
We can also offer the Chain hooks with Locking pins rated to EN12195 - Please see the alternative page.
useful information on the Inspection and servicing and testing of Ratchet Load Binder with Grab Hooks
On receiving your unused chains - Ensure that:
The load binders corresponds exactly to the order;
The inspection certificate or certificate of conformity has been supplied and is correct
Before using your Lashing Chains:
Inspect loadbinders for any visible damage or signs of wear - In case of doubt or damage do not use the lashing chains and have them inspected by a competent person.
Periodic thorough examinations:
Loadbinders - to be examined by a competent person according to national regulations, at least every 12 months. But depending on use this period can be shorter; e.g. frequent and rough usage.
After unusual events, that could cause impairment to the load binders, they must be checked by a competent person (e.g. after exposure to uncontrolled heat, emergency braking, etc).
More products from category:
Recovery & Restraints
50mm Ratchet Strap Claw Hook MBF5000daN/LC2000daN
LKRLB
50mm Ratchet Strap Claw Hook MBF5000daN/LC2000daN is a two-part Ratchet Strap system c/w standard Claw Hook ends used for lashing down all types of loads to vehicles or trailers. These tie-down straps are the most commonly used and available in lengths starting from 3m. Please see the drop-down menu for sizes available.
£6.29 ex VAT
£7.55 inc VAT
50mm Ratchet Strap Claw Hook MBF5000daN/LC2500daN
LKRL
50mm Ratchet Strap Claw Hook MBF5000daN/LC2500daN supplied as a two-part Ratchet Strap system c/w Claw Hooks. Commonly used for lashing down all types of loads to vehicles or trailers. Supplied with a larger Lashing capacity of 2500Kgs which is more than strong enough to hold most equipment securely.
£6.75 ex VAT
£8.10 inc VAT

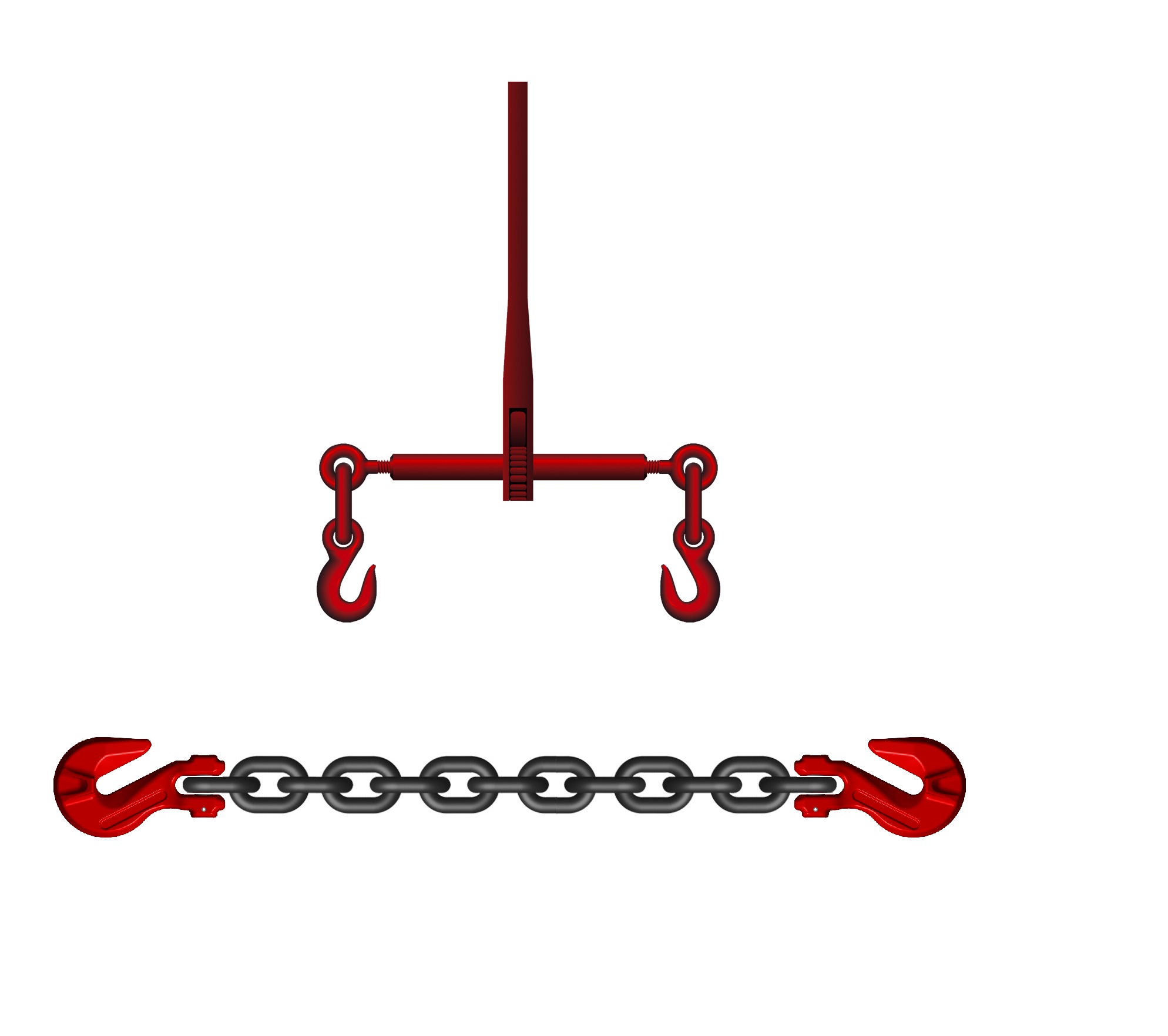

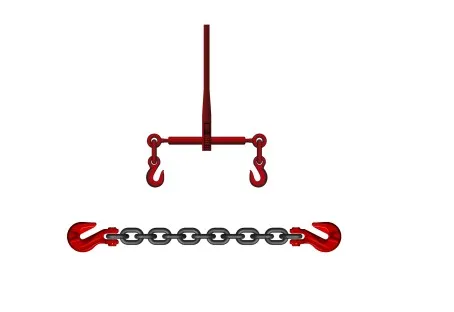

Lashing Chain Kits c/w both chain and loadbinders
