Winches & Pulleys

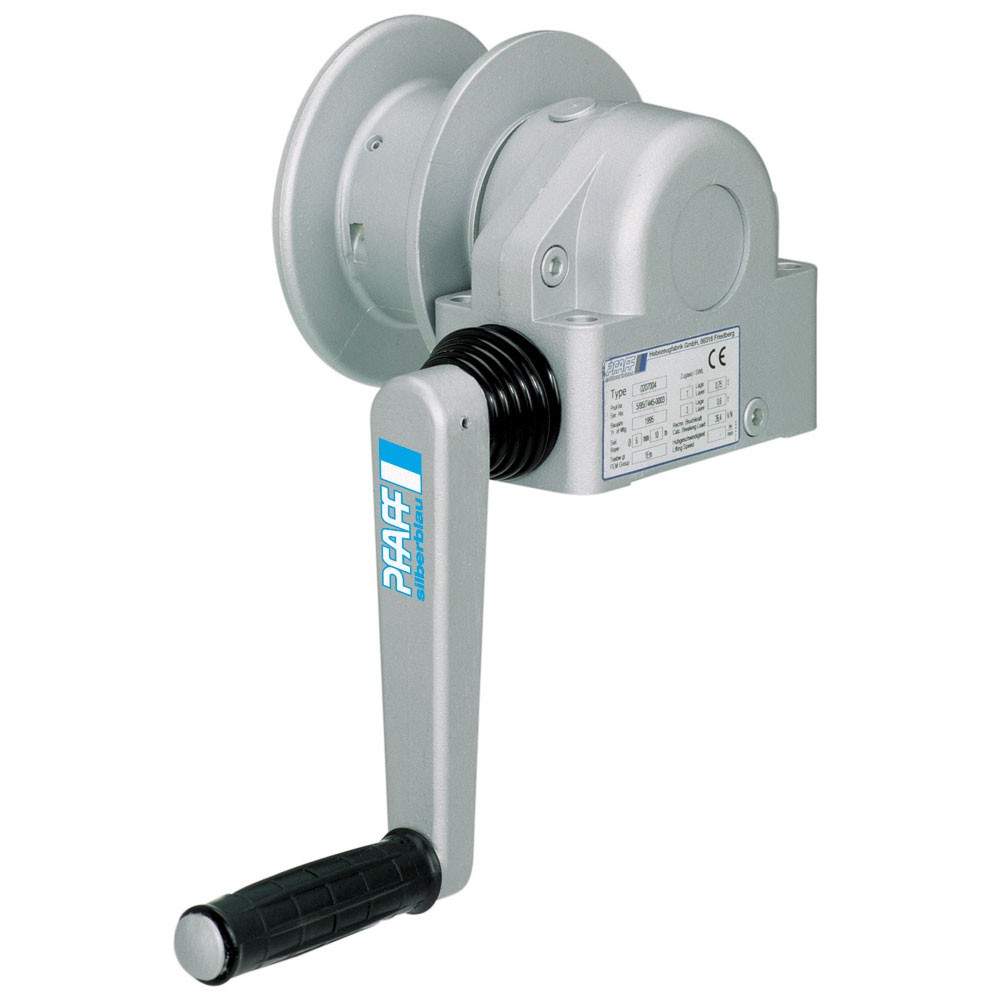

What Is A Winch?

A winch is a mechanical device designed to pull in (wind up) or let out (wind out) a heavy object. It typically consists of a drum or spool around which the cable or rope is wound, a motor or manual crank that provides the power to turn the drum, a gear train that transmits power from the motor or crank to the drum while providing mechanical advantage, a cable or rope that attaches to the load, and a brake system that prevents the drum from unwinding uncontrollably when power is not being applied. Winches can vary in their power sources and applications, with some common types being the 240-volt winch, 240-volt electric winch, and 240-volt winch with remote, which are often used for various heavy-duty tasks.

How Does A Winch Work?

When activated, the winch's power source (which can be an electric motor, hydraulic motor, or manual crank) turns the drum. As the drum turns, the cable or rope winds in or lets out, pulling the attached load towards the winch if winding in. The gear reduction in the winch reduces the speed of the motor and increases the torque, allowing the winch to pull heavier loads with less effort. A brake mechanism ensures the load remains stationary when the winch is not actively pulling or releasing. In specific applications, such as a boat trailer winch or a trailer winch, these winches help in loading and unloading boats or other heavy equipment. There are also specialized winches like the boat winch and hoist winch that serve particular functions, as well as smaller models such as the small electric winch 240v.

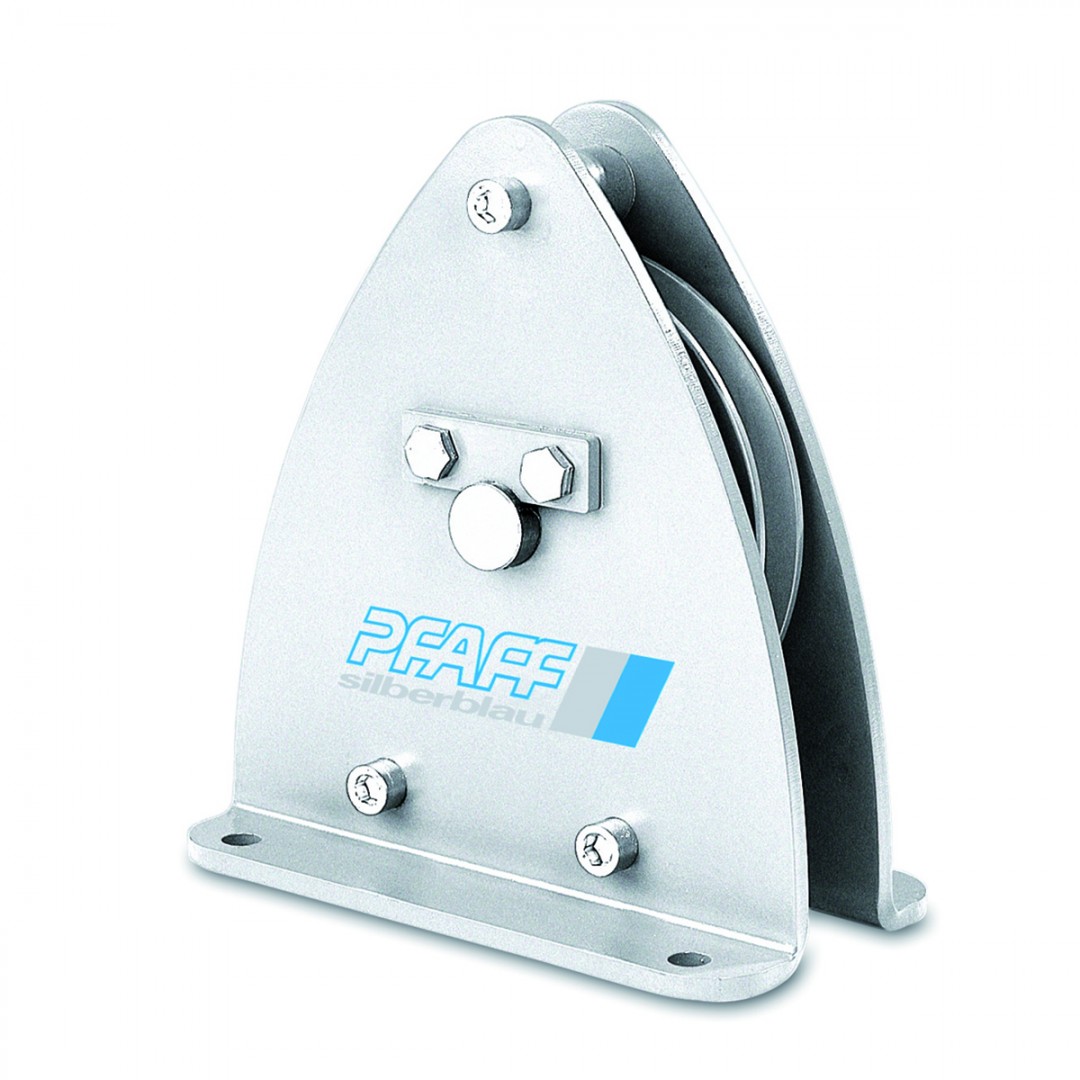

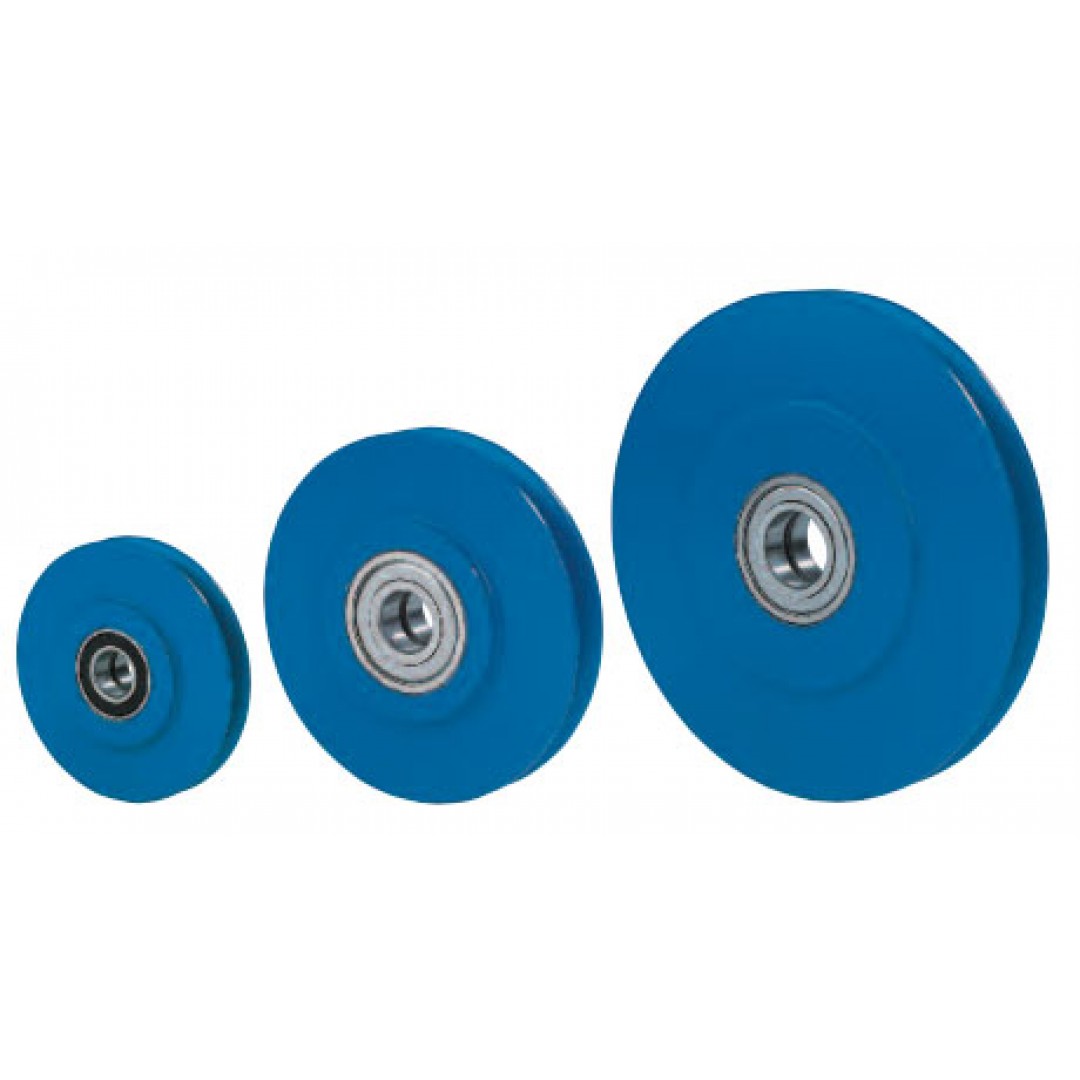

What Is A Pulley?

A pulley, on the other hand, is a simple mechanical device that changes the direction and point of application of a force, making it easier to lift heavy objects. It consists of a wheel on an axle or shaft that supports movement and changes the direction of a taut cable or belt. There are different types of pulleys: fixed pulleys, movable pulleys, and compound pulleys. Pulleys are often used in conjunction with winches in systems known as winches and pulleys, where they work together to provide enhanced mechanical advantage.

How Does A Pulley Work?

A fixed pulley has its wheel anchored in one spot and changes the direction of the force needed to lift a load, but it does not reduce the amount of force needed. A movable pulley moves with the load and reduces the amount of force needed to lift the load by distributing the weight between the two segments of the rope. A compound pulley combines both fixed and movable pulleys, significantly reducing the force needed to lift a load by using multiple wheels and ropes, thus providing a greater mechanical advantage. This system can be seen in winch lift setups where the pulley aids in lifting and positioning loads efficiently.
