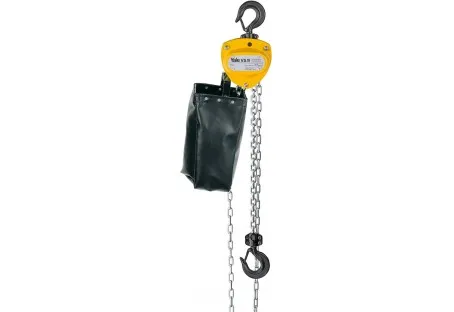

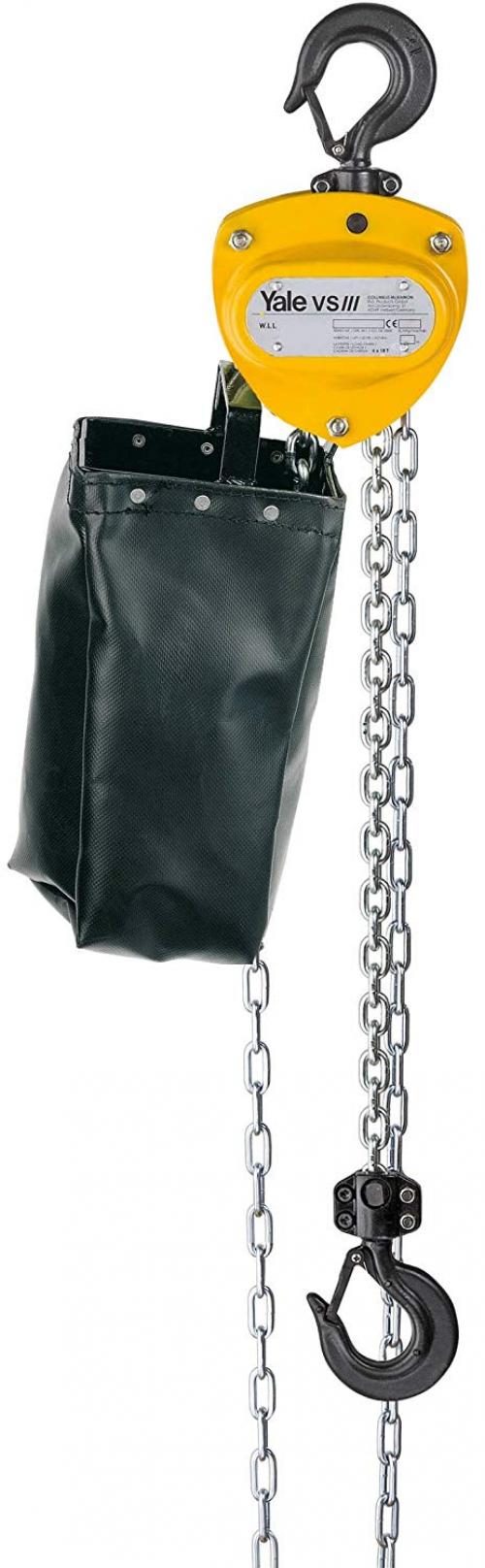

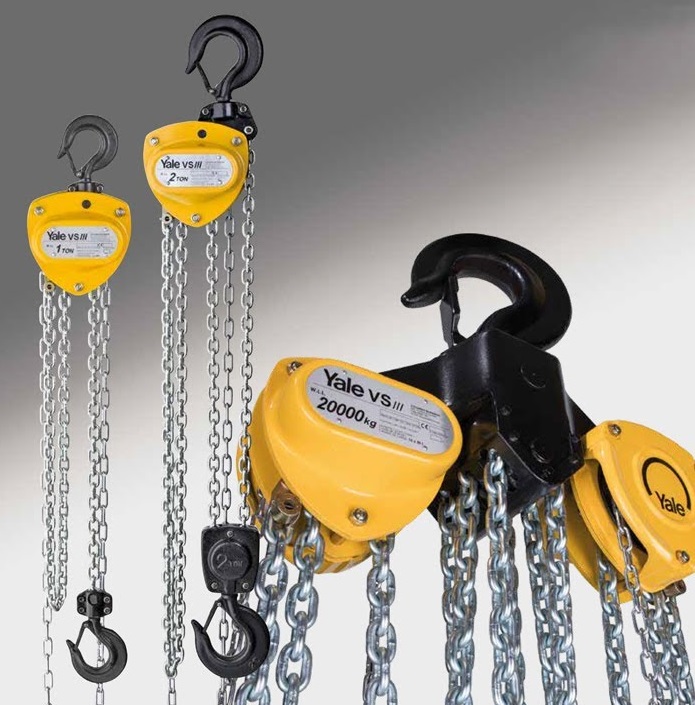

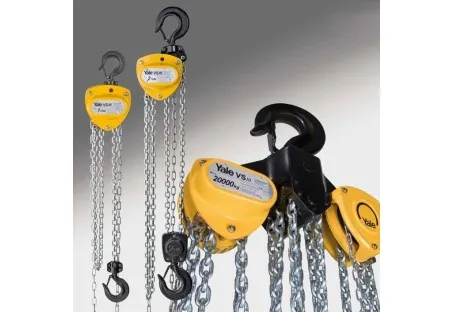

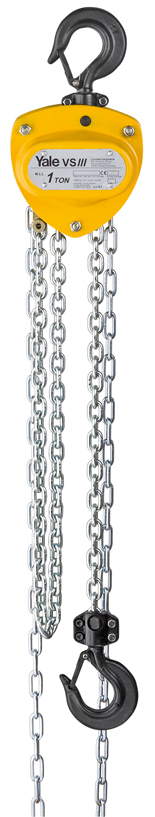

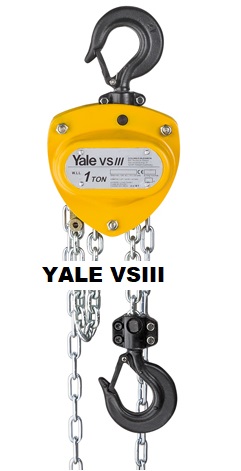

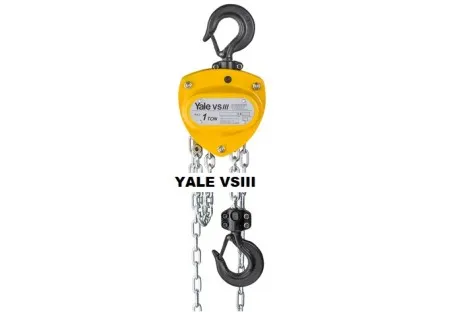

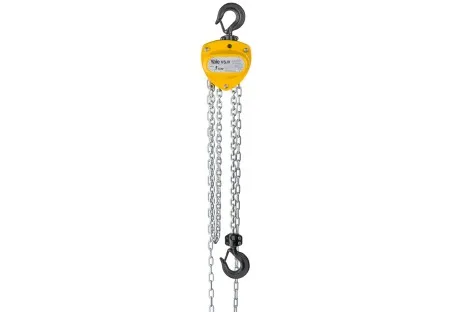

VSIII Yale Manual Hand Chain Hoist
Key notes for ordering:
Supplied tested with certification - Ready to use from the box. Prices start at 3m HOL c/w 2.5m drop hand chain. As you add additional load chain, the hand chain will increase ( calculated never to be in contact floor. Price excludes Chain Container.
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
VSIII Yale Manual Hand Chain Hoist
Capacity
Capacities 250Kgs up to 50,000Kgs
(0.25 tonne - 50 tonne)
Description
£167.32 ex VAT
£114.98 ex VAT
£137.98 inc VAT
1 - Overload protection
2 - Spares parts (e.g. safety catch kits)"
3 - Chain Containers for VSIII 10.0/4, VSIII 20.0/8, VSIII 30.0/12 or VSIII 50.0/18.
Related products
FJC
250Kgs SWL Free Standing Jib Crane - Over Braced version is supplied in a simple two-part crane kit that is lightweight in design that is easy installation and supplied in a simple two-part kit form. The slewing arm which the hoist will attach to, and the upright column that the swing arm fits to. Both the arm and pillar can be manufactured to any length between 2m and 6m and the arm is designed to slew through 270° giving a very wide working area.
£1,218.98 ex VAT
£1,462.78 inc VAT
FJC
500Kgs SWL Free Standing Jib Crane - Over Braced version is supplied fully tested and certified. Fast delivery is available, Can be manufactured in any size, with an arm length of 2m - 6m and column height of 2m - 6m. Slew 270°. Lightweight in design and supplied in a simple two-part kit form for easy installation.
£1,878.98 ex VAT
£2,254.78 inc VAT
CMJC
80Kgs SWL Column Mounted Jib Cranes - Over Braced versions that are manufactured in the UK. Also known as a clamp around the Jib crane as the supporting brackets can be attached to any suitable building column/stanchion or pillar.
£498.98 ex VAT
£598.78 inc VAT
CMJC-GALV
£1,098.98 ex VAT
£1,318.78 inc VAT
CMJC
250Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.
£594.98 ex VAT
£713.98 inc VAT
CMJC
1,000Kgs SWL Column Mounted Jib Cranes - Over Braced versions are UK Manufactured. These Clamp Around I-Beam mounted Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. The Jib arm can be manufactured to any length between 2m and 6m and the arm is designed to slew through 180° giving a very wide working area.
£1,244.98 ex VAT
£1,493.98 inc VAT
WMJC
80Kgs SWL Wall Mounted Jib Cranes commonly called Face Fixed Jib Cranes are all manufactured in the UK. These Wall Mountable Jib Cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall within your building
£498.98 ex VAT
£598.78 inc VAT
WMJC
125Kgs SWL Wall Mounted Jib Cranes are quality UK manufactured Wall Mountable Jib Cranes. Available at any length of swing arm from 2m to 6m Long. With a large slewing angle of 180°. Also known as a Face Fixed fixed Jib Cranes. The 80Kg Wall Mounted Jib Crane is ideal for fixing directly onto a load-bearing wall or similar flat surface.
£529.98 ex VAT
£635.98 inc VAT
WMJC
250Kgs SWL Wall Mounted Jib Cranes are UK Manufactured. Internet best prices and supplied fully tested and certified to move loads up to 250 Kgs SWL. Jib Arm length 2m to 6m long available. Slew 180°.
£594.98 ex VAT
£713.98 inc VAT
WMJC
UK Manufactured 500Kgs SWL Wall Mounted Jib Cranes supplied fully certified and tested. Arm length is available from 2m up to 6m Long with a large Slewing angle of 180°. All our Wall mountable Jib cranes, also known as Face fixed Jib Cranes are ideal if you are looking for a Jib Crane that can be bolted or welded securely to an existing wall or pillar
£684.98 ex VAT
£821.98 inc VAT
WMJC
1,000Kgs SWL Wall Mounted Jib Cranes, Manufactured in the UK. These Quality Wall Mountable Jib Cranes can be supplied with any arm length from 2m to 6m with a Slewing angle of 180°. Bespoke options are available on request.
£1,244.98 ex VAT
£1,493.98 inc VAT
UNOplus-A
£198.14 ex VAT
£159.98 ex VAT
£191.98 inc VAT
YL
£234.51 ex VAT
£168.68 ex VAT
£202.42 inc VAT
YC
Yale YC Standard Beam Clamps provide a quick and versatile rigging point to attach most hoisting equipment such as chain hoists, lever hoists, pulley blocks, etc to structural steelwork
£59.98 ex VAT
£71.98 inc VAT
HTP
The Yale HTP Manual Push Travel Trolley offers a means of moving a load suspended on a structural section ("I" Beam).
£74.95 ex VAT
£89.94 inc VAT
HTG
£139.98 ex VAT
£167.98 inc VAT
FJC
£998.98 ex VAT
£1,198.78 inc VAT
FJC
1,000Kgs SWL Free Standing Jib Crane - Over Braced version is supplied fully certified and tested. Available with fast delivery is available, Can be manufactured in any size, with an arm length of 2m - 6m and column height of 2m - 6m. Slew 270°.
£2,659.98 ex VAT
£3,191.98 inc VAT
Xona Blue CB
£73.98 ex VAT
£88.78 inc VAT
Xona Black CB
£73.98 ex VAT
£88.78 inc VAT
HTP
The Yale HTP Manual Push Travel Trolley is suitable for wider Crane Beams, "I" Beams, and Structural Sections and offers a means of moving a load suspended on a steel section. SWL 500Kgs - 5,000Kgs.
£88.89 ex VAT
£106.67 inc VAT
HTG
£157.98 ex VAT
£189.58 inc VAT
CMJC-GALV
£1,048.88 ex VAT
£1,258.66 inc VAT
CMJC
125Kgs SWL Column Mounted Jib Cranes - Over Braced versions are manufactured in the UK. These column Jib cranes are ideal if you are looking for a crane suspended securely from an existing column, pillar, or stanchion within your building. Supplied in a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will clamp around the pillar or column.
£529.98 ex VAT
£635.98 inc VAT
CMJC-GALV
£1,148.98 ex VAT
£1,378.78 inc VAT
CMJC-GALV
£1,248.48 ex VAT
£1,498.18 inc VAT
CMJC-GALV
£1,888.88 ex VAT
£2,266.66 inc VAT
WMJC-GALV
80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.
£988.98 ex VAT
£1,186.78 inc VAT
WMJC-GALV
1000Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.
£1,748.98 ex VAT
£2,098.78 inc VAT
WMJC - Galv
125Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.
£998.98 ex VAT
£1,198.78 inc VAT
WMJC-GALV
80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.
£1,088.48 ex VAT
£1,306.18 inc VAT
WMJC-GALV
80Kgs SWL Wall Mounted Jib Crane Galvanised Finish for Outdoor Usage can also be used indoors in areas that will be subjected to any type of moisture. the Swing Arm can be made to any length from 2m to 6m. All Galvanised Wall or Face Fixed Jib Cranes are manufactured in the UK.
£1,198.98 ex VAT
£1,438.78 inc VAT
SRS
The Scaffold Runway System is a quality modular system that simply bolts onto standard scaffold tubing to create a safe lightweight crane system for lifting and lowering goods to the desired location.
£164.98 ex VAT
£197.98 inc VAT
UBFJC
250Kgs SWL Free Standing Jib Crane - Under Braced design are manufactured in the UK and supplied certified. Ideal for factories or tool rooms with low ceilings. Both the arm and column can be manufactured to any length between 2m-6m with 270° Slew to give a very wide working area.
£1,298.98 ex VAT
£1,558.78 inc VAT
UBFJC
ULS Lifting Solutions is pleased to offer our UK-manufactured, fully certified range of 500kg SWL Free Standing Jib Cranes with an under-braced design and a wide 270° slewing angle. All under-braced, floor-mounted Jib Cranes are made to order.
£1,588.98 ex VAT
£1,906.78 inc VAT
UBFJC
1000Kgs SWL Free Standing Jib Crane - Under Braced is supplied fully certified and ready for installation onto a suitable floor base. Manufactured in the UK to the customer's specification, yet our delivery times are only a few weeks from design through manufacturer to delivery.
£2,224.98 ex VAT
£2,669.98 inc VAT
UBFJC
125Kgs SWL Free Standing Jib Crane - Under Braced version is manufactured in the UK, supplied fully certified, and designed for areas of low height. Both the arm and column can be manufactured to any length between 2m-6m with a slew angle of 270° giving a very wide working area.
£1,228.98 ex VAT
£1,474.78 inc VAT
UBCMJC
125Kgs SWL Column Mounted Jib Cranes - Under-Braced version, manufactured in UK and can be made to bespoke dimensions. Under-braced Jib Cranes are Ideal for use in a factory that needs a Jib crane to be bolted or welded to structural steelwork, pillars, or stanchions.
£898.98 ex VAT
£1,078.78 inc VAT
UBCMJC
250Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed purposely for low-height situations. Jib Arm can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£998.98 ex VAT
£1,198.78 inc VAT
UBCMJC
UK Manufactured 500Kgs SWL Column Mounted Jib Cranes - Under-Braced style designed for low height factory situations. Jib Arms can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£1,019.98 ex VAT
£1,223.98 inc VAT
UBCMJC
1000Kgs SWL Column Mounted Jib Cranes - Under-Braced style. Manufactured in the UK. Designed for height-restricted areas. Jib Arm can be manufactured to any length between 2m-6m and slew through 180° giving a very wide working area.
£1,024.98 ex VAT
£1,229.98 inc VAT
UBCMJC
80Kgs SWL Column Mounted Jib Cranes - Under-Braced. Manufactured in the UK. Designed for low-height situations or use with an electric hoist and powered trolley. Jib Arm can be supplied to any length between 2m-6m and slew through 180° giving a very wide working area.
£848.98 ex VAT
£1,018.78 inc VAT
HSZ-L - VCB
£69.98 ex VAT
£83.98 inc VAT
VLH
£66.98 ex VAT
£80.38 inc VAT
Model | Capacity WLL / SWL | Falls of Load Chain | Lifting Height | Closed Height | Weight @ 3m HOL |
VSIII 0.25/1 | 250Kgs | 1 Fall | 3m | 290mm | 3.90Kgs |
VSIII 0.50/1 | 500Kgs | 1 Fall | 3m | 350mm | 9.00Kgs |
VSIII 1.00/1 | 1,000Kgs | 1 Fall | 3m | 380mm | 11.5Kgs |
VSIII 2.00/1 | 2,000Kgs | 1 Fall | 3m | 460mm | 19.0Kgs |
VSIII 2.00/2 | 2,000Kgs | 2 Fall | 3m | 490mm | 17.3Kgs |
VSIII 3.00/1 | 3,000Kgs | 1 Fall | 3m | 570mm | 31.0Kgs |
VSIII 3.00/2 | 3,000Kgs | 2 Fall | 3m | 580mm | 27.0Kgs |
VSIII 5.00/2 | 5,000Kgs | 2 Fall | 3m | 700mm | 43.0Kgs |
VSIII 10.0/4 | 10,000Kgs | 4 Fall | 3m | 860mm | 78.5Kgs |
VSIII 20.0/8 | 20,000Kgs | 8 Fall | 3m | 950mm | 197Kgs |
VSIII 30.0/12 | 30,000Kgs | 12 Fall | 3m | 1112mm | 268Kgs |
VSIII 50.0/18 | 50,000Kgs | 18 Fall | 3m | 1700mm | 540Kgs |
- Strong bolts between side plates and housing cover and the reinforced hand wheel cover ensure increased stability.
- Precision machined guide rollers ensure smooth running of the load chain.
- High quality bearings for gearbox, side plates and load chain sheave permit a long service life.
- Zinc-plated and yellow-chromated brake parts and guide rollers ensure increased corrosion protection.
- Zinc-plated load chain as standard for added corrosion protection.
Model | Capacity WLL / SWL | Falls of Load Chain | Lifting Height | Closed Height | Weight @ 3m HOL |
VSIII 0.25/1 | 250Kgs | 1 Fall | 3m | 290mm | 3.90Kgs |
VSIII 0.50/1 | 500Kgs | 1 Fall | 3m | 350mm | 9.00Kgs |
VSIII 1.00/1 | 1,000Kgs | 1 Fall | 3m | 380mm | 11.5Kgs |
VSIII 2.00/1 | 2,000Kgs | 1 Fall | 3m | 460mm | 19.0Kgs |
VSIII 2.00/2 | 2,000Kgs | 2 Fall | 3m | 490mm | 17.3Kgs |
VSIII 3.00/1 | 3,000Kgs | 1 Fall | 3m | 570mm | 31.0Kgs |
VSIII 3.00/2 | 3,000Kgs | 2 Fall | 3m | 580mm | 27.0Kgs |
VSIII 5.00/2 | 5,000Kgs | 2 Fall | 3m | 700mm | 43.0Kgs |
VSIII 10.0/4 | 10,000Kgs | 4 Fall | 3m | 860mm | 78.5Kgs |
VSIII 20.0/8 | 20,000Kgs | 8 Fall | 3m | 950mm | 197Kgs |
VSIII 30.0/12 | 30,000Kgs | 12 Fall | 3m | 1112mm | 268Kgs |
VSIII 50.0/18 | 50,000Kgs | 18 Fall | 3m | 1700mm | 540Kgs |
- According to national and international accident prevention and safety regulations hoisting equipment must be inspected:
- in accordance with the risk assessment of the operating company
- prior to initial operation
- before the unit is put into service again following a shut down
- after substantial changes
- however, at least once per year, by a competent person.
