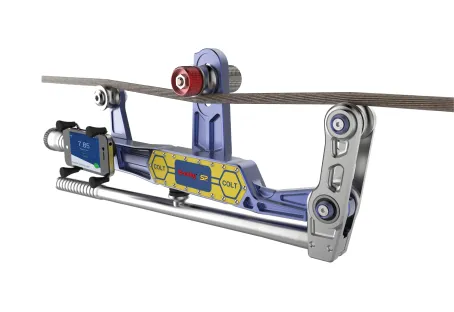

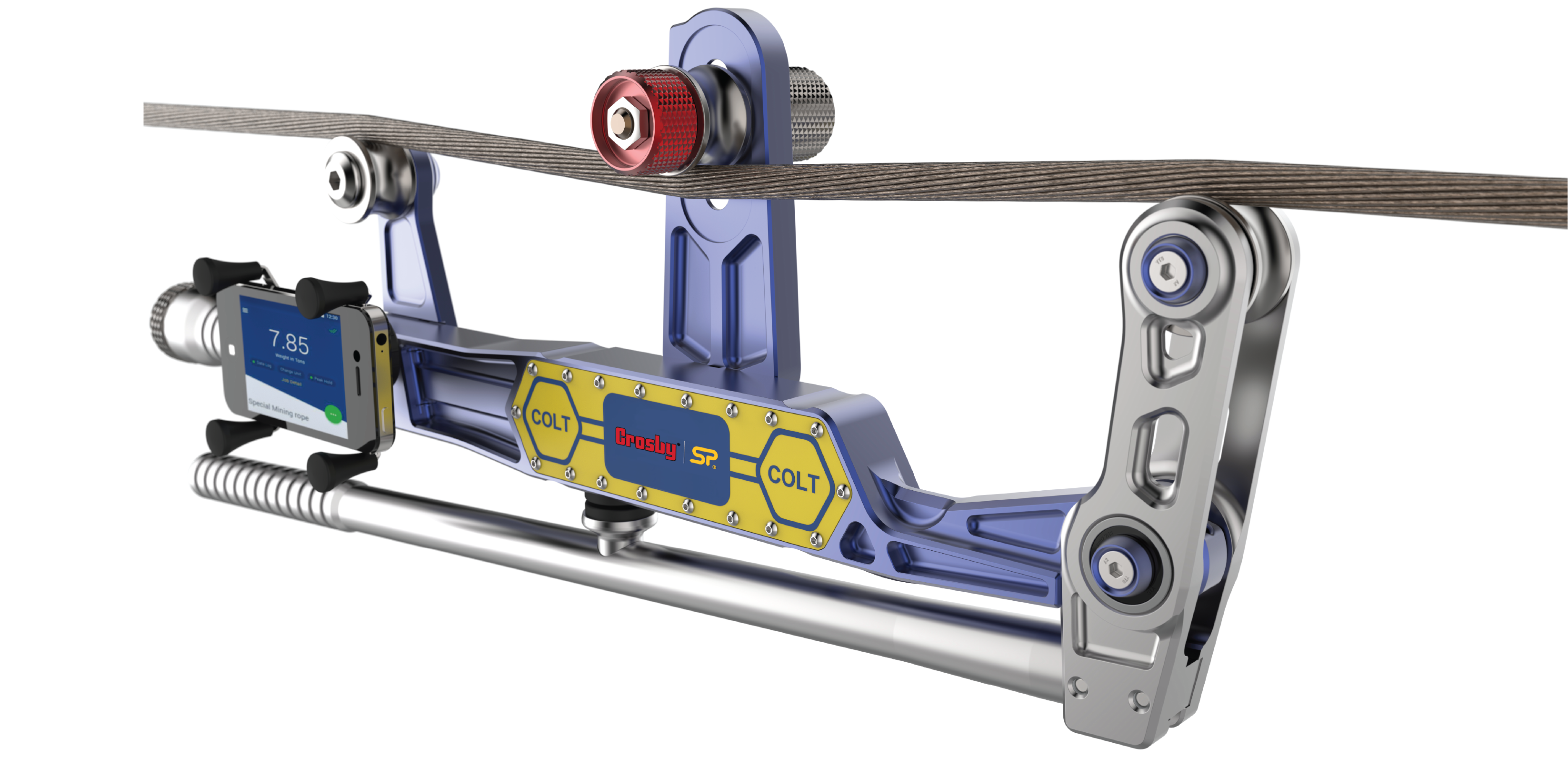

The Straightpoint COLT is a lightweight Guy Wire Steel Wire Rope tension meter or shunt tension meter for fast and accurate measurement of tensions up to 11,000lb or 5,000 kg from 5mm wire rope up to 1” or 25mm diameter. COLT5T has been designed specifically for measuring tension on static lines and includes a state-of-the-art Bluetooth load monitoring app among a myriad of standout features.
Manufactured using an integral, high-accuracy, Bluetooth module the COLT transmits load data wirelessly to any smart device running our Android or iOS app - Unlimited wire rope calibration database via free issue Android or iOS app. Supplied in a purpose-made carry case the COLT is portable and utilises standard alkaline batteries making this perfect for on-site cable tension measurement across the world.
Supplied with the Cable Gauge as standard - An optional calibration verification tool (CVT) allows the operator to self-check & verify calibration accuracy in the field if required.
Model
| Max Load
| Resolution
| Units
| Min Wire Rope Dia
| Max Wire Rope Dia
| Max Lin Rope Dia
| Weight
|
COLT5T
| 5,000Kgs
| 10Kgs
| Kgs, Lbs, tonne & kN
| 5mm Dia
| 25mm Dia
| 5mm with 10mm dia wire rope
| 3.5Kgs
|
Battery Life - 1000 Hours Bluetooth transmission time
Supported OS Version - Android 4.4 onwards and IOS 8 onwards
Communication - Bluetooth 4.2
Constructed from aerospace-grade aluminium the COLT digital tensiometer is lightweight and easy to handle and operates on wires that are already under tension. Once in place, it allows the operator to quickly check tension on cables or wire ropes set at any angle.
Multiple drop tested from 3 metres or 10 feet.
A built-in magnetic smart device holder allows the COLT to be used as a traditional tension meter with an onboard display or the smartphone can be handheld or mounted elsewhere.

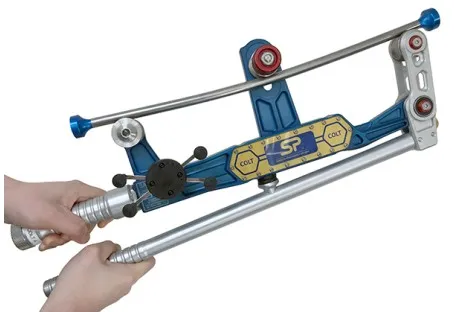

Verification Tool - CVT
In order to ensure the COLTS accuracy measurements are as accurate as possible, SP also supplies a calibration verification rod that is specifically designed to check the COLTS calibration accuracy.

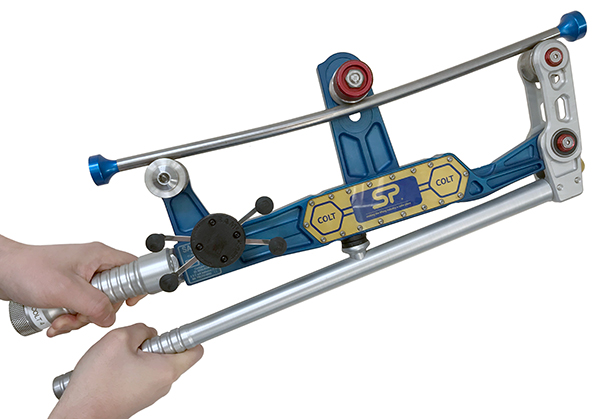

The calibration verification checking process is quick and simple. Open the COLT app on your smart mobile device, connect to the COLT device via Bluetooth, and select ‘Cal Check’ within the ‘Rope’ menu section of the app. Place COLT on a flat surface and then zero the measurement on the screen. Place the 20-inch steel rod in the centre of all 3 sheaves and apply the loading arm until it is fully engaged with the magnetic catch. The force measurement reading should read as 3000lbs (within an accuracy range of <3%>).
If the measurement is greater than 3% difference (above 3090lbs or below 2910lbs) then you will need to contact SP and arrange for the COLT to be sent back to SP for recalibration. The process is as simple as that!
Which Industries use the Crosby Straightpoint Colt inline Tensionmeter?
Guy wire plumb and tension.
Metro and Tram electric wire maintenance.
Elevator and Ski lift cable testing.
Fall arrest systems · Median barrier cable tensioning.

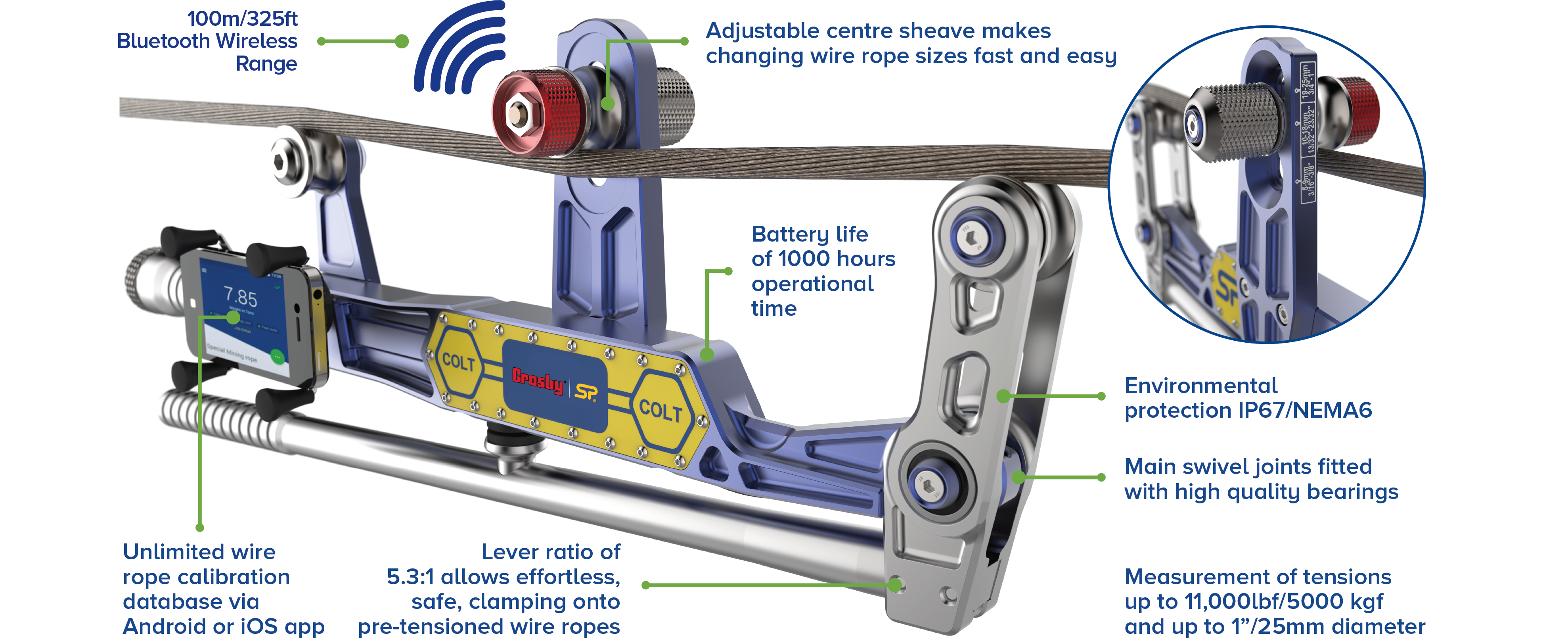

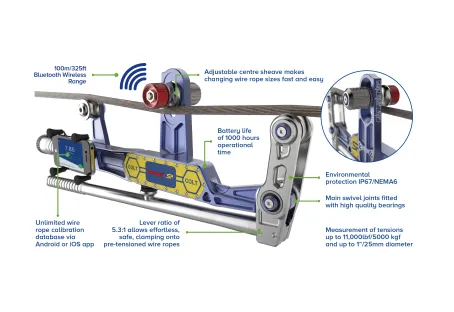

FEATURES of the Clamp On Line Tensionmeter - COLT Guy wire, steel wire tension shunt meter
Unlimited wire rope calibration database via Android or iOS app
Main swivel joints fitted with high-quality bearings
Lever ratio of 5.3:1 allows effortless, safe, clamping onto pre-tensioned wire ropes
Wireless Bluetooth 4.1 enables the operator to stand at a safe distance up to 328 feet or 100 meters
Quick intuitive adjustable centre sheave makes changing wire rope sizes fast and easy
No easily broken external antennae
High waterproof resistant design IP67 or NEMA6 for all-weather use
Massive battery life of 1000 hours of operational time
As the library of wire rope diameters and constructions is increased each app user will benefit when they update and receive any new data.

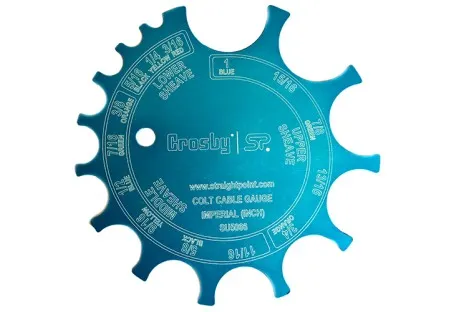

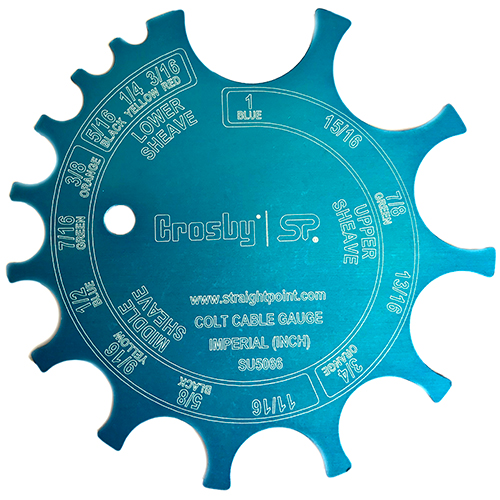

Cable gauge included.
APPLICATIONS
Guy wire maintenance on cell towers, bridges, flare stacks, antennas & masts.
Guy wire Tower Plumb & Tension
EHS guy wire, Turnbuckle tensioner.
Wire rope installations, comparing, equalising & measuring
Architectural wire rope installations
Median cable barrier tensioning
Utility cable overhead line monitoring
Elevator hoist, governor & compensating wire rope maintenance
Zip lines & assault course testing
Fall arrest systems
Metro, tram and rail transit electric wires & catenary testing
Ski lifts
Wire rope tie-downs on vessels (using Tirfor)
Testing tension of ship mast wire ropes.
Tensioned trellis systems
Measuring Line Sag
SUPPLIED WITH THE FOLLOWING AS STANDARD
Proof test certificate
Operator Manual
Carry/Storage Case
2 year warranty
OPTIONAL
Cable Gauge
Optional Extras
COLT verification tool (CVT) to ensure the COLTS accuracy measurements are as accurate as possible.
The Crosby / Straightpoint Mission: To Make the Lifting Industry a Safer Place know the load Facts:
- Capacities supplied: 1t – 2,000t +Custom made load cells
- Years business established: 42
- Number of worldwide partners: 80
- Worldwide SP products are sold in: USA, CANADA, LATAM, EMEA & APAC
- Unrivalled lead times
- Excellent customer service and after care
Crosby/Straightpoint (SP) is an award-winning, UK & USA load cell manufacturing company specialising in the production and calibration of load monitoring equipment for the following applications:
Force measurement
Load monitoring
Suspended load weighing
Compression force sensing
Wire Rope Tension Metering
In these Industries: construction; container weighing; extreme sports; heavy lift; line tensioning; logistics; marine; oil and gas; stage and event rigging; shipping; testing; towage and salvage; utilities; defence; and more.
The products that SP produces are developed using the latest cutting-edge technology and materials. By pushing the boundaries, we can continue the endeavour to further decrease risk and increase safety in heavy load lift situations.
With over $1,000,000 of stock available, SP products give distributors a distinct advantage over competitors’ lead times
Range of products from 100kg beam load cells to 1,500t load shackles and beyond
Cutting-edge technology including unsurpassed wireless products
Huge range of accessories and data logging software packages available with most load cells
World-class after sales and marketing support
Competitive pricing
Provision of complementary smart cell device apps (Android/IOS) to wirelessly monitor loads via a Bluetooth connection from up to 50m away (HHP and COLT apps)
atexhhp About SP USA & Europe - Crosby|Straightpoint - UK, Europe & USA
SP continues to lead in innovation by launching the first worldwide off-the-shelf wireless centre of gravity system and is the first load cell manufacturer to incorporate RFID tags in all its ‘link’ load cells as standard.
Innovative releases include ATEX & IECEx zones 0, 1 and 2 approved wireless dynamometer and running line dynamometers.
SP is the only manufacturer in the world with load monitoring / measuring products that are certificated to be used within hazardous gas environments found mainly within the gas, oil, and manufacturing industries.
Flagship products supplied by CROSBY STRAIGHTPOINT include:
Radiolink plus tension dynamometer
Wireless Compression Load Cell
Clamp On Line Tension meter (COLT)
Wireless Running Line Dynamometer (TIMH) including the newly released Cable Safe
Wireless Loadshackles
Wireless Loadpins
Exclusive range of supporting software.
