Liftket Star Electric Chain Hoist

The Star range of electric chain hoists from German manufacturer LIFTKET is a quality-built, robust hoist. Currently, it is our best-selling hoist in the 400V three-phase supply category, thanks to its superior build quality and performance ratings. These hoists are suitable for lifting most industrial loads, ranging from 125 kg to 5,000 kg. The entire range of LIFTKET electric hoists is supplied with dual-speed options to provide customers with a more controlled lifting and lowering experience. An added advantage of LIFTKET hoists is that all units come equipped with limit switches for both lifting and lowering—most other manufacturers offer limit switches as optional extras.

LIFTKET offers a vast range of hoists, from 125 kg to 25 tonnes capacity. To simplify the selection process for our customers, Ultimate Lifting Solutions Ltd provides the LIFTKET Star Speedline range of electric chain hoists, which includes the most common sizes that can be built and dispatched within a few days. All hoists in this range are supplied with dual-speed lifting and lowering capabilities and include limit switches as standard.

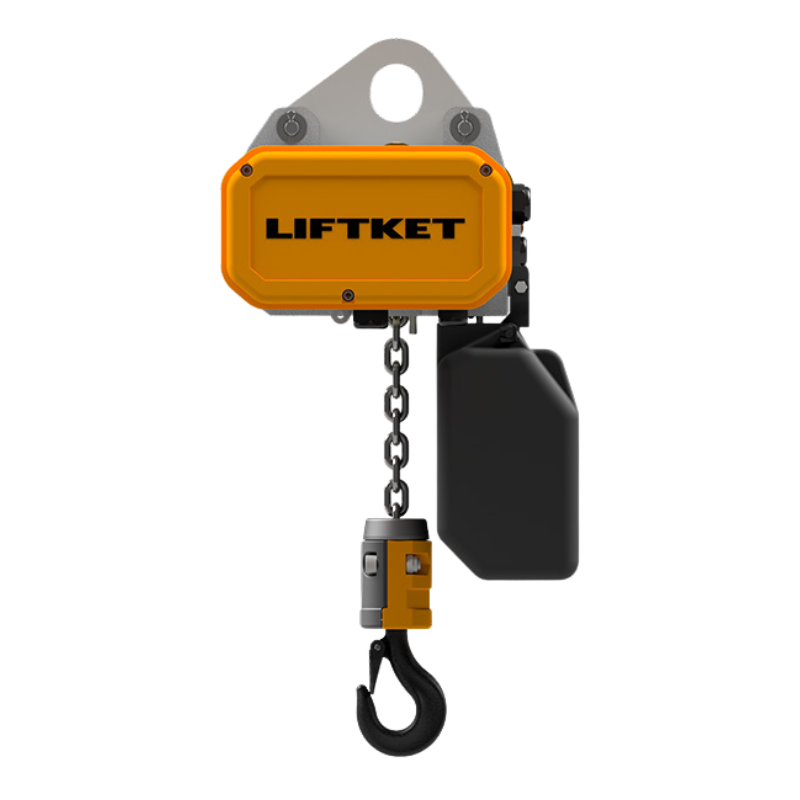

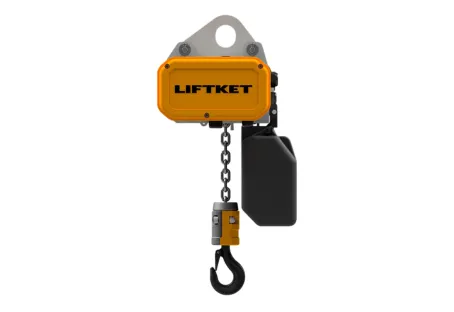

These 400volt hoists come with a standard top-eye suspension (lug) for easy attachment to any suitable trolley or clamp. Additionally, LIFTKET hoists can be supplied with a top hook suspension, push travel trolley and dual-speed trolley. All electric chain hoists are provided with a standard lift height of 3 meters, with other lengths available upon request. The hoists are supplied with a low-voltage control 24VAC pendant, complete with an emergency stop function, located 1 meter below the lifting height. Chain containers can be supplied with or without the hoists.

LIFTKET Advantages:

- Available in capacities ranging from 125 kg to 5,000 kg.

- 400 volt 3 Ph 50Hz as standard - 60hz available on request.

- Made in Germany using high-quality German components (no reliance on far-eastern supply chains).

- LIFTKET is a major European manufacturer with 250 employees located near Leipzig.

- Contactor control is standard in all hoists—no printed circuit boards.

- Trip limit switches are standard, featuring heavy-duty stainless steel pins.

- Options for geared limit switches from Stromag (available in 2 or 4 positions).

- Heavy-duty automotive-type limit switches for repeated limit actuation.

- Harting plug/socket connectors in the pendant cable.

- FEM ratings from 1Am to 4m (M3-M7).

- IP55 water protection.

- Generally offered as dual-speed, with some single-speed options available.

Additional Lift Height Available

The standard lift height is 3 meters, with additional heights sold in complete meters only.

Standard hoists at 3 meters come with a 1.5-meter pendant cable. As the lifting height increases, the length of the pendant cable will be adjusted accordingly.

Extras You May Not Have Considered

Are you installing your new hoist on an I-beam? If the answer is yes, have you thought about how you will install the power cabling neatly and safely? If not, don't worry—ULS has you covered! We offer a complete Power Supply Festoon System, including all necessary brackets, support arms, and power cables to install your new hoist. Explore the ULS Festoon System for overhead cranes and hoists. On the page, you can select the desired length of the festoon system required to fully power your hoist. The system runway is supplied in 3-meter lengths (which can be easily cut to length on-site) and comes complete with all necessary support arms, trolleys, etc., to fit onto our standard crane beams and I-beams. We have even calculated the amount of cable required for the crane beam, making it easy to purchase.

Installation Assistance

Do you need help with installation? Ultimate Lifting Solutions Ltd has fully qualified engineers available to install electric hoists at your premises. Please call us for a quotation or additional information.

Why Choose a Liftket Hoist?

LIFTKET Star Electric Chain Hoists feature a robust and compact construction with relatively low headroom. Designed as a complete modular hoist, these units are easy to service and maintain, with good access to parts. All hoists follow a generic manufacturing format, making many parts suitable for all hoist models, and they all share the same wiring configurations. Integrated heavy-duty upper and lower trip limit switches are standard, with the option of geared limit switches or automotive switches for enhanced safety. These devices extend the working life of the overload clutch, motor, and gearbox.

Versatile Mounting Options

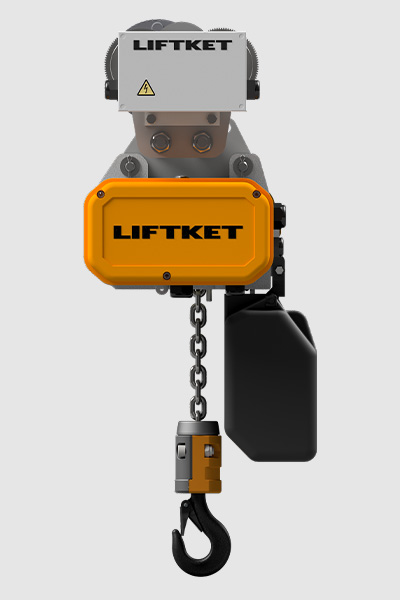

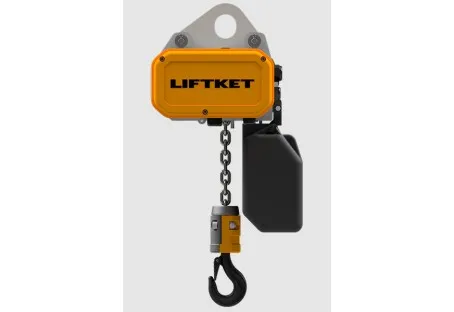

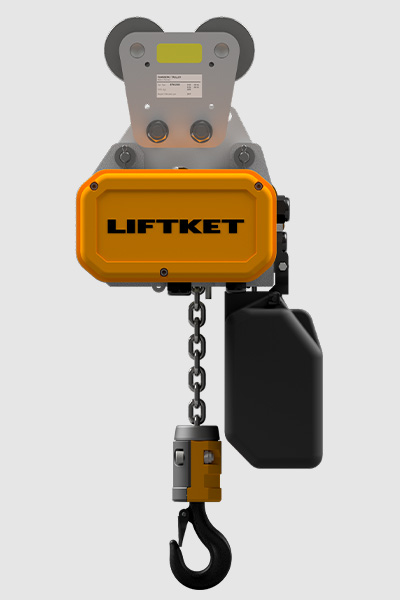

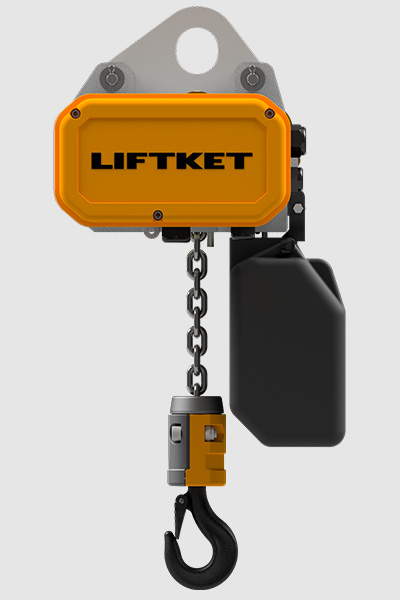

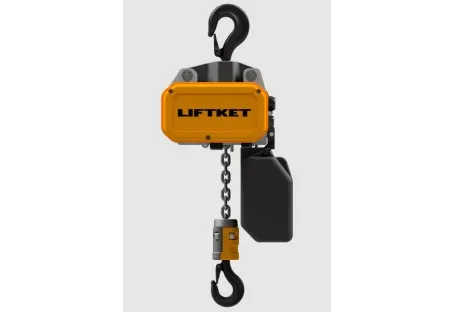

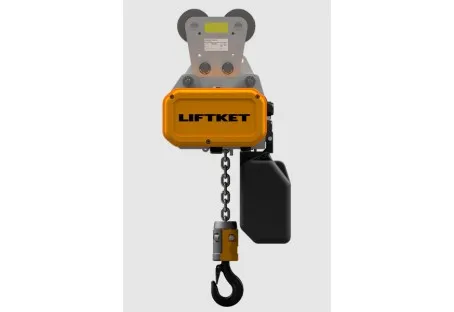

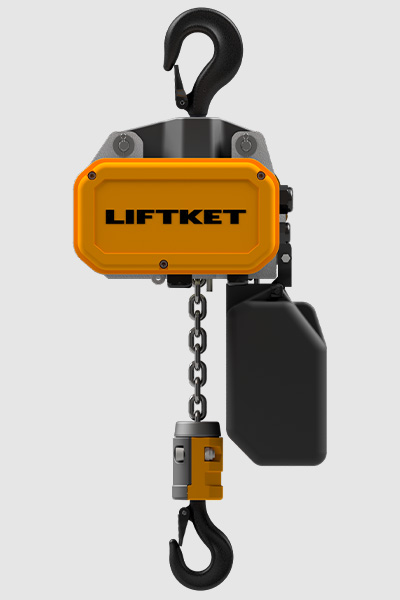

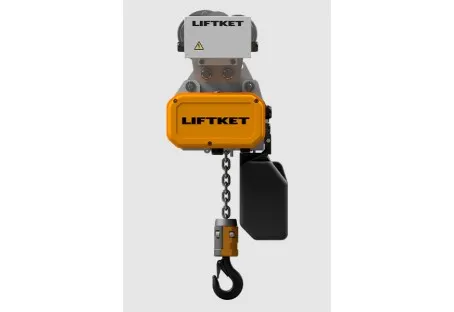

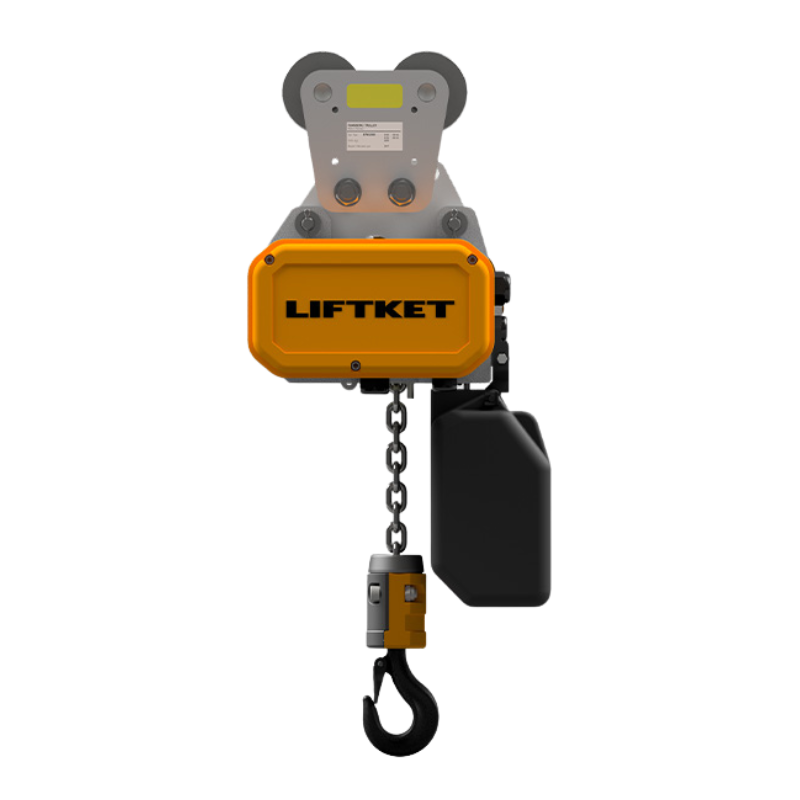

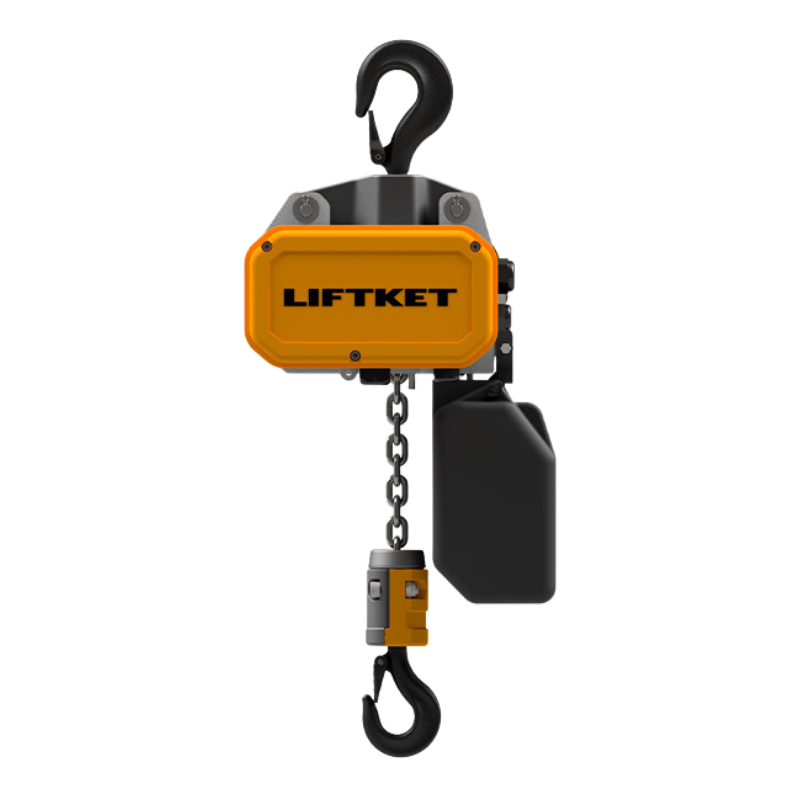

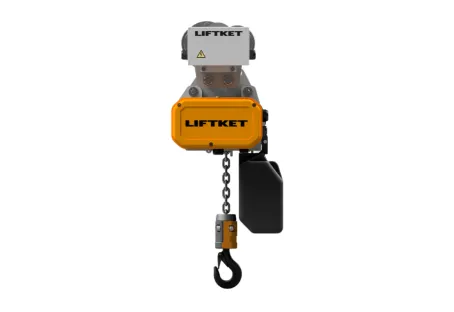

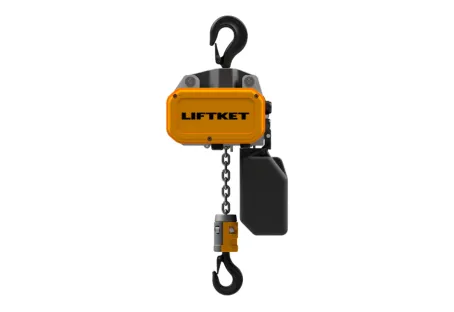

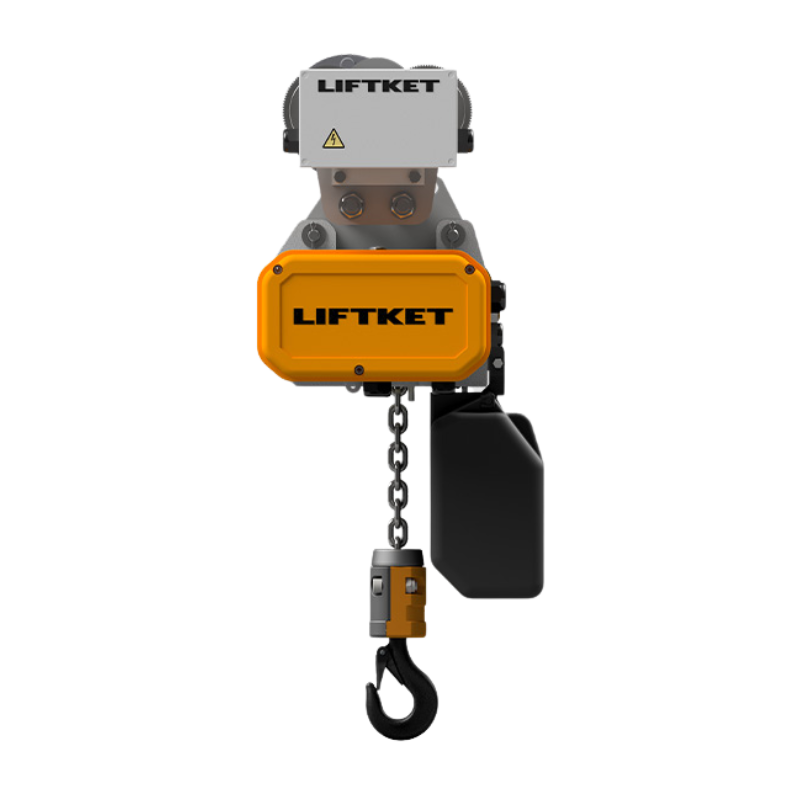

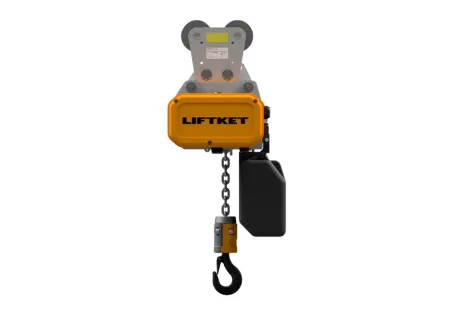

The Liftket Star Electric Chain Hoist can be supplied with various suspension options. It starts with a simple lifting eye for mounting onto a fixed beam clamp or a moving trolley, creating an integral and fixed mounting. A top suspension can also be supplied, allowing for a non-permanent fix, which means the hoist can be quickly and easily removed from its mounting point if needed. If the hoist is required to move along a beam or crane, the Liftket chain hoist can be equipped with either a non-motorized push-along trolley or a two-speed electric trolley. All options are available from stock with fast delivery.

Product Details

The Liftket Electric Hoist is supplied fully tested and in good working order. It includes operating instructions and a relevant conformity certificate, along with a standard 12-month manufacturer’s warranty.

Please note: According to prevailing national and international occupational safety and health regulations, hoisting equipment must be inspected at least annually by a competent person. Adverse working conditions may require shorter inspection periods.

For annual servicing on this product or any similar products, please contact our Sales Team at ULS on sales@ulslifting.com or on 01384 986 026.
