13 tonne Modular Spreader Beam
Brand:
Description
13-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.
Add to cart
Add to quoteRelated products
4 tonne Modular Spreader Beam
BT T4
4-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.
£598.98 ex VAT
£718.78 inc VAT

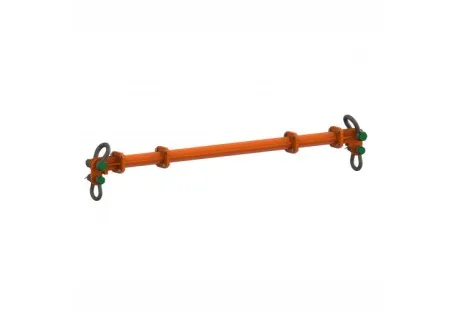

8 tonne Modular Spreader Beam
BT T8
8-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.
£674.98 ex VAT
£809.98 inc VAT
24 tonne Modular Spreader Beam
BT T24
24-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam.
£1,272.98 ex VAT
£1,527.58 inc VAT
13-tonne Modular Spreader Beams are an interchangeable, lightweight, and versatile style of Lifting beam and a cost-effective alternative to a fixed-span lifting beam. This style of lightweight lifting beams has become very popular over the last few years due to their flexibility in instantly changing the length of the lifting beam quickly by adding an extra strut to create the desired length. Manufactured from tubular steel with flanged boltable sections to create an incredibly strong, yet lightweight system. The Modular End Struts with link plates are supplied to create top and bottom lifting eyes that suit standard lifting shackles (shackles not supplied).
T13 Modular Spreader Beam kit will be supplied with the following items. Complete with everything required, and once assembled can be used immediately.
Two Strut Ends c/w link plates. (250mm each (500mm long per pair))
Middle Strut Sections (available in lengths of 500mm, 750mm, 1000mm, 1500mm, and 2000mm). enough sections will be supplied to make up span of the lifting beam required.
Fixing Bolts M12 x 35 GRADE 8.8 HT Bolts, Nuts, and Washers. (The recommended tightening Torque is 100Nm).
If shackles are required with the T13, 13,000Kgs Modular Spreader Beam - Please use 9.5 Ton Alloy Safety Bow Shackles for Top Lifting Point and 6.5 Ton Alloy Safety Bow Shackles for the lower lifting points. Ultimate lifting Solutions advise that customers consider using Green Pin G4163 Bow Shackle with Safety Bolt manufactured to EN13889.
The 13,000Kgs lightweight modular spreader beam can have a minimum lifting span of just 7500mm, by adding different-sized middle struts the span is interchangeable in 250mm increments up to a maximum length of 6.5m span. If a longer lifting span is required, a larger capacity modular lifting beam will be required. If unsure, please call Ultimate Lifting Solutions and our specialist lifting division will be able to assist with your lifting application. Please note - As this Lifting attachment is a lifting spreader beam, It must only be loaded via the two endpoints through the link plates. NEVER HANG LOADS FROM THE MIDDLE STRUTS.
T13 - 13000Kgs (13 tonne) Traditional Modular Spreader Beam selection chart and basic information.
| Span | SWL @ 45° Degrees Top lifting angle | Minimum top Lifting sling Length | SWL @ 30° Degrees Top lifting angle | Minimum top Lifting sling Length | SWL @ 20° Degrees Top lifting angle | Minimum top Lifting sling Length |
| 500 mm | 13 tonne (13,000Kgs) | 300 mm | 13 tonne (13,000Kgs) | 400 mm | 13 tonne (13,000Kgs) | 700 mm |
| 750 mm | 13 tonne (13,000Kgs) | 500 mm | 13 tonne (13,000Kgs) | 700 mm | 13 tonne (13,000Kgs) | 1000 mm |
| 1000 mm | 13 tonne (13,000Kgs) | 700 mm | 13 tonne (13,000Kgs) | 900 mm | 13 tonne (13,000Kgs) | 1400 mm |
| 1250 mm | 13 tonne (13,000Kgs) | 900 mm | 13 tonne (13,000Kgs) | 1200 mm | 13 tonne (13,000Kgs) | 1700 mm |
| 1500 mm | 13 tonne (13,000Kgs) | 1000 mm | 13 tonne (13,000Kgs) | 1400 mm | 13 tonne (13,000Kgs) | 2100 mm |
| 1750 mm | 13 tonne (13,000Kgs) | 1200 mm | 13 tonne (13,000Kgs) | 1700 mm | 13 tonne (13,000Kgs) | 2500 mm |
| 2000 mm | 13 tonne (13,000Kgs) | 1400 mm | 13 tonne (13,000Kgs) | 1900 mm | 13 tonne (13,000Kgs) | 2800 mm |
| 2250 mm | 13 tonne (13,000Kgs) | 1600 mm | 13 tonne (13,000Kgs) | 2200 mm | 13 tonne (13,000Kgs) | 3200 mm |
| 2500 mm | 13 tonne (13,000Kgs) | 1700 mm | 13 tonne (13,000Kgs) | 2400 mm | 13 tonne (13,000Kgs) | 3600 mm |
| 2750 mm | 13 tonne (13,000Kgs) | 1900 mm | 13 tonne (13,000Kgs) | 2700 mm | 13 tonne (13,000Kgs) | 3900 mm |
| 3000 mm | 13 tonne (13,000Kgs) | 2100 mm | 13 tonne (13,000Kgs) | 2900 mm | 13 tonne (13,000Kgs) | 4300 mm |
| 3500 mm | 13 tonne (13,000Kgs) | 2400 mm | 13 tonne (13,000Kgs) | 3400 mm | 13 tonne (13,000Kgs) | 5000 mm |
| 4000 mm | 11 tonne (11,000Kgs) | 2800 mm | 13 tonne (13,000Kgs) | 3900 mm | 13 tonne (13,000Kgs) | 5800 mm |
| 4500 mm | 9 tonne (9,000Kgs) | 2800 mm | 13 tonne (13,000Kgs) | 4400 mm | 13 tonne (13,000Kgs) | 6500 mm |
| 5000 mm | 7 tonne (7,000Kgs) | 3500 mm | 12 tonne (12,000Kgs) | 4900 mm | 13 tonne (13,000Kgs) | 7200 mm |
| 5000 mm | 6 tonne (6,000Kgs) | 3900 mm | 10 tonne (10,000Kgs) | 5400 mm | 13 tonne (13,000Kgs) | 8000 mm |
| 6000 mm | 5 tonne (5,000Kgs) | 4200 mm | 8 tonne (8,000Kgs) | 5900 mm | 13 tonne (13,000Kgs) | 8700 mm |
Why purchase a 13 tonne T13 Britlift Traditional Modular Spreader Beam? These UK-manufactured quality modular lifting beams are amongst the lightest on the market and can be supplied with interchangeable components to create a specific length of lifting beam to suit most lifting applications. Being manufactured with small middle struts, when not in use a modular spreader beam can be dismantled for easy storage and transportation to the site. Modular Spreader Beams offer Versatility, due to the modular design of this style of lifting beam it can be re-assembled and reconfigured to suit multiple lift schedules and requirements. Modular Spreader Beams are cost-effective, as only a small number of struts are required to be able to assemble a variety of spans.
Technical considerations before purchasing a modular spreader beam.
A SPREADER BEAM MUST ONLY BE LOADED AT THE TWO END POINTS THROUGH THE END LINKS. NEVER HANG LOADS FROM THE STRUTS
STV (SLING TO VERTICAL) ANGLE MUST BE NO MORE THAN 45°.
THE ABOVE CHART MUST BE REFERRED TO IN ORDER TO ENSURE THAT THIS BEAM IS SUITABLE FOR THE PLANNED LIFT.
END LINKS MUST HANG DOWNWARDS, TOWARDS THE LOAD.
THE WLL (WORKING LOAD LIMIT) OF A SINGLE LINK PLATE IS 6.5 TONNES (13 TONNES COMBINED). DO NOT EXCEED THIS WEIGHT AT ONE END OF THE BEAM.
THE T4 MOD LIFT BEAM USES M12 x 35 GRADE 8.8 HT BOLTS, NUTS, AND WASHERS. THE RECOMMENDED TIGHTENING TORQUE IS 100Nm.
ANY PERSONNEL USING THIS PRODUCT MUST BE A TRAINED AND COMPETENT RIGGER OR SLINGER/SIGNALLER.
THE ONGOING USE OF THIS PRODUCT MUST BE IN ACCORDANCE WITH THE REQUIREMENTS IN LOLER (LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998).
PLEASE ENSURE THAT NO MORE THAN 6 STRUTS ARE USED IN THE ASSEMBLY OF A BEAM.
CHECK THAT NO RIGGING EQUIPMENT CLASHES WITH THE BEAM. THE BEAM MUST ONLY BE LOADED THROUGH THE SHACKLE PIN HOLES AT EACH END.
T13 - 13 tonne (13,000Kgs) Traditional Modular Spreader beam selection chart and basic information.
Capacity - 13 tonne.
Length available 0.75m to 6.5m.
One of the Lightest beams on the market.
Supplied without shackles or lifting slings.
designed and manufactured in the UK.
Cost-effective.
supplied fully certified.
T13 - 13000Kgs (13 tonne) Traditional Modular Spreader Beam selection chart and basic information.
| Span | SWL @ 45° Degrees Top lifting angle | Minimum top Lifting sling Length | SWL @ 30° Degrees Top lifting angle | Minimum top Lifting sling Length | SWL @ 20° Degrees Top lifting angle | Minimum top Lifting sling Length |
| 500 mm | 13 tonne (13,000Kgs) | 300 mm | 13 tonne (13,000Kgs) | 400 mm | 13 tonne (13,000Kgs) | 700 mm |
| 750 mm | 13 tonne (13,000Kgs) | 500 mm | 13 tonne (13,000Kgs) | 700 mm | 13 tonne (13,000Kgs) | 1000 mm |
| 1000 mm | 13 tonne (13,000Kgs) | 700 mm | 13 tonne (13,000Kgs) | 900 mm | 13 tonne (13,000Kgs) | 1400 mm |
| 1250 mm | 13 tonne (13,000Kgs) | 900 mm | 13 tonne (13,000Kgs) | 1200 mm | 13 tonne (13,000Kgs) | 1700 mm |
| 1500 mm | 13 tonne (13,000Kgs) | 1000 mm | 13 tonne (13,000Kgs) | 1400 mm | 13 tonne (13,000Kgs) | 2100 mm |
| 1750 mm | 13 tonne (13,000Kgs) | 1200 mm | 13 tonne (13,000Kgs) | 1700 mm | 13 tonne (13,000Kgs) | 2500 mm |
| 2000 mm | 13 tonne (13,000Kgs) | 1400 mm | 13 tonne (13,000Kgs) | 1900 mm | 13 tonne (13,000Kgs) | 2800 mm |
| 2250 mm | 13 tonne (13,000Kgs) | 1600 mm | 13 tonne (13,000Kgs) | 2200 mm | 13 tonne (13,000Kgs) | 3200 mm |
| 2500 mm | 13 tonne (13,000Kgs) | 1700 mm | 13 tonne (13,000Kgs) | 2400 mm | 13 tonne (13,000Kgs) | 3600 mm |
| 2750 mm | 13 tonne (13,000Kgs) | 1900 mm | 13 tonne (13,000Kgs) | 2700 mm | 13 tonne (13,000Kgs) | 3900 mm |
| 3000 mm | 13 tonne (13,000Kgs) | 2100 mm | 13 tonne (13,000Kgs) | 2900 mm | 13 tonne (13,000Kgs) | 4300 mm |
| 3500 mm | 13 tonne (13,000Kgs) | 2400 mm | 13 tonne (13,000Kgs) | 3400 mm | 13 tonne (13,000Kgs) | 5000 mm |
| 4000 mm | 11 tonne (11,000Kgs) | 2800 mm | 13 tonne (13,000Kgs) | 3900 mm | 13 tonne (13,000Kgs) | 5800 mm |
| 4500 mm | 9 tonne (9,000Kgs) | 2800 mm | 13 tonne (13,000Kgs) | 4400 mm | 13 tonne (13,000Kgs) | 6500 mm |
| 5000 mm | 7 tonne (7,000Kgs) | 3500 mm | 12 tonne (12,000Kgs) | 4900 mm | 13 tonne (13,000Kgs) | 7200 mm |
| 5000 mm | 6 tonne (6,000Kgs) | 3900 mm | 10 tonne (10,000Kgs) | 5400 mm | 13 tonne (13,000Kgs) | 8000 mm |
| 6000 mm | 5 tonne (5,000Kgs) | 4200 mm | 8 tonne (8,000Kgs) | 5900 mm | 13 tonne (13,000Kgs) | 8700 mm |
Why purchase a 13 tonne T13 Britlift Traditional Modular Spreader Beam? These UK-manufactured quality modular lifting beams are amongst the lightest on the market and can be supplied with interchangeable components to create a specific length of lifting beam to suit most lifting applications. Being manufactured with small middle struts, when not in use a modular spreader beam can be dismantled for easy storage and transportation to the site. Modular Spreader Beams offer Versatility, due to the modular design of this style of lifting beam it can be re-assembled and reconfigured to suit multiple lift schedules and requirements. Modular Spreader Beams are cost-effective, as only a small number of struts are required to be able to assemble a variety of spans.
Technical considerations before purchasing a modular spreader beam.
A SPREADER BEAM MUST ONLY BE LOADED AT THE TWO END POINTS THROUGH THE END LINKS. NEVER HANG LOADS FROM THE STRUTS
STV (SLING TO VERTICAL) ANGLE MUST BE NO MORE THAN 45°.
THE ABOVE CHART MUST BE REFERRED TO IN ORDER TO ENSURE THAT THIS BEAM IS SUITABLE FOR THE PLANNED LIFT.
END LINKS MUST HANG DOWNWARDS, TOWARDS THE LOAD.
THE WLL (WORKING LOAD LIMIT) OF A SINGLE LINK PLATE IS 6.5 TONNES (13 TONNES COMBINED). DO NOT EXCEED THIS WEIGHT AT ONE END OF THE BEAM.
THE T4 MOD LIFT BEAM USES M12 x 35 GRADE 8.8 HT BOLTS, NUTS, AND WASHERS. THE RECOMMENDED TIGHTENING TORQUE IS 100Nm.
ANY PERSONNEL USING THIS PRODUCT MUST BE A TRAINED AND COMPETENT RIGGER OR SLINGER/SIGNALLER.
THE ONGOING USE OF THIS PRODUCT MUST BE IN ACCORDANCE WITH THE REQUIREMENTS IN LOLER (LIFTING OPERATIONS AND LIFTING EQUIPMENT REGULATIONS 1998).
PLEASE ENSURE THAT NO MORE THAN 6 STRUTS ARE USED IN THE ASSEMBLY OF A BEAM.
CHECK THAT NO RIGGING EQUIPMENT CLASHES WITH THE BEAM. THE BEAM MUST ONLY BE LOADED THROUGH THE SHACKLE PIN HOLES AT EACH END.
