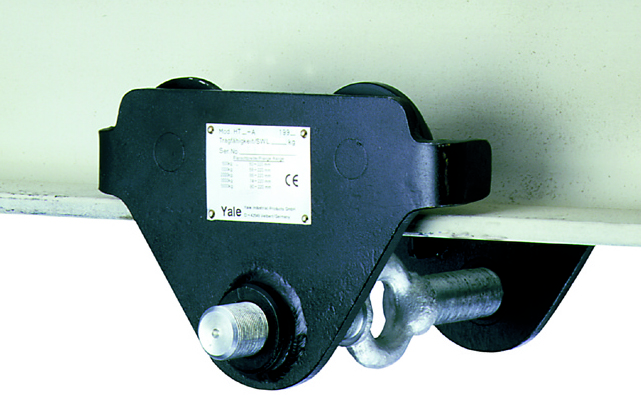

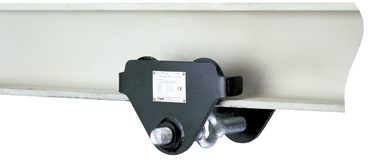

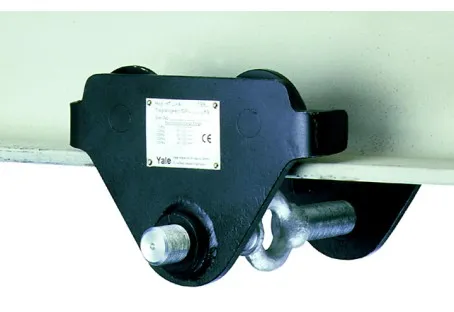

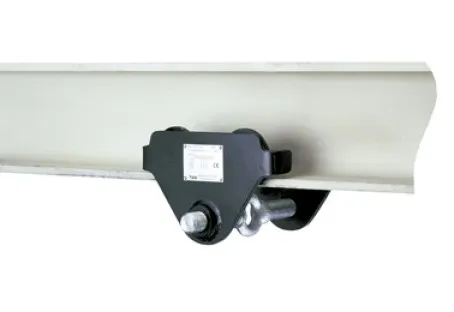

Yale HTP Push Travel Trolley With Extended Bar

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Yale HTP Push Travel Trolley With Extended Bar

Brand:

Capacity

500Kgs up to 5,000Kgs
0.5 tonne - 5 tonne

Description

The Yale HTP Manual Push Travel Trolley is suitable for wider Crane Beams, "I" Beams, and Structural Sections and offers a means of moving a load suspended on a steel section. SWL 500Kgs - 5,000Kgs.

£88.89 ex VAT

£106.67 inc VAT

Also available with standard bar. See separate product page

Related products

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Yale HTP Push Travel Trolley

HTP

The Yale HTP Manual Push Travel Trolley offers a means of moving a load suspended on a structural section ("I" Beam).

£74.95 ex VAT

£89.94 inc VAT

The Yale HTP Manual Push Travel Trolley with extended bar. Suitable for wider Crane Beams, "I" Beams, or Structural Sections, and offers a means of moving a load suspended on a steel section. SWL 500Kgs - 5,000Kgs. The HTP Type B has excellent rolling features due to the quality machined steel wheels to enable easy traversing of large loads with little effort.

These units are easy to fit your beam or girder due to the single load bar with threaded ends - no need for packing washers, adjustments are made by rotating the load bar which ensures the central positioning of the trolley on the beam, which in turn means the load will be suspended centrally, the trolley will not creep sideways when being pushed along the beam.

The HTP has two sizes
Type "B" which suits larger beams starting from 160mm up to 300mm wide
and
Type "A" which suits most standard beams with a flange width of up to 220mm

Standard Type "B"
Model
Capacity
Beam Width
Weight
HTP500B
500Kgs
160- 300mm
10.6Kgs
HTP1000B
1,000Kgs
160- 300mm
12.0Kgs
HTP2000B
2,000Kgs
160- 300mm
19.3Kgs
HTP3000B
3,000Kgs
180- 300mm
35.8Kgs
HTP5000B
5,000Kgs
180- 300mm
52.2Kgs


Standard Type "A"
Model
Capacity
Beam Width
Weight
HTP500A
500Kgs
50- 220mm
8.0Kgs
HTP1000A
1,000Kgs
50- 220mm
9.0Kgs
HTP2000A
2,000Kgs
66- 220mm
16.0Kgs
HTP3000A
3,000Kgs
74- 220mm
32.0Kgs
HTP5000A
5,000Kgs
90- 220mm
48.0Kgs
Options

  • Corrosion resistant
  • Buffers
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).








Capacity 500 – 5,000 kg

The trolley enables easy traversing of large loads with either manual or powered hoisting equipment.

Features

It has excellent rolling features due to machined steel wheels mounted on prelubricated, encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE and IPB).
Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 – part 1).

The HTP has two sizes

Type "A" which suits most standard beams with a flange width up to 220mm
&
Type "B" which suits larger beams starting from 160mm up to 300mm wide
Standard Type "B"
Model
Capacity
Beam Width
Weight
HTP500B
500Kgs
160- 300mm
10.6Kgs
HTP1000B
1,000Kgs
160- 300mm
12.0Kgs
HTP2000B
2,000Kgs
160- 300mm
19.3Kgs
HTP3000B
3,000Kgs
180- 300mm
35.8Kgs
HTP5000B
5,000Kgs
180- 300mm
52.2Kgs


Standard Type "A"
ModelCapacity
Beam Width
Weight
HTP500A
500Kgs
50- 220mm
8.0Kgs
HTP1000A
1,000Kgs
50- 220mm
9.0Kgs
HTP2000A
2,000Kgs
66- 220mm
16.0Kgs
HTP3000A
3,000Kgs
74- 220mm
32.0Kgs
HTP5000A
5,000Kgs
90- 220mm
48.0Kgs
Options
  • Corrosion resistant
  • Buffers
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).

INSPECTION, SERVICE & REPAIR

  • According to national and international accident prevention and safety regulations load lifting attachments must be inspected:
  • in accordance with the risk assessment of the operating company
  • prior to initial operation
  • before the unit is put into service again following a shut down
  • after substantial changes
  • however, at least once per year, by a competent person

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
The COLUMBUS McKINNON Industrial Products GmbH belongs to a global group of companies in the field of material handling. The range includes a wide pallet of hoists, crane systems, load handling equipment and weighing technology, Cable pullers, textile lifting equipment and lashing systems, material handling equipment, heavy load moving systems and hydraulic tools sold under the Yale and Pfaff-silberblau brands.

The company is known for its market- and quality-oriented business and product policy. Strong product brands as well as Europe’s leading market position in the area of manual standard hoists characterize the COLUMBUS McKINNON Industrial GmbH.
