HTG - Yale Gear Travel Trolley (Type A)

Key notes for ordering:

Prices start at 3m HOL c/w 2.5m drop hand chain. As you add additional HOL the hand chain will increase ( calculated never to be in contact floor)

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

HTG - Yale Gear Travel Trolley (Type A)

Brand:

Capacity

500Kgs up to 50,000Kgs
0.5 tonne - 50 tonne

Description

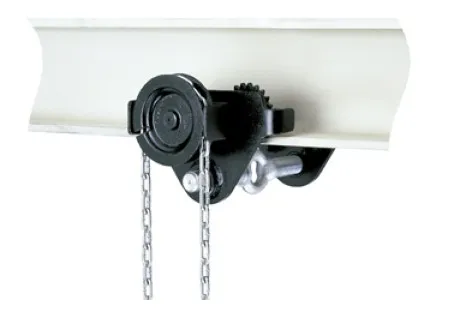

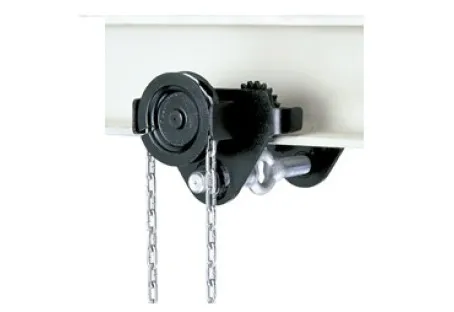

The Yale HTG Manual Gear Travel Trolley enables the exact positioning of a load suspended on a structural section ("I" Beam). The HTG is fitted with a gearing system  and hand chain that aids the precise positioning of the trolley  anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley.

£139.98 ex VAT

£167.98 inc VAT

Also available with extended bar. See separate product page
Add to cart Add to quote

Related products

VSIII Yale Manual Hand Chain Hoist

VSIII

The Yale VS Chain hoist is a quality branded manual hand chain hoist, that combines all the features expected by the user - Quality, Safety and performance. SUITABLE for FLEETING as well as standing lifting operations.

£167.32 ex VAT

£114.98 ex VAT

£137.98 inc VAT

Xona Geared Travel Trolley

XNHQGT

Xona Quick install Gear Travel Trolley enables easy positioning and movement of loads suspended from structural section. Fitted with gearing system and hand chain aiding precise positioning of the trolley anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley.

£99.98 ex VAT

£119.98 inc VAT

HTG - Yale Gear Travel Trolley with Extended Bar

HTG

The Yale HTG Manual Gear Travel Trolley enables the exact positioning of a load suspended on a structural section ("I" Beam). The HTG is fitted with a gearing system  and hand chain that aids the precise positioning of the trolley  anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley

£157.98 ex VAT

£189.58 inc VAT

The Yale HTG Manual Gear Travel Trolley enables the exact positioning of a load suspended on a structural section ("I" Beam). The HTG is fitted with a gearing system  and hand chain that aids the precise positioning of the trolley  anywhere along the beam - once in position, the trolley will not creep out of position like the push travel trolley

These units are easy to fit your beam or girder due to the single load bar with threaded ends - no need for packing washers, adjustments are made by rotating the load bar which ensures the centred positioning of the trolley on the beam, which in turn means the load will be suspended centrally, the trolley will not creep sideways when being pushed along the beam.

All geared trolleys are fitted with zinc-plated hand chains - the length of the chain fitted is always 0.5m less than the overall HOL of the trolley (i.e. - 2.5m hand chain fitted to hoist of 3m HOL) - Stainless Steel hand chain can be fitted if higher corrosion resistance is required.

The HTG has two sizes

Type "A" which suits most standard beams with a flange width up to 220mm
&
Type "B" which suits larger beams starting from 125mm up to 310mm wide


Standard Type "A"

Model
Capacity
 HOL
Beam Width
Weight
HTG500A
500Kgs
3m standard
50- 220mm
9.7Kgs
HTG1000A
1,000Kgs
3m standard
50- 220mm
11.2Kgs
HTG2000A
2,000Kgs
3m standard
66- 220mm
18.0Kgs
HTG3000A
3,000Kgs
3m standard
74- 220mm
35.4Kgs
HTG5000A
5,000Kgs
3m standard
90- 220mm
51.8Kgs
Standard Type "B"

Model
Capacity
HOL
Beam Width
Weight
HTP500B
500Kgs
3m standard
160- 300mm
12.6Kgs
HTP1000B
1,000Kgs
3m standard
160- 300mm
14.1Kgs
HTP2000B
2,000Kgs
3m standard
160- 300mm
21.3Kgs
HTP3000B
3,000Kgs
3m standard
180- 300mm
39.2Kgs
HTP5000B
5,000Kgs
3m standard
180- 300mm
56.0Kgs
HTP10000B
10,000Kgs
3m standard
125- 310mm
104Kgs
HTP20000B
20,000Kgs
3m standard
125- 310mm
230Kgs
HTP30000B
30,000Kgs
3m standard
175- 305mm
248Kgs
HTP50000B
50,000Kgs
3m standard
175- 305mm
489Kgs
Options:
  • Rotating hand chain guide.
  • Lock nuts.
  • Stainless steel hand chains.
  • Buffers.
  • ATEX classification.
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).

Optional beam locking device on standard unit. Please contact us for a quote.
Capacity 500 – 50,000 kg

The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.

Features

It has excellent rolling features due to machined steel wheels mounted on pre lubricated, encapsulated ball bearings.
Adjustable to fit a wide range of beam widths and profiles (e.g. INP, IPE, and IPB).
Adjustments are made by rotating the clevis load bar which also ensures the centred positioning of the hoist in the clevis – no creeping to the left or the right.
The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 – part 1).

The HTG has two sizes
Type "A" which suits most standard beams with a flange width up to 220mm
&
Type "B" which suits larger beams starting from 160mm up to 310mm wide

Standard Type "A"

Model
Capacity
 HOL
Beam Width
Weight
HTG500A
500Kgs
3m standard
50- 220mm
9.7Kgs
HTG1000A
1,000Kgs
3m standard
50- 220mm
11.2Kgs
HTG2000A
2,000Kgs
3m standard
66- 220mm
18.0Kgs
HTG3000A
3,000Kgs
3m standard
74- 220mm
35.4Kgs
HTG5000A
5,000Kgs
3m standard
90- 220mm
51.8Kgs

Standard Type "B"


Model
Capacity
HOL
Beam Width
Weight
HTP500B
500Kgs
3m standard
160- 300mm
12.6Kgs
HTP1000B
1,000Kgs
3m standard
160- 300mm
14.1Kgs
HTP2000B
2,000Kgs
3m standard
160- 300mm
21.3Kgs
HTP3000B
3,000Kgs
3m standard
180- 300mm
39.2Kgs
HTP5000B
5,000Kgs
3m standard
180- 300mm
56.0Kgs
HTP10000B
10,000Kgs
3m standard
125- 310mm
104Kgs
HTP20000B
20,000Kgs
3m standard
125- 310mm
230Kgs
HTP30000B
30,000Kgs
3m standard
175- 305mm
248Kgs
HTP50000B
50,000Kgs
3m standard
175- 305mm
489Kgs


Options:
  • Rotating hand chain guide.
  • Lock nuts.
  • Stainless steel hand chains.
  • Buffers.
  • ATEX classification.
  • Locking device to secure the trolley in position on the beam (park position e.g. on ships).

Optional beam locking device on standard unit. Please contact us for a quote.
INSPECTION, SERVICE & REPAIR

According to national and international accident prevention and safety regulations load lifting attachments must be inspected:

  • in accordance with the risk assessment of the operating company
  • prior to initial operation
  • before the unit is put into service again following a shut down
  • after substantial changes
  • however, at least once per year, by a competent person

Please contact our Sales Team @ ULS if you require your annual servicing on this product or any similar products.
