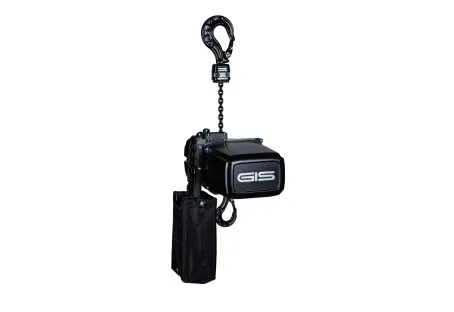

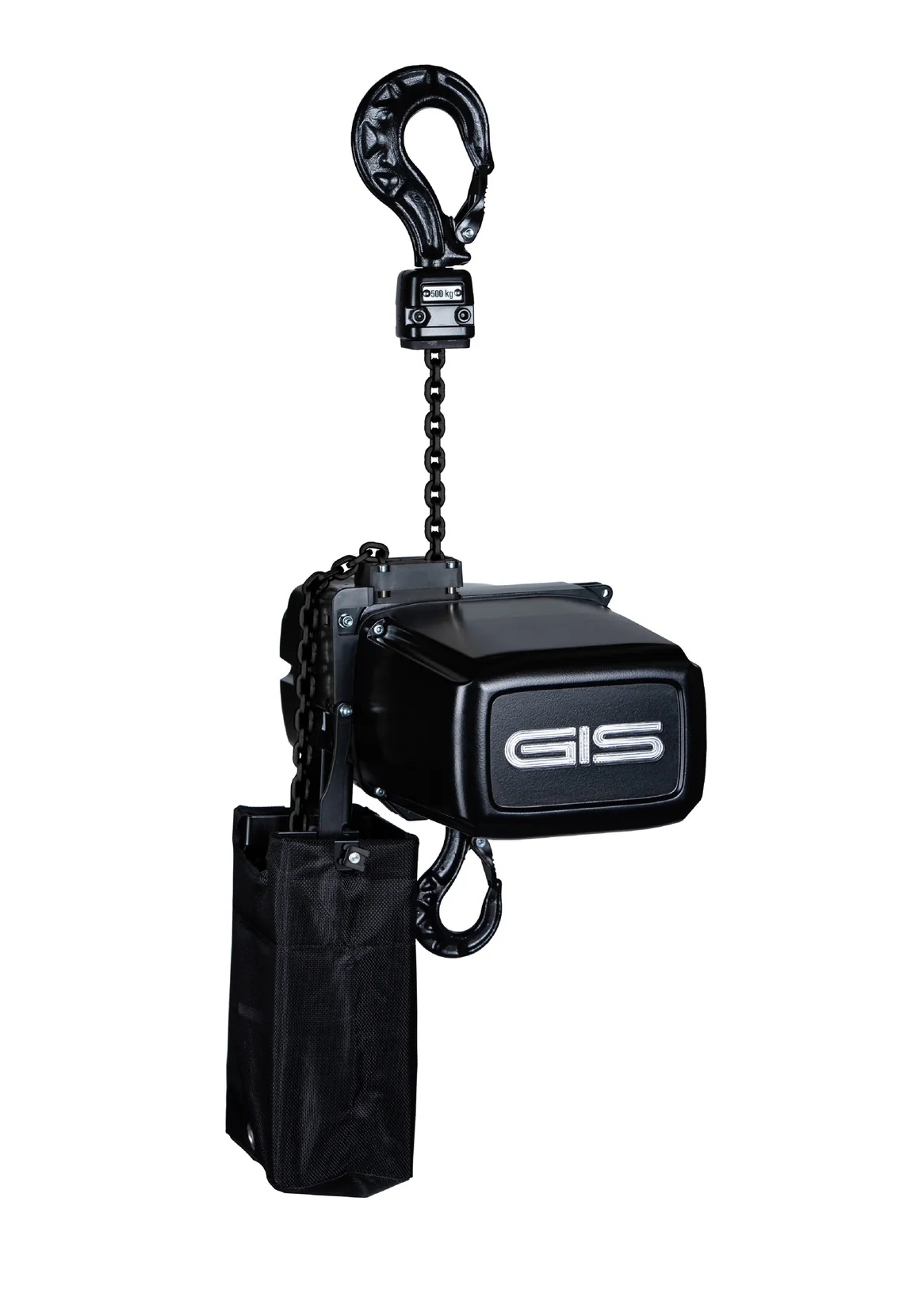

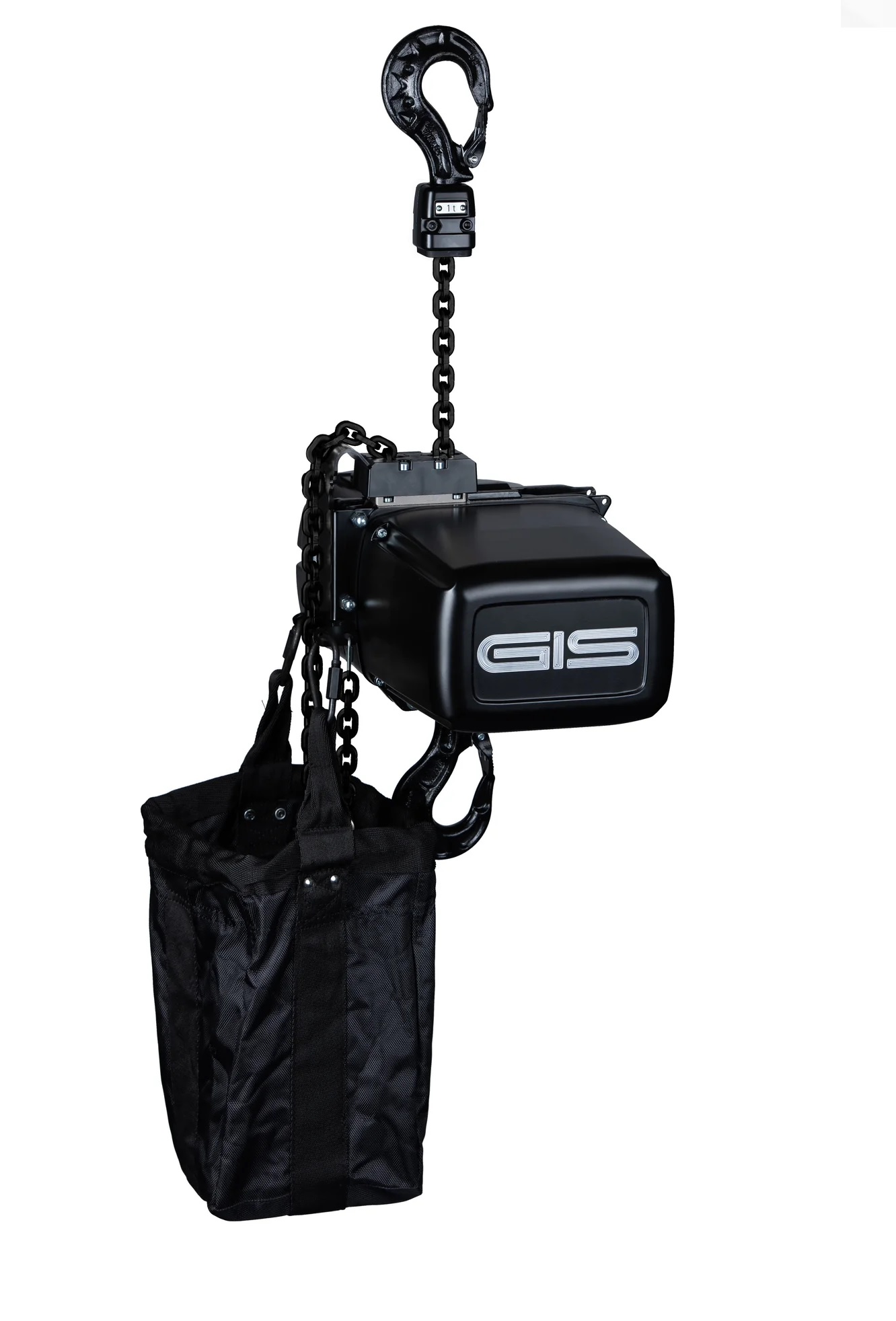

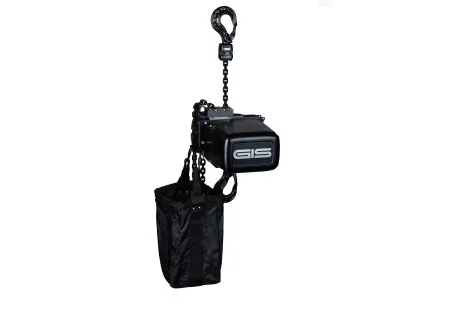

GIS LPML & LPL Entertainment Chain Hoist for Production Touring Rigging

The GIS LPML250, LPL500, and LPL1000 Series chain hoists are the lightest chain hoists in their class relative to their capacity, making them ideal for production touring and mobile applications. The LPML250 and LPL500 feature a modular design with compact construction, making them perfectly suited for integration into trusses. A key feature of these chain motors is their IP65 protection class, which makes them dustproof and resistant to water jets. These motors are highly durable and suitable for outdoor use, even under the most demanding conditions.

Light and Powerful:

• LPML250: Self-weight 12 kg, lifting capacity 500 kg
• LPL500: Self-weight 23 kg, lifting capacity 1000 kg
• LPL1000: Self-weight 46 kg, lifting capacity 2000 kg

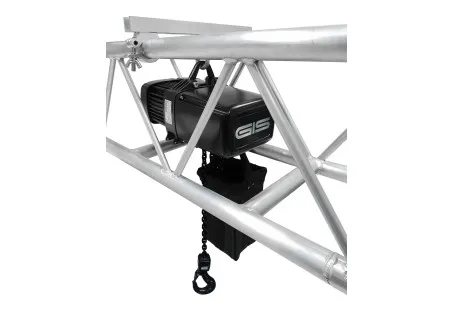

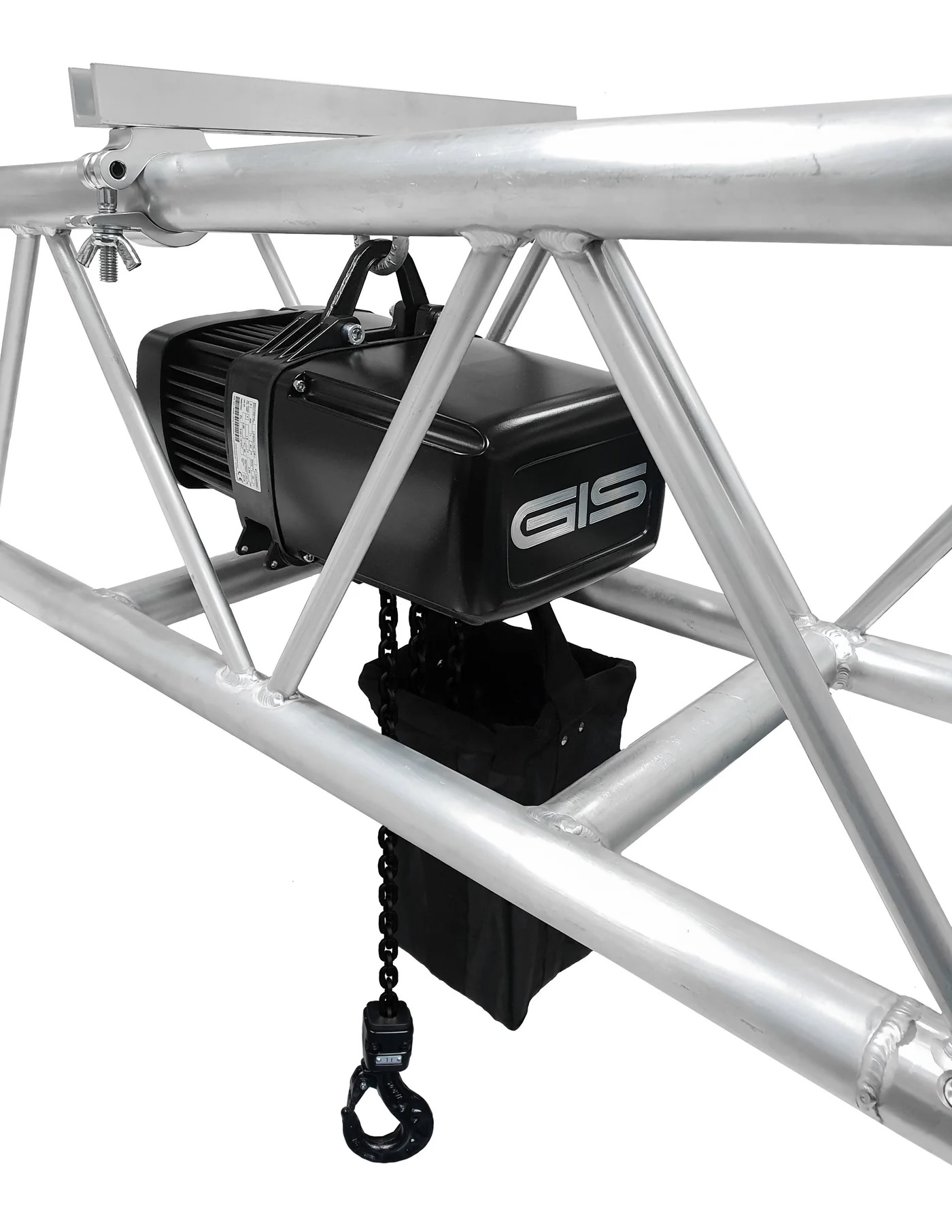

The hoists are also compact in size, with the LPML250 fitting into a 300mm square truss and the LPL500 fitting into a 400mm square truss.

Reliable and Long-Lasting:

• 3-year warranty
• Protection class IP65 as standard
• Housing and cover made from aluminium
• Easy maintenance with accessible components that are quick to replace, ensuring minimal downtime and keeping productions on schedule

GENERAL FEATURES:

• Modern, quiet, reliable design with proven manufacturing processes, ensuring long life and competitive pricing
• Maximum lifting capacities: 500 kg (LPML250), 1000 kg (LPL500), and 2000 kg (LPL1000) — all on a single fall of the chain (can be set for lower capacities if required)
• Complies with EN14492-2, SQP2:2018, DIN56950, EN17206 standards
• Standard chain lengths: 10m, 18m, and 24m (other lengths available upon request)
• Direct control or low-voltage control with upper and lower geared electrical limit switches
• Clutch overload device mounted outside the drive train, ensuring that the load is not compromised in the event of clutch problems
• Suitable for upright (motor up) or climbing (motor down) applications
• Standard hook body suspension, with eye body suspension and lower locking chain hook suspension available upon request
• Available for 400V, 3-phase 50Hz or 220V, 3-phase 50Hz power (other voltages available on request)
• Profiled (square) steel lifting chain: Carries heavier loads with lower wear, black phosphate protection with high corrosion resistance, and improved dry-running performance
• IP65 protection class: Ideal for outdoor use with moisture-sensitive components housed separately
• Polygon connections on shafts and hubs for easier maintenance
• 5-pocket load chain wheel for smooth, quiet operation
• Aluminium body with black electrophoretic coating

Simple, reliable, easy to use, and maintain.

OPTIONS:

• Secondary brake
• Load cell for load monitoring (LPL500)
• Encoder for position monitoring (LPL500)
• Various voltage options
• 4-position geared limit switch
