Magnetek Flex Wave Replacement Transmitter

Magnetek Flex Wave Replacement Transmitters are available from ULS Lifting from stock on fast delivery to anywhere in the UK. The Flex EX2 replacement handset is available in 4-button (FLEX 4EX), 6-button (FLEX 6EX), 8-button (FLEX 8EX), and 12-button models (FLEX 12EX). Pre-set to frequency 863.050 MHz. Also available on request with 433MHz frequency for Gen1 backward programming.

The FLEX EX2 range of transmitters are all Two-speed compatible and can control any hoist that is either single-speed or dual-speed.

Replacement transmitters can be paired wirelessly from transmitter to transmitter or receiver to transmitter.

Fitted with Emergency Stop.

Key rotary button for horn on and start.

Quality-built, ergonomic and robust design.

Charging cradle available (Extra Cost) for easy recharge using rechargeable batteries.

Why choose the FLEX EX2 Remote Control - Flex EX2 wireless controls have more features and better performance than Flex EX radios, yet still a great value. The EX2 is rugged and durable, perfect for industrial applications.

ULS Lifting offers replacement Flex Wave handsets to companies that have accidentally broken one of their original Flex Wave Crane Radio Control handset, or to companies that just need a spare. Our spare Flex EX2 Controllers have simple plug-and-play technology for easy pairing with your existing FLEX WAVE System.

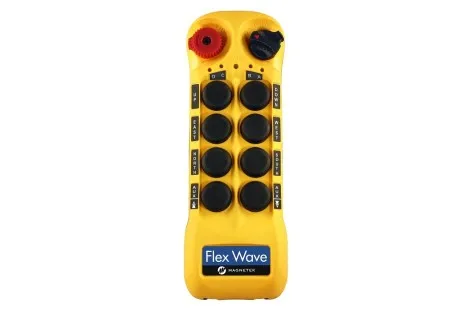

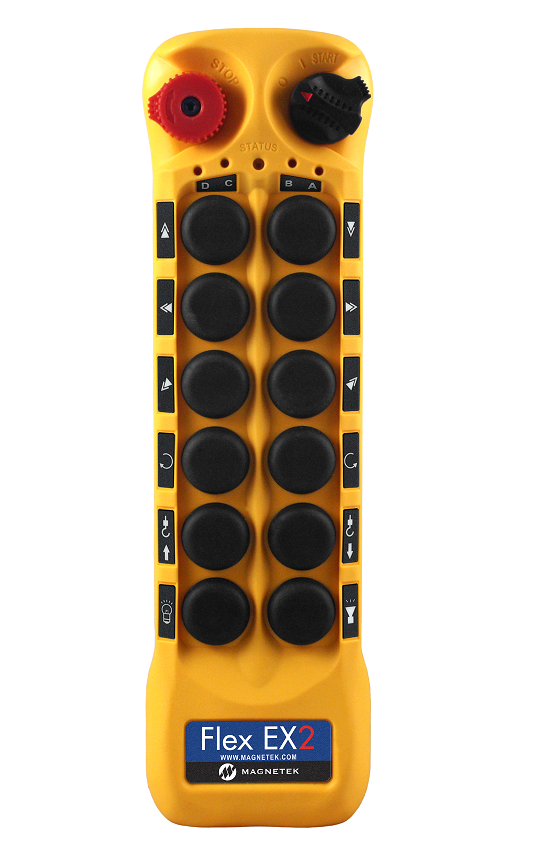

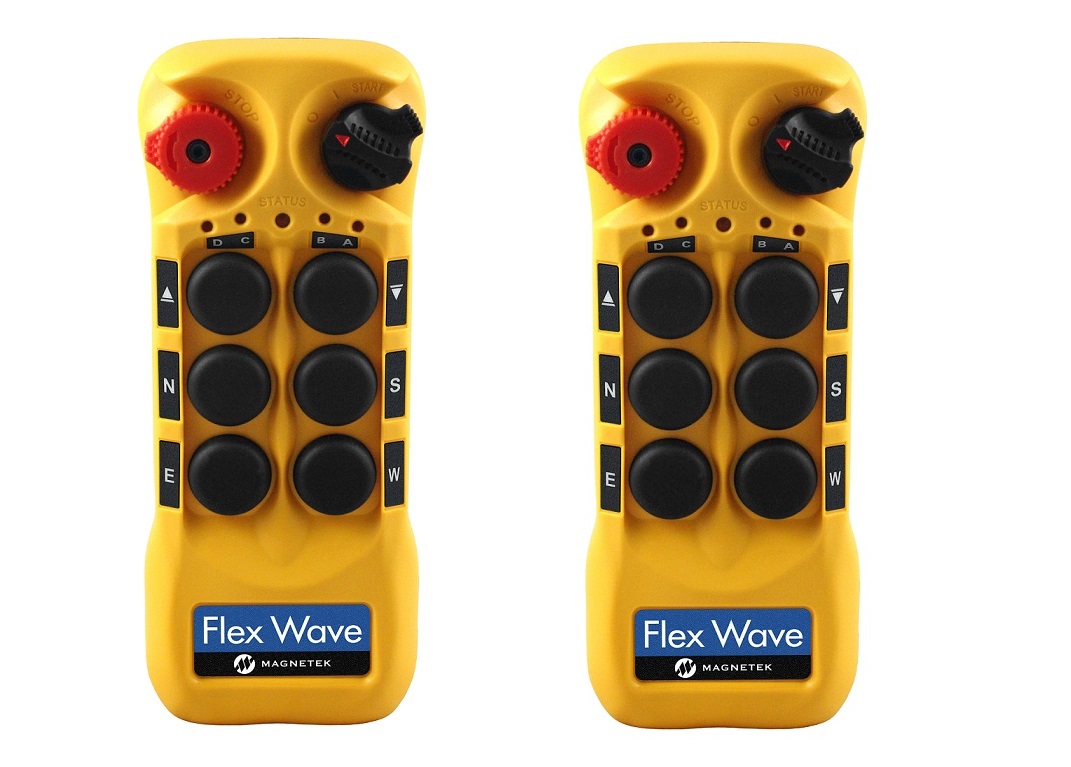

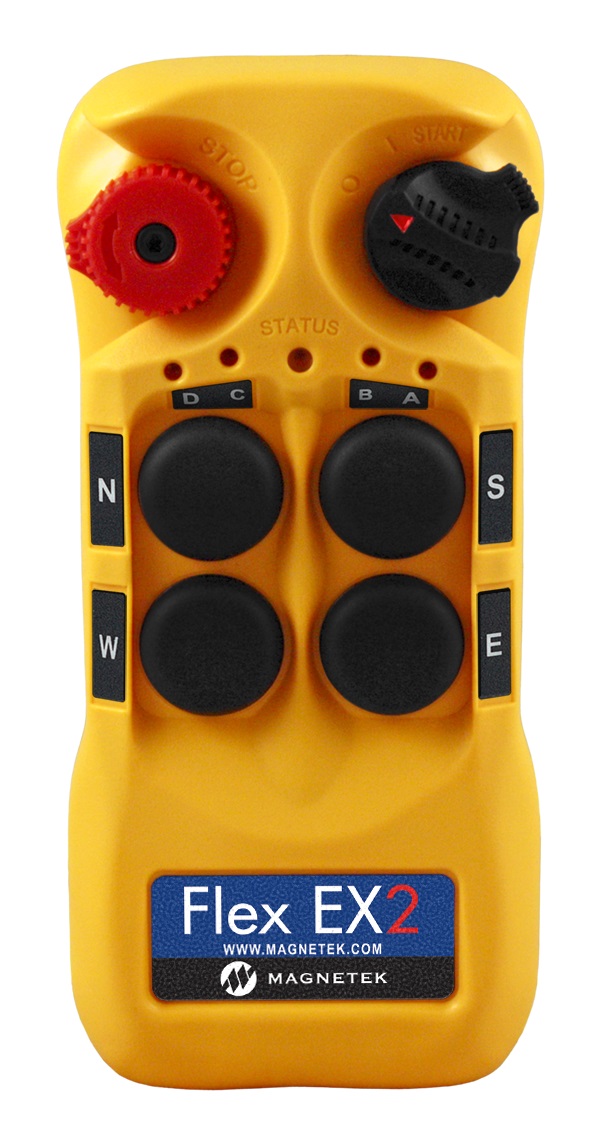

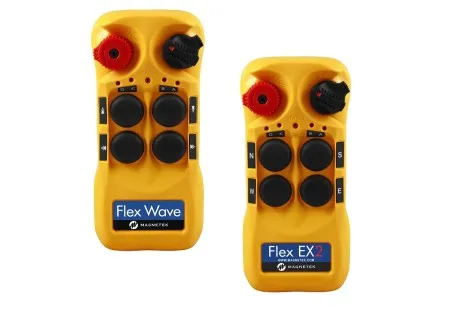

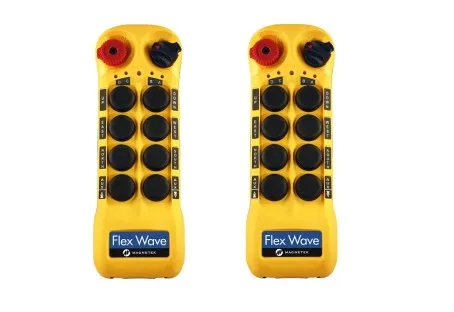

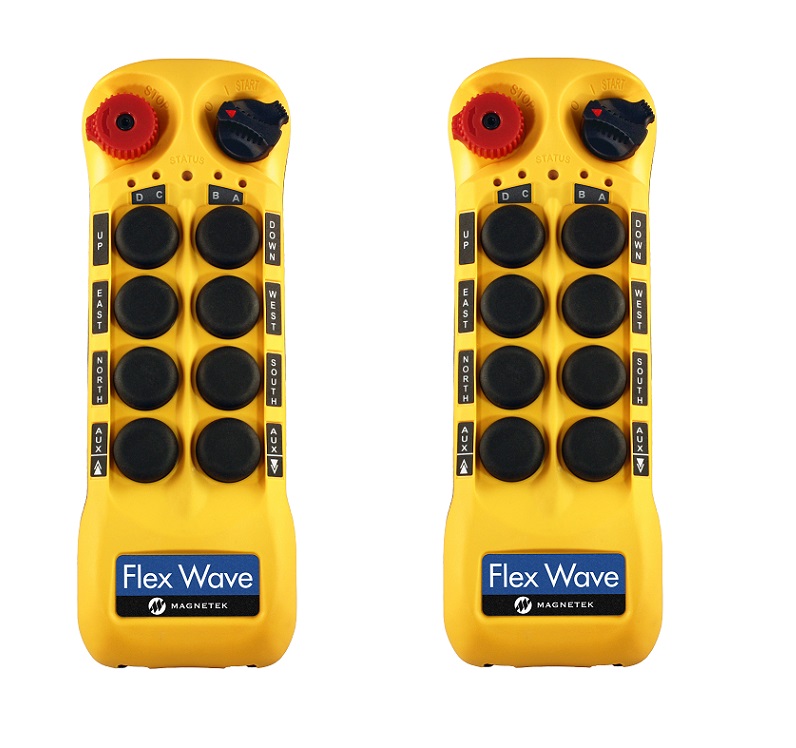

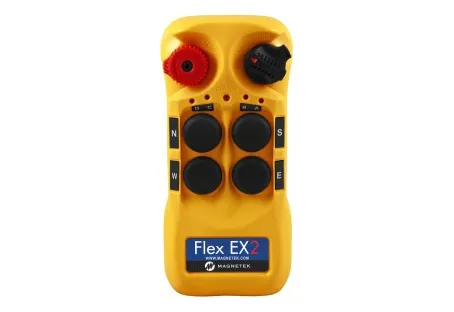

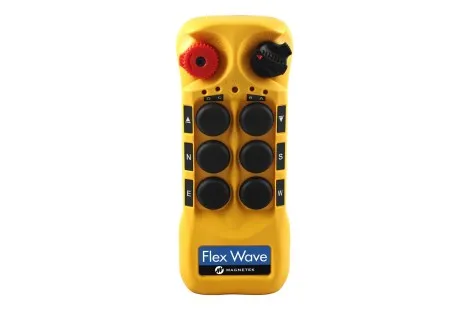

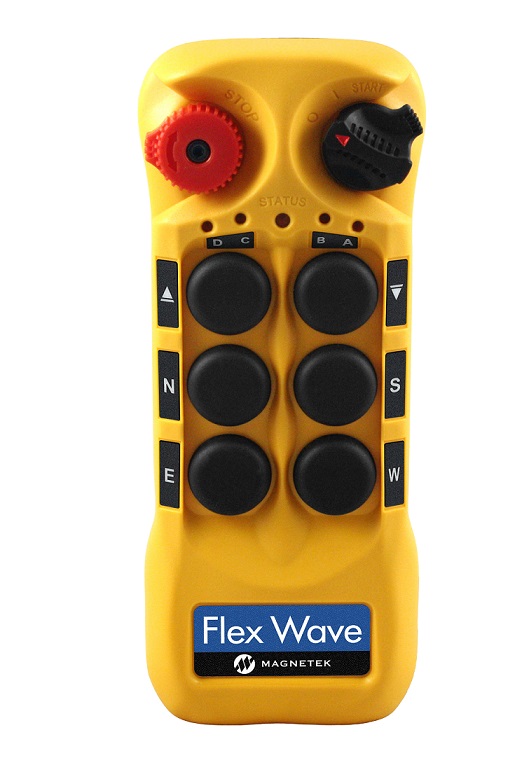

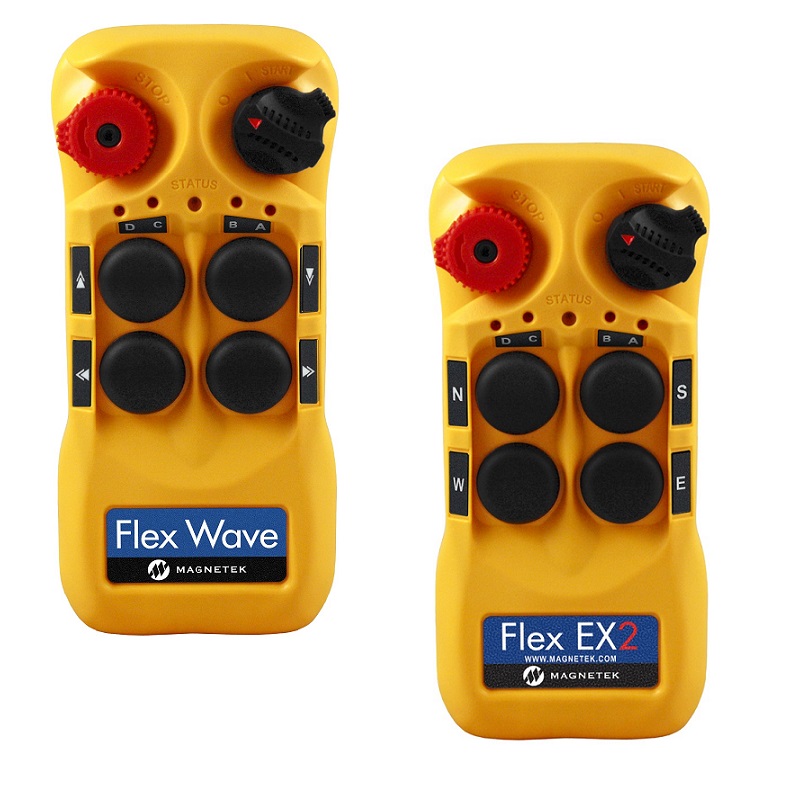

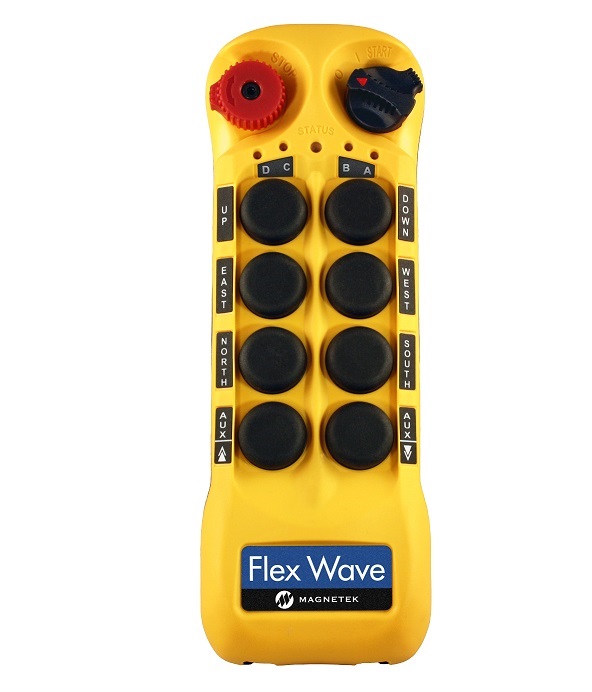

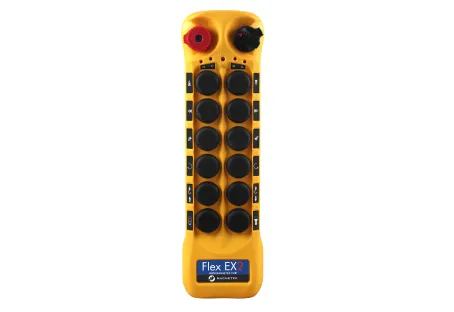

The Flex 4EX WAVE Transmitter is supplied with 4 push buttons making it ideal for any electric hoist that only needs Up and Down Motion or for electric chain hoists or overhead cranes that are fitted with a powered traveling trolley. The Flex 6EX Wave Transmitter is supplied with 6 push buttons commonly used for overhead cranes or electric hoists with a powered trolley and cranes that also require forward and reverse motion as well as standard up/down/left/right. Then there is the Flex Base 8EX controller and Flex Base 12EX Controller, these multi-button radio transmitters are ideal for Crane systems with specialist applications or attachments added to the crane system.

Flex EX2 or Flex Wave Specifications / Main features:

Equipped with more than 200 programmable functions to suit all types of applications.

Flex EX2 transmitters are backward compatible with first-generation EX receivers.

Zero-G feature identifies an accidental transmitter drop, ceasing all operation, preventing unintended equipment motion, and enhancing system safety.

Rounded transmitter enclosures made from industrial-strength nylon and fiberglass composite materials combine comfort with durability.

Pushbuttons feature gold-plated contacts and are rated for more than two million press cycles. The defined snap-action steps provide positive tactile feedback even while wearing gloves.

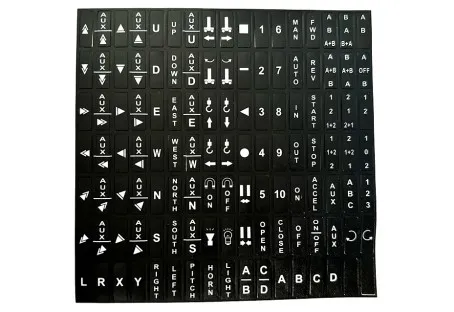

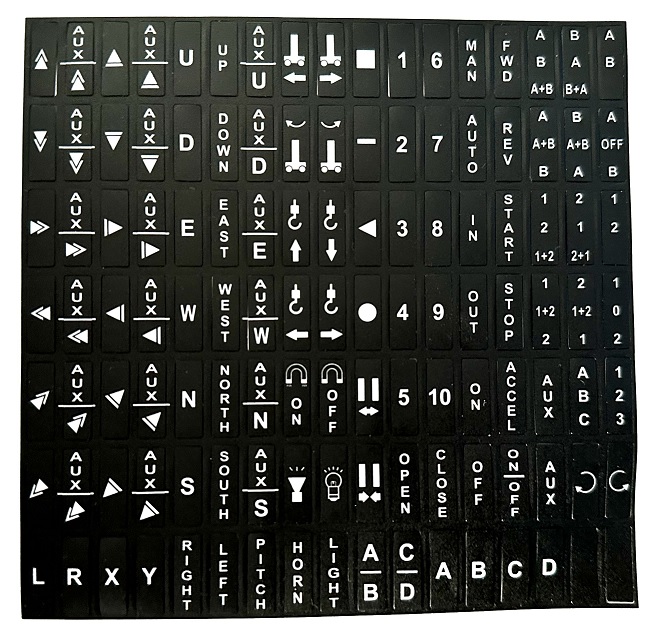

Labels located next to buttons for easy visibility and durability.

IP66-rated, fully sealed transmitter and receiver enclosures provide you with confidence and protection in harsh indoor or outdoor environments.

Two “AA” alkaline batteries provide more than 100 hours of operation.

Charging cradle available for easy recharge.

A wide variety of accessories are available to provide additional protection and flexibility, including protective rubber transmitter boots, padded nylon transmitter case, retractable belt clip, and horn kit.

Battery compartment with single thumbscrew provides easy access to batteries, dipswitches, and programming port.

The frequency agility feature automatically switches channels when interference is detected on a channel.

Advanced synthesized RF controls with 124 channels (62 channels user-programmable) add flexibility to frequency management.

Each Flex EX2 system has over one million unique identification codes (20 Bits).

Replacement transmitters can be paired wirelessly from transmitter to transmitter or receiver to transmitter. Built-in infrared allows for easy transmitter configuration with the IR Programmer.

Advanced microprocessor controls with 32-bit CRC and Hamming Code provides ultra-fast, safe, precise, and error-free encoding and decoding.

Ergonomic and Reliable Design:

Frequency agility feature automatically switches channels when interference is detected on a channel.

Built-in infrared allows for transmitter configuration with the IR Programmer, so transmitter unit doesn’t need to be opened up to configure.

Advanced synthesized RF controls with 124 channels add flexibility to frequency management in the field.

62 channels are user-programmable.

Each Flex EX2 system has over one million unique identification codes (20 Bit) and never repeats.

Spare and replacement transmitters can be paired wirelessly from transmitter to transmitter or receiver to transmitter.

Flex EX2 transmitters are backwards compatible with first generation EX receivers.
