Magnetek Flex 6 Wave Radio Remote Control System

Magnetek Flex WAVE Radio Control Systems sold with 6 button radio transmitters that offer a durable, rugged, and feature-rich radio remote system. Designed to simplify installation and provide flexibility for easy adjustments or configuration. The 6-button kit is ideal for basic or lightweight applications, such as chain hoists. Another reason to purchase the Magnetek system is the voltage Select feature, that automatically adapts to the control voltage from three available power supplies: 9-36 VDC, 24-42 VAC, and 48-240 VAC, meaning these systems will never conflict or interfere with other equipment nearby (Anti-Interference Feature).

The Magnetek range of remote-control systems are supplied with both the receiver and two transmitters as standard, that can be either "retro-fitted" to older overhead crane systems and/or crane hoists or they can be fitted to machinery that requires the flexibility of not having a wired pendant control. Flex Wave transmitters are ergonomic and lightweight and available in 4, 6, 8, and 12-button style options to meet all your application needs. This six button Flex Wave System is supplied with the compact designed MRX receiver that can be easily mounted on the control panel or on the body of the hoist itself to minimise the potential imbalance.

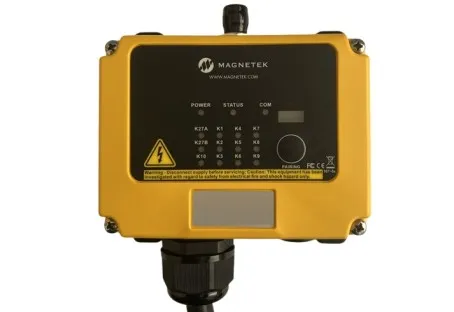

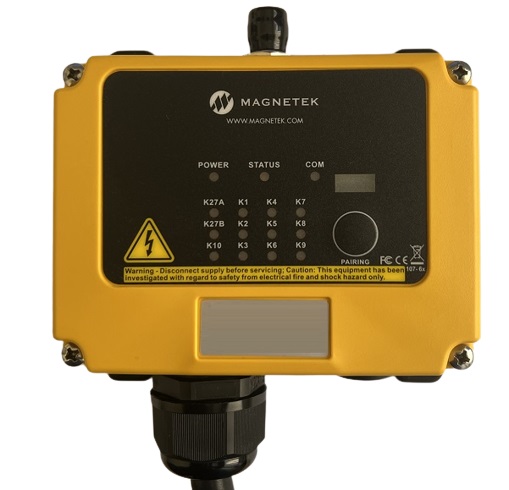

MRX RECEIVER - MRX Receiver can be mounted on the control panel or the body of a hoist to minimise the potential for imbalance. This receiver is ideal for basic or lightweight applications, such as chain hoists.

Why purchase and install a radio remote control system? - Ideal for use in material handling, overhead crane, and industrial applications where the operator requires greater freedom to move around to say get a better view of the working area, or to negotiate obstacles that could be blocking either the operator's path or the crane / loads path. Rather than using the traditional wired pendant control cord that restricts all movement.

Do you need installation? Ultimate Lifting Solutions can offer full installation and integration of Radio Remote Control Systems with Overhead Crane Systems and Electric Chain Hoists - Please call the ULS Lifting sales team for more information.

PLEASE NOTE - These Radio Remote System are only compatible with a Three (3) Wire Set up for the hoisting speed. Where as the fast speed using a common 3rd wire. Ideal for standard Hoists and cranes - If a Four Wire set up is required, please call the ULS Sales Team.

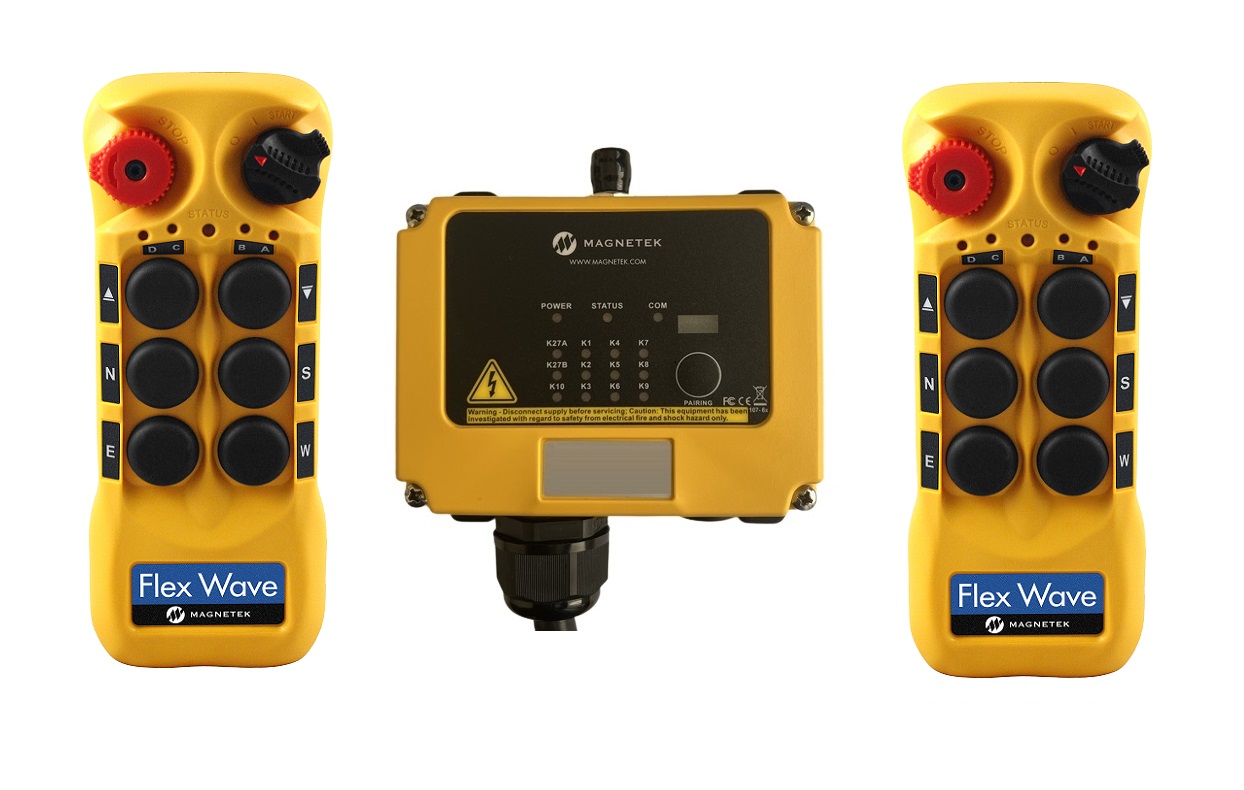

What is supplied in the box - The Magnetek Flex 6 WAVE Radio Control System

1 x MRX Micro Receiver (3 Wire) c/w 1.3m Cable.

2 x Flex EX2 Gen2 Radio Transmitters - Six, Two Step Push Button, E-Stop and Power On/Off Key.

2 x AA Alkaline Batteries supplied (non rechargeable).

2 x Set of directional legend sheets.

1 x Operating manual.

Accessories available for Magnetek Flex 6 WAVE Radio Control System

FLEX-6WAVE-Boot - Protective Rubber Boot / Cover to protect the Flex EX Gen2 Radio 6 button Transmitter.

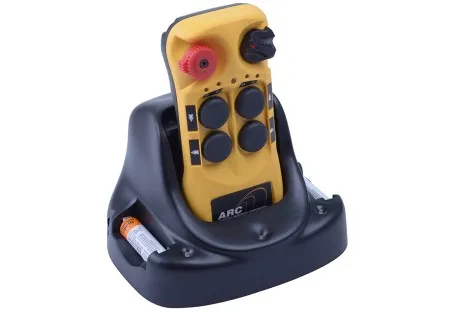

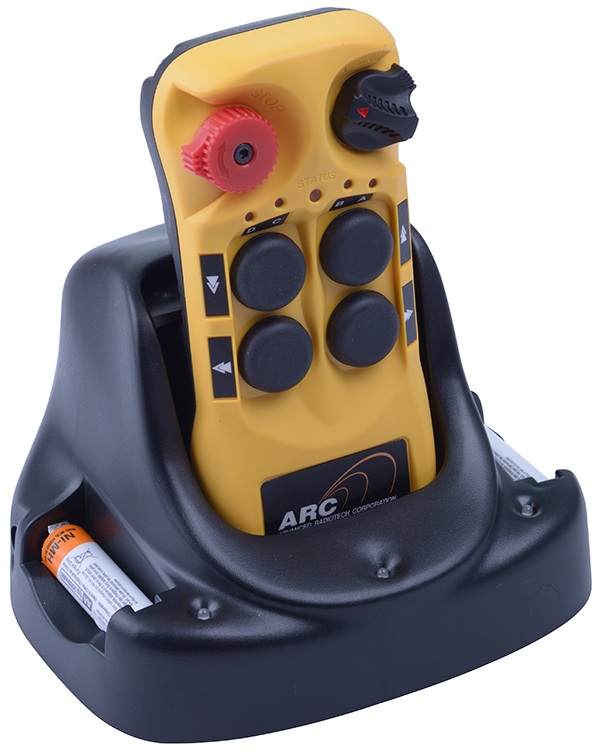

0-CMB-206E - Charging Dock Station, including power lead and 4 x AA Rechargeable Batteries for the  Flex EX Gen2 Radio 6 button Transmitter.

IT070R240Z - IT SERIES RED 48-240V AC/DC LED Horn (70mm), klaxon and beacon combo unit - It offer both visual and audible warning when the crane or hoist is in motion.
