YALE CPV F ELECTRIC CHAIN HOIST 400V

The YALE CPV F ELECTRIC CHAIN HOIST with a 400V power supply is highly rated as one of the best electric chain hoists in its class. Yale sets exceptionally high standards when designing this new model in their already popular electric chain hoist series. Released a few years ago, the new CPV hoist combines modern design with technical innovation. Its robust, compact construction makes this series a versatile unit ideal for industrial applications. With a service-friendly modular design, it allows easy access to all critical components, facilitating time-saving maintenance and periodic inspections.

The integrated upper and lower limit switches significantly extend the lifespan of the slipping clutch, motor, and gearbox. The CPV is equipped with electromagnetic spring pressure brakes that hold the load safely, even in the event of a power failure. Another notable feature of the CPV hoist is its externally adjustable slip clutch, designed to ensure a permanent connection between the load and the brake. Mainline contactors, fitted as standard, offer increased safety.

Yale CPV Electric Chain Hoist:

• SWL: 250 kg to 5000 kg
• Supply Voltage: 400V 3ph 50Hz
• Suspension Options: Available with lug suspension, hook suspension, push trolley, and single-speed or dual-speed travelling trolley.
• Falls of Chain: Available in 1 & 2 falls
• Hoist Speed: Single & dual speed options

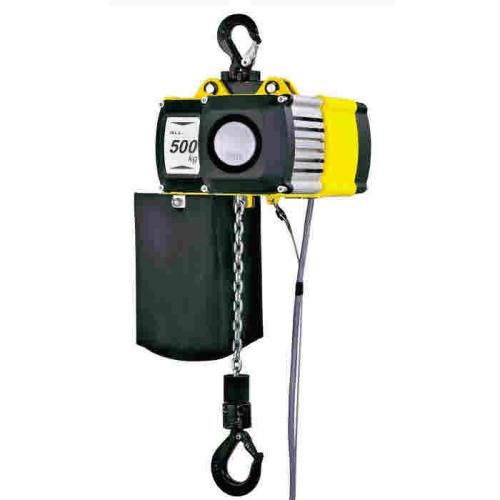

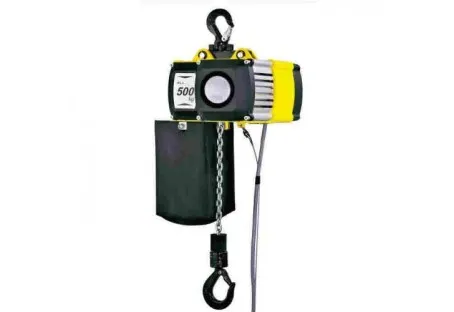

• Chain Containers: Can be supplied
• Height of Lift (HOL): Available from 3 m to 15 m (higher on request, as there are no restrictions on overall length)

Any additional height of lift is available; the standard is 3m, and additional heights are sold in complete metres only. Standard hoists at 3m are supplied with a 2m pendant cable. As the lifting height increases, the pendant cable length will be adjusted pro-rata. The hoist body can be fitted with a raincoat, with three sizes available to suit all hoist sizes. Powered trolley raincoats are also available, but only up to a 2-tonne capacity. Radio remote control is available for the above hoists, fitted at the factory before dispatch, and tested and certified. Please contact us for more information.

Why Choose a Yale CPV or Yale CPV/F Chain Hoist?

One of the advantages of ordering the Yale CPV High-Performance Electric Chain Hoist from Ultimate Lifting Solutions Ltd is the variety of model options available to suit most requirements. The CPV range starts with a small-framed hoist body with a 250kg capacity, supplied on a single fall of chain with a fast dual lifting speed of 8m and 2m per minute. This same hoist body can also be supplied as a 2-fall, 500kg hoist with a standard dual speed of 4m and 1m per minute.

The next size up features medium frames that offer both 500kg and 1000kg electric chain hoists. These can be sold with either single speed or dual speed and can again be supplied on a single chain or 2-fall chain setup. If you need assistance choosing the correct size electric hoist, feel free to contact the Ultimate Lifting Solutions technical hoist sales team at 01384 986 026, and we will guide you through your requirements.

The Yale CPV can also be supplied with a large hoist frame. These top electric hoists have capacities of 1000kg and 2000kg. The 1-tonne Yale CPV large-framed hoist comes with a fast lifting speed of 8m per minute in the single-speed option and 8m or 2m on the dual-speed option. The 2-tonne Yale CPV hoist is supplied with a standard speed of 4m per minute on the single-speed model and 4m or 1m per minute on the dual-speed electric hoist option.

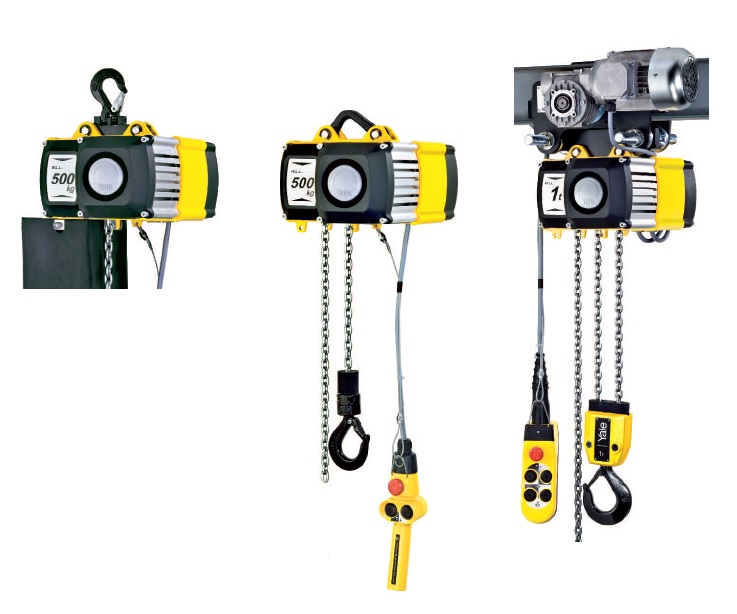

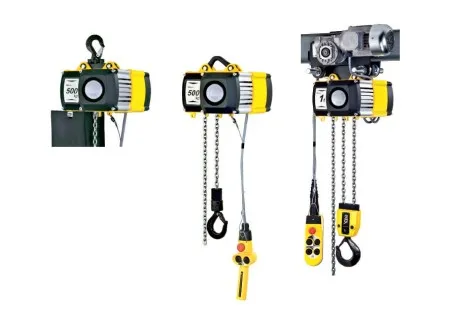

The CPV Electric Hoist from Yale not only offers a wide selection of capacities and lifting speeds but can also be supplied with different suspension options to meet various requirements.

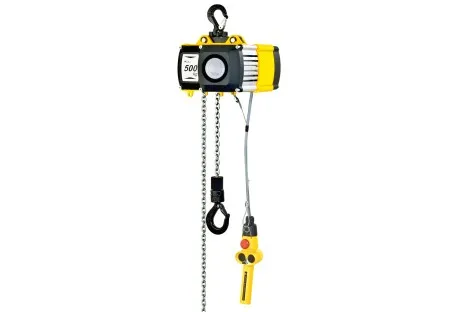

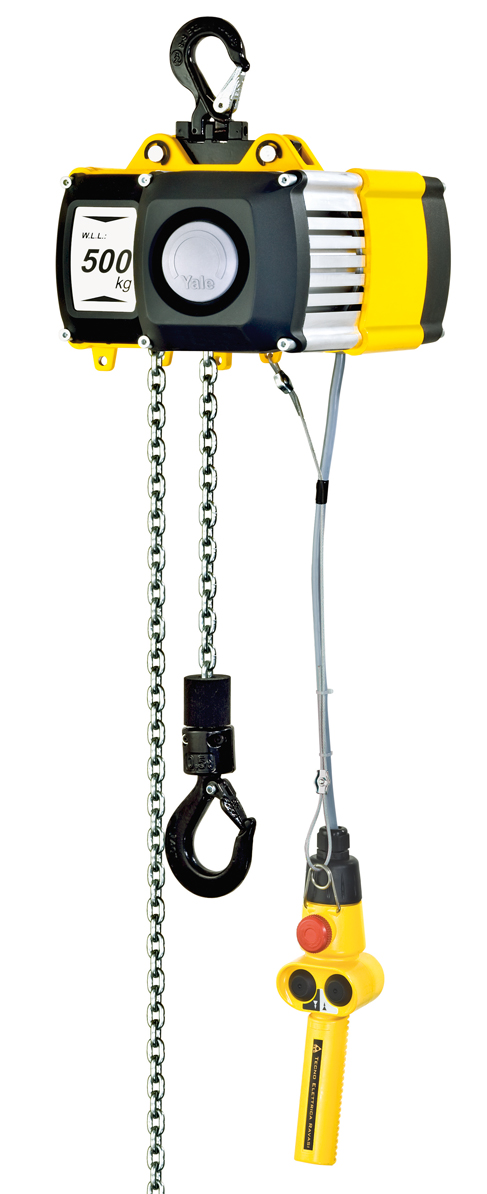

A standard suspension point for all electric chain hoists is the Top Hook Suspension Electric Chain Hoist. This style is the easiest to fit, as it simply hooks onto the suspension point already provided, which could be a fixed beam clamp, an existing beam trolley, or a Jib crane from the ULS range. When a hoist is fitted with a top hook suspension, it can be easily installed and removed as needed.

The next suspension fitting is the Top Lug Suspension Electric Chain Hoist, which is ideal when space is restricted. A lug is more compact than a top hook, allowing you to save valuable space. Another advantage of using a Top Lug fitting is that it is better suited for permanent installations. These hoists are not easily removed without tools, making them less portable.

If you require the hoist to move along a runway beam or I-Beam, the Yale CPV Hoist can be supplied already fitted to a push travel trolley. This is the perfect option for new installations on a beam or an I-Beam-style Jib Crane. The addition of a push travel trolley enhances the hoist's portability along the beam, and the easy-roll rollers make it simple to move a load along the factory with the aid of the electric hoist.

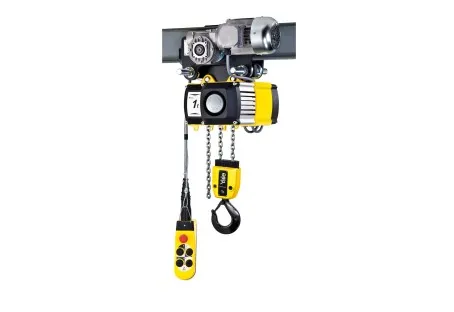

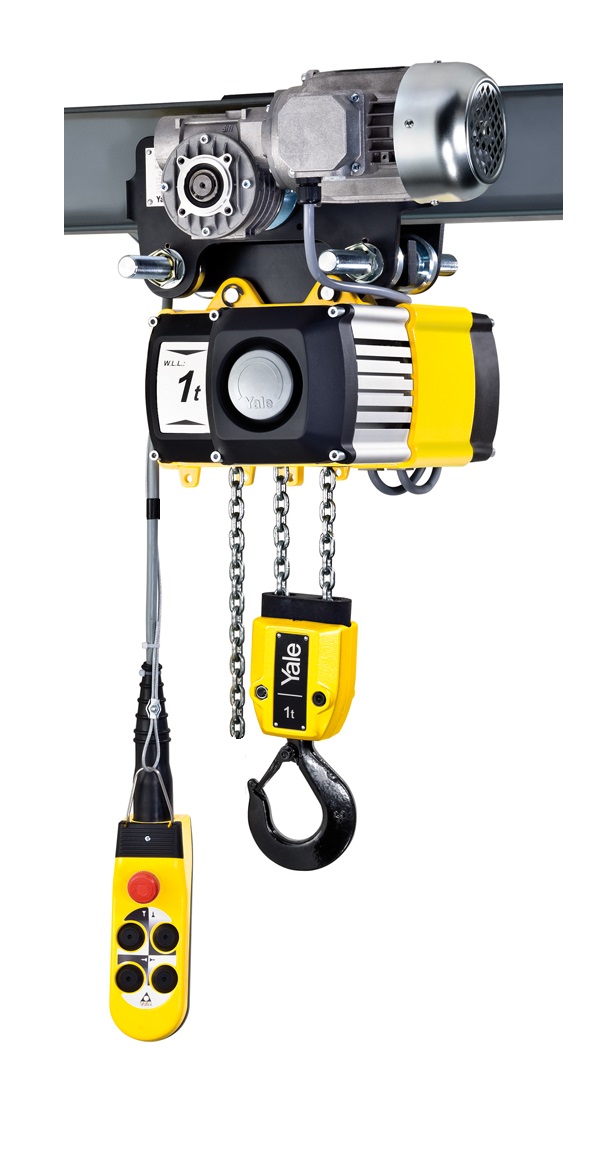

Lastly, the CPV Electric Chain Hoists can be fitted to either a single-speed or dual-speed electric travel trolley. This style of electric hoist, combined with an electric trolley, alleviates the physical effort required from the operator, as the hoist will raise or lower the load and propel it along the factory or across the gantry arm. All controls are managed from the supplied encapsulated pendant control. For safety reasons, the supply cable to the pendant operates at a low voltage of 42V, and the pendant is rated IP65 for protection against dust and water.

Installation Assistance

Do you need help? We have fully qualified engineers available to install electric hoists at your premises. Call us for a quotation or additional information.

CPV / F Hoist Features Include:

Standard Features:

• Increased operating safety through a 42V control voltage (low voltage control) and a main contactor.
• An integrated limit switch for the highest and lowest hook positions, considerably extending the service life of the slip clutch, motor, and gearbox.
• Overload protection (slip clutch) in all CPV hoists, which allows for higher safety requirements.
• An electromagnetic spring pressure brake that holds the load safely even in the event of a power failure.
• Different suspension types are available, such as top hook, lug, or integrated trolley. A retrofit to another type of suspension is possible.
• Custom chain lengths (lifting heights) available upon customer request.
• An oil bath gearbox (or semi-fluid grease with CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) featuring helical gearing for particularly smooth operation and enhanced lifespan.
• All-steel chain guide.
• The chain guide of the smallest hoists (CPV/F 2-8 and 5-4, as well as CPV 2-4 and 5-2) consists of a thermoplastic (POM) chain guide that is integral to the housing.
• The CPV series is protected up to IP 55 against dust ingress and water jets.
• A 2-year warranty (excluding worn parts) and a lifetime lubricated gearbox.
• Duty cycle of 50% ED for single speed.
• Standard operating voltage: 400V, 3Ph, 50Hz.
• Available with either Top Hook suspension or Lug for reduced headroom. Lug fitting is designed for easy integration into trolley applications (customer to specify at the time of ordering).
• Fully tested and certified.
