80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist

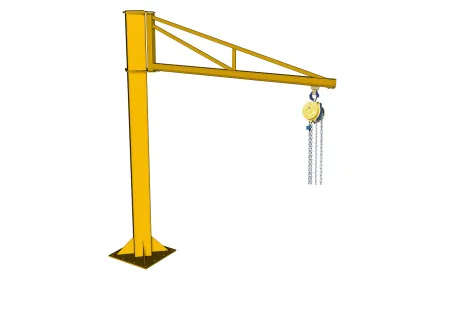

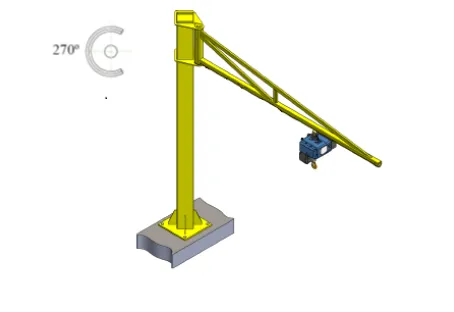

80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist. This lightweight Profiled version of the ULS Lifting Free Standing Jib crane range comes complete with a quality manual chain hoist, that will simply hook onto the Jib Crane Manual Trolley already fitted to the swinging Jib Arm. Lightweight over-braced jibs are supplied in two parts, the jib arm which the hoist will move along, and the upright pillar that the swing arm fits to. Both the component and pillar can be manufactured to any length between 2m and 6m and the arm is designed to slew through 270° giving a wide working area. the arm has a trolley already fitted, making it even more simple for connecting to your hoist, spring balancer, or vacuum lifter.

We have made it simple for you - To save you time and stress, we have put a package together with both the Jib Crane and a quality Manual Chain Hoist - All you need to select is what height of lift you require on the manual hoist to suit your jib working height.

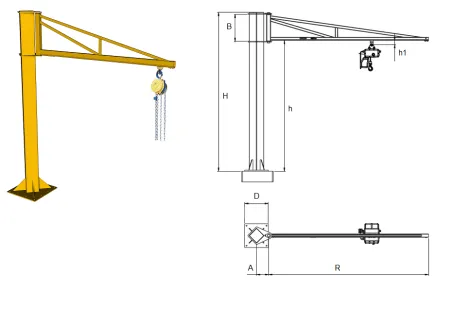

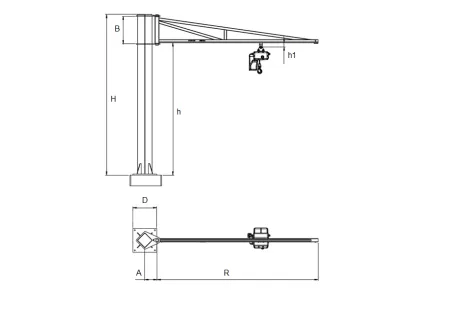

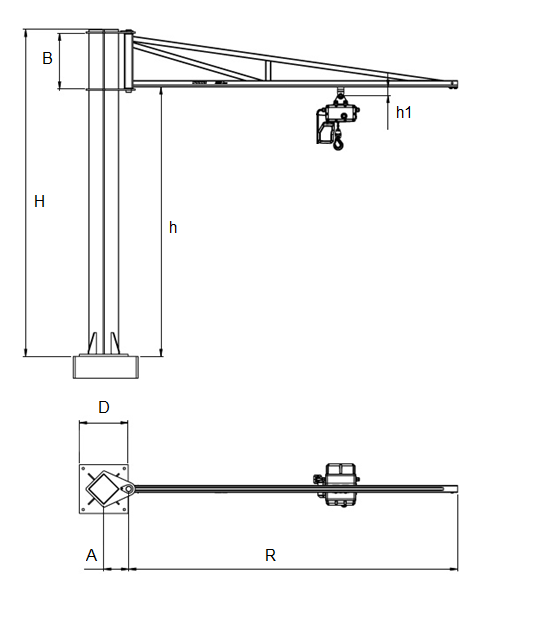

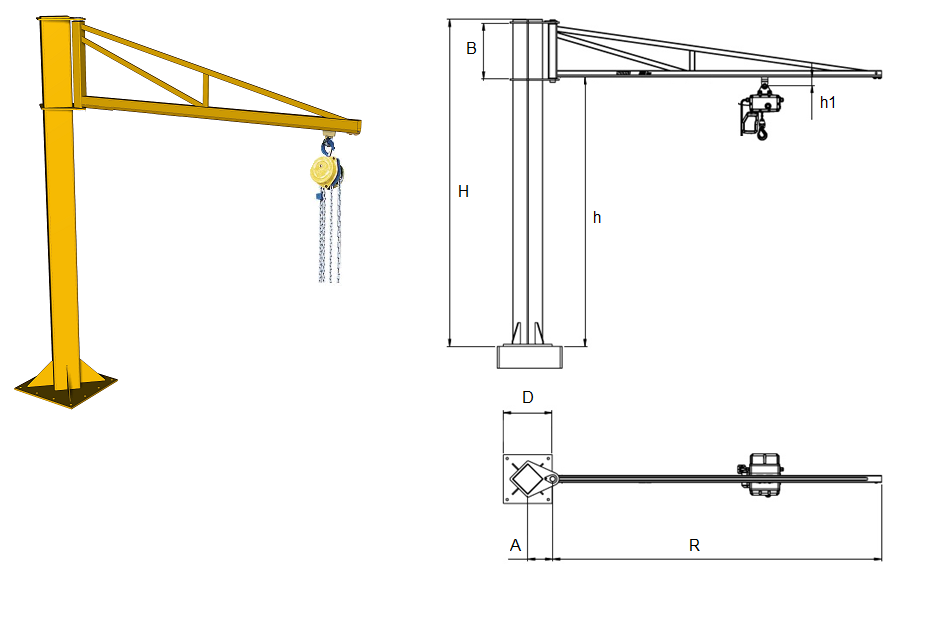

Dimensions for illustration only - Based on 80Kgs Free Standing over-braced Swing Jibs with 3m Overall height

Why Choose a 80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist.?

There are many advantages to purchasing a free-standing Jib Crane supplied complete with a manual chain hoist. They are extremely versatile within the factory, speeding up the lifting and moving of components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber or steel.

Jib cranes are made up of two main parts, the pillar, and the arm, therefore a simple manual jib crane does not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install.

These 80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist. simply just bolt to the floor via the Jib Crane Base Plate by using chemical resin anchor bolts. Once you have checked your floor is suitable for a jib crane and bought it, we arrange to manufacture the jib, and then when it is supplied to the site, the floor just needs to be drilled and the floor mounting plate secured -  We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, they will only need an industry standard 12 monthly servicing. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How does a Lightweight Swing Jib Crane work?

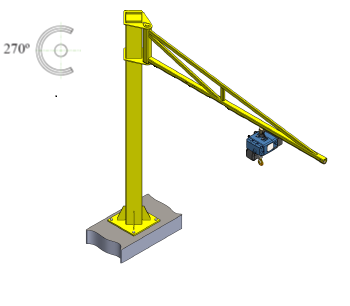

A standard lightweight swing Jib as mentioned has two main parts - The Pillar and the Arm. The arm can rotate from left to right and vice versa the swing or slew angle is set at 270° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.

The arm on our Jib cranes is supplied with a trolley, which moves up and down the full length of the arm, this trolley gives you the reach and flexibility to reach into corners of your factory with ease.

What else is required for 80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist?

You now have your floor mounted Swing Jib fitted. You now need a hoist, these fit easily to the trolley that was supplied free of charge with the freestanding jib crane.  You just need to decide what hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach them. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation

As mentioned above, the 80Kgs SWL Free Standing Jib Crane c/w Manual Chain Hoist can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib with a certificate as safe to use. we are more than happy for all our customers to install themselves or find their own installation and commissioning team. We are also more than happy to offer our engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely. Once completed certification will be issued.
