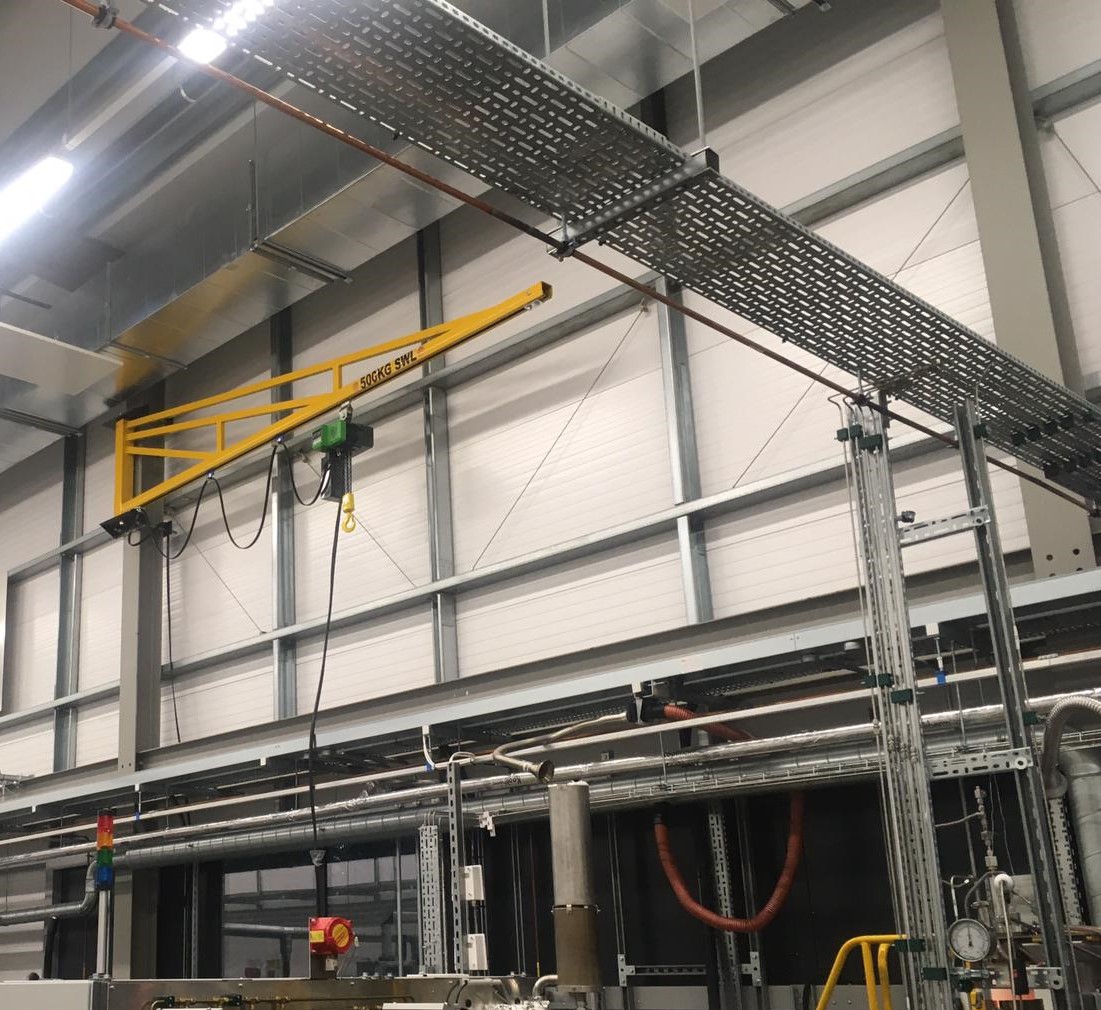

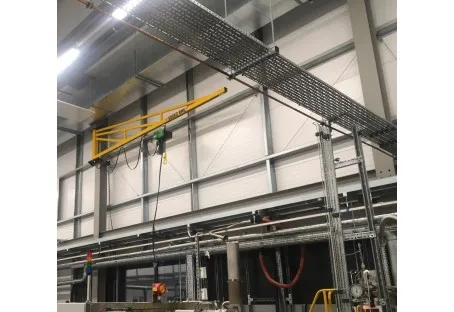

500Kgs SWL Column Jib Crane c/w Electric Chain Hoist

500kg SWL Column Jib Crane with Electric Chain Hoist – Manufactured in the UK

Our 500kg Column-Mounted Jib Cranes are supplied complete with a high-quality 500kg Electric Chain Hoist (400V). This integrated solution saves you time by eliminating the need to select a separate hoist and trolley. These column jib cranes are ideal for applications where a crane needs to be securely suspended from an existing column, pillar, or stanchion within your building. The arm can be custom-manufactured to any length between 2m and 6m and is designed to slew through 180°, providing a wide working area.

Please note: Anti-slip measures must be implemented to ensure the jib arm does not slip or move down the column it is attached to. The arm comes with a trolley already fitted, making it simple to connect to your hoist, spring balancer, or vacuum lifter.

A Simplified Solution

To save you time and reduce stress, we’ve bundled both the Jib Crane and a 400V Electric Chain Hoist that fits directly onto the integral push/pull trolley within the jib arm. All you need to choose is the required lift height for the manual hoist to suit your jib working height.

Full Electric Supply Kit

If added to your order, the Full Electric Supply Kit includes everything required for the installation of the jib crane and hoist. The kit contains a main isolator, supply cable for the hoist (cut to the appropriate length for your selected arm), and cable trolleys to keep everything neat and tidy.

Why Choose a 500Kg SWL Column Jib Crane with Electric Chain Hoist?

There are many advantages to purchasing a Column Mounted Jib Crane. These cranes are incredibly versatile within a factory setting, improving efficiency by speeding up the lifting and moving of components off presses or workbenches, as well as loading and unloading lorries. Capable of lifting up to 0.5 tonne objects such as granite, timber, or steel, they provide essential support in heavy-duty tasks.

Column Jib Cranes consist of two main parts: the arm and a set of brackets designed to attach to existing steelwork. With a simple design and fewer parts to maintain, they are exceptionally reliable. This means reduced risk of breakdowns and minimal downtime, ensuring that production continues without disruption.

Easy to Install

These 500kg column-mounted cranes can be easily bolted to existing columns, pillars, stanchions, or any suitable structural steelwork. Once you’ve verified that your column is appropriate for a jib crane, simply choose the model you require from the drop-down menu. We will arrange to manufacture the crane and dispatch it directly to your site on your preferred delivery date.

Upon arrival, the jib crane just needs to be secured to the steelwork. Anti-slip measures must be taken to ensure that the crane cannot slip down the support column. At Ultimate Lifting Solutions, we offer this service and can provide full installation by our highly trained engineers. Alternatively, we can offer commissioning or load testing services, tailoring a package to your specific requirements.

Low Cost of Ownership

Thanks to their simple design, these cranes are both affordable to purchase and maintain compared to other crane types. Under normal working conditions, they require only standard 12-month servicing. At Ultimate Lifting Solutions, we offer various maintenance and service packages to suit your needs, ensuring continued reliability and performance.

How Does a 500Kg SWL Column Jib Crane with Electric Chain Hoist Work?

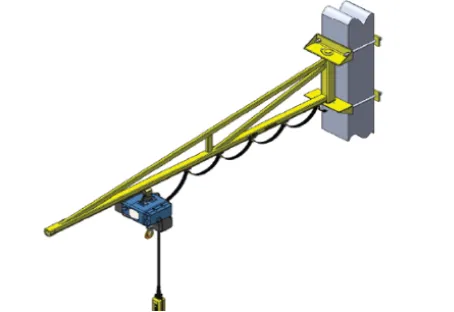

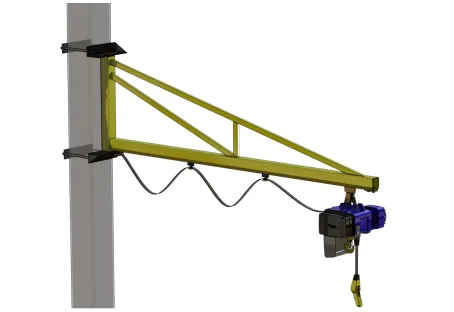

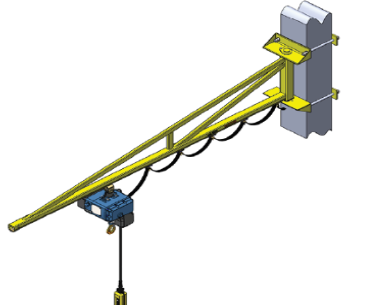

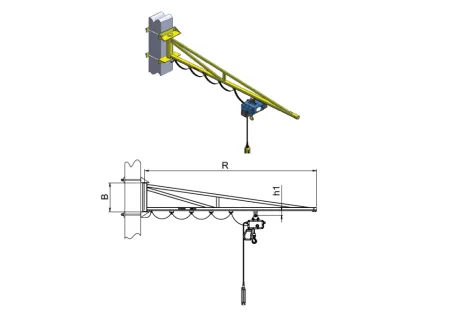

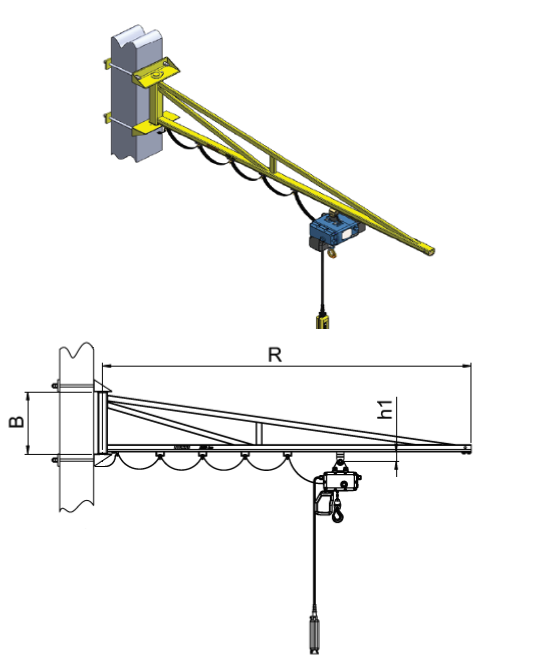

A standard 500kg swing Jib Arm consists of two main components: the arm and the mounting brackets. The arm can rotate from left to right, with a standard swing angle of 180°. All of our swing jibs, up to 1,000kg capacity, can rotate smoothly without the need for powered assistance, keeping costs down.

The arm is equipped with an integral push travel trolley that moves along the full length of the arm. This trolley provides flexibility and ease of access to hard-to-reach areas of your factory, allowing you to position and move loads effortlessly.

What Else Is Required for a 500Kg SWL Column Jib Crane with Electric Chain Hoist?

Once your Swing Jib is installed, you will need a hoist or a vacuum lifter, or even a spring/tool balancer. These can be easily mounted on the trolley already fitted within the jib crane arm.

The most economical option is a manual hoist, but while it’s cost-effective, it can slow down production. Manual hoists require hand assistance and may not be able to reach the hoist chain for larger items. A better option is an Electric Hoist, which allows you to lift and lower components quickly, saving valuable production time and quickly paying for itself through increased efficiency.

Installation

As mentioned above, installing a 500kg Jib Crane is straightforward. Once installed and the hoist is fitted, the final steps involve commissioning, testing, and signing off the crane as safe to use. While we are happy to provide installation instructions so that customers can install the crane themselves or use their own installation team, we know time is valuable.

Let us save you the hassle. Our engineers can handle the installation, hoist fitting, commissioning, and testing. We will not leave the site until everything is working correctly and safely, ensuring a smooth, efficient process.
