250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist

Key notes for ordering:

Dispatched as a kit with instructions. Contact us for installation prices. Suppled with certification

Estimated lead time:Manufactured in UK to Order Approx. 3 - 4 Weeks Delivery

Please call us if you need this item sooner

CLICK
& COLLECT

Next day
delivery

SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist

Brand:

Capacity

250Kgs

Description

Model/Size:

Add Hoist:

Extra Height of Lift For Hoist only:

£594.98 ex VAT

£713.98 inc VAT

Please contact our sales team if the following extras are required:

1 - Adjustable Slew Limits

2 - Slewing Lock

Add to cart

Add to quote

Related products

250Kgs SWL Wall Mounted Jib Cranes c/w Electric Chain Hoist

WMJC

250kg SWL Wall-Mounted Jib Cranes with Electric Chain Hoist Kit – UK Manufactured. High-quality wall-mounted jib cranes supplied with a 400-volt electric chain hoist. These over-braced wall-mounted jib cranes come complete with an electric hoist, which fits onto the supplied integral trolley.

£594.98 ex VAT

£713.98 inc VAT

More info

Description
Specifications
Maintenance and servicing
Reviews (0)
Q & A

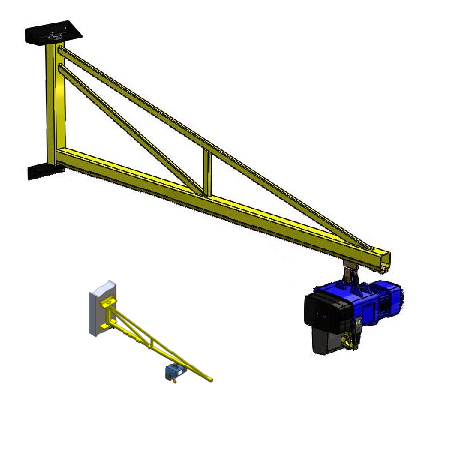

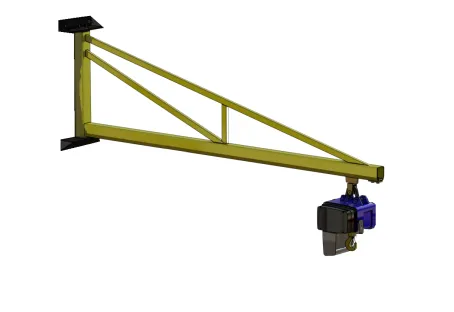

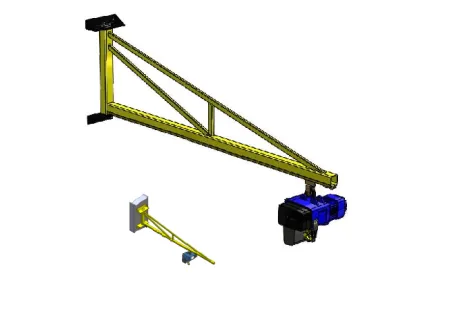

UK Manufactured 250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist. supplied as a complete kit with everything required. Jib crane can be supplied with an arm length from 2m to 6m Long and a Slewing angle of 180°. These over-braced Wall Mounted Jib Cranes are supplied complete with a quality Manual Chain Hoist to save you the buyer time in selecting which hoist to order with your Jib Crane. A Wall Mounted Jib Crane is ideal if you are looking for a Jib Crane solution that can be bolted directly to a structural wall within your building.

Supplied as a simple two-part kit form, the main slewing arm which the hoist will move along, and a pair of brackets that will be welded or bolted to the wall. The two parts are connected using the supplied pivot pin. The arm can be manufactured to any length from 2m to 6m and the arm is designed to rotate 180 degrees giving a very wide working area. The arm has a trolley already fitted, making it even more simple for connecting to your hoist.

We have made it simple for you - To save you time and stress, we have put a package together with both the Jib Crane and a quality Manual Chain Hoist - All you need to select is what height of lift you require on the manual hoist to suit your jib working height.

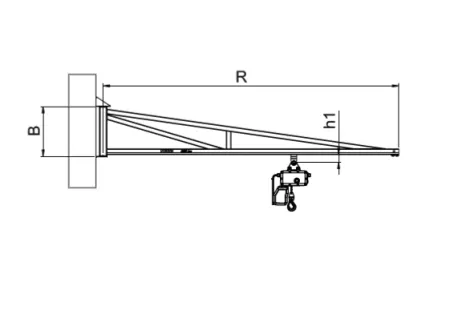

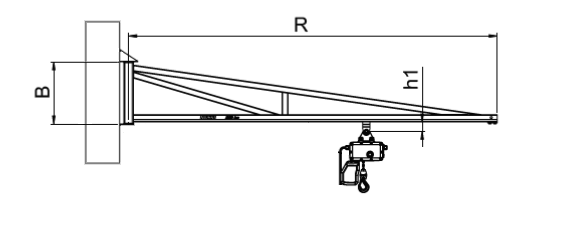

Dimensions for illustration only

Model	SWL	Overall Height Of Arm	Trolley Depth	Arm Length (Radius of reach)	Total Weight
WMJC250R2	250Kgs	500mm	77mm	2,000mm (2m)	50Kg
WMJC250R3	250Kgs	750mm	77mm	3,000mm (3m)	52Kgs
WMJC250R4	250Kgs	800mm	77mm	4,000mm (4m)	71Kgs
WMJC250R5	250Kgs	900mm	94mm	5,000mm (5m)	105Kgs
WMJC250R6	500Kgs	1000mm	94mm	6,000mm (6m)	124Kgs

Why Choose a 250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist?

There are many advantages to purchasing a Wall Mounted Jib Crane, they are extremely versatile within the factory, speeding up the lifting and moving of components off presses or workbenches, and loading or unloading lorries. Lifting heavy objects such as granite, timber, or steel. Wall Jib cranes are made up of two main parts, the arm and set of brackets to attach to existing steelwork, therefore these simple manual jib cranes do not have many parts to maintain, making them extremely reliable, which in turn means they do not break down, so no loss in production time.

Easy to install

These wall-mounted cranes simply just bolt to existing walls or welded to columns, pillars, stanchions, or any suitable structural steelwork, once you have checked your wall/column is suitable for a jib crane, choose which one you require from the drop-down menus, and we will arrange to manufacture the jib and dispatch it directly to the site for your required delivery date. Then, when it is supplied to the site, The Jib just needs to be secured to the wall or steelwork - We at Ultimate Lifting Solutions offer this service and can offer full installation by using our own highly trained engineers or just the commissioning/ load testing, we can offer a package to meet your requirements.

Because of the simple design, they are inexpensive to both buy and maintain compared to other cranes. Under normal working conditions, the customer will only need an industry standard 12 monthly servicing. We at Ultimate Lifting Solutions offer this service and can offer various maintenance/service packages to meet your requirements.

How do 250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist work?

A standard over-braced swing Jib as mentioned has two main parts - The Arm and mounting brackets. The arm can rotate from left to right and vice versa, the swing or slew angle is set for wall mounted at 180° as standard. On all our swing jibs up to 1,000Kgs, they will slew with ease without the requirements of powered assistance, hence keeping the costs down.

The arm on our Jib cranes will be supplied with an integral push travel trolley, this moves along the full length of the arm, and the trolley gives you the freedom and flexibility to reach into corners of your factory with ease.

What else is required for Wall Mounted Jib Crane?

You now have your 250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist. You now need a manual hoist. these fit easily to the trolley that was supplied and already fitted within the jib crane arm. You just need to decide what manual hoist you need. To keep the costs down a manual hoist is the cheapest option, but you will not save on production time, as they are slow and do need assistance by hand, and sometimes for larger items, you might not be able to reach the hoist chain. The second option and best option is an Electric Hoist, these hoists enable you to easily lift and lower your components quickly, cutting down on production time, and it will soon pay for itself in time saved.

Installation

As mentioned above, the Wall or Face Mounted Jib Crane can be an easy install, once installed and the hoist fitted, all that is left is commissioning, testing, and signing off the Jib as safe to use. we are more than happy for all our customers to install themselves using the instructions supplied or find their installation team. But, these days time is precious, do you have time to sort engineers and dates, etc, Let us save you time as we are also more than happy to offer our engineers to take away this task. We can install the Jib, install the Hoist, commission, and test and we will not leave the site until everything is working correctly and safely.

250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist

All our manufactured Jibs are:

Duty classification: A3 according to BS 733: 1990

All jibs are lubrication free. The pivot bushes are acetal and therefore do not require lubrication. The trolleys running surfaces are also lubrication free.

Manual slewing and trolley travel operation

Minimal maintenance requirement

The clutch-controlled slewing mechanism can be tightened/loosened to control how freely the arm pivots.

Bases are fully welded to the column – in most situations, this removes the need for an oversized load spreading plate or setting an anchor frame into concrete, therefore making installation much quicker and more cost-effective.

Key Points of our UK-manufactured Jib Cranes

SWL - 250kg

Arm length - 2m up to 6m

Slew Angle - 180-degree manual slew

Trolley - Fitted with integrated push travel trolley for suspending hoists, vacuum lifters, and tool balancers from

Fast delivery - We aim to deliver all our Swing Jibs within 10 to 14 days

Optional extras available

Adjustable slewing limits, To reduce the swing arc

Slewing lock, to fix the arm into a specific position

The kit can be supplied to enable the pin to be fitted from below (available on request)

AS A RULE, 250Kgs SWL Wall Mounted Jib Cranes c/w Manual Hoist do not need much service or maintenance. Yet, the operator can observe the overall condition of the jib and the hoist connected to it - any faults should be reported immediately.

More importantly to keep the Jib and hoists running at maximum efficiency and to keep within the UK laws regarding LOLER inspections set out by HSE, both the Jib and the hoist on it should have a maintenance service scheduled no later than 12 months. This service should be undertaken by qualified service engineers - If you would like to know more about the servicing and general maintenance, please feel free to contact us, we do have qualified engineers and are happy to quote for all your crane servicing requirements.
