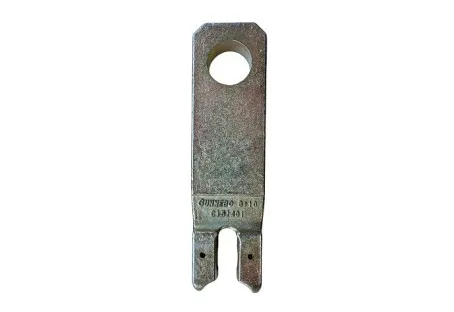

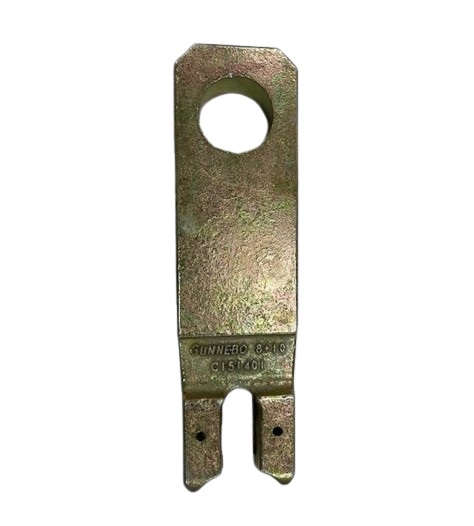

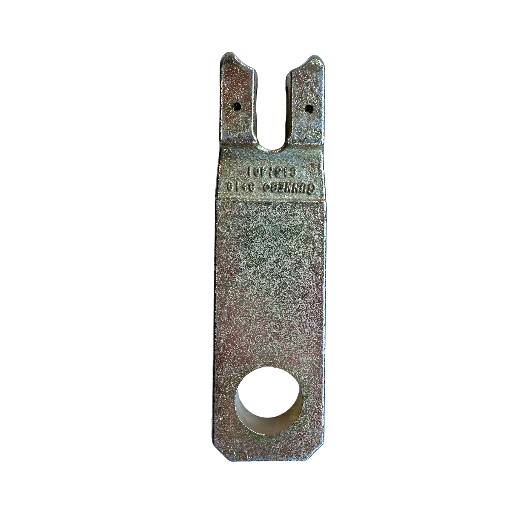

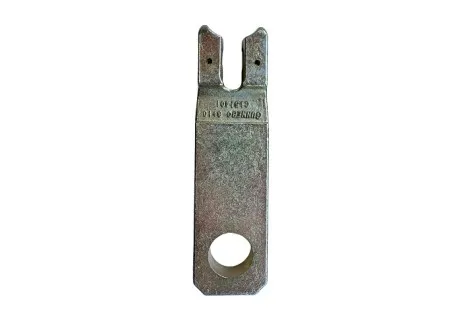

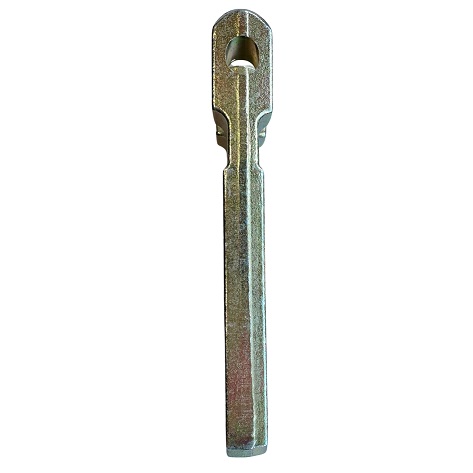

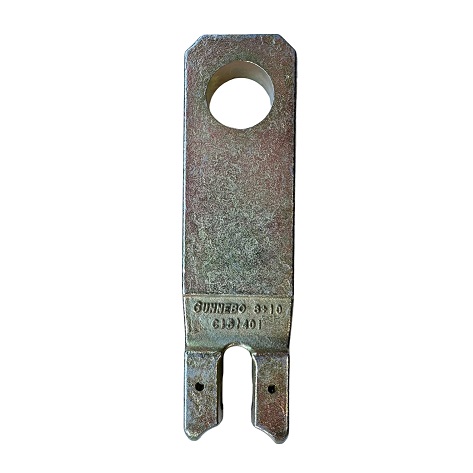

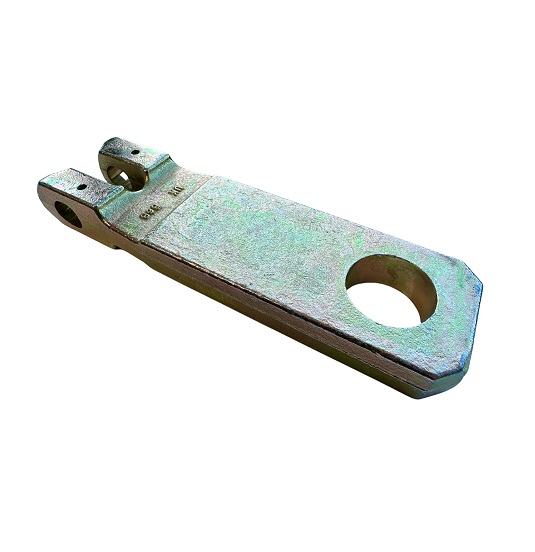

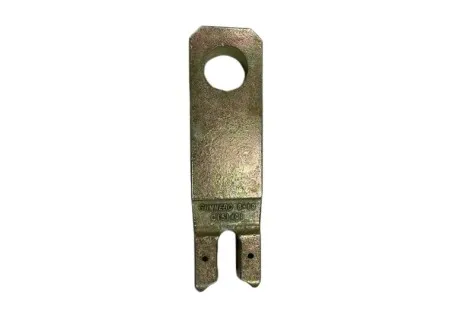

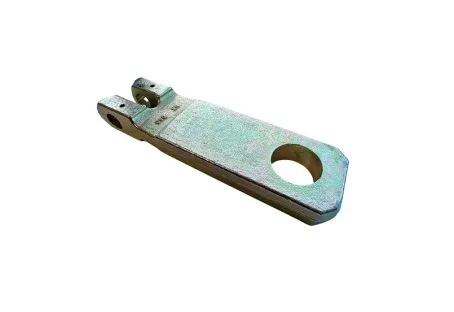

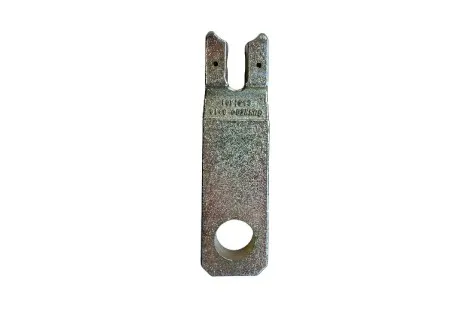

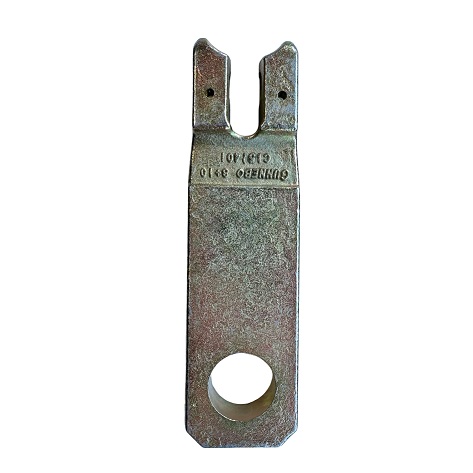

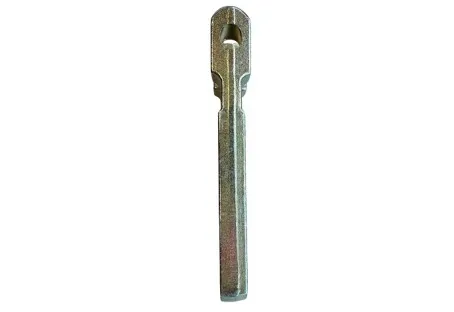

Top Suspension Plate for Skip Loader TSP1

Brand:

Capacity

5,300Kgs
(5.3 tonne)

Description

Top Suspension Plate for Skip Loader TSP1. This essential component is used to connect the skip-lifting chains directly to the main lifting arm on the skip loader lorry

£72.98 ex VAT

£87.58 inc VAT

Add to cart Add to quote

Related products

Green Pin Compact Skip Hook GKC

GKC

Green Pin Compact Skip Hook GKC which has been designed as a snug fit on Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. Extensively used by all major skip vehicle manufacturers

£34.99 ex VAT

£41.99 inc VAT

Skip Hook with Spring Gate Hook

8-069-13

Our quality range of Skip Hooks c/w spring gate manufactured by YOKE. They are designed for locking directly onto skip lugs or refuse bins.
These skip hooks are rated at 5.3 tonne and suit 13mm skip chains
Clevis Skip Hook Latch

8-P069-13

Yoke clevis skip hook latch kit only - These Official Yoke Skip Hook Latch Kits are supplied with everything needed to refit the latch to create a complete clevis skip Hook with Latch
13mm Skip Chain Connectors

SCC13

13mm Skip Chain Connectors for connecting the skip chains to the top mast of the skip lorry. These 13mm Grade 80 Skip Connectors are easy to connect to the chains, using the supplied pins. Rated to 5.3 tonnes per skip connector.

£8.50 ex VAT

£10.20 inc VAT

SK1 Double Keep Plate for Skip Chains

SK1

SK1 Double Keep Plate for 13mm Skip Chains comprising two eyes to suit both Type A and B lifting lugs. These quality hard-wearing forged double-keep plates are supplied with connection pins and fully certified to 5.3 tonnes

£144.98 ex VAT

£173.98 inc VAT

Compact Skip Hook

XN489-13

These Grade 8 Compact Style Skip Hooks fit directly on the large 13mm Skip Chains to create a smaller skip hook that fits snugly on the Skip Lugs and will not fall or slip off. Supplied tested with certification for lifting

£38.98 ex VAT

£46.78 inc VAT

13mm Skip Chain - Grade 8

SLC13

Replacement 13mm Skip Chain - Grade 8. The ULS Lifting 13mm Skip Lorry chain can be used to replace the worn-out Skip chains. Just count up the links of the chain, and we can supply the exact length required. supplied fully tested with certification

£16.98 ex VAT

£20.38 inc VAT

SK5 Clevis Skip Suspension Links 13mm

SK5

SK5 Grade 80 Skip Suspension Links, commonly called skip hook with spring gate connect directly onto the end of 13mm Skip Lorry chain slings. The shape of the eyelet is designed to fit and lock in to place over the Skip Lug and can be removed with one hand

£124.98 ex VAT

£149.98 inc VAT

16mm Skip Chain Connectors

SCC16

16mm Skip Chain Connectors for connecting the skip chains to the top mast of the skip lorry. These Skip connectors are only used on the larger capacity Skip Loaders and can only be used with 16mm Skip chain rated to 8 tonne

£12.98 ex VAT

£15.58 inc VAT

Top Suspension Plate for Skip Loader TSP1. This essential component is used to connect the skip-lifting chains directly to the main lifting arm on the skip loader lorry. Fully certified to 5.3 tonnes

To suit 13mm Dia Alloy Short Link Chain
Manufactured from Forged Alloy Steel
Clevis Fitting One End - to fit onto the 13mm Skip Chain
Central eye other to fir to the skip lorry
Bearing to Bearing: 153mm
Fully Certified to 5.3 tonne WLL (5300Kgs)
Model
Chain SizeWLLBearing to BearingDimensionsWeight

TSP1

C151401

13mm
5.3 tonne
153mm
62x32x20x36mm1.59 Kgs
The TSP1 Top Suspension Plate for Skip Loader TSP1 has been designed to accommodate 13mm Short Link Alloy Chain and supplied in a zinc-plated finish. tested and certified in accordance with EN818-2 and EN1677



Dimensions for the Crosby Kuplex Top Suspension Plate for Skip Loader C151401 / TSP1

Clevis Top Suspension Plate

To Suit 13mm Short Link Chain

Working Load Limit 5.3 tonne WLL

Weight = 1.5Kgs each

Top Suspension Plate for Skip Loader.
ULS Lifting Part Number TSP1
Crosby Part Number C151401

To suit 13mm Dia Alloy Short Link Chain
Manufactured from Forged Alloy Steel
Clevis Fitting One End - to fit onto the 13mm Skip Chain
Central eye other to fir to the skip lorry
Bearing to Bearing: 153mm
Fully Certified to 5.3 tonne WLL (5300Kgs)
Model
Chain SizeWLLBearing to BearingDimensionsWeight

TSP1

C151401

13mm
5.3 tonne
153mm
62x32x20x36mm1.59 Kgs
The TSP1 Top Suspension Plate for Skip Loader TSP1 has been designed to accommodate 13mm Short Link Alloy Chain and supplied in a zinc-plated finish. tested and certified in accordance with EN818-2 and EN1677
