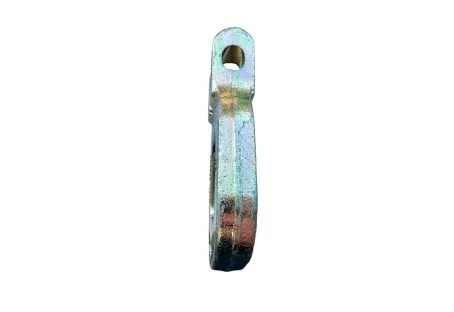

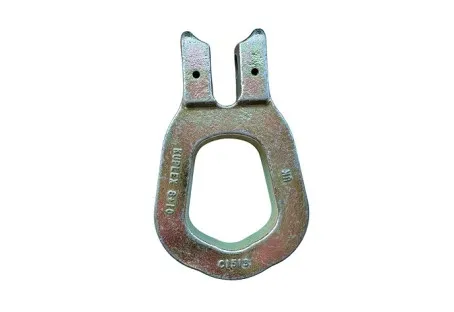

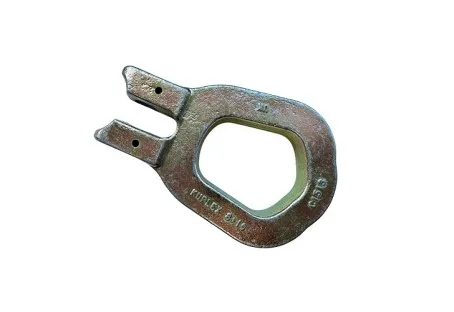

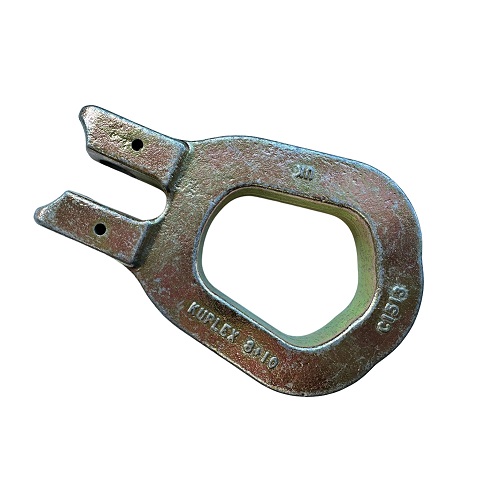

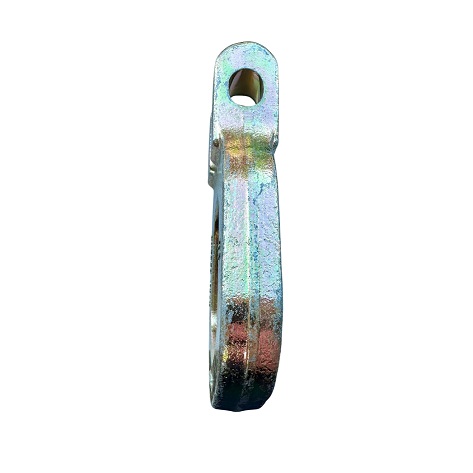

SK3 Single Trunnion Plate for Skip Chains

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

SK3 Single Trunnion Plate for Skip Chains

Brand:

Capacity

5,300Kgs
(5.3 tonne)

Description

SK3 Single Trunnion Plate for 13mm Skip Chains. These quality hard-wearing forged alloy Trunnion Plates are supplied with connection pins for direct fitting to 13mm chain and fully certified to 5.3 tonnes

£114.98 ex VAT

£137.98 inc VAT

Add to cart Add to quote

Related products

Green Pin Compact Skip Hook GKC

GKC

Green Pin Compact Skip Hook GKC which has been designed as a snug fit on Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. Extensively used by all major skip vehicle manufacturers

£34.99 ex VAT

£41.99 inc VAT

Skip Hook with Spring Gate Hook

8-069-13

Our quality range of Skip Hooks c/w spring gate manufactured by YOKE. They are designed for locking directly onto skip lugs or refuse bins.
These skip hooks are rated at 5.3 tonne and suit 13mm skip chains
Clevis Skip Hook Latch

8-P069-13

Yoke clevis skip hook latch kit only - These Official Yoke Skip Hook Latch Kits are supplied with everything needed to refit the latch to create a complete clevis skip Hook with Latch
13mm Skip Chain Connectors

SCC13

13mm Skip Chain Connectors for connecting the skip chains to the top mast of the skip lorry. These 13mm Grade 80 Skip Connectors are easy to connect to the chains, using the supplied pins. Rated to 5.3 tonnes per skip connector.

£8.50 ex VAT

£10.20 inc VAT

SK1 Double Keep Plate for Skip Chains

SK1

SK1 Double Keep Plate for 13mm Skip Chains comprising two eyes to suit both Type A and B lifting lugs. These quality hard-wearing forged double-keep plates are supplied with connection pins and fully certified to 5.3 tonnes

£144.98 ex VAT

£173.98 inc VAT

Compact Skip Hook

XN489-13

These Grade 8 Compact Style Skip Hooks fit directly on the large 13mm Skip Chains to create a smaller skip hook that fits snugly on the Skip Lugs and will not fall or slip off. Supplied tested with certification for lifting

£38.98 ex VAT

£46.78 inc VAT

13mm Skip Chain - Grade 8

SLC13

Replacement 13mm Skip Chain - Grade 8. The ULS Lifting 13mm Skip Lorry chain can be used to replace the worn-out Skip chains. Just count up the links of the chain, and we can supply the exact length required. supplied fully tested with certification

£16.98 ex VAT

£20.38 inc VAT

SK5 Clevis Skip Suspension Links 13mm

SK5

SK5 Grade 80 Skip Suspension Links, commonly called skip hook with spring gate connect directly onto the end of 13mm Skip Lorry chain slings. The shape of the eyelet is designed to fit and lock in to place over the Skip Lug and can be removed with one hand

£124.98 ex VAT

£149.98 inc VAT

16mm Skip Chain Connectors

SCC16

16mm Skip Chain Connectors for connecting the skip chains to the top mast of the skip lorry. These Skip connectors are only used on the larger capacity Skip Loaders and can only be used with 16mm Skip chain rated to 8 tonne

£12.98 ex VAT

£15.58 inc VAT

SK3 Single Trunnion Plate for 13mm Skip Chains. These quality hard-wearing forged alloy Trunnion Plates are supplied with connection pins for direct fitting to 13mm chain and fully certified to 5.3 tonnes

To suit 13mm Dia Alloy Short Link Chain
Manufactured from Forged Alloy Steel
Clevis Fitting
Bearing to Bearing: 112mm
Fully Certified to 5.3 tonne WLL (5300Kgs)

Model
Chain SizeWLLEyeDepthWeight
SK3
13mm
5.3 tonne
74mm x 58mm
112mm2Kgs
The SK3 Single Trunnion Plate has been designed to accommodate 13mm Short Link Alloy Chain and supplied in a zinc-plated finish. tested and certified in accordance with EN818-2 and EN1677

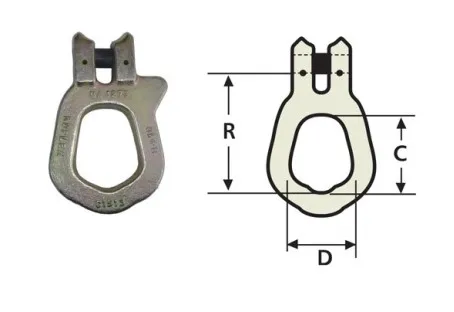

Dimensions for the Crosby Kuplex Single Trunnion Plate SK3 / C1513

Clevis Single Trunnion Plate

To Suit 13mm Short Link Chain

Working Load Limit 5.3 tonne WLL

R = 112mm

C = 74mm

D = 58

Weight = 1.5Kgs each

SK3 Single Trunnion Plate for 13mm Skip Chains.

Key Features
To suit 13mm Dia Alloy Short Link Chain
Manufactured from Forged Alloy Steel
Clevis Fitting
Bearing to Bearing: 112mm
Fully Certified to 5.3 tonne WLL (5300Kgs)

Model
Chain SizeWLLEyeDepthWeight
SK3
13mm
5.3 tonne
74mm x 58mm
112mm2Kgs
The SK3 Single Trunnion Plate has been designed to accommodate 13mm Short Link Alloy Chain and supplied in a zinc-plated finish. tested and certified in accordance with EN818-2 and EN1677

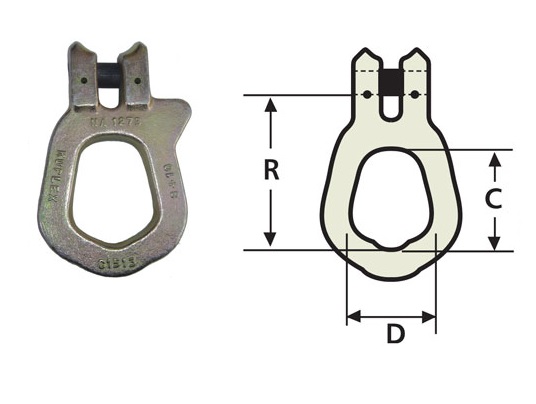

Dimensions for the Crosby Kuplex Single Trunnion Plate SK3 / C1513

Clevis Single Trunnion Plate

To Suit 13mm Short Link Chain

Working Load Limit 5.3 tonne WLL

R = 112mm

C = 74mm

D = 58

Weight = 1.5Kgs each
