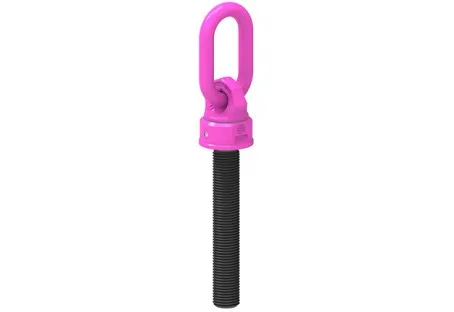

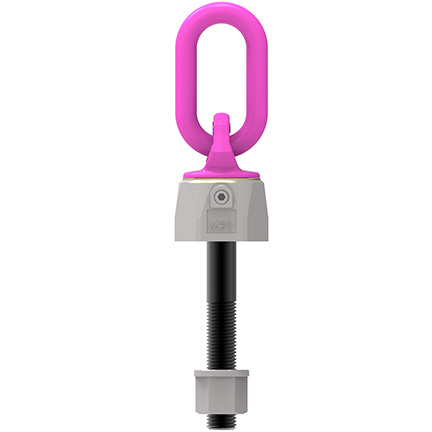

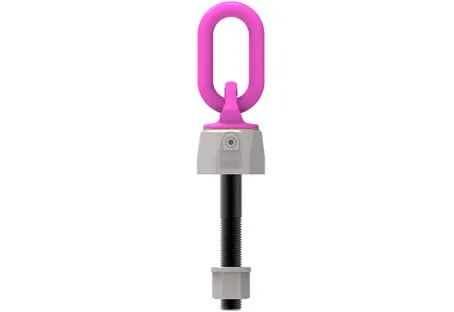

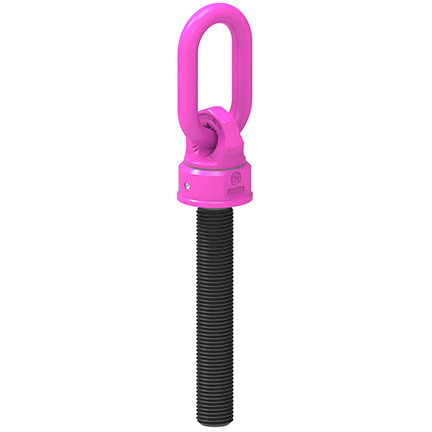

RUD VWBG-V Load Ring, Metric thread with longer Vario Bolt

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

RUD VWBG-V Load Ring, Metric thread with longer Vario Bolt

Brand:

Capacity

300Kgs up to 5,000Kgs
(0.3t to 5t)
M8 to M30

Description

Rud VWBG-V (with longer Vario Bolt) Load Ring for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction. Classed as the premier makes of swivel lifting point. These are top quality. Suspension ring with the enlarged pivoting area, plus many more design features.

£98.48 ex VAT

£118.18 inc VAT

Add to cart Add to quote

Related products

RUD VLBG-PLUS Load Ring, Metric c/w Variable Bolt

VLBG-PLUS VAR

Rud VLBG-PLUS VIP Load Ring c/w Vario Bolt for bolting applications that require a swivel eyebolt with a precise length thread. RUD is Classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.

£91.97 ex VAT

£110.36 inc VAT

RUD VWBG Load Ring, Metric thread

VWBG

Rud VWBG Load Ring for bolting. 360° rotation with Ball bearing for shock free rotating & turning with less friction. Classed as the premier make of swivel lifting point. These are top quality. Suspension ring with enlarged pivoting area, plus many more design features.

£409.85 ex VAT

£491.82 inc VAT

Rud VWBG-V Load Ring with longer Vario Bolt for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction.

Classed as the premier makes of the swivel lifting point. These are top quality. Suspension ring with the enlarged pivoting area, plus many more design features.

A comprehensive range of WLL 0.3 t-6 t / 7.5 t-50 t.

Clear marking of the minimum WLL for all loading/directions. Higher WLL is possible when location and installation are optimized.

Rotatable at nominal WLL, 90° to the bolt-on direction.

Variable bolt lengths are available for tapped or through holes.

VWBG-V: Non-removable special bolt (this reduces the risk of improper standard bolts).

VWBG-V: RUD bolts with special corrosion protection Corrud-DT.

Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG - V
0.3t
M8
8600330
0.18 Kgs
 8-102mm
VWBG - V
0.45t
M10
8600331
0.29 Kgs
10-122mm
VWBG - V
0.6t
M12
8600332
0.41 Kgs
12-140mm
VWBG - V
1.0t
M14
8600337
0.63 Kgs
14-160mm
VWBG - V
1.3t
M16
8600333
0.59 Kgs
16-180mm
VWBG - V
1.8t
M18
8600338
1.18 Kgs
18-83mm
VWBG - V
2.0t
M20
8600334
1.42 Kgs
20-223mm
VWBG - V
2.0t
M22
8600334
1.45 Kgs
22-94mm
VWBG - V
3.5t
M24
8600335
2.63 Kgs
24-255mm
VWBG - V
3.5t
M27
8600335
2.65 Kgs
27-92mm
VWBG - V
5t
M30
8600336
5.09 Kgs
30-330mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
Comprehensive range of WLL 0.3 t-6 t / 7.5 t-50 t.

Clear marking of the minimum WLL for all loading/directions. Higher WLL possible when location and installation is optimized.

Rotatable at nominal WLL, 90° to the bolt-on direction.

Variable bolt lengths are available for tapped or through holes.

VWBG-V: Non-removable special bolt (this reduces the risk of improper standard bolts).

VWBG-V: RUD bolts with special corrosion protection Corrud-DT.

Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG - V
0.3t
M8
8600330
0.18 Kgs
 8-102mm
VWBG - V
0.45t
M10
8600331
0.29 Kgs
10-122mm
VWBG - V
0.6t
M12
8600332
0.41 Kgs
12-140mm
VWBG - V
1.0t
M14
8600337
0.63 Kgs
14-160mm
VWBG - V
1.3t
M16
8600333
0.59 Kgs
16-180mm
VWBG - V
1.8t
M18
8600338
1.18 Kgs
18-83mm
VWBG - V
2.0t
M20
8600334
1.42 Kgs
20-223mm
VWBG - V
2.0t
M22
8600334
1.45 Kgs
22-94mm
VWBG - V
3.5t
M24
8600335
2.63 Kgs
24-255mm
VWBG - V
3.5t
M27
8600335
2.65 Kgs
27-92mm
VWBG - V
5t
M30
8600336
5.09 Kgs
30-330mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection/services either on-site or in-house
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion for creativity and perfection in our core competencies metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practised, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
