RUD VWBG-V Load Ring, Metric thread

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

RUD VWBG-V Load Ring, Metric thread

Brand:

Capacity

300Kgs up to 5,000Kgs
(0.3t to 5t)
M8 to M30

Description

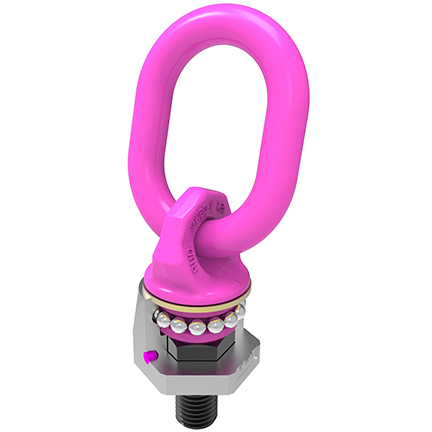

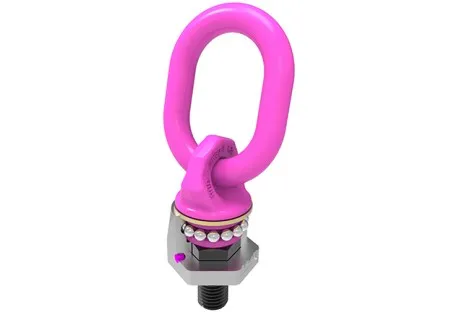

Rud VWBG-V Load Ring for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction. Classed as the premier makes of the swivel lifting point. These are top quality. Suspension ring with an enlarged pivoting area, plus many more design features.

£77.19 ex VAT

£92.63 inc VAT

Add to cart Add to quote

Related products

RUD VWBG Load Ring, Metric thread

VWBG

Rud VWBG Load Ring for bolting. 360° rotation with Ball bearing for shock free rotating & turning with less friction. Classed as the premier make of swivel lifting point. These are top quality. Suspension ring with enlarged pivoting area, plus many more design features.

£409.85 ex VAT

£491.82 inc VAT

RUD VRS-F Starpoint Eye Bolt, Metric Thread

VRS-F Starpoint

RUD VRS-F Starpoint Eye Bolt, Metric Thread is a compact designed swivel eyebolt with 360° rotation c/w easy fit key for easy assembly and disassembly. The STARPOINT® range removes the chance of bent eyes, backed-out threads, or over-tightening

£44.90 ex VAT

£53.88 inc VAT

Rud VWBG-V Load Ring for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction. Classed as the premier makes of swivel lifting point. These are top quality. Suspension ring with an enlarged pivoting area, plus many more design features

A comprehensive range of WLL 0.3 t-6 t / 7.5 t-50 t.
Clear marking of the minimum WLL for all loading/directions. Higher WLL is possible when location and installation are optimized.
Rotatable at nominal WLL, 90° to the bolt-on direction.

Variable bolt lengths are available for tapped or through holes.

VWBG-V: Non-removable special bolt (this reduces the risk of improper standard bolts).
VWBG-V: RUD bolts with special corrosion protection Corrud-DT.

Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG - V
0.3t
M8
7103720
0.18 Kgs
13mm
VWBG - V
0.45t
M10
7103715
0.29 Kgs
17mm
VWBG - V
0.6t
M12
7100180
0.41 Kgs
21mm
VWBG - V
1.0t
M14
8600337
0.63 Kgs
21mm
VWBG - V
1.3t
M16
7100430
0.59 Kgs
25mm
VWBG - V
1.8t
M18
8600338
1.18 Kgs
27mm
VWBG - V
2.0t
M20
7100800
1.42 Kgs
33mm
VWBG - V
2.0t
M22
8600334
1.45 Kgs
33mm
VWBG - V
3.5t
M24
7100640
2.63 Kgs
40mm
VWBG - V
3.5t
M27
8600335
2.65 Kgs
41mm
VWBG - V
5t
M30
7100650
5.09 Kgs
50mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
A comprehensive range of WLL 0.3 t-6 t / 7.5 t-50 t.

Clear marking of the minimum WLL for all loading/directions. Higher WLL is possible when location and installation are optimized.

Rotatable at nominal WLL, 90° to the bolt-on direction.

Variable bolt lengths are available for tapped or through holes.

VWBG-V: Non-removable special bolt (this reduces the risk of improper standard bolts).

VWBG-V: RUD bolts with special corrosion protection Corrud-DT.

Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG - V
0.3t
M8
7103720
0.18 Kgs
13mm
VWBG - V
0.45t
M10
7103715
0.29 Kgs
17mm
VWBG - V
0.6t
M12
7100180
0.41 Kgs
21mm
VWBG - V
1.0t
M14
8600337
0.63 Kgs
21mm
VWBG - V
1.3t
M16
7100430
0.59 Kgs
25mm
VWBG - V
1.8t
M18
8600338
1.18 Kgs
27mm
VWBG - V
2.0t
M20
7100800
1.42 Kgs
33mm
VWBG - V
2.0t
M22
8600334
1.45 Kgs
33mm
VWBG - V
3.5t
M24
7100640
2.63 Kgs
40mm
VWBG - V
3.5t
M27
8600335
2.65 Kgs
41mm
VWBG - V
5t
M30
7100650
5.09 Kgs
50mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection/services either on-site or in-house.
