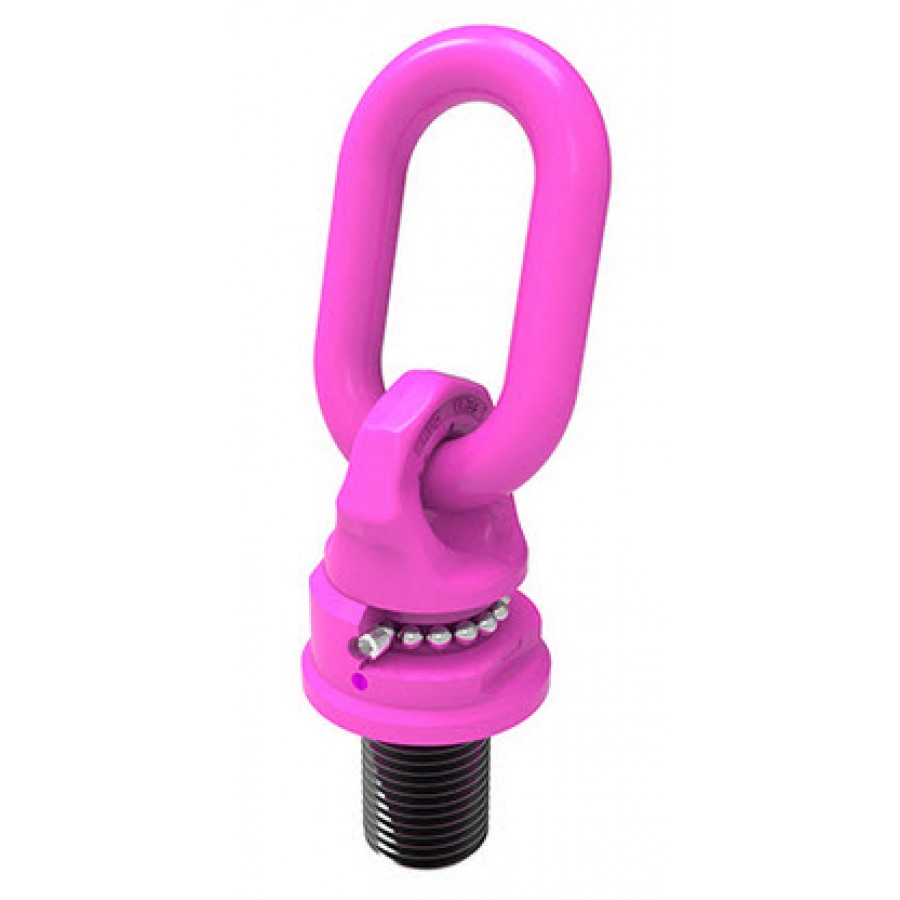

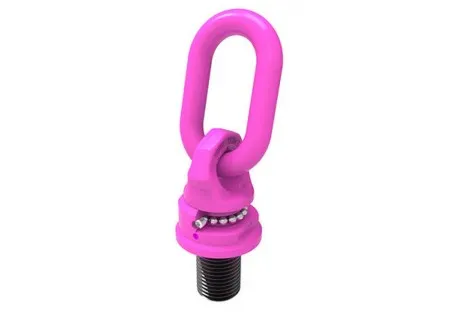

RUD VWBG Load Ring, Metric thread with longer Vario Bolt

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

RUD VWBG Load Ring, Metric thread with longer Vario Bolt

Brand:

Capacity

6,000Kgs up to 40,000Kgs
(6t to 40t)
M33 to M100

Description

Rud VWBG Load Ring (with Longer Vario Bolt) for bolting. 360° rotation with Ball bearing for shock free rotating & turning with less friction. Classed as the premier make of swivel lifting point. These are top quality. Suspension ring with enlarged pivoting area, plus many more design features.

P.O.A

Add to quote

Related products

RUD VWBG Load Ring, Metric thread

VWBG

Rud VWBG Load Ring for bolting. 360° rotation with Ball bearing for shock free rotating & turning with less friction. Classed as the premier make of swivel lifting point. These are top quality. Suspension ring with enlarged pivoting area, plus many more design features.

£409.85 ex VAT

£491.82 inc VAT

Rud VWBG Load Ring with Longer Vario Bolt for bolting. 360° rotation with Ball bearing for shock free rotating & turning with less friction. Classed as the premier make of swivel lifting point. These are top quality. Suspension ring with enlarged pivoting area, plus many more design features

Comprehensive range of WLL 6 t / 50 t.
Clear marking of the minimum WLL for all loading/directions. Higher WLL possible when location and installation is optimized.
Rotatable at nominal WLL, 90° to the bolt-on direction.
Variable bolt lengths available for tapped or through holes.
VWBG-V: Non removable special bolt (this reduces the risk of improper standard bolts).
VWBG-V: RUD bolts with special corrosion protection Corrud-DT.
Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG L
6t
M33
8600150
5.6 Kgs
33-300mm
VWBG L
8t
M36
8600451
4.7 Kgs
36-300mm
VWBG L
12t
M42
8600452
6.1 Kgs
42-300mm
VWBG L
12t
M45
8600452
6.24 Kgs
42-300mm
VWBG L
13t
M48
8600453
6.37 Kgs
48-300mm
VWBG L
14t
M52
8600158
10.55 Kgs
52-300mm
VWBG L
16t
M56
8600454
10.68 Kgs
56-300mm
VWBG L
16t
M60
8600454
11.37 Kgs56-300mm
VWBG L
16t
M64
8600455
11.4 Kgs
64-300mm
VWBG L
 31.5t
M72
8600455
29.96 Kgs
72-300mm
VWBG L
35t
M80
8600457
31.19 Kgs
80-300mm
VWBG L
40t
M90
8600458
34.5 Kgs
90-300mm
VWBG L
40t
M100
8600458
36.5Kgs
90-300mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
Comprehensive range of WLL 6 t / 50 t.
Clear marking of the minimum WLL for all loading/directions. Higher WLL possible when location and installation is optimized.
Rotatable at nominal WLL, 90° to the bolt-on direction.
Variable bolt lengths available for tapped or through holes.
VWBG-V: Non removable special bolt (this reduces the risk of improper standard bolts).
VWBG-V: RUD bolts with special corrosion protection Corrud-DT.
Large distance between bolt-on surface and load to avoid damage.

Model
Capacity
Thread
RUD Order Ref No
Weight
Thread Length
VWBG L
6t
M33
8600150
5.6 Kgs
33-300mm
VWBG L
8t
M36
8600451
4.7 Kgs
36-300mm
VWBG L
12t
M42
8600452
6.1 Kgs
42-300mm
VWBG L
12t
M45
8600452
6.24 Kgs
42-300mm
VWBG L
13t
M48
8600453
6.37 Kgs
48-300mm
VWBG L
14t
M52
8600158
10.55 Kgs
52-300mm
VWBG L
16t
M56
8600454
10.68 Kgs
56-300mm
VWBG L
16t
M60
8600454
11.37 Kgs56-300mm
VWBG L
16t
M64
8600455
11.4 Kgs
64-300mm
VWBG L
 31.5t
M72
8600455
29.96 Kgs
72-300mm
VWBG L
35t
M80
8600457
31.19 Kgs
80-300mm
VWBG L
40t
M90
8600458
34.5 Kgs
90-300mm
VWBG L
40t
M100
8600458
36.5Kgs
90-300mm
Also available in Metric Fine Thread,  UNC and BSW-Whitworth imperial Threads.
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
