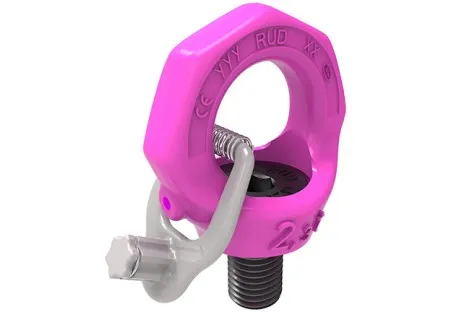

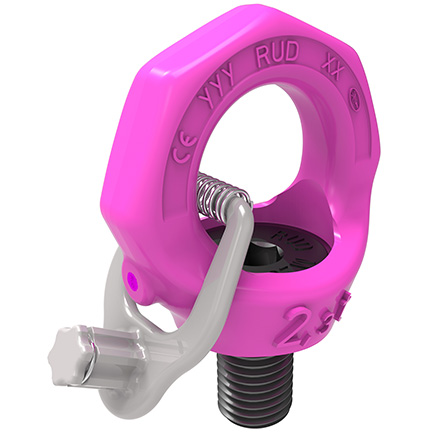

RUD VRS-F Starpoint Eye Bolt, Metric Thread
Key notes for ordering:
Supplied tested with certification - Ready to use from the box
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
RUD VRS-F Starpoint Eye Bolt, Metric Thread
Brand:
Capacity
100Kgs up to 12.000Kgs
0.1t - 12t)
M6 - M48
Description
RUD VRS-F Starpoint Eye Bolt, Metric Thread is a compact designed swivel eyebolt with 360° rotation c/w easy fit key for easy assembly and disassembly. The STARPOINT® range removes the chance of bent eyes, backed-out threads, or over-tightening
Add to cart
Add to quoteRelated products
RUD VLBG-PLUS Load Ring, Metric thread
VLBG-PLUS
RUD VLBG-PLUS Load Ring, Metric thread is ideal for bolting applications. Classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.
£76.97 ex VAT
£92.36 inc VAT
RUD VWBG-V Load Ring, Metric thread
VWBG - V
Rud VWBG-V Load Ring for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction. Classed as the premier makes of the swivel lifting point. These are top quality. Suspension ring with an enlarged pivoting area, plus many more design features.
£77.19 ex VAT
£92.63 inc VAT
RUD VRS-F Starpoint Eye Bolt, Metric Thread with star key, is a compact designed swivel eyebolt with 360° rotation c/w easy fit key for easy assembly and disassembly. The STARPOINT® range removes the chance of bent eyes, backed-out threads, or over-tightening which would cause unnecessary stress on the stem.
A comprehensive range of working load limit WLL 0.1 t- 20 t.
Fitted with Non-detachable ICE-BOLT made of patent steel.
Thread Size (MB- M24), thus reducing the risk of using unsuitable standard bolts. Special bolt for safe use at low temperatures with higher toughness and thus higher bending strength as well as less wear.
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL is possible when location and installation are optimized.
Variable bolt lengths are available on request for tapped or through holes.
Wide range of thread lengths available.
| Model | Capacity | Thread | RUD Order Ref No | Weight | Thread Length |
| VRS - F M6 | 0.1t | M6 | 7900906 | 0.07Kgs | 9mm |
| VRS - F M8 | 0.3t | M8 | 8500911 | 0.12Kgs | 12mm |
| VRS - F M10 | 0.4t | M10 | 7104029 | 0.12Kgs | 15mm |
| VRS - F M12 | 0.75t | M12 | 7101313 | 0.20Kgs | 18mm |
| VRS - F M14 | 0.75t | M14 | 7999330 | 0.21Kgs | 18mm |
| VRS - F M16 | 1.5t | M16 | 7101314 | 0.30Kgs | 24mm |
| VRS-FM16-SL35 | 1.5t | M16 | 7983306 | 0.30Kgs | 35mm |
| VRS - F M18 | 1.5t | M18 | 7903387 | 0.35Kgs | 24mm |
| VRS - F M20 | 2.3t | M20 | 7101315 | 0.50Kgs | 30mm |
| VRS - F M22 | 2.3t | M22 | 7992197 | 0.50Kgs | 30mm |
| VRS - F M24 | 3.2t | M24 | 7101316 | 0.80Kgs | 36mm |
| VRS - F M27 | 3.2t | M27 | 7994138 | 1.00Kgs | 36mm |
| VRS - F M30 | 4.5t | M30 | 7101317 | 1.00Kgs | 45mm |
| VRS - F M33 | 4.5t | M33 | 7993439 | 1.80Kgs | 45mm |
| VRS - F M36 | 7.0t | M36 | 7984201 | 3.50Kgs | 54mm |
| VRS - F M42 | 9t | M42 | 7984202 | 4.90Kgs | 63mm |
| VRS - F M48 | 12t | M48 | 7984203 | 7.00Kgs | 72mm |
Also available in Metric Fine Thread, UNC Imperial Threads.

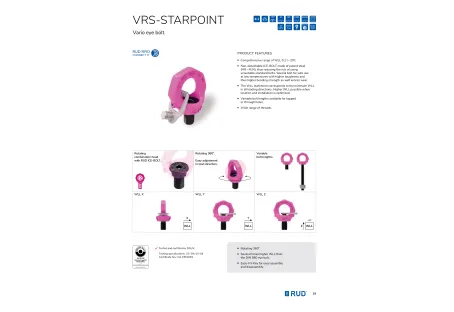

RUD VRS-F Starpoint, Metric Thread with Star Key
A comprehensive range of working load limit WLL 0.1 t- 20 t.
Fitted with Non-detachable ICE-BOLT made of patent steel
Thread Size (MB- M24), thus reducing the risk of using unsuitable standard bolts. Special bolt for safe use at low temperatures with higher toughness and thus higher bending strength as well as less wear.
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL is possible when location and installation are optimized.
Variable bolt lengths are available on request for tapped or through holes.
A wide range of threads are available.
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Thread Length |
| VRS - F M6 | 0.1t | M6 | 7900906 | 0.07Kgs | 9mm |
| VRS - F M8 | 0.3t | M8 | 8500911 | 0.12Kgs | 12mm |
| VRS - F M10 | 0.4t | M10 | 7104029 | 0.12Kgs | 15mm |
| VRS - F M12 | 0.75t | M12 | 7101313 | 0.20Kgs | 18mm |
| VRS - F M14 | 0.75t | M14 | 7999330 | 0.21Kgs | 18mm |
| VRS - F M16 | 1.5t | M16 | 7101314 | 0.30Kgs | 24mm |
| VRS-FM16-SL35 | 1.5t | M16 | 7983306 | 0.30Kgs | 35mm |
| VRS - F M18 | 1.5t | M18 | 7903387 | 0.35Kgs | 24mm |
| VRS - F M20 | 2.3t | M20 | 7101315 | 0.50Kgs | 30mm |
| VRS - F M22 | 2.3t | M22 | 7992197 | 0.50Kgs | 30mm |
| VRS - F M24 | 3.2t | M24 | 7101316 | 0.80Kgs | 36mm |
| VRS - F M27 | 3.2t | M27 | 7994138 | 1.00Kgs | 36mm |
| VRS - F M30 | 4.5t | M30 | 7101317 | 1.00Kgs | 45mm |
| VRS - F M33 | 4.5t | M33 | 7993439 | 1.80Kgs | 45mm |
| VRS - F M36 | 7.0t | M36 | 7984201 | 3.50Kgs | 54mm |
| VRS - F M42 | 9t | M42 | 7984202 | 4.90Kgs | 63mm |
| VRS - F M48 | 12t | M48 | 7984203 | 7.00Kgs | 72mm |
Also available in Metric Fine Thread, UNC imperial Threads.
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion, and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection/services either on-site or in-house.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.
We are striving for a clear leadership position with our products and services in our market segments based on organizational and operational excellence.
With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.
We see our products as the result of our passion for creativity and perfection in our core competencies metal working, welding, heat treatment, surface technology, and forging.
Long-term partnerships with our customers, their satisfaction, and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.
Through our actively practiced, open, and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible, and competent team.
Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
