RUD VRM Starpoint Eyenut Metric thread

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

RUD VRM Starpoint Eyenut Metric thread

Brand:

Capacity

100Kgs up to 4,500Kgs
0.1t - 4.5t)
M6 - M30

Description

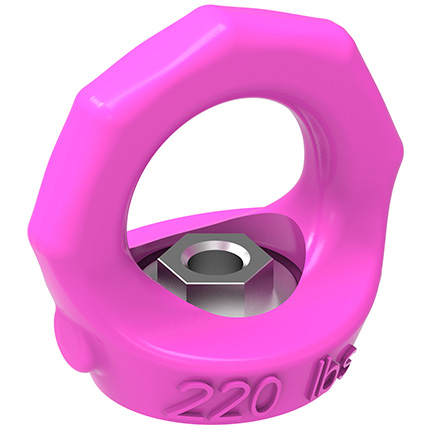

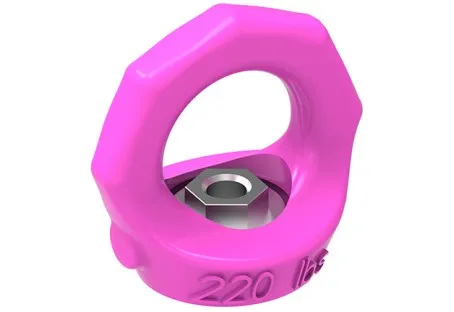

Rud VRM Starpoint swivel Eyenut with 360° rotation. The STARPOINT® removes the chance of bent eyes, backed out threads, or over-tightening which would cause unnecessary stress on the stem.

£56.05 ex VAT

£67.26 inc VAT

Add to cart Add to quote

Related products

Rud VRM Starpoint swivel Eyenut with 360° rotation. The STARPOINT® removes the chance of bent eyes, backed out threads, or over-tightening which would cause unnecessary stress on the stem.

Comprehensive range of Working Load Limit WLL 0.1 t-4.5t.
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL possible when location and installation is optimized.
Available as Standard Metric Thread - Thread Size - M6-M30 (DIN EN 13).
Full Rotating 360°.

Model
Capacity
Thread
RUD Order Ref No.
Weight
VRM M6
0.1tM67900786
0.05 Kgs
VRM M8
0.3tM8
7992989
0.10 Kgs
VRM M10
0.4tM10
7990311
0.10 Kgs
VRM M12
0.75tM12
7990312
0.20 Kgs
VRM M16
1.5tM16
7990314
0.30 Kgs
VRM M20
2.3tM20
7990315
0.50 Kgs
VRM M24
3.2tM24
7990316
0.90 Kgs
VRM M30
4.5tM30
7993008
1.50 Kgs
Comprehensive range of Working Load Limit WLL 0.1 t-4.5t.
The WLL statement corresponds to the minimum WLL in all loading directions. Higher WLL possible when location and installation is optimized.
Available as Standard Metric Thread - Thread Size - M6-M30 (DIN EN 13).
Full Rotating 360°.

Model
Capacity
Thread
RUD Order Ref No.
Weight
VRM M6
0.1tM67900786
0.05 Kgs
VRM M8
0.3tM8
7992989
0.10 Kgs
VRM M10
0.4tM10
7990311
0.10 Kgs
VRM M12
0.75tM12
7990312
0.20 Kgs
VRM M16
1.5tM16
7990314
0.30 Kgs
VRM M20
2.3tM20
7990315
0.50 Kgs
VRM M24
3.2tM24
7990316
0.90 Kgs
VRM M30
4.5tM30
7993008
1.50 Kgs
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyenuts clean, protect from corrosion and protect internal threads from damage. Do not attempt to straighten bent eyenuts or re-cut threads.
Regularly inspect eyenuts and, in the event of the following defects, refer the eyenut to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts / eyenuts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
