RUD VLBG-PLUS Load Ring, Metric thread

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

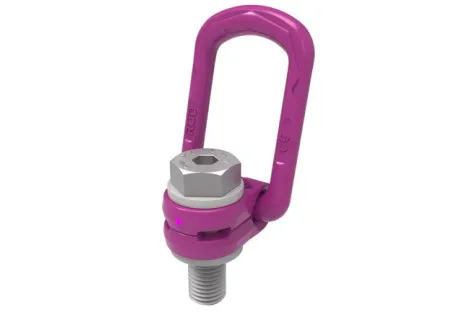

RUD VLBG-PLUS Load Ring, Metric thread

Brand:

Capacity

630Kgs up to 20,000Kgs
(0.63t to 20t)
M8 to M48

Description

RUD VLBG-PLUS Load Ring, Metric thread is ideal for bolting applications. Classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.

£76.97 ex VAT

£92.36 inc VAT

Add to cart Add to quote

Related products

Grade 8 Pivoting Eyebolt with load ring

XN173

Grade 8 Pivoting Eyebolt with large load ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles.

£22.32 ex VAT

£26.78 inc VAT

RUD VRS-F Starpoint Eye Bolt, Metric Thread

VRS-F Starpoint

RUD VRS-F Starpoint Eye Bolt, Metric Thread is a compact designed swivel eyebolt with 360° rotation c/w easy fit key for easy assembly and disassembly. The STARPOINT® range removes the chance of bent eyes, backed-out threads, or over-tightening

£44.90 ex VAT

£53.88 inc VAT

RUD VLBG-PLUS Load Ring, Metric thread is ideal for bolting applications, thread sizes available from M8. RUD is classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.

Applications-specific features for VLBG-PLUS Lod Ring
Quick and easy installation with just one bolt connection
Assembly with flat / ring wrench or Allen key possible
Hand tightening with an appropriate wrench is sufficient for a singular lift
Clear marking of minimum WLL for all loading directions
Tested and certified by DGUV

Model

Capacity
Thread
RUD Order Ref No
Weight
Overall Bolt Length
Thread Length
VLBG-PLUS
0.63t
M8
8504651
0.30Kgs
40mm
11mm
VLBG-PLUS
0.9t
M10
8504652
0.31Kgs
44mm
15mm
VLBG-PLUS
1.35t
M12
8504653
0.34 Kgs
47mm18mm
VLBG-PLUS
2.0t
M16
8504655
0.55 Kgs
58mm
22mm
VLBG-PLUS
3.5t
M20
8504657
1.30 Kgs
75mm
32mm
VLBG-PLUS
4.5t
M24
8504659
1.50 Kgs
80mm
37mm
VLBG-PLUS
6.7t
M30
8504661
3.3 Kgs
110mm
49mm
VLBG-PLUS
8.0t
M36
7983553
6.2 Kgs
140mm
63mm
VLBG-PLUS
10.0t
M42
7983554
6.7 Kgs
150mm
73mm
VLBG-PLUS
15.0t
M42
7982966
10.9 Kgs
150mm
63mm
VLBG-PLUS
20.0t
M48
7982967
11.6 Kgs
160mm
73mm
Also available in UNC Thread.
RUD VLBG-PLUS Load Ring, Metric thread

Comprehensive range of WLL 0.63 t – 20 t.
Captive but exchangeable ICE-BOLT made out of patented steel with special corrosion protection Corrud-DT. Non-hazardous deep temperature usage; higher toughness and therefore higher bending strength as well as less wear occurrence.

The clamping spring works as a noise reduction and holds the suspension ring in the requested position; therefore, the simple hinge of lifting means possible respectively at design if turned down.

DNVGL certification from size M30.

Includes RUD ICE-BOLT up to size M24.


Model

Capacity
Thread
RUD Order Ref No
Weight
Overall Bolt Length
Thread Length
VLBG-PLUS
0.63t
M8
8504651
0.30Kgs
40mm
11mm
VLBG-PLUS
0.9t
M10
8504652
0.31Kgs
44mm
15mm
VLBG-PLUS
1.35t
M12
8504653
0.34 Kgs
47mm18mm
VLBG-PLUS
2.0t
M16
8504655
0.55 Kgs
58mm
22mm
VLBG-PLUS
3.5t
M20
8504657
1.30 Kgs
75mm
32mm
VLBG-PLUS
4.5t
M24
8504659
1.50 Kgs
80mm
37mm
VLBG-PLUS
6.7t
M30
8504661
3.3 Kgs
110mm
49mm
VLBG-PLUS
8.0t
M36
7983553
6.2 Kgs
140mm
63mm
VLBG-PLUS
10.0t
M42
7983554
6.7 Kgs
150mm
73mm
VLBG-PLUS
15.0t
M42
7982966
10.9 Kgs
150mm
63mm
VLBG-PLUS
20.0t
M48
7982967
11.6 Kgs
160mm
73mm
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.


In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.

We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.

With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.

We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.

Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.

Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.

Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
