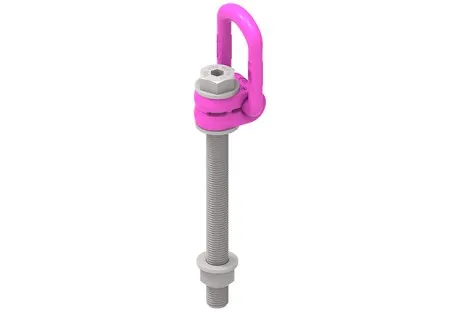

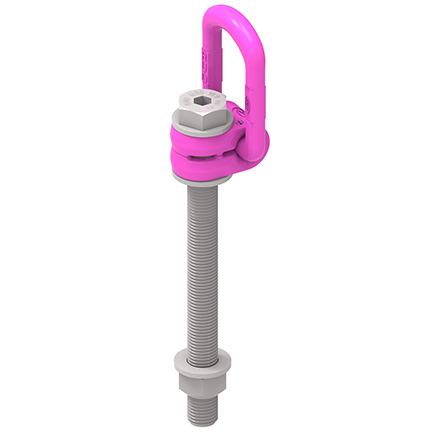

RUD VLBG-PLUS Load Ring, Metric c/w Variable Bolt
Key notes for ordering:
Supplied tested with certification - Ready to use from the box. When Ordering - either call to specify exact length of bolt required - or order the standard max length as stated in speciation
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
RUD VLBG-PLUS Load Ring, Metric c/w Variable Bolt
Brand:
Capacity
630Kgs up to 20,000Kgs
(0.63t to 20t)
Description
Rud VLBG-PLUS VIP Load Ring c/w Vario Bolt for bolting applications that require a swivel eyebolt with a precise length thread. RUD is Classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.
Add to cart
Add to quoteRelated products
-494x340.webp)
RUD VWBG-V Load Ring, Metric thread with longer Vario Bolt
VWBG - V Long
Rud VWBG-V (with longer Vario Bolt) Load Ring for bolting. 360° rotation with Ball bearing for shock-free rotating & turning with less friction. Classed as the premier makes of swivel lifting point. These are top quality. Suspension ring with the enlarged pivoting area, plus many more design features.
£98.48 ex VAT
£118.18 inc VAT
Grade 8 Pivoting Eyebolt with load ring - Extra Long Thread
XN173
Grade 8 Pivoting Eyebolt with large load ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles.
£23.85 ex VAT
£28.62 inc VAT
Rud VLBG-PLUS VIP Load Ring c/w vario bolt for bolting applications where a longer bolt or exact machined length bolt is required due to object being lifted being bigger and thicker. RUD are classed as the premier make of swivel lifting point. These are top quality. Giving full WLL in all directions, plus many more design features.
Applications specific features for VLBG-PLUS Lod Ring
Quick and easy installation with just one bolt connection
Assembly with flat / ring wrench or allen key possible
Hand tightening with appropriate wrench is sufficient for a singular lift
Clear marking of minimum WLL for all loading directions
Tested and certified by DGUV
When Ordering - either call to specify exact length of bolt required - or order the standard max length as stated below
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Overall Bolt variable Length | Thread Variable Length |
| VLBG-PLUS VAR | 0.63t | M8 | 8600470 | 0.30Kgs | 37-105mm | 8-76mm |
| VLBG-PLUS VAR | 0.9t | M10 | 8600471 | 0.31Kgs | 39-125mm | 10-96mm |
| VLBG-PLUS VAR | 1.35t | M12 | 8600472 | 0.34 Kgs | 41-145mm | 12-116mm |
| VLBG-PLUS VAR | 2.0t | M16 | 8600474 | 0.55 Kgs | 52-185mm | 16-149mm |
| VLBG-PLUS VAR | 3.5t | M20 | 8600476 | 1.30 Kgs | 63-230mm | 20-187mm |
| VLBG-PLUS VAR | 4.5t | M24 | 8600478 | 1.50 Kgs | 67-265mm | 24-222mm |
| VLBG-PLUS VAR | 6.7t | M30 | 8600480 | 3.3 Kgs | 91-340mm | 30-279mm |
| VLBG-PLUS VAR | 8.0t | M36 | 8600289 | 6.2 Kgs | 113-300mm | 36-223mm |
| VLBG-PLUS VAR | 8.0t | M42 | 8600290 | 6.7 Kgs | 119-350mm | 42-273mm |
| VLBG-PLUS VAR | 15.0t | M42 | 8600291 | 10.9 Kgs | 129-350mm | 42-263mm |
| VLBG-PLUS VAR | 20.0t | M48 | 8600292 | 11.6 Kgs | 135-350mm | 48-303mm |
Comprehensive range of WLL 0.63 t – 20 t.
Captive but exchangeable ICE-BOLT made out of patented steel with special corrosion protection Corrud-DT. Non-hazardous deep temperature usage; higher toughness and therefore higher bending strength as well as less wear occurrence.
Clamping spring works as a noise reduction and holds the suspension ring in the requested position; therefore, simple hinge of lifting means possible respectively at design if turned down.
DNVGL certification from size M30.
Includes RUD ICE-BOLT up to size M24.
Applications specific features for VLBG-PLUS Lod Ring
Quick and easy installation with just one bolt connection
Assembly with flat / ring wrench or allen key possible
Hand tightening with appropriate wrench is sufficient for a singular lift
Clear marking of minimum WLL for all loading directions
Tested and certified by DGUV
When Ordering - either call to specify exact length of bolt required - or order the standard max length as stated below
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Overall Bolt variable Length | Thread Variable Length |
| VLBG-PLUS VAR | 0.63t | M8 | 8600470 | 0.30Kgs | 37-105mm | 8-76mm |
| VLBG-PLUS VAR | 0.9t | M10 | 8600471 | 0.31Kgs | 39-125mm | 10-96mm |
| VLBG-PLUS VAR | 1.35t | M12 | 8600472 | 0.34 Kgs | 41-145mm | 12-116mm |
| VLBG-PLUS VAR | 2.0t | M16 | 8600474 | 0.55 Kgs | 52-185mm | 16-149mm |
| VLBG-PLUS VAR | 3.5t | M20 | 8600476 | 1.30 Kgs | 63-230mm | 20-187mm |
| VLBG-PLUS VAR | 4.5t | M24 | 8600478 | 1.50 Kgs | 67-265mm | 24-222mm |
| VLBG-PLUS VAR | 6.7t | M30 | 8600480 | 3.3 Kgs | 91-340mm | 30-279mm |
| VLBG-PLUS VAR | 8.0t | M36 | 8600289 | 6.2 Kgs | 113-300mm | 36-223mm |
| VLBG-PLUS VAR | 8.0t | M42 | 8600290 | 6.7 Kgs | 119-350mm | 42-273mm |
| VLBG-PLUS VAR | 15.0t | M42 | 8600291 | 10.9 Kgs | 129-350mm | 42-263mm |
| VLBG-PLUS VAR | 20.0t | M48 | 8600292 | 11.6 Kgs | 135-350mm | 48-303mm |
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
The RUD Group is a dynamic and modern family group, that is active worldwide. Our goal is continuous, profitable growth – with serious consideration for the careful treatment of our natural resources and our environment.
We are striving for a clear leadership position with our products and services in our market segments based on organisational and operational excellence.
With over 140 years of experience and, taking round steel chains as a basis, we develop future-oriented solution concepts with chain systems and components in diverse forms and for a wide range of applications.
We see our products as the result of our passion to creativity and perfection in our core competences metal working, welding, heat treatment, surface technology and forging.
Long-term partnership with our customers, their satisfaction and trust in us are the heart of everything we do. We vouch for customer-oriented, innovative, value-added technology as well as consistent top quality and safety. That is our joint responsibility.
Through our actively practiced, open and trusting corporate culture as well as our ongoing training and education, our international family enterprise is a motivated, energetic, flexible and competent team.
Our applied concept of Courtesy of Choice is reflecting the centuries-old philosophy that acknowledges differences while allowing them to exist together in harmony.
