Liftmaster Quadro PRO Battery Powered Vacuum Lifter

The Quadro Pro is the top of the range high capacity battery powered vacuum lifting device from the Liftmaster series and sets new standards in mobile vacuum lifting technology. Its innovative operating concept, and the high safety standards that we all come to expect from a German designed and manufactured product, make the lifting systems a reliable mounting aids for indoor and outdoor applications. Fitted with a powerful rechargeable battery that can be fitted and removed for charging without the use of tools, the vacuum lifter is also fitted with an audible alarm when the battery is nearing empty. Supplied with a swivel mounting arm that can be quickly and effortlessly be hung onto most overhead cranes or hoists.

Designed with maximum flexibility in mind - Thanks to its modular construction, the Liftmaster Quadro system can ideally adapt itself to the most diverse installations with the aid of up to four extensions arms and the detachable suction pads. The properties of the suction pads ensure outstanding adhesion and a long service life. The whole lifting system can be rotated by 360° (with 12 locking positions) and can also be tilted by 90°.

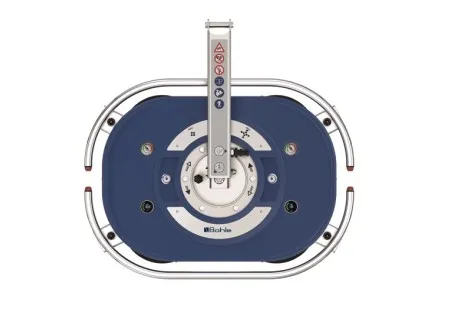

Extra features of the Quadro Pro 400 and Quadro Pro 800, compared to the standard Quadro 300 and Quadro 600

Supplied as standard with 2 Batteries, enabling you to always keep one on charge ready for easy swap over when needed.

Digital temperature gauge fitted.

Four Warning lights fitted to show visual warning of low battery and low vacuum levels.

NOTE - Pro Models are TUV Approved. Both Liftmaster Quadro 400 Pro and Liftmaster Quadro 800 Pro models have been independently approved by TÜV Nord and bear the GS sign. The system is therefore subject to regular product and production audits

What customers will purchase the Liftmaster Quadro vacuum lifting device?

The Quadro and Quadro Pro vacuum lifters have been designed and targeted to 3 markets really:

Internal Factory use – Those moving larger sheets / panels around their factory i.e on and off machinery / vehicles to reduce manual handling.

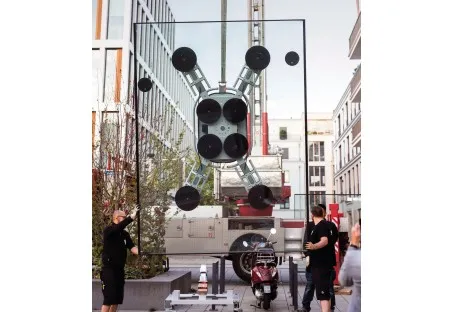

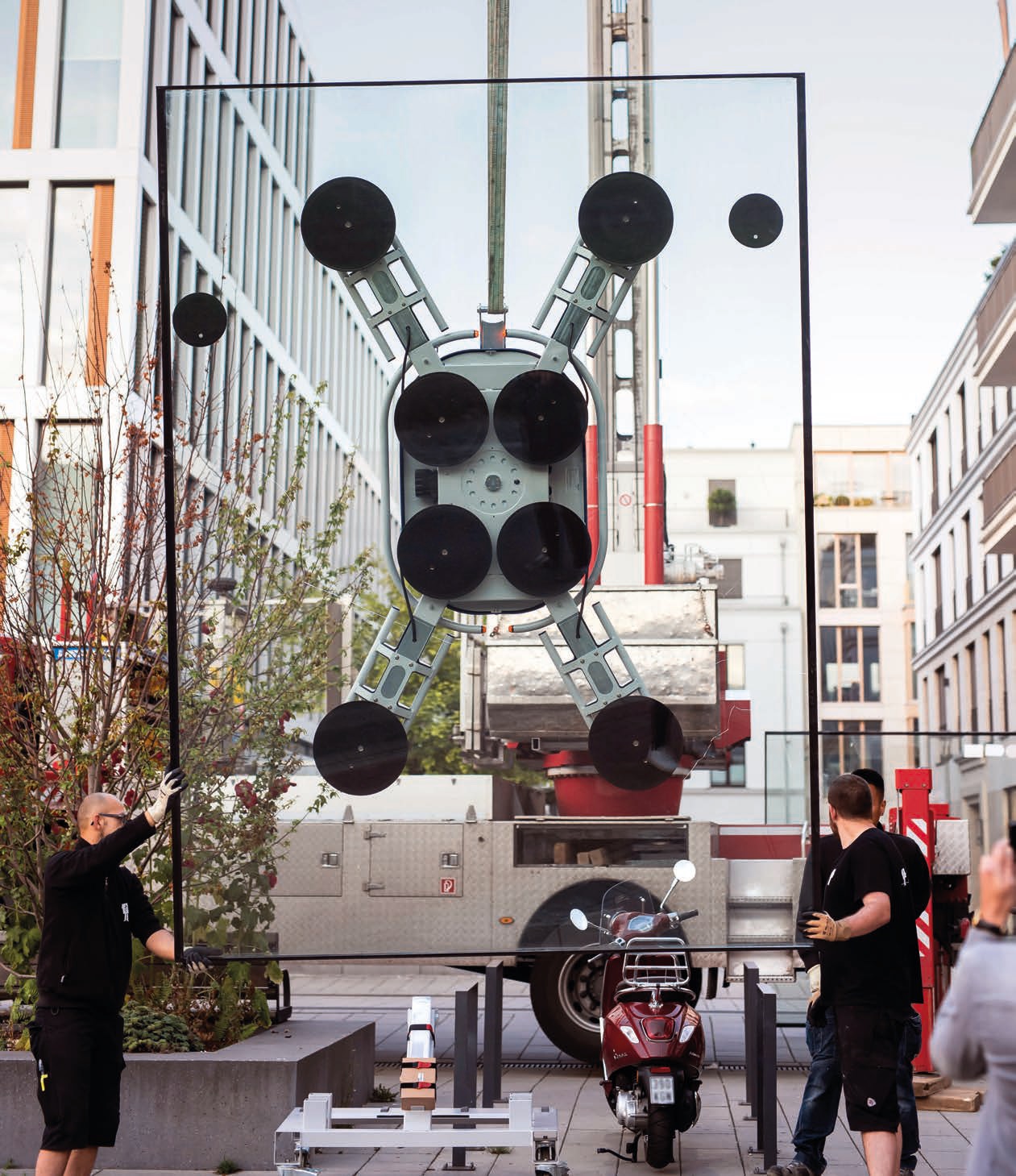

External Site use – Those regularly installing / replacing large glass panels.  A typical hire price I believe to be around £700 for a couple of days / week, so if hired regularly it may be more cost effective to purchase in the long run.

Hire Market – Those specialising in contract lifting or hire into glazing market.

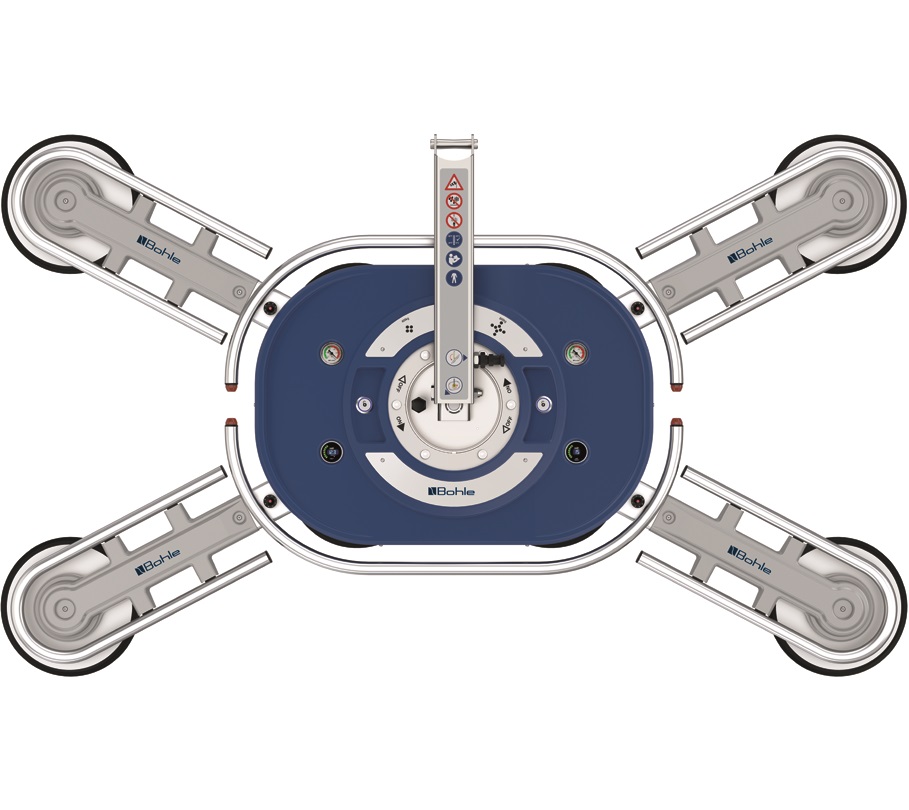

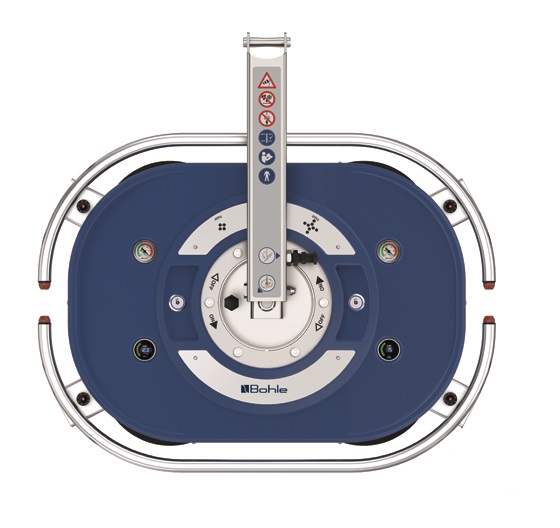

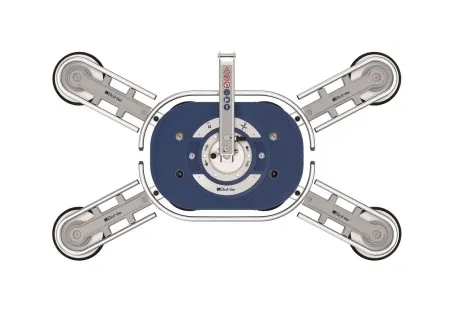

Key Features of the Liftmaster Vacuum Lifter

1. Mobile extension arms

2. Vacuum indicator for vacuum circuits 1 & 2

3. Crane arm for suspension in interior and exterior areas

4. Safe handrail surrounding the entire system

5. Locking bolt for tilting and rotating the system

6. Warning light in case of low battery and vacuum level

7. Digital temperature indicator

8. Digital battery indicator

9. Patented control panel with clever safeguard

10. Rechargeable battery on the rear – can be changed without the need of tools

First battery-powered lifting equipment with GS certificate

Whole Series is splash-proof as per IPX4

When it comes to safety, Liftmaster sets new benchmarks. The new operating concept in particular makes the everyday handling of loads from 300Kgs up to 800 kg respectively much safer. Thanks to a continuous handrail surrounding the entire lifting equipment and a patented, centrally located control panel, every move fits – ensuring a safe and easy application, regardless from which side the system is operated. In addition, all lines and cables are protected inside the housing in such a way that any risk of damage is practically excluded. Visual and acoustic signals alert the operator in case of a low battery and vacuum level. The reliable dual circuit vacuum system guarantees a twofold safety factor according to EN13155 for vacuum generation and fixing tasks.
