Grade 8 Swivel Eyebolt with Ring

Key notes for ordering:

Supplied tested with certification - Ready to use from the box. Choose standard thread length or extended thread

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

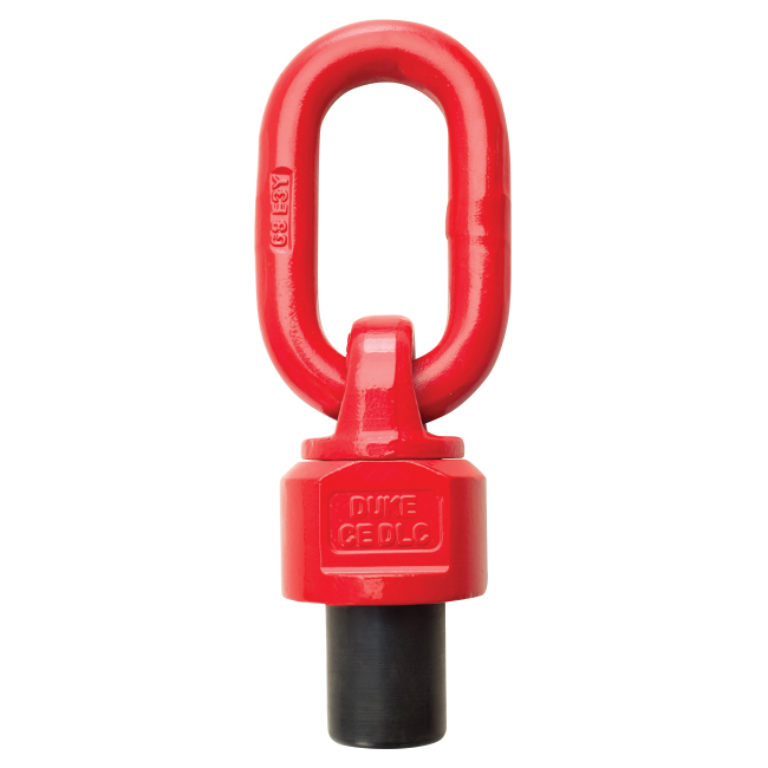

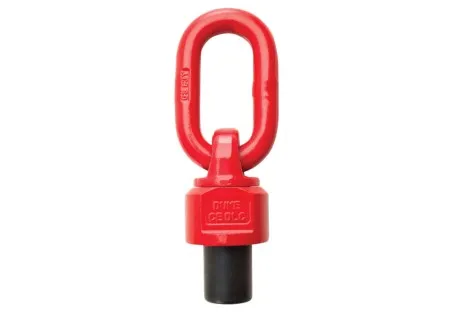

Grade 8 Swivel Eyebolt with Ring

Brand:

Capacity

300Kgs up to 15,000Kgs
(0.3 tonne to 15 tonne)

Description

Grade 8 Swivel Eyebolt with ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles.

£12.30 ex VAT

£14.76 inc VAT

Add to cart Add to quote

Related products

Grade 8 Swivel Eyebolt with Ring - Extra Long Thread

XN303

Grade 8 Swivel Eyebolt with ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles.

£15.55 ex VAT

£18.66 inc VAT

Grade 8 Swivel Eyebolt with large load ring offers many advantages over standard eyebolts due to its ability to rotate, meaning the correct lifting angle is used when an object is being lifted. The large load ring also help to connect direct to chain slings without the aid of shackles

Grade 8 Steel, Quenched & Tempered
Powder coat Finish to body
Safety Factor 4-1
WLL decreases when used at 90°
Supplied fully tested with certification

We offer two sizes - Stand thread length and extended thread length

Standard Shank

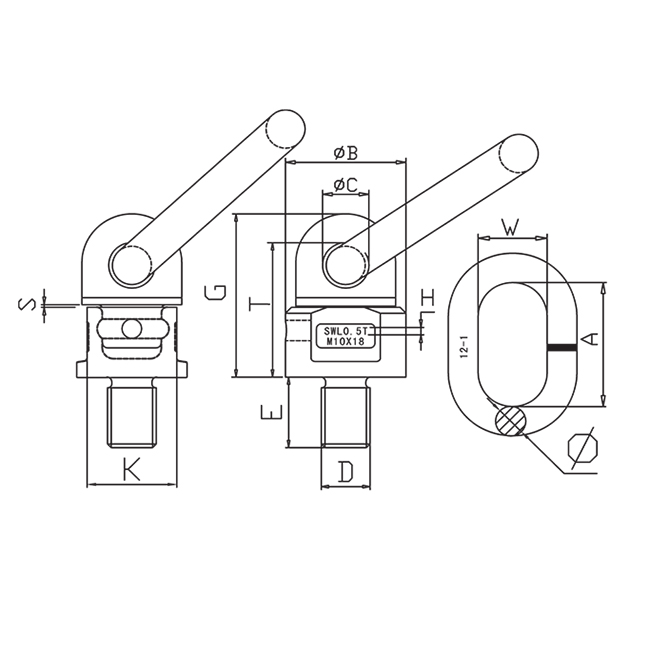

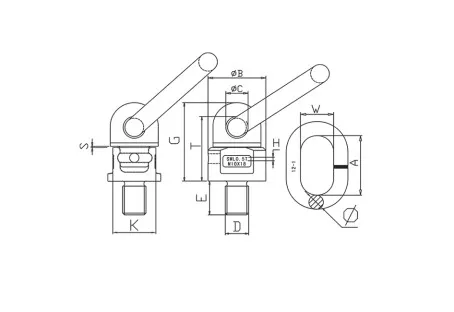

Model NumberThreadThread LengthWLL 90°WLL 0°Link SizeWeight
XN303-M08
M8
13mm
0.3t
0.6t
55 x 30mm
0.41Kgs
XN303-M10
M10
18mm
0.5t
1t
55 x 30mm
0.43Kgs
XN303-M12
M12
18mm
0.5t
1t
55 x 30mm
0.44Kgs
XN303-M12
M16
20mm
1.12t
2t
55 x 30mm
0.50Kgs
XN303-M20
M20
30mm
2t
4t
70 x 35mm
0.96Kgs
XN303-M24
M24
30mm
3.15t
6.3t85 x 40mm
1.47Kgs
XN303-M27
M27
35mm
3.15t
6.3t
85 x 40mm
1.47Kgs
XN303-M30
M30
30mm
5.3t
10.6t85 x 40mm
2.17Kgs
XN303-M36
M36
50mm
8t
12.8t
115 x 50mm
3.6Kgs
XN303-M42
M42
50mm
10t
16t
115 x 50mm
3.95Kgs
Extra Long Shank

Model
Thread Size
Thread Length
WLL 0°
WLL 90°
Link Dimensions
Weight
XN303EL-M08
M8
32mm
0.3t
0.6t
55 x 30mm
0.46Kgs
XN303EL-M10
M10
40mm
0.5t
1t
55 x 30mm
0.5Kgs
XN303EL-M12
M12
40mm
0.5t
1t
55 x 30mm
0.54Kgs
XN303EL-M16
M16
64mm
1.12t
2t
55 x 30mm
0.91Kgs
XN303EL-M20
M20
80mm
2t4t
70 x 35mm
1.21Kgs
XN303EL-M24
M24
96mm
3.15t6.3t
85 x 40mm
2.29Kgs


Grade 8 Steel, Quenched & Tempered
Powder coat Finish to body
Safety Factor 4-1
WLL decreases when used at 90°
Supplied fully tested with certification

We offer two sizes - Stand thread length and extended thread length

Standard Shank

ModelThreadThread lengthWLL 90°WLL 0°Link SizeWeight
XN303-M08
M8
13mm
0.3t
0.6t
55 x 30mm
0.41Kgs
XN303-M10
M10
18mm
0.5t
1t
55 x 30mm
0.43Kgs
XN303-M12
M12
18mm
0.5t
1t
55 x 30mm
0.44Kgs
XN303-M12
M12
20mm
1.12t
2t
55 x 30mm
0.50Kgs
XN303-M20
M20
30mm
2t
4t
70 x 35mm
0.96Kgs
XN303-M24
M24
30mm
3.15t
6.3t85 x 40mm
1.47Kgs
XN303-M27
M27
35mm
3.15t
6.3t
85 x 40mm
1.47Kgs
XN303-M30
M30
30mm
5.3t
10.6t85 x 40mm
2.17Kgs
XN303-M36
M36
50mm
8t
12.8t
115 x 50mm
3.6Kgs
XN303-M42
M42
50mm
10t
16t
115 x 50mm
3.95Kgs
Extra Long Shank

Model
Thread Size
Thread Length
WLL 0°
WLL 90°
Link Dimensions
Weight
XN303EL-M08
M8
32mm
0.3t
0.6t
55 x 30mm
0.46Kgs
XN303EL-M10
M10
40mm
0.5t
1t
55 x 30mm
0.5Kgs
XN303EL-M12
M12
40mm
0.5t
1t
55 x 30mm
0.54Kgs
XN303EL-M16
M16
64mm
1.12t
2t
55 x 30mm
0.91Kgs
XN303EL-M20
M20
80mm
2t4t
70 x 35mm
1.21Kgs
XN303EL-M24
M24
96mm
3.15t6.3t
85 x 40mm
2.29Kgs
In-service Inspection and Maintenance
Maintenance requirements are minimal. Keep eyebolts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyebolts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn, or bent shanks and threads; incomplete or incorrectly formed threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
