Grade 8 Eyenut - High capacity

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

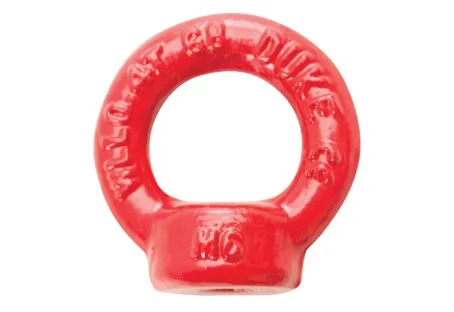

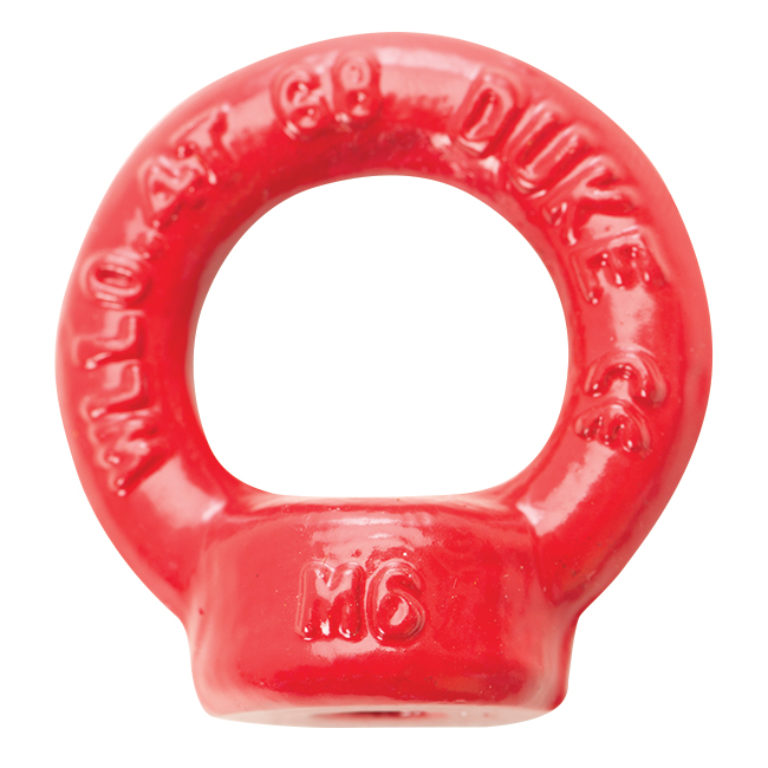

Grade 8 Eyenut - High capacity

Brand:

Capacity

400Kgs up to 32,000Kgs
(0.4 tonne up to 32 tonne)

Description

The great advantage of Grade 8 Lifting Eyenut with Collar, is the higher lifting capacity and larger eye diameter compared to a standard Eyenut

£1.98 ex VAT

£2.38 inc VAT

Add to cart Add to quote

Related products

Grade 8 Eyebolt - High capacity

XN054

Grade 8 Lifting Eyebolt with Collar. The great advantage of these is the higher capacity compared to standard eye bolts is the higher lifting capacity and larger eye diameter.

£2.10 ex VAT

£2.52 inc VAT

The great advantage of a Grade 8 Lifting Eyenut with Collar, is the higher lifting capacity and larger eye diameter compared to a standard Eyenut.

High Tensile Lifting Eyebolt
Manufactured from quality Grade 8 Material
Safety Factor 4-1
Red powder coat finish to the body
Can be used at 90° with a de-rated lifting capacity

Model           Thread         WLL    WLL           Eye            Weight
                        Size             0°        90°            dia
XN055-M06     M6            0.4t       0.15t        20mm         0.05Kgs
XN055-M08     M8            0.8t       0.4t          20mm         0.06Kgs
XN055-M10     M10          1t          0.4t          25mm         0.09Kgs
XN055-M12     M12          2t          0.75t        30mm         0.16Kgs
XN055-M16     M16          4t          1.5t          35mm         0.24Kgs
XN055-M20     M20          6t          2.3t          40mm         0.36Kgs
XN055-M24     M24          8t          3.2t          50mm         0.72Kgs
XN055-M30     M30          12t        4.5t          60mm         1.32Kgs
XN055-M36     M36          16t        7.0t          70mm         2.08Kgs
XN055-M42     M42          24t        9.0t          80mm         3.11Kgs
XN055-M48     M48          32t        12.0t        90mm         5.02Kgs

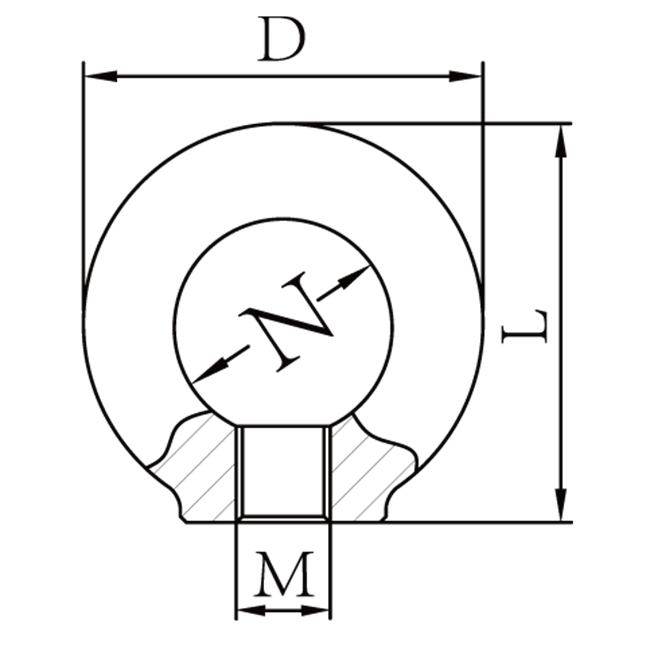

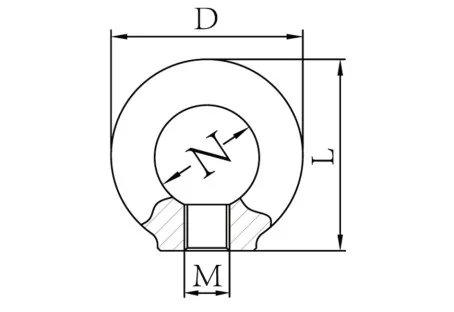

High Tensile Lifting Eyenut
Manufactured from quality Grade 8 Material
Safety Factor 4-1
Red powder coat finish to body
Can be used at 90° with de-rated lifting capacity

Model           Thread       WLL     WLL         Eye            Weight
                        Size           0°         90°          dia
XN055-M06     M6            0.4t       0.15t        20mm        0.05Kgs
XN055-M08     M8            0.8t       0.4t          20mm        0.06Kgs
XN055-M10     M10          1t          0.4t          25mm         0.09Kgs
XN055-M12     M12          2t          0.75t        30mm         0.16Kgs
XN055-M16     M16          4t          1.5t          35mm         0.24Kgs
XN055-M20     M20          6t          2.3t          40mm         0.36Kgs
XN055-M24     M24          8t          3.2t          50mm         0.72Kgs
XN055-M30     M30          12t        4.5t          60mm         1.32Kgs
XN055-M36     M36          16t        7.0t          70mm         2.08Kgs
XN055-M42     M42          24t        9.0t          80mm         3.11Kgs
XN055-M48     M48          32t        12.0t        90mm         5.02Kgs
In-service Inspection and Maintenance

Maintenance requirements are minimal. Keep eyenuts clean, protect from corrosion and protect threads from damage. Do not attempt to straighten bent eyebolts or re-cut threads.
Regularly inspect eyenuts and, in the event of the following defects, refer the eyebolt to a Competent Person for thorough examination: illegible markings; distortion; worn; incomplete or incorrectly formed internal threads; damaged eyes; nicks, gouges, cracks, corrosion or other defects.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all shackles and eyebolts/eyenuts used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
