Compact Skip Hook
Capacity
5,400Kgs
(5.4 tonne)
Description
These Grade 8 Compact Style Skip Hooks fit directly on the large 13mm Skip Chains to create a smaller skip hook that fits snugly on the Skip Lugs and will not fall or slip off. Supplied tested with certification for lifting
Related products
GKC
Green Pin Compact Skip Hook GKC which has been designed as a snug fit on Skip Lugs, giving a safe and secure connection between the skip chain and the skip, will not slip or fall off. Extensively used by all major skip vehicle manufacturers
£34.99 ex VAT
£41.99 inc VAT
XN243-13
£39.98 ex VAT
£47.98 inc VAT
8-069-13
SCC13
£8.50 ex VAT
£10.20 inc VAT
SK1
£144.98 ex VAT
£173.98 inc VAT
SK3
£114.98 ex VAT
£137.98 inc VAT
SLC13
Replacement 13mm Skip Chain - Grade 8. The ULS Lifting 13mm Skip Lorry chain can be used to replace the worn-out Skip chains. Just count up the links of the chain, and we can supply the exact length required. supplied fully tested with certification
£16.98 ex VAT
£20.38 inc VAT
SK5
£124.98 ex VAT
£149.98 inc VAT
SK8
£188.98 ex VAT
£226.78 inc VAT
SCC16
£12.98 ex VAT
£15.58 inc VAT
TSP1
£72.98 ex VAT
£87.58 inc VAT

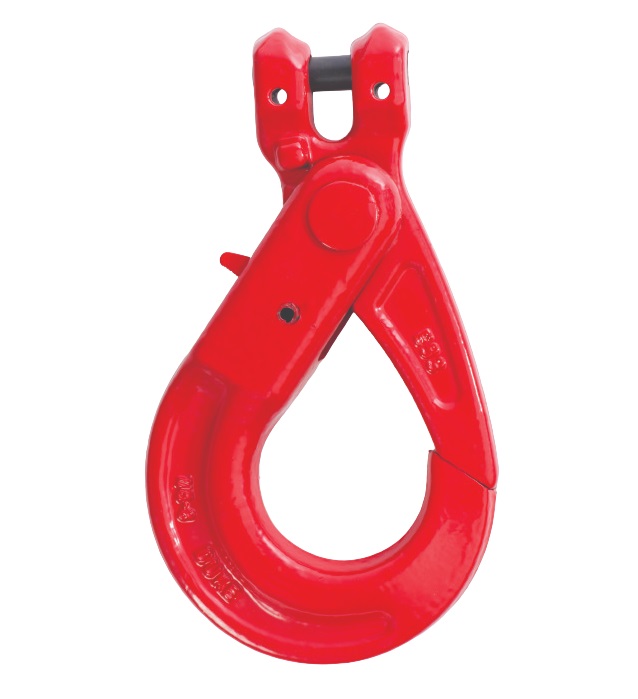

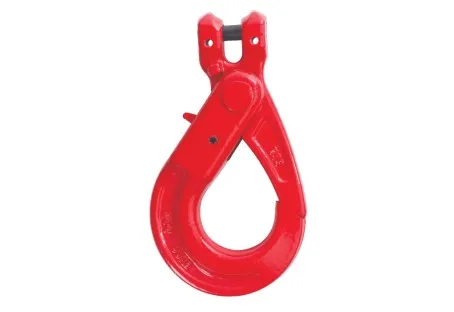

These Grade 8 Compact Style Skip Hooks fit directly on the large 13mm Skip Chains to create a smaller skip hook with a smaller internal space that fits more snugly on the Skip Lugs and will not fall or slip off. In return, these smaller skip hooks give a safer and more secure lift. Supplied tested with certification for lifting. These Compact Skip Hooks, also known as Self Locking Hooks, are fitted with an automatic locking trigger mechanism that prevents accidental opening when under load. to open the hook to remove it from the skip lug is simple, just press the release trigger on the side of the hook, and the hook will split open.
These replacement clevis skip hooks are supplied with all the connecting pins in readiness to be fitted to the ends of 13mm grade 8 skip chain. Easy to fit by a competent person. ULS Lifting also offers replacement Skip Chains (contact us if you require the skip chains as well).
Model | Chain dia | WLL (Capacity) | Hook Opening | Weight |
XN489-13 | 13 mm | 5.4 tonne | 46 mm | 2.0 Kgs |
The Hook itself is a self-locking style hook meaning once closed the hook automatically locks tight around the skip lug and cannot open until the release button on the side of the hook is depressed.
Compact Skip Hook - Clevis Style. Supplied with connecting pins
Fatigue Rated x 1.5 WLL for 20,000 cycles
Proof Tested – 2.5 times Working Load Limit
100% Magnaflux Crack Detected
Super Alloy Steel
All Load Pins are 100% individually inspected and tested
EN1677-3.
Safety Factor 4:1
Model | Chain dia | WLL (Capacity) | Hook Opening | Weight |
XN489-13 | 13 mm | 5.4 tonne | 46 mm | 2.0 Kgs |
All safety critical parts of the skip lifting mechanism, including the lifting hook and arms, hydraulic cylinders and associated pipework and fittings, should be thoroughly examined by a competent person, such as an engineer surveyor, at least once every 12 months.
If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
