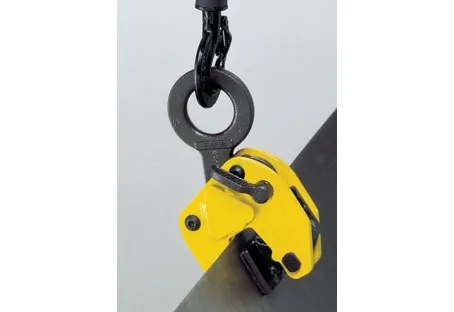

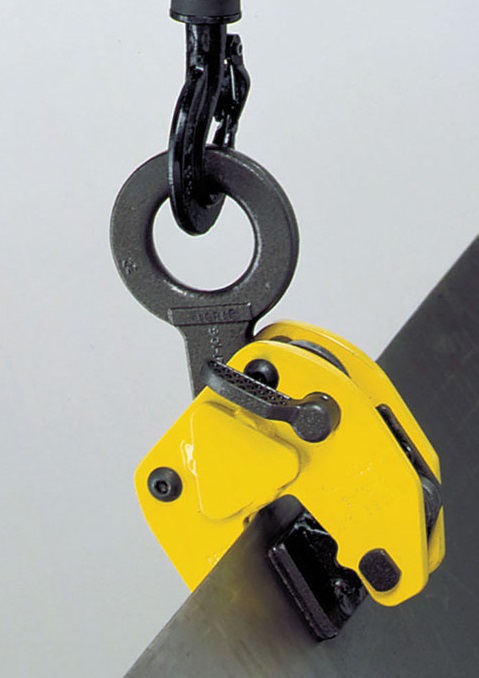

Camlok LJ Non Marking Vertical Plate Clamp

Key notes for ordering:

Supplied tested with certification - Ready to use from the box

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Camlok LJ Non Marking Vertical Plate Clamp

Brand:

Capacity

20Kgs up to 1,500Kgs
(0.02 tonne to 1.5 tonne)

Description

LJ Camlok Non-Marking Vertical Plate Clamps have been designed for lifting, turning, and transporting structural steel plates, stainless steel, iron timber, and aluminum without marking, damaging, or leaving indentations on the surface. The LJ range is manufactured in the UK offering a top-quality/performing clamp. Spare parts are ready off the shelf

save£20.94

£417.43 ex VAT

£399.98 ex VAT

£479.98 inc VAT

Related products

LJ Camlok Non-Marking Vertical Plate Clamps have been designed for lifting, turning, and transporting structural steel plates, stainless steel, iron timber, and aluminum without marking, damaging, or leaving indentations on the surface. The LJ non-marking Plate Clamps are available with two different types of pads - RUBBER & LEATHER. The type to be used is dependent on the surface of the material being gripped. If you have any concerns regarding the best option for your application, please contact our sales team

The leather Pads are suitable for standard materials such as Stainless Plates.
The Rubber Pads are suitable for highly polished or mirrored surfaces, and finished objects.

CAMLOK LIFTING CLAMPS. QUALITY IN DESIGN, PERFORMANCE AND SUPPORT - The name itself is world-renowned. Vertical plate clamps are known as Camlok, not plate clamps, which are similar to HOVER and vacuum cleaners, people know them as CAMLOKS.
Model
WLL
Jaw Opening
Lifting Eye dia
Weight
LJ500
20 - 500Kgs
0 - 10mm
50mm
3.5Kgs
LJ1500
150 - 1500Kgs
0 - 20mm
85mm
12Kgs
Camlok plate clamps are your ideal choice to lift and transfer steel plates in fabrication plants, factories, warehouses, ports and docks, construction sites, railheads, and service facilities around the world.

The LJ range is manufactured in the UK offering a top quality/performing clamp - spare parts are ready off the shelf

All Camlok Plate clamps are Service Friendly, no specialist tools required - Spare parts are kept on the shelf for quick service, maintenance, and repair - therefore, if you buy a clamp from the Camlok range, it should last you years - please always have repaired undertaken by a qualified service engineer - please contact us for further information on repairing plate clamps or any other lifting accessories.

The LJ range is easy to use - The jaw of the plate clamp is opened and closed with the locking lever, once locked the serrated teeth on the cam assembly grip tightly onto the sheet or plate, and it is now ready to lift and the plate/sheet will not slip (if the correct plate clamp has been selected) from the jaw until the locking lever has been released.

All Lifting clamps are shown with a lifting range (i.e. 150 to 1500Kgs WLL) and never exceed either the lower or higher limit when lifting.

NB - The surface of the material being gripped must be free of oil, and grease to ensure safe transport.
LJ 'NON-MARKING' PLATE CLAMPS
25 - 1500KG
Non-marking plate clamps

PRODUCT APPLICATIONS
The LJ non-marking plate clamps are designed for lifting, turning, and transporting structural steel plates, stainless steel, iron, timber, and aluminum without marking, damaging, or leaving indentations on the surface. It can also be used for steel plates with extremely hard surfaces.
These clamps are available with two different types of pads, rubber or leather. The type to be used is dependent on the surface of the material being gripped. If you have any concerns regarding the best option for your application please contact our sales team for advice.
NB: The surface of the material being gripped must be free of oil, grease, or any other liquid to ensure safe transport.
Model
WLL
Jaw Opening
Lifting Eye dia
Weight
LJ500
20 - 500Kgs
0 - 10mm
50mm
3.5Kgs
LJ1500
150 - 1500Kgs
0 - 20mm
85mm
12Kgs
Camlok plate clamps are your ideal choice to lift and transfer steel plates in fabrication plants, factories, warehouses, ports and docks, construction sites, railheads and service facilities around the world.
CARE & MAINTENANCE The maintenance schedule is based on the normal usage of clamps operating in a workshop environment. Maintenance frequency must be increased if clamps are subject to heavy usage or operated in adverse conditions. Legal requirements on inspection and certification/usage. The definition of lifting equipment and lifting accessories used in LOLER makes it clear that Plate clamps fall under the heading of lifting accessories. Unless a scheme of examination is in place already, all lifting clamps must be thoroughly examined by a competent person at intervals not exceeding 6 months.

Quality in design, performance and support. Camlok is the established industry brand for plate clamps and other items of lifting equipment. In fabrication plants, factories, warehouses, ports and docks, on construction sites, railheads and repair and service facilities around the world, the Camlok plate clamp and related products are the number one choice.


The Camlok brand is over 50 years old and was founded on original, innovative British design and manufacture. It evolved from a general industrial need to lift and transfer steel plates either horizontally, vertically or a combination of both, in a secure and safe manner. This was achieved by using an ingenious 'cam' and jaw mechanism to positively lock the steel plate into a clamping device so it may be suspended from a crane hook. The original 'cam-lock' principle has led to the vast spectrum of lifting clamps available today, for example, plate clamps, beam clamps, rail clamps, girder clamps, piling clamps, scissor grabs and other handling devices. This heritage generated the capability and understanding for Camlok to lead the way in engineering special non-standard lifting solutions for technically demanding applications.


All products are designed for easy repair and parts replacement, providing a lifetime of faithful service and performance and are manufactured in the UK to world-class standards. Hundreds of carefully selected and approved distributors around the world provide full advice, training, parts and after-sales services to ensure that Camlok lifting clamps deliver long life, reliable, productive and cost-effective performance -- wherever you are, whatever you do.
