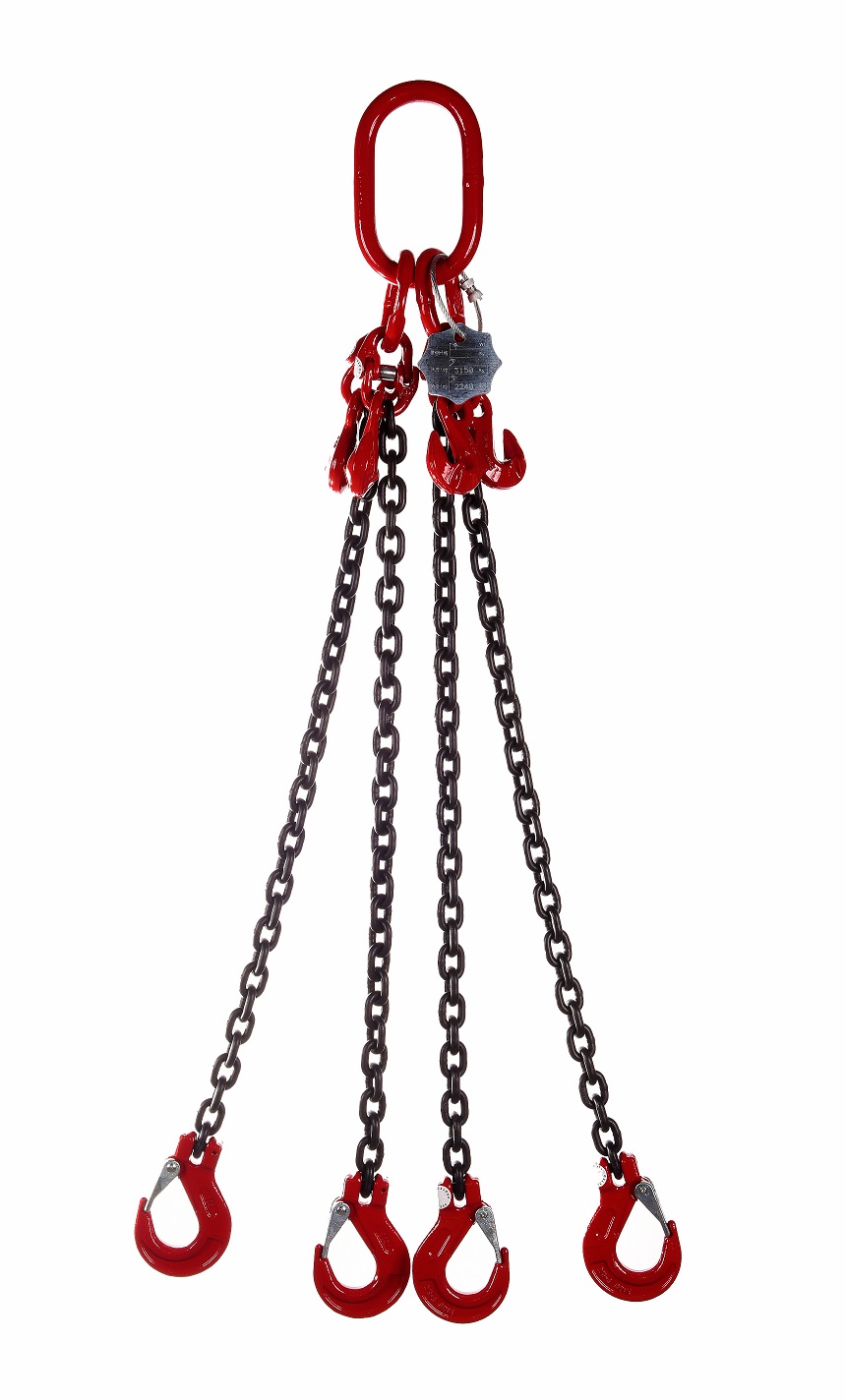

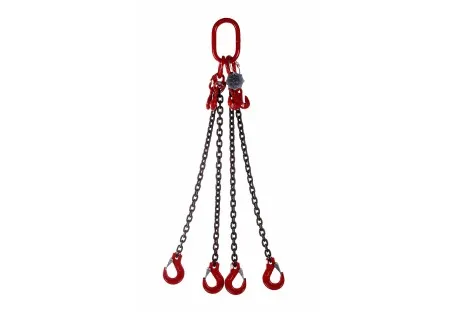

8mm 4Leg Grade 8 Chain Sling 4.25 tonne

Estimated lead time:1 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

8mm 4Leg Grade 8 Chain Sling 4.25 tonne

Brand:

Capacity

4,250Kgs (4.25 tonne)

Description

A wide range of 8mm 4Leg Grade 8 Chain Sling 4.25 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£78.98 ex VAT

£94.78 inc VAT

Add to cart Add to quote

Related products

Alloy Bow Shackle with Screw Pin

USBSA

"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."

£1.07 ex VAT

£1.28 inc VAT

Green Pin Alloy Bow Shackle Screw Pin

G-4161

Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.

£2.81 ex VAT

£3.37 inc VAT

Four Leg Grade 8 Chain Sling from 7mm dia (3.15t) up to 32mm Dia (67tonne)

CS08-4L

Four Leg Grade 8 Chain Sling from 7mm dia (3.15t) up to 32mm Dia (67tonne) are the most commonly bought lifting sling, very robust and versatile for all types of Lifting and lashing requirements - manufactured to EN818-4, making them totally compliant to legislation and totally safe to use.
5 tonne Duplex Web slings - 150mm wide

DX5T

Quality 5 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted.

£13.14 ex VAT

£15.77 inc VAT

5 tonne Endless Round slings, Red

RS5T

Quality 5 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.

£6.18 ex VAT

£7.42 inc VAT

8mm Single Leg Grade 8 Chain Sling 2 tonne

CS-G8-08-1L

8mm Single Leg Grade 8 Chain Sling 2 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£25.98 ex VAT

£31.18 inc VAT

8mm Two Leg Grade 8 Chain Sling 2.8 tonne

CS-G8-08-2L

8mm Two Leg Grade 8 Chain Sling 2.8 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£40.98 ex VAT

£49.18 inc VAT

7mm 4Leg Grade 8 Chain Sling 3.15 tonne

CS-G8-07-4L

A wide range of 7mm 4Leg Grade 8 Chain Sling 3.15 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£72.98 ex VAT

£87.58 inc VAT

10mm 4Leg Grade 8 Chain Sling 6.7 tonne

CS-G8-10-4L

A wide range of 10mm 4Leg Grade 8 Chain Sling 6.7 tonne available from ULS Lifting, supplied fully tested and certified. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks.

£122.98 ex VAT

£147.58 inc VAT

A wide range of 8mm 4Leg Grade 8 Chain Sling 4.25 tonne available from ULS Lifting, supplied fully tested and certified making them useable as soon as they have been delivered. Can be made to any length and fitted with either sling Hook and catches or self Locking Hooks. If being used to lift different sized objects, ULS LIFTING suggest adding adjusters to each leg so the chain slings can be adjusted to suit the lifting procedure.

Key features of the ULS Lifting 8mm 4 Leg Grade 8 four Leg
Chain size - 8mm Dia
Chain Length - Available from 1m up to 10m
End Fittings - Choose from Sling Hook and Catch or Self Locking Hooks (Safety Hooks)
Lifting Capacity - 4.25-tonne WLL (4250Kgs)
Supplied Fully Tested and Certified
Steel Grade - Grade 8 (Grade 80)

How to order your new four leg chain sling  - They are custom-made to suit your requirements,  choose what hook you need to attach to your equipment, i.e. Sling Hook/Catch or a Self Locking Hook. What length do you need the chain to be? Do you need to adjust the length of the chain sling, if so add adjusters, we even offer an oversized master link, just in case your lifting hook or crane hook is a lot larger than normal - we make up slings to your requirements and most standard slings can be assembled and dispatched same day if ordered before noon. If your Grade 8 Lifting sling is required urgently, please give us a call.
Chain Size

WLL for 4 Leg Chain Slings

Standard angle 0-45º

7mm Dia
3.15 tonne
8mm Dia
4.25 tonne
10mm Dia6.7 tonne
13mm Dia
11.2 tonne
16mm Dia
17 tonne
19mm Dia
23.6 tonne
20mm Dia
26.5 tonne
22mm Dia
31.5 tonne
26mm Dia
45 tonne
32mm Dia
67 tonne
4-Leg chain slings are one of the most commonly bought lifting accessories because they are very robust and versatile for lifting heavy loads and for most types of Lifting applications either on a construction site or around a factory. Grade 100 Chain Slings are available on request.

The ULS Lifting 4 Leg G80 Chain sling is made up of G80 Components. starting with a G80 Master link, then G80 connecting links, G80 Chain (please confirm Chain Length), and then terminating in G80 hooks. the hooks can be G80 Sling Hooks or G80 Self Locking Hooks.

General notes for Grade 8 4 leg lifting chains - The load capacities of all chain slings are defined with the assumption that the load of the individual chain legs is distributed symmetrically. The load can be considered symmetrical when all the following conditions are met: The angle from the vertical of all chain legs is not less than 15°. The angle from the vertical of all chain legs are equal or deviate by Max. 15° from each other.

In the case of 3 and 4 leg chain slings, the corresponding angles in the sling level deviate by Max. 15° from each other. The load is smaller than 80% of the indicated working load limit.
Key features of the ULS Lifting 8mm 4 Leg Grade 8 four Leg

Chain size - 8mm Dia
Chain Length - Available from 1m up to 10m
End Fittings - Choose from Sling Hook and Catch or Self Locking Hooks (Safety Hooks)
Lifting Capacity - 4.25-tonne WLL (4250Kgs)
Supplied Fully Tested and Certified
Steel Grade - Grade 8 (Grade 80)
In-service Inspection and Maintenance requirements on chain slings are actually minimal.

Keep the condition of the chain slings clean and protect them from corrosion as much as possible.

Regularly inspect chain slings and, in the event of the following defects, refer the sling to a Competent Person for a thorough examination: illegible markings; distortion of fittings; worn, stretched, bent, or twisted links; ineffective safety catches; cuts, nicks, gouges, cracks, corrosion, heat discoloration or any other defect apparent to the chain or fittings.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all chain slings used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection/services either on-site or in-house
