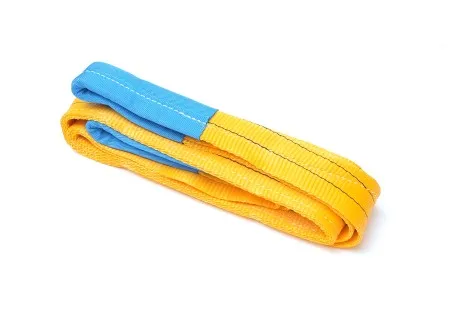

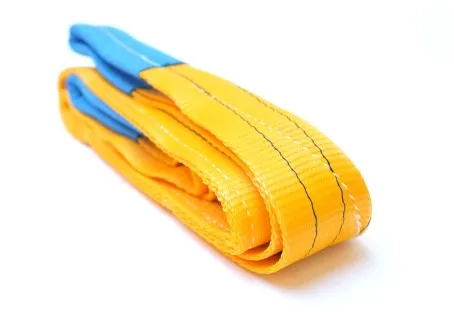

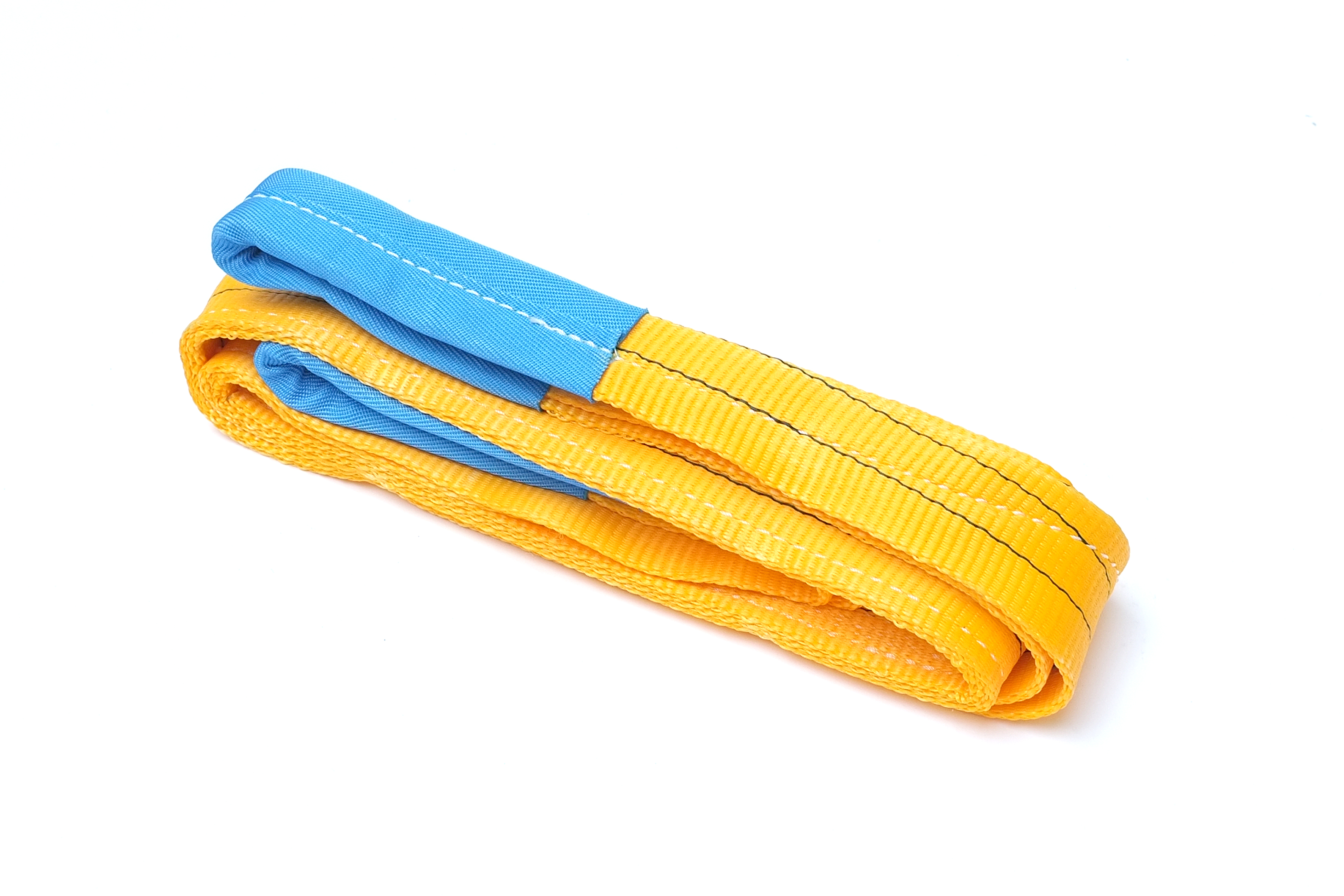

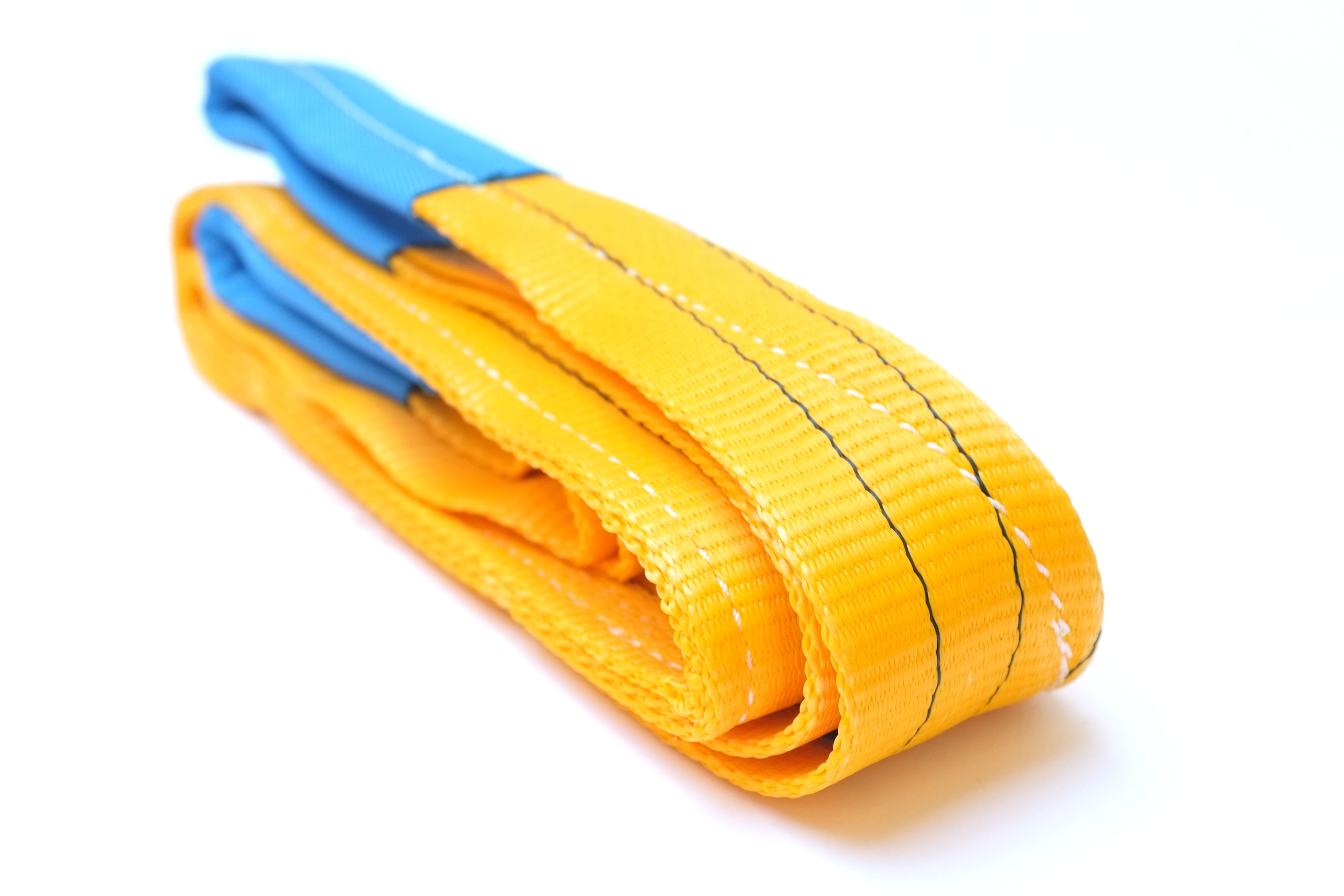

3 tonne Duplex Web slings - 90mm wide
.jpg)
.jpg)
-88x60.webp)
-88x60.webp)
Key notes for ordering:
All ULS Lifting Duplex Web slings are dispatched with certificates and ready to use straight out of the box
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
3 tonne Duplex Web slings - 90mm wide
Brand:
Capacity
3,000 Kgs 90mm wide
(3 tonne)
Description
Quality 3 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted.
£5.09 ex VAT
£6.11 inc VAT
Add to cart
Add to quoteRelated products
Self Colour Large Dee Shackle Screw Pin
SCLDA
Large Dee Shackles with Screw Pin (A-Pin) manufactured to BS3032 from High Tensile Steel. Dee or "D" Shackles are generally used to join two pieces of lifting equipment together before the lifting process. Also used for an anchorage point.
£2.37 ex VAT
£2.84 inc VAT
Alloy Bow Shackle with Screw Pin
USBSA
"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.
Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."
£1.07 ex VAT
£1.28 inc VAT
Green Pin Alloy Bow Shackle Screw Pin
G-4161
Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.
£2.81 ex VAT
£3.37 inc VAT
Single Leg Grade 8 Chain Sling from 7mm dia (1.5t) up to 32mm Dia (31.5tonne)
CS08-1L
-494x340.webp)
2 tonne Endless Round slings, Green
RS2T
Quality 2 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.
£2.68 ex VAT
£3.22 inc VAT
-494x340.webp)
3 tonne Endless Round slings, Yellow
RS3T
Quality 3 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.
£3.49 ex VAT
£4.19 inc VAT
10mm Single Leg Grade 8 Chain Sling 3.15 tonne
CS-G8-10-1L
£32.98 ex VAT
£39.58 inc VAT
8mm Two Leg Grade 8 Chain Sling 2.8 tonne
CS-G8-08-2L
£40.98 ex VAT
£49.18 inc VAT
10mm Two Leg Grade 8 Chain Sling 4.25 tonne
CS-G8-10-2L
£59.98 ex VAT
£71.98 inc VAT
Quality 3 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted, meaning they are less likely to damage the load and should never leave marks either.
ULS Lifting are a major UK supplier of both Duplex Webbing Slings and Endless Polyester Roundslings from 1 tonne to 20 tonne, from 1m EWL to 12m EWL off the shelf, larger sizes available on request. ultimate Lifting Solutions Limited only supply quality lifting slings that conform to relevant safety standards. If you need anymore information on Lifting slings. other capacities and sizes, feel free to give our sales team a call today on 01384 986 026 or email the team sales@ulslifting.com.
The ULS 1 tonne web slings, available off the shelf from 1m EWL (long) up to 10m EWL - other sizes are available on request.
| Model | WLL | Webbing Width | Sling Thickness | Eye Length For 1m Sling | Eye Length For 2m Slings | Weight For 1m Sling | Weight extra per 1m |
| DX3T | 3,000Kgs | 90mm | 7.5mm | 250mm | 400mm | 0.71Kgs | 0.55Kgs |
What are 3 tonne Duplex web slings? The maximum lifting capacity of sling is 3 tonne or 3,000Kgs, manufactured as a double layer sling, from 90mm wide polyester webbing, with large reinforced eyes each end and are woven from high tenacity polyester yarn. Each sling has an identification label sewn into the webbing, which gives the user vital information on the capabilities of the sling and each sling is supplied with a unique serial number for traceability.

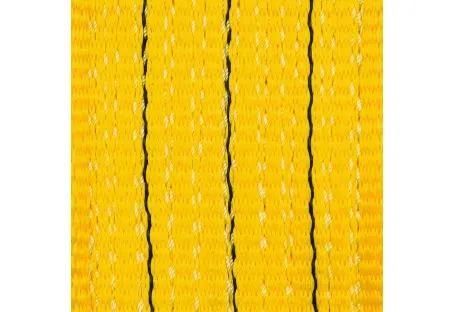

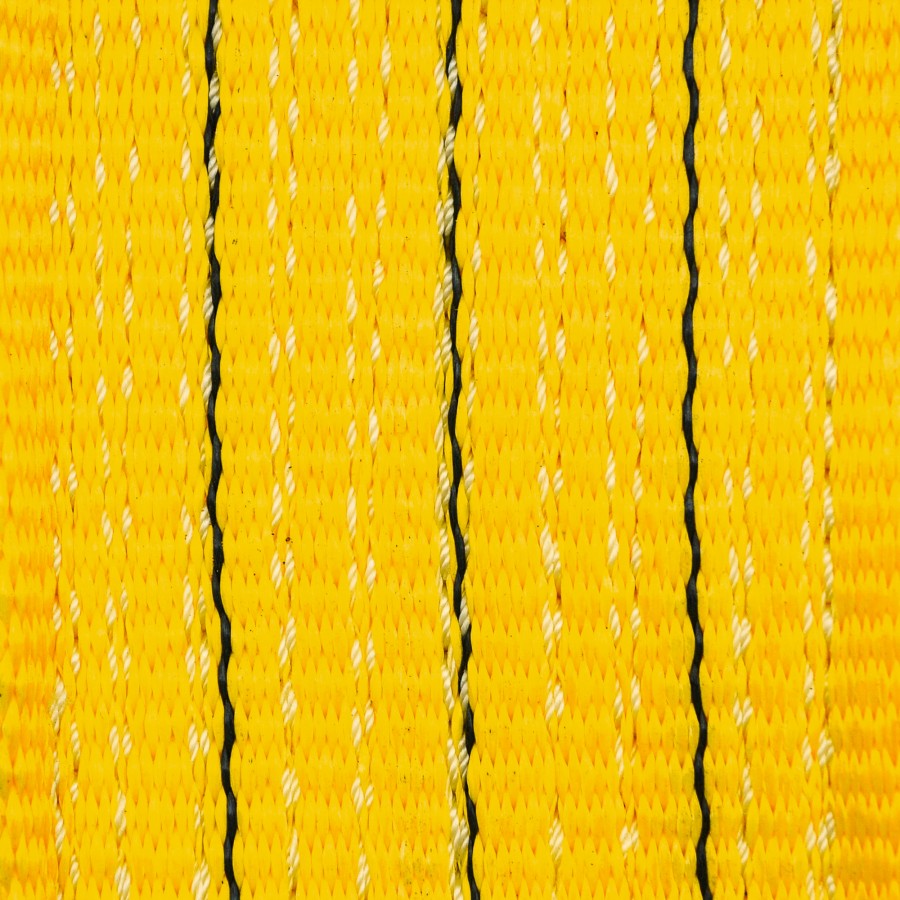

How to recognise 3 tonne duplex Web sling? 3 tonne Duplex Web Slings are colour coded yellow, manufactured from 90 mm wide polyester webbing with three black yarn stripes to denote working load limit.
Why use a Duplex Lifting sling? They are low weight compared to either chain slings or wire rope slings and more flexible, making them easier to use than chain slings or wire rope Slings. Another plus point for using webbing slings, they give significant improvements in safety over alternative lifting methods and lower purchasing costs in comparison to other lifting gear.
Working Load Limits and colour codes for Flat Web Slings to BS EN1492-1:2000
| Colour code | WLL | Vertical Lift FOS(x1) | Choke Hitch FOS (x0.8) | Straight Basket FOS (x2) | Angled Basket (45°) FOS(x1) |
| Purple | 1,000Kgs | 1 tonne | 0.4 tonne | 1 tonne | 0.7 tonne |
| Green | 2,000Kgs | 2 tonne | 0.8 tonne | 2 tonne | 1.4 tonne |
| Yellow | 3,000Kgs | 3 tonne | 1.2 tonne | 3 tonne | 2.1 tonne |
| Grey | 4,000Kgs | 4 tonne | 3.2 tonne | 4 tonne | 2.8 tonne |
| Red | 5,000Kgs | 5 tonne | 4.0 tonne | 5 tonne | 4.2 tonne |
| Brown | 6,000Kgs | 6 tonne | 4.8 tonne | 6 tonne | 5.6 tonne |
| Blue | 8,000Kgs | 8 tonne | 6.4 tonne | 8 tonne | 7.0 tonne |
| Orange | 10,000Kgs | 10 tonne | 8.0 tonne | 10 tonne | 8.4 tonne |
| Orange | 12,000Kgs | 12 tonne | 9.6 tonne | 12 tonne | 11.2 tonne |
Slings supplied by Ultimate Lifting Solutions are manufactured by British manufacturer Miller Web lift.
The advantage of buying Miller Weblift slings from ULS means you get a high quality sling made from hard wearing 100% polyester fibres (PES) manufactured to the correct internationally recognised standards (EN1492-1:2000) and supplied with manufacturers EC Declaration of Conformity.
They have their own weaving facility on site in the UK meaning traceability and quality control is very high and it also gives them the ability to manufacture bespoke lifting slings up to 50 tonnes. Duplex Flat Web Slings or belt slings or straps are used for a variety of lifting purposes.
3 tonne Duplex Web slings supplied by Ultimate Lifting Solutions
Quick overview
Working Load Limit (WLL) - 3,000kg or 3 tonne
Width - 90mm.
Colour - yellow.
Material - 100% Polyester.
Lengths available - 1m long EWL up to 10m EWL. (longer available on a two to three day delivery)
Duplex web sling conform to EN1492-1:2000.
Safety factor 7:1 Woven from high tenacity 100% polyester (PES).
Yarn Stripes denotes WLL for easy identification.
Colour coded for easy recognition of working load.
Each sling supplied with unique serial number.
Available with a choice of wear sleeves for added protection at the load point(s)
SLING SAFETY ALWAYS
Store and handle slings / lashings correctly.
Inspect slings / lashings and accessories before use and before placing into storage.
Position the flat sling so that the load is uniformly spread over its width and protects the sling from sharp edges.
Use protection and fittings on a round sling (to avoid cutting, friction etc...)
Apply the correct mode factor for slinging arrangement NEVER Attempt to shorten, knot or tie any slings / lashings.
Expose slings / lashings to direct heat or flames. Use slings / lashings at temperatures above 100 ̊C or below -40ºC Expose slings / lashings to chemicals without consulting the supplier Shock load slings. Use flat slings which are cut or have loose or damaged stitching Use round slings with cut or damaged outer covers.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all Polyester Lifting Slings are classed as lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house
Miler Weblift boast at being World leaders in lifting and load restraint and Miller Weblift is an established international manufacturer, experts in providing premium lifting and load restraint solutions. They aim to provide the highest possible quality to ensure peace of mind when conducting a lift. They offer consistent and reliable lifting equipment to a range of domestic and worldwide destinations.
Company CORE VALUES:
SAFETY: Lifting equipment is extensively tested to the latest safety standards and beyond. All of the slings are made to the highest possible standard of quality.
SERVICE: Miller Weblift are very responsive to there distributors requirements, offering reliable services with the aim to build strong relationships with every business we work with.
EXPERIENCE: They pride them selves on being experts in there industry. being adaptable to new industry concepts and technology.
THE MILLER WEBLIFT WAY - Quote by Miller Weblift themselves From yarn straight to end user. At Miller Weblift we stand in a unique position because we weave the webbing here on site in the UK. This means that we control the complete manufacturing process, from the basic yarn right through to the end product, so you can be sure that you’ll receive the highest quality lifting equipment every time.
