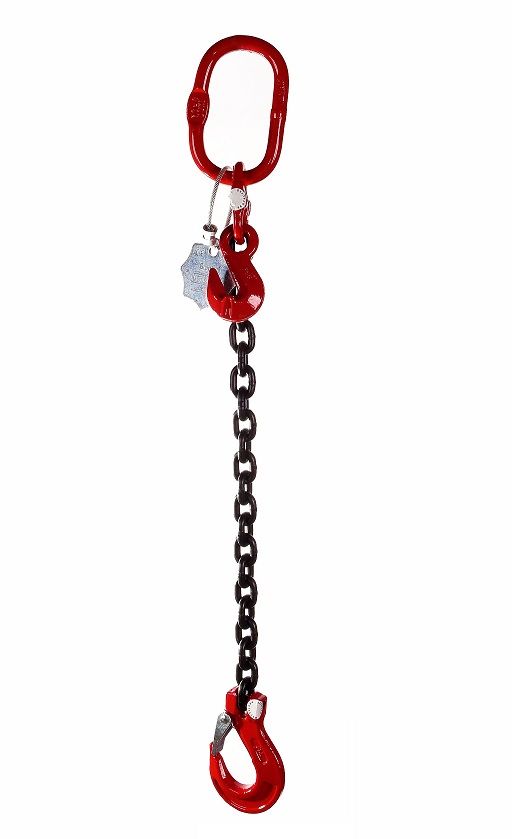

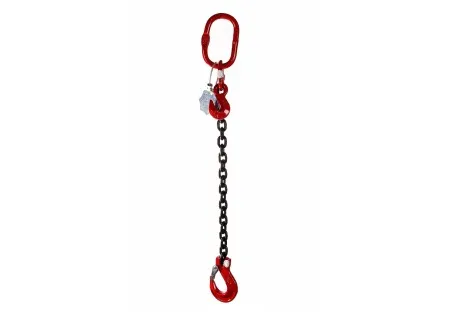

13mm Single Leg Grade 8 Chain Sling 5.3 tonne

Estimated lead time:1-2 Day

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

13mm Single Leg Grade 8 Chain Sling 5.3 tonne

Brand:

Capacity

5300Kgs
(5.3 tonne)

Description

13mm Single Leg Grade 8 Chain Sling 5.3 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£54.98 ex VAT

£65.98 inc VAT

Add to cart Add to quote

Related products

Alloy Bow Shackle with Screw Pin

USBSA

"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.


Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."

£1.07 ex VAT

£1.28 inc VAT

Green Pin Alloy Bow Shackle Screw Pin

G-4161

Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.

£2.81 ex VAT

£3.37 inc VAT

5 tonne Duplex Web slings - 150mm wide

DX5T

Quality 5 tonne Duplex Web Slings, manufactured to BS EN1492-1:2000 and supplied fully certified, ready to use once unpacked. Duplex web slings are perfect for industrial lifting applications due to their wide, soft and flexible webbing and ideal for handling loads which require some support when being lifted.

£13.14 ex VAT

£15.77 inc VAT

5 tonne Endless Round slings, Red

RS5T

Quality 5 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.

£6.18 ex VAT

£7.42 inc VAT

10mm Single Leg Grade 8 Chain Sling 3.15 tonne

CS-G8-10-1L

10mm Single Leg Grade 8 Chain Sling 3.15 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£32.98 ex VAT

£39.58 inc VAT

16mm Single Leg Grade 8 Chain Sling 8 tonne

CS-G8-16-1L

16mm Single Leg Grade 8 Chain Sling 8 tonne supplied fully tested, certified, and can be supplied to customer requirements. Can be supplied to any length, with sling hook, with self-locking hook with shortening hooks

£78.98 ex VAT

£94.78 inc VAT

The ULS Lifting 13mm Single Leg Grade 8 Chain Sling 5.3 tonne WLL is supplied fully tested, certified, and ready to be used straight out of the box. Can be supplied to customer requirements to any length, with a sling hook, with a self-locking hook with shortening hooks. just select the correct option from the drop-down menu.

Key features of the ULS Lifting 13mm Single Leg Grade 8 Single Leg
Lifting Capacity - 5.3-tonne WLL (5.300Kgs)
Chain size - 13mm Dia
Chain Length - available from 1m up to 10m
End Fittings - Choose from Sling Hook/Catch or Self Locking Hooks (Safety Hooks)
Steel Grade - Grade 8 (Grade 80)
Supplied Fully Tested and Certified


How to order your new single-leg chain sling  - They are custom-made to suit your requirements,  choose what hook you need to attach to your equipment, i.e. Sling Hook/Catch or a Self Locking Hook. What length do you need the chain to be? Do you need to adjust the length of the chain sling, if so add adjusters, we even offer an oversized master link, just in case your lifting hook or crane hook is a lot larger than normal - we make up slings to your requirements and most standard slings can be assembled and dispatched same day if ordered before noon. If your Grade 8 Lifting sling is required urgently, please give us a call
Chain Size

WLL for Single  Leg
7mm Dia
1.5 tonne
8mm Dia
2.0 tonne
10mm Dia
3.15 tonne
13mm Dia
5.3 tonne
16mm Dia
8.0 tonne
19mm Dia
11.2 tonne
20mm Dia
12.5 tonne
22mm Dia
15.0 tonne
26mm Dia
21.2 tonne
32mm Dia
31.5 tonne
The load capacities of all chain slings are defined with the assumption that the load of the individual chain legs is distributed symmetrically. The load can be considered symmetrical when all the following conditions are met:
The angle from the vertical of all chain legs is not less than 15°.
The angle from the vertical of all chain legs is equal or deviates by Max. 15° from each other.
In the case of 3 and 4-leg chain slings, the corresponding angles in the sling level deviate by Max. 15° from each other.
The load is smaller than 80% of the indicated working load limit.
Key features of the ULS Lifting 13mm Single Leg Grade 8 Single Leg
Lifting Capacity - 5.3-tonne WLL (5300Kgs)
Chain size - 13mm Dia
Chain Length - available from 1m up to 10m
End Fittings - Choose from Sling Hook/Catch or Self Locking Hooks (Safety Hooks)
Steel Grade - Grade 8 (Grade 80)

Supplied Fully Tested and Certified
In-service Inspection and Maintenance requirements on chain slings are actually minimal.
Keep the condition of the chain slings clean and protect from corrosion as much as possible.
Regularly inspect chain slings and, in the event of the following defects, refer the sling to a Competent Person for a thorough examination: illegible markings; distortion of fittings; worn, stretched, bent or twisted links; ineffective safety catches; cuts, nicks, gouges, cracks, corrosion, heat discolouration or any other defect apparent to the chain or fittings.

In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all chain slings used for lifting purposes are lifting accessories. They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.

If you are in any doubt please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
