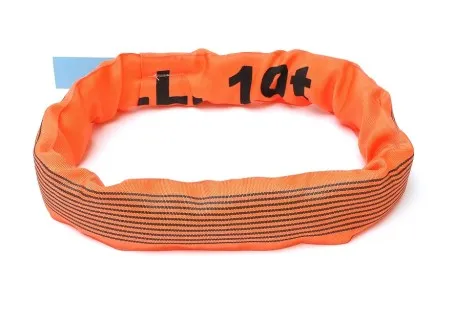

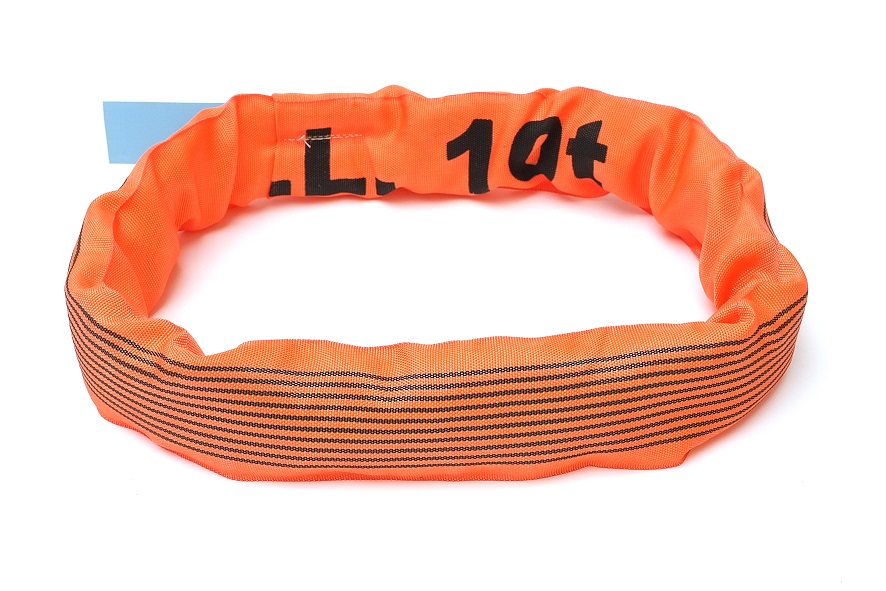

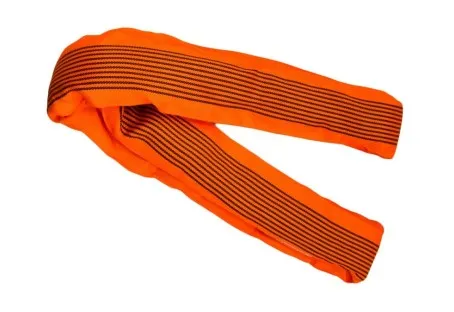

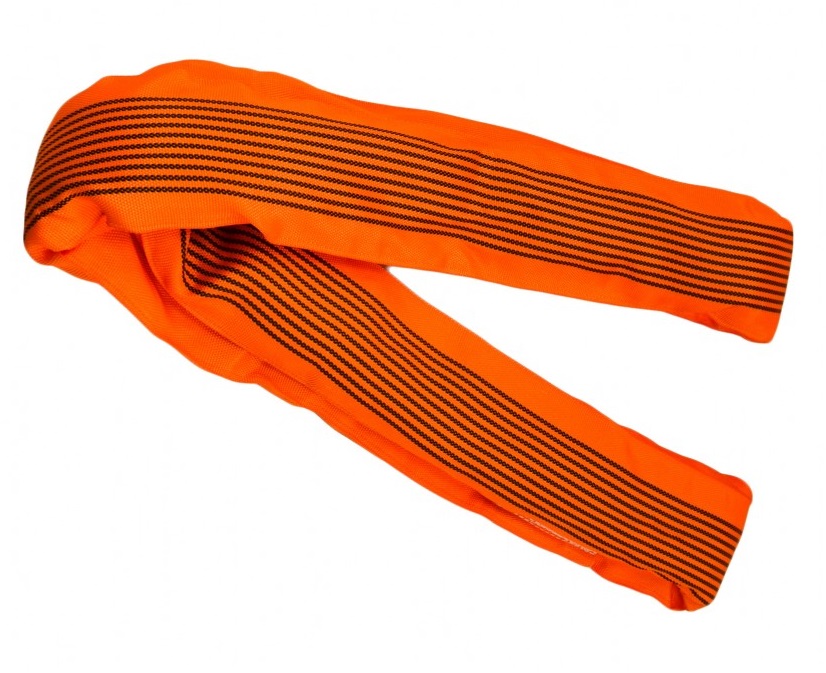

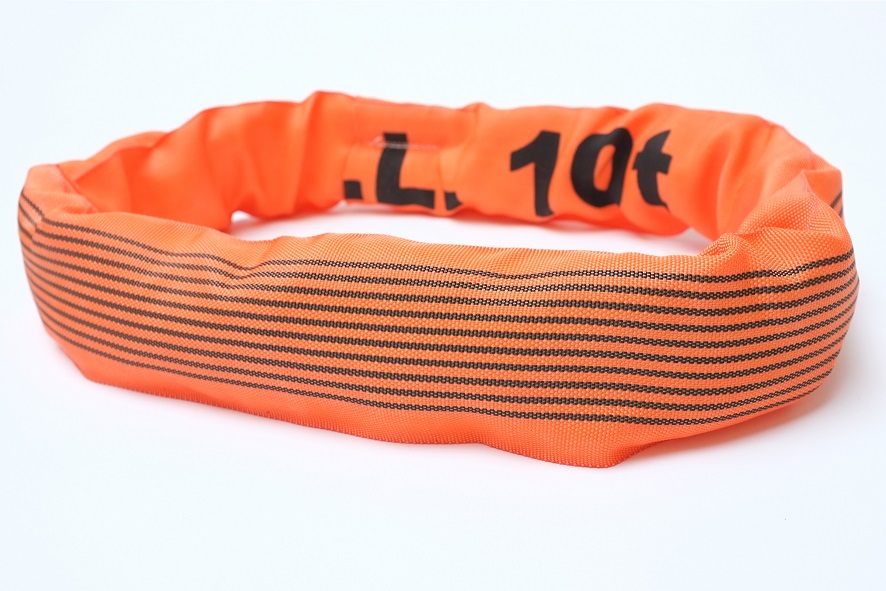

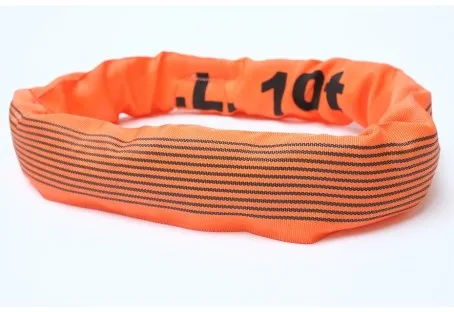

10 tonne Endless Round slings, Orange
Key notes for ordering:
ULS slings are measured EWL - Effective Working Length (Circ. = 2 x EWL) Dispatched with unique serial number, blue tag and certification, ready to use straight out of the box
Estimated lead time:1 Day
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
10 tonne Endless Round slings, Orange
Capacity
10,000 Kgs
(10 tonne)
Description
Quality 10 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling.
Related products
USBSA
"Alloy Bow Shackles with Screw Pin (A-Pin) manufactured to US FED SPEC RR-C-271 from Alloy Steel. These shackles generally have higher load capacity per size ratio.
Bow shackles are typically used where more than one attachment has to be made to the body e.g. if joining two or more slings to a small hook of a crane. Also used widely as a recovery shackle."
£1.07 ex VAT
£1.28 inc VAT
G-4161
Green Pin Alloy Bow Shackles with Screw Pin, manufactured to EN13889 / US FED SPEC RR-C-271 from Alloy Steel. Green Pin Shackles are a Premier Brand/quality. These shackles generally have higher load capacity per size ratio.
£2.81 ex VAT
£3.37 inc VAT
DX10T
£45.71 ex VAT
£54.85 inc VAT
CS-G8-16-2L
£150.98 ex VAT
£181.18 inc VAT
CS-G8-13-4L
£189.98 ex VAT
£227.98 inc VAT
CS-G8-16-4L
£298.98 ex VAT
£358.78 inc VAT
Quality 10 tonne Endless Polyester Round Slings, manufactured to BS EN1492-2:2000 and supplied fully certified, ready to use once unpacked. Round slings are classed as the all purpose lifting aid capable of high endurance lifting tasks, great for sliding under low height objects to create a flexible and lightweight lifting sling, which makes them very easy to use, and probably the best choice of lifting sling on objects that have surfaces you do not want to damage or scratch. Another plus point for choosing an endless roundsling is the fact they can be used in a number of different ways with "basket" and "choke hitch" being the most common forms, which in turn means the weight can be distributed evenly making the load more stable while lifting.
ULS Lifting are a major UK supplier of both Endless Polyester Roundslings and Duplex Webbing Slings conforming to EN1492 from 1 tonne to 20 tonne, from 1m EWL to 12m EWL off the shelf, larger lifting capacities and longer slings available on request.
Ultimate Lifting Solutions Limited only supply quality long lasting lifting slings that conform to relevant safety standards. If you need anymore information on Lifting slings. other capacities and sizes or adding wear sleeves to your lifting slings, feel free to give our sales team a call today on 01384 986 026 or email the team sales@ulslifting.com.
ULS 10 tonne quality manufactured round slings, available off the shelf from 1m EWL (long) up to 6m EWL - other sizes are available on request
Model | WLL | Sleeve Width | Sling Dia under loading | Sling Colour code | Sling Stripes | Weight For 0.5m Slings | Weight extra per 0.5m |
RS10T | 10,000Kgs | 91mm | 35mm | Orange | 10 | 0.84gs | 0.81Kgs |
Wear sleeves are available for ULS Endless Polyester Round Slings to protect against point loading or repetitive lifts processes.
Why use a endless polyester round sling? Polyester Roundslings are the all purpose lifting aid, compact thickness, great for sliding under low height objects. Flexible and lightweight making them easy to use on object that have surfaces you do not want to damage or scratch.
How to measure an endless roundsling. when ordering Endless Polyester Roundslings care must be taken when selecting the length of sling required. all slings supplied by Ultimate Lifting Solutions are measured by the Effective Working Length or EWL. If you are replacing an old sling, then it is simple to find the EWL, Lay the sling out on the floor, and measure the sling in a single straight line. (See image below)
What is EWL? - Effective Working Load - Lay a sling out flat on the floor - measure how long it is - this is the Length of our slings, the EWL - the opposite method of measuring a sling, again lay it out on floor, but this time measure from a starting point all the way round, and finish at the starting point, you have measured all the way around the sling - hence the circumference.
How are Roundsling formed? Standard round slings are made up as two parts :-
INNER - This is where the strength hides, the inner core is the load bearing part of the sling, made up of a hank of quality / strong yarn , woven endlessly together to form the endless sling - The second part of the sling is the external sling -
OUTER - This protective cover is also manufactured from high quality polyester, it is non load bearing as it only intended for protection and contamination of the core.
Limitations of using Polyester round Slings - Round slings however are less robust and more liable to damage than equivalent slings manufactured from wire or chain - Therefore, more care needs to be taken for the rigger when using round slings, and its why you should always buy good quality round slings like these that have quality outer sleeving that helps extend the life of the sling itself.
Working Load Limits and colour codes for Endless Polyester Round Slings to EN1492-2:2000
Colour code | WLL | Vertical Lift FOS(x1) | Choke Hitch FOS (x0.8) | Straight Basket FOS (x2) | Angled Basket (45°) FOS(x1) |
Purple | 1,000 Kgs | 1 tonne | 0.4 tonne | 1 tonne | 0.7 tonne |
Green | 2,000 Kgs | 2 tonne | 0.8 tonne | 2 tonne | 1.4 tonne |
Yellow | 3,000 Kgs | 3 tonne | 1.2 tonne | 3 tonne | 2.1 tonne |
Grey | 4,000 Kgs | 4 tonne | 3.2 tonne | 4 tonne | 2.8 tonne |
Red | 5,000 Kgs | 5 tonne | 4.0 tonne | 5 tonne | 4.2 tonne |
Brown | 6,000 Kgs | 6 tonne | 4.8 tonne | 6 tonne | 5.6 tonne |
Blue | 8,000 Kgs | 8 tonne | 6.4 tonne | 8 tonne | 7.0 tonne |
Orange | 10,000 Kgs | 10 tonne | 8.0 tonne | 10 tonne | 8.4 tonne |
Orange | 12,000 Kgs | 12 tonne | 9.6 tonne | 12 tonne | 11.2 tonne |
Round Slings supplied by Ultimate Lifting Solutions are manufactured by a British manufacturer Miller Weblift - The advantages buying from ULS and in turn the manufacturer Miller Weblift means you are buying a quality product made from hard wearing 100% polyester fibres (PES) giving you the customer a high quality sling manufactured to the correct internationally standards (EN1492-2:2000) and supplied with manufacturers EC Declaration of Conformity. They have their own weaving facility on site in the UK meaning traceability and quality control is very high and it also gives them the ability to manufacture both standard round slings from 1 tonne up to 10 tonne and then specialist and bespoke round slings up to 120 tonnes Polyester Round slings are the all-purpose, multi-application use lifting aid, compact thickness, great for sliding under low height objects.
10,000Kgs (10 tonne) quality manufactured round slings, available off the shelf from 0.5m EWL (long) up to 6m EWL .
Other sizes are available on request.
Manufactured to EN1492-2:2000
Model | WLL | Sleeve Width | Sling Dia under loading | Sling Colour code | Sling Stripes | Weight For 0.5m Slings | Weight extra per 0.5m |
RS10T | 10,000Kgs | 91mm | 35mm | Orange | 10 | 0.84gs | 0.81Kgs |
LIFTING SLING SAFETY
ALWAYS
Store and handle slings / lashings correctly.
Inspect slings / lashings and accessories before use and before placing into storage.
Position the flat sling so that the load is uniformly spread over its width and protects the sling from sharp edges.
Use protection and fittings on a round sling (to avoid cutting, friction etc....
Apply the correct mode factor for slinging arrangement
NEVER
Attempt to shorten, knot or tie any slings / lashings.
Expose slings / lashings to direct heat or flames.
Use slings / lashings at temperatures above 100 ̊C or below -40ºC
Expose slings / lashings to chemicals without consulting the supplier
Shock load slings.
Use flat slings which are cut or have loose or damaged stitching
Use round slings with cut or damaged outer covers.
In the UK, the Lifting Operations & Lifting Equipment Regulations (LOLER) make it clear that all Polyester Round Slings are classed as lifting accessories.
They should therefore be subject to a thorough examination by a competent person at least every six months. Regardless of the prevailing legislation, the Lifting Equipment Engineers Association (LEEA) strongly recommends that this policy is adopted by all those with responsibility for ensuring the safe condition of lifting equipment.
If you are in any double please contact Ultimate Lifting Solutions to discuss your LOLER / Thorough Examination requirements, we have trained engineers that can carry out all your inspection / services either on-site or in-house.
