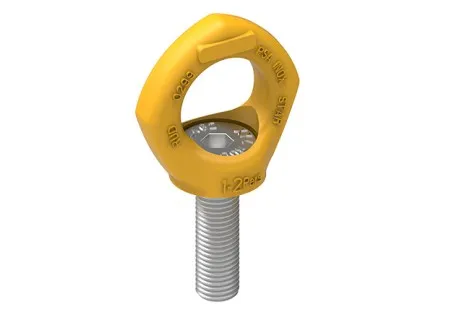

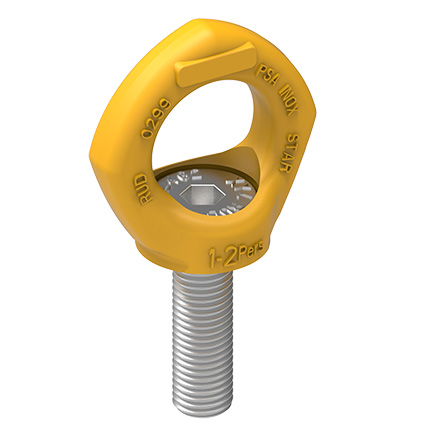

RUD PSA INOX Star, Eyebolt Metric long thread
Brand:
Capacity
M12 = One Person
M16 / M20 = Two Person
Description
RUD PSA INOX Star Swivel Stainless Steel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Manufactured in Stainless Steel for protection against the elements
Add to cart
Add to quoteRelated products
RUD PSA Starpoint, Metric thread
PSA VRS Starpoint
RUD PSA VRS Starpoint Swivel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in.
£47.51 ex VAT
£57.01 inc VAT
RUD PSA INOX Star, Eyebolt Metric thread
PSA INOX Star
RUD PSA INOX Star Swivel Stainless Steel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in. Manufactured in Stainless Steel for protection against the elements
£80.81 ex VAT
£96.97 inc VAT
RUD PSA VRS Starpoint Swivel Eyebolts can be used as anchor point for fall protection harnesses. Can also be attached permanently to a building, so that fall protection harnesses can be hooked in.
PSA Fall protection Anchorage points MUST only be used with fall arrest equipment. Never use these eyebolts for any lifting applications. When using for rescue from height , additional emergency descent device must be used.
The PSA VRS Starpoint is suitable for One person and Two person
Lifting points pivots 360°.
Non removable special bolt (this reduces the risk of improper standard bolts).
According to EG Directive 89/686/EWG. Exceeds the requirements of DIN EN 795. Marking corresponds to DIN EN 365.
Tested and certified by faculty PSA of DGUV.
DGUV approval for attachment to steel and with blind rivet nuts.
Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions. Component is allowed to be used in outdoor applications.
Quick and easy installation with just one bolt connection.
Hand tightening with appropriate wrench is sufficient for a singular lift.
PSA - INOX Star Fall protection Anchorage Point
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Eye Dia | Thread Length |
| PSA - INOX Star M12 | ONE Person | M12 | 7997097 | 0.19 Kgs | 30mm | 18mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909459 | 0.31 Kgs | 35mm | 24mm |
| PSA - INOX Star M20 | TWO Person | M20 | 7900921 | 0.56 Kgs | 40mm | 30mm |
PSA - INOX Star Fall protection Anchorage Point with Longer Eyebolt
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Eye Dia | Thread Length |
| PSA - INOX Star M12 | ONE Person | M12 | 7997820 | 0.22Kgs | 30mm | 50mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909982 | 0.40Kgs | 35mm | 50mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909983 | 0.40Kgs | 35mm | 120mm |
| PSA - INOX Star M20 | TWO Person | M20 | 7901252 | 0.60Kgs | 40mm | 60mm |
The Lift Saver
The PSA INOX Star Eyebolt is suitable for One person and Two person
Body and bolt made out of Duplex Steel 1.4462 (high resistance in sea water and in environment with a high concentration of chlorine ions. Component is allowed to be used in outdoor applications.
Quick and easy installation with just one bolt connection.
Hand tightening with appropriate wrench is sufficient for a singular lift.
PSA - INOX Star Fall protection Anchorage Point
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Eye Dia | Thread Length |
| PSA - INOX Star M12 | ONE Person | M12 | 7997097 | 0.19 Kgs | 30mm | 18mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909459 | 0.31 Kgs | 35mm | 24mm |
| PSA - INOX Star M20 | TWO Person | M20 | 7900921 | 0.56 Kgs | 40mm | 30mm |
PSA - INOX Star Fall protection Anchorage Point with Longer Eyebolt
| Model | Capacity | Thread | RUD Order Ref No. | Weight | Eye Dia | Thread Length |
| PSA - INOX Star M12 | ONE Person | M12 | 7997820 | 0.22Kgs | 30mm | 50mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909982 | 0.40Kgs | 35mm | 50mm |
| PSA - INOX Star M16 | TWO Person | M16 | 7909983 | 0.40Kgs | 35mm | 120mm |
| PSA - INOX Star M20 | TWO Person | M20 | 7901252 | 0.60Kgs | 40mm | 60mm |
In-service Inspection and Maintenance
Inspect PSA-Fall protection anchorage point regularly before each usage in regard of tightening,
corrosion, wear, deformation etc
If a safe usage is doubtable or if the lifting mean has been stressed by a dropped load, for safety reasons the usage must be withdraw.
A competent person must decide whether the lifting mean can be used further on.
The PSA-Fall protection anchorage point has to be adjustable through 360° when fitted and completely installed.
Helpful advice for the regular inspection
In time periods complying to the need or usage a technical expert should control at least once a year the appropriateness of the anchor point. This inspection must also be done after each event of damage or special incident.
Helpful advice for upkeep
For cleaning of PSA fall arrest anchor devices use only solvent- and acid-free cleaning supplies.
