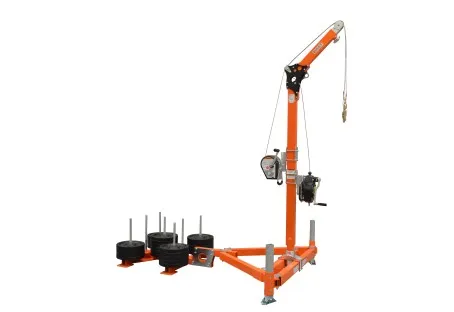

30073KIT Abtech Davit System c/w Counterweight Base

This Abtech Safety 30073KIT Davit System with Counterweight Davit Base Kit is a high-quality manufactured system designed as a portable anchor point for raising and lowering personnel in confined space situations. It is certified to EN795 Class B, EN360, and EN1496.

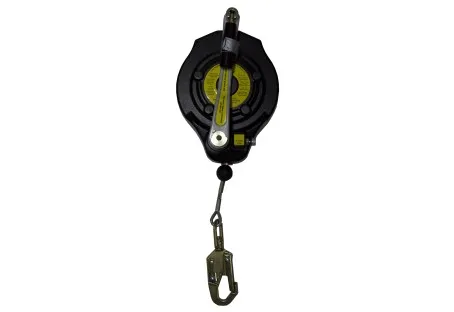

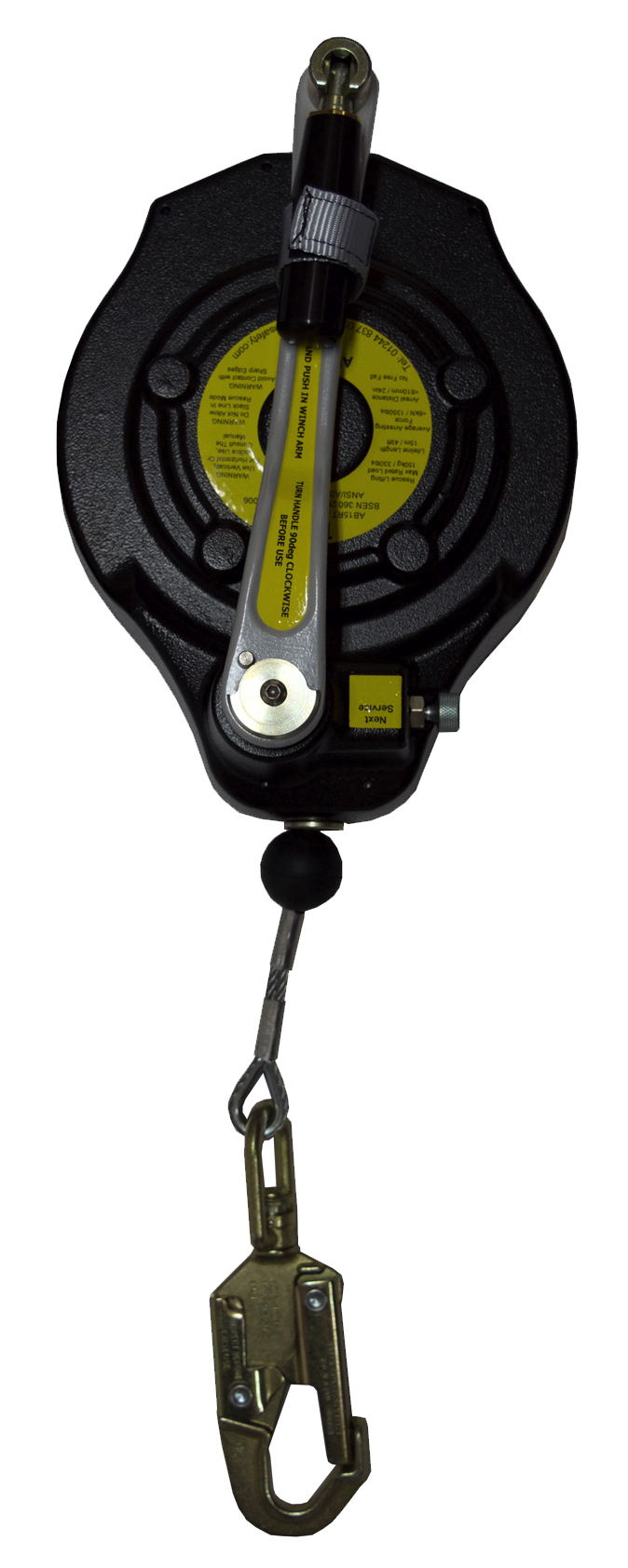

The system is supplied as a complete Davit kit, including a 30m Man Riding Winch, a 15m Fall Arrest Winch, and a counterweight base with all the necessary mounting brackets. The counterweight base features adjustable legs that can be individually tailored to ensure the entire system remains stable. It is ideal for both even and uneven ground, and its portability is enhanced by the weights being carried separately from the base and davit arms. This makes it perfect for man-riding applications on construction sites, in utility companies, and for water treatment applications.

The Kit Comprising Of:

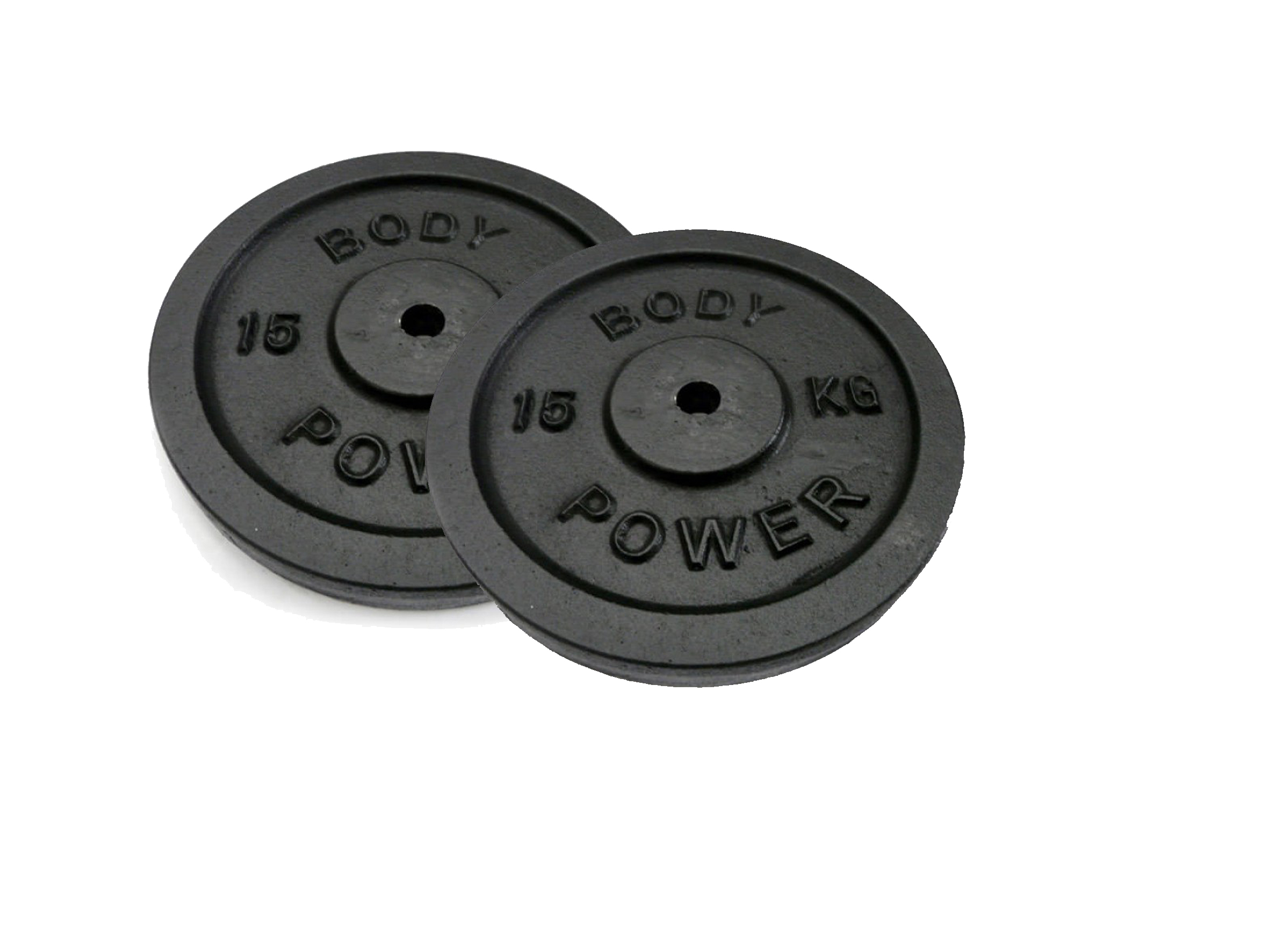

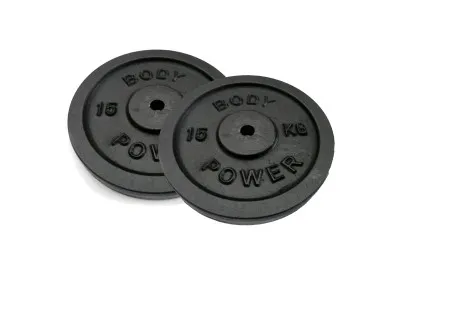

Included in this kit are 24 x 15kgs Round Style Dumb Bells Weights, giving a total of 360Kgs.

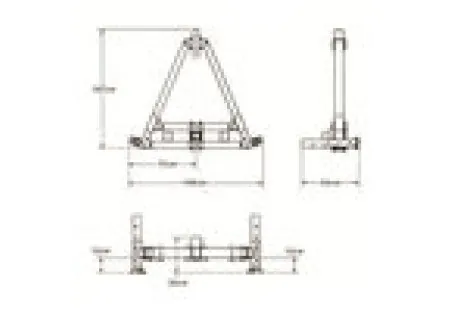

Dimensions And Weights:

Break down of Abtech 30073kit with individual part numbers:

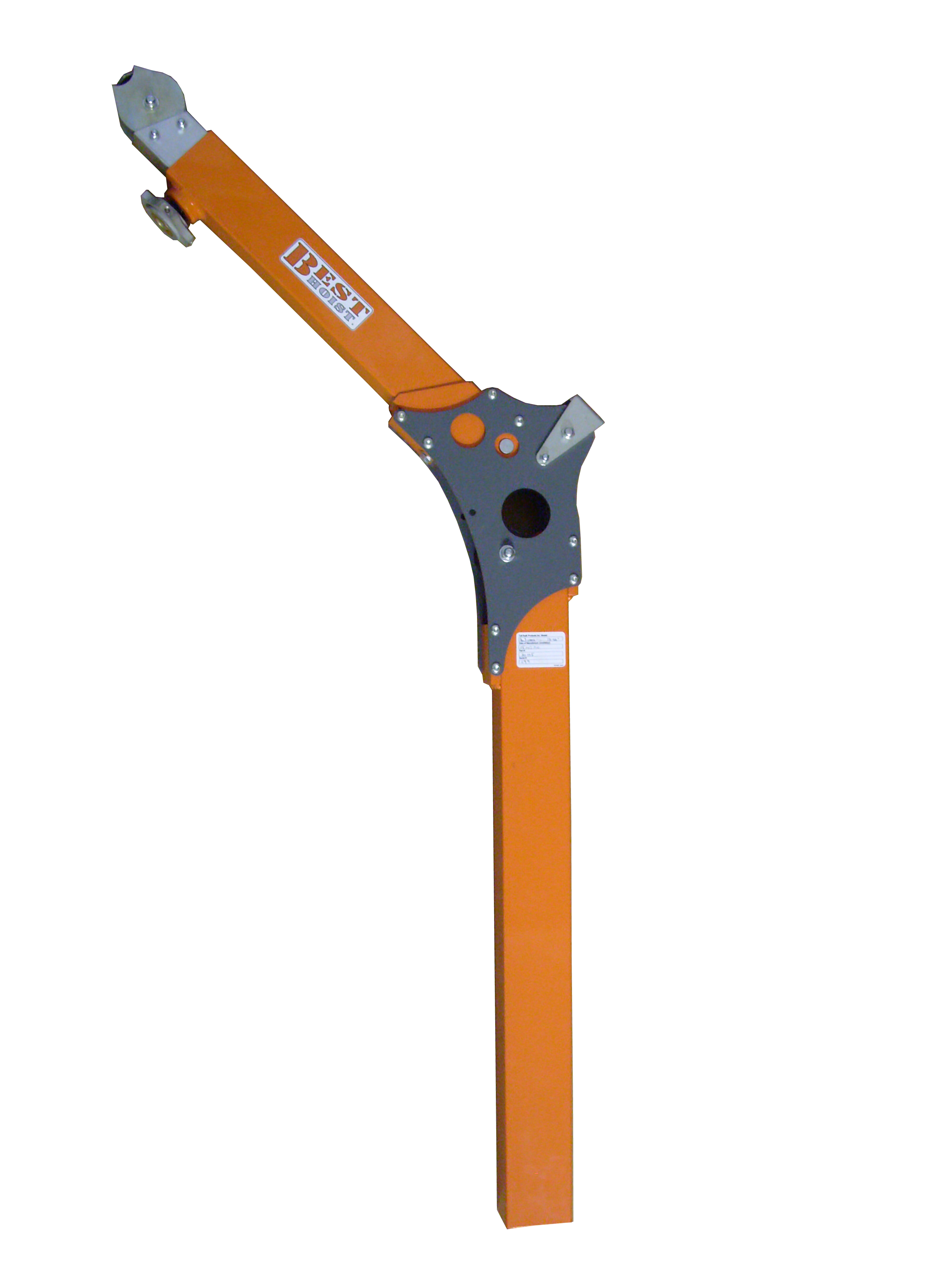

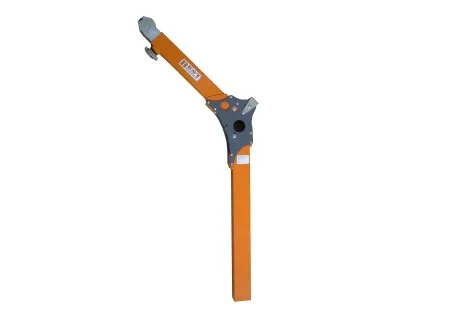

• Abtech Upper Davit (30105)

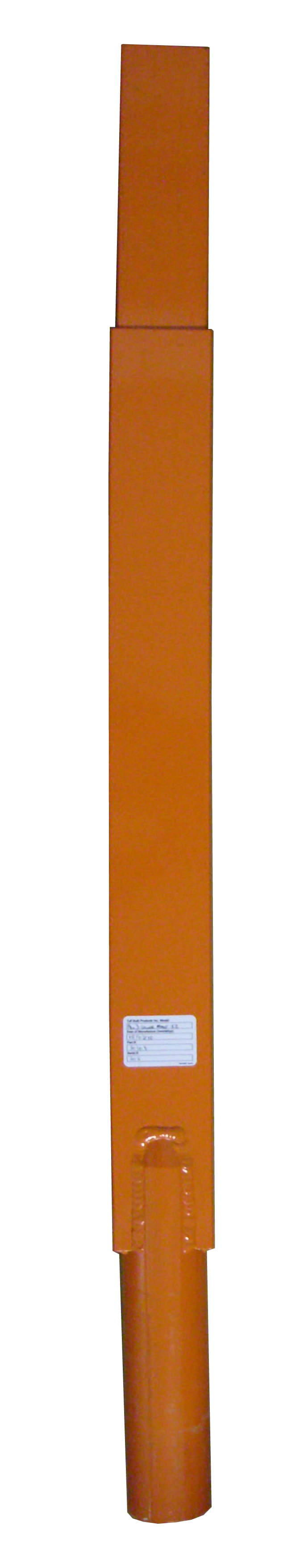

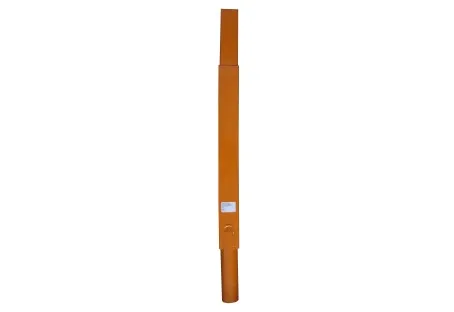

• Abtech Lower Davit (30109)

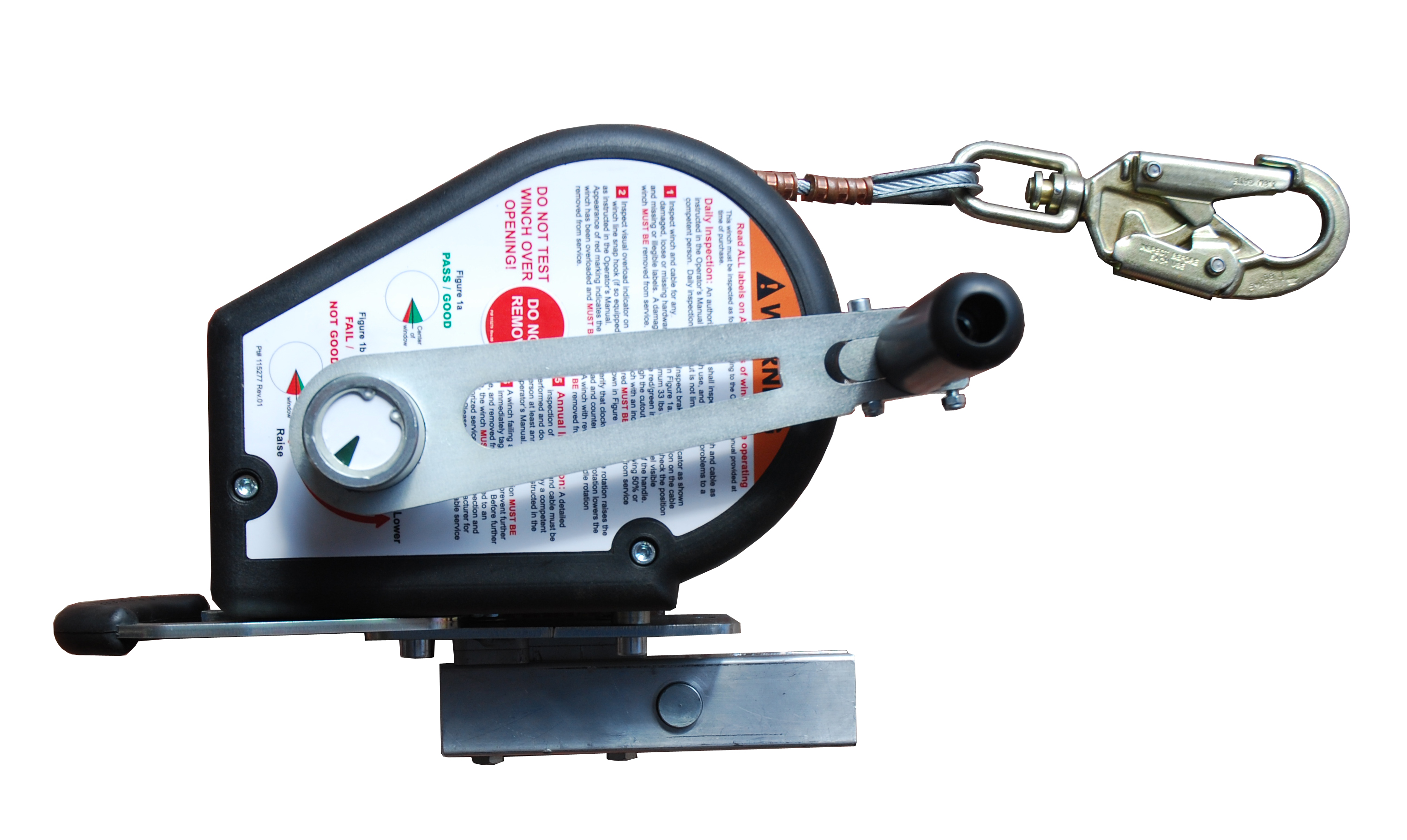

• Abtech 30m Man Riding Winch (60005)

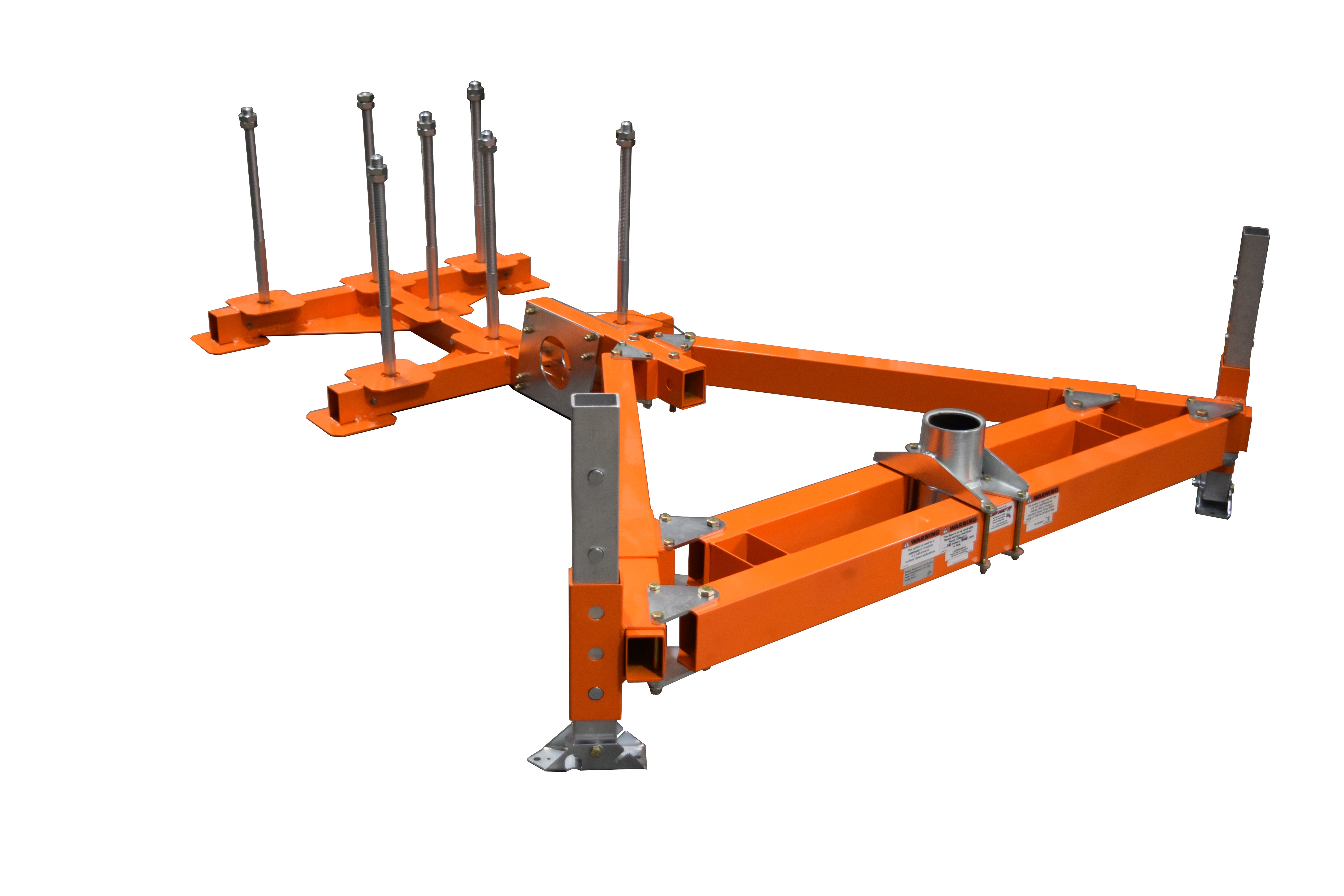

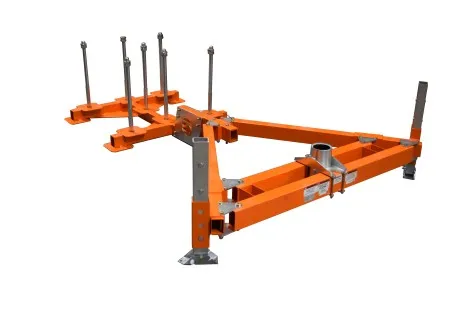

• Abtech Counterweight Base (30073)
• Included 360kg of Weights (standard barbell-type weight plates)
• Using Offset Mast 30105 for a 4:1 Safety Factor

360kg of weight required per user

Specifications

• Base weight: 60kg

• Total davit weight: 118kg
• Overall length: 2.08mtr

• Overall width: 1.5mtr

Certified to EN795 CLASS B, EN360, EN1496.
