Enerpac WR5 Hydraulic Wedge Spreader

Key notes for ordering:

In Stock - Delivery is 1 to 2 days Max

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

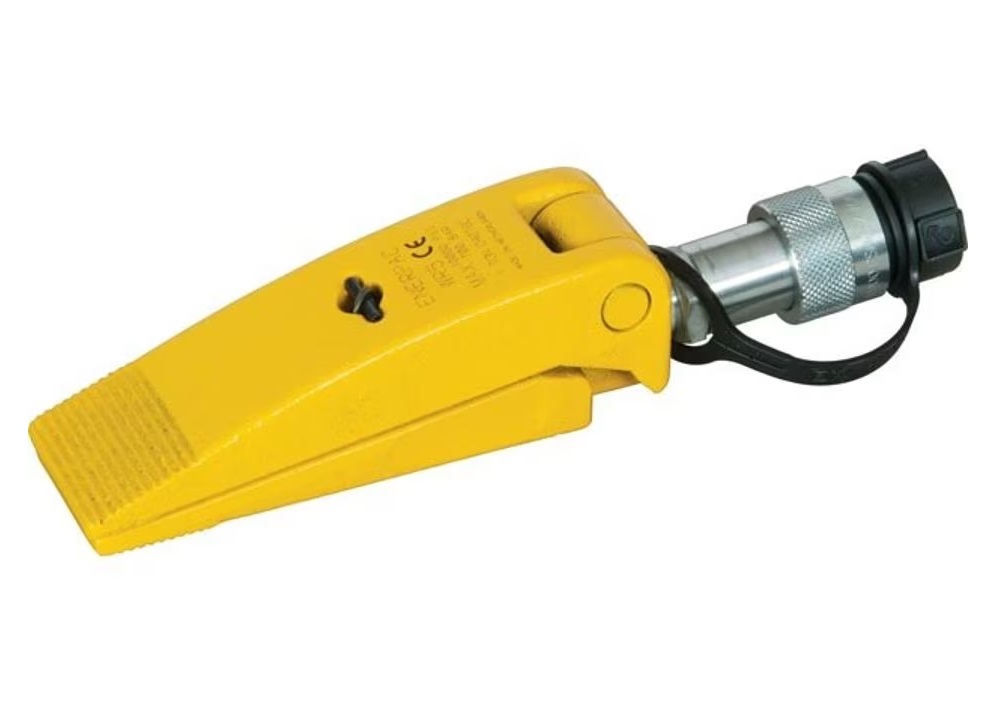

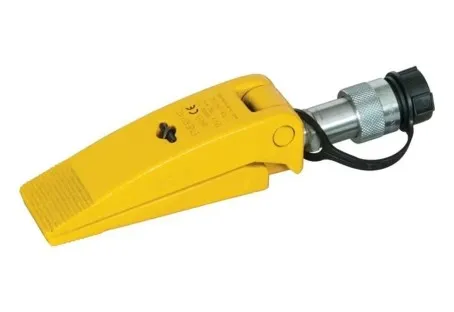

Enerpac WR5 Hydraulic Wedge Spreader

Brand:

Description

Enerpac WR5 Hydraulic Wedge Spreader and perfect when you need a compact hydraulic wedge spreader for tight spaces. This single-acting tool uses powerful hydraulic force to expand up to 94mm and retracts with a spring return system

£329.99 ex VAT

£395.99 inc VAT

Related products

Enerpac WR15 Hydraulic Wedgie and Spread Cylinder

WR15

Enerpac WR15 Hydraulic Wedgie and Spread Cylinder is perfect when you need a hydraulic wedge spreader with a long stroke and for tight spaces. The WR15 can apply a force of 0.75 ton and uses powerful hydraulic force to separate the jaws up to 292 mm

£969.99 ex VAT

£1,163.99 inc VAT

Enerpac SWR5PGH Hydraulic Wedge Spreader and Hand Pump Set

SWR5PGH

Enerpac SWR5PGH Hydraulic Wedge Spreader and Hand Pump Set comes complete with all components required and ready to use as a wedge spreader for tight spaces. Supplied in an easy-to-carry sturdy toolbox. Complete and ready-to-use hydraulic set

£1,299.99 ex VAT

£1,559.99 inc VAT

Enerpac WR5 Hydraulic Wedge Spreader commonly known as a Wedgie Cylinder is perfect when you need a compact hydraulic wedge spreader for tight spaces. This single-acting tool uses powerful hydraulic force to expand up to 94mm and retracts with a spring return system. Please note that the maximum load capacity is 1 ton (8.9kN), and the maximum system pressure must be limited to half the rated pressure (5000 psi 350 bar).

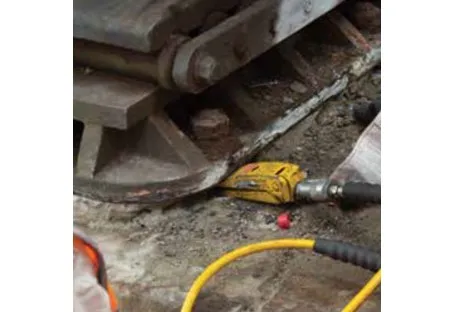

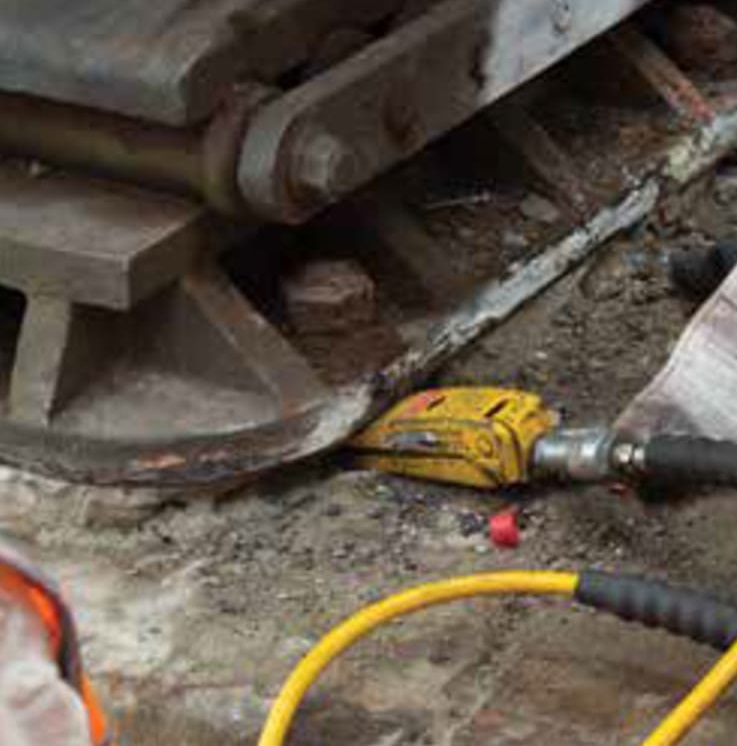

The WR5 Hydraulic Wedgie is suited to confined work areas with minimum clearance gaps of 12.8mm (0.5").

ModelMax Operating PressureMax SpreadPower SourceMax Spread ForceMax Spread Force Tip ClearanceCylinder Effective AreaWeight
WR5700 bar94 mmHydraulic8.9 kN1 Ton12.8 mm6.5 cm32.3 Kgs
WR15700 bar
292 mm
Hydraulic
6 kN
0.75 Ton32.0 mm14.5 cm311.3 Kgs

What is frequently bought with the 15-tonne, 25mm stroke Enerpac RC151 General Purpose Hydraulic Cylinder?

GA45GC 45° Angled Gauge Adaptor Assembly

P392 Two-Speed Steel Hydraulic Hand Pump or P142 Lightweight Hydraulic Hand Pump




Enerpac WR5 Hydraulic Wedge Spreader WR5 Wedgie Cylinder


Model: WR5

ECCN: EAR99

Harmonization: 8479899599

Series: WR

Product Line: Industrial Tools, Bolting Tools

ModelMax Operating PressureMax SpreadPower SourceMax Spread ForceMax Spread Force Tip ClearanceCylinder Effective AreaWeight
WR5700 bar94 mmHydraulic8.9 kN1 Ton12.8 mm6.5 cm32.3 Kgs
WR15700 bar
292 mm
Hydraulic
6 kN
0.75 Ton32.0 mm14.5 cm311.3 Kgs
