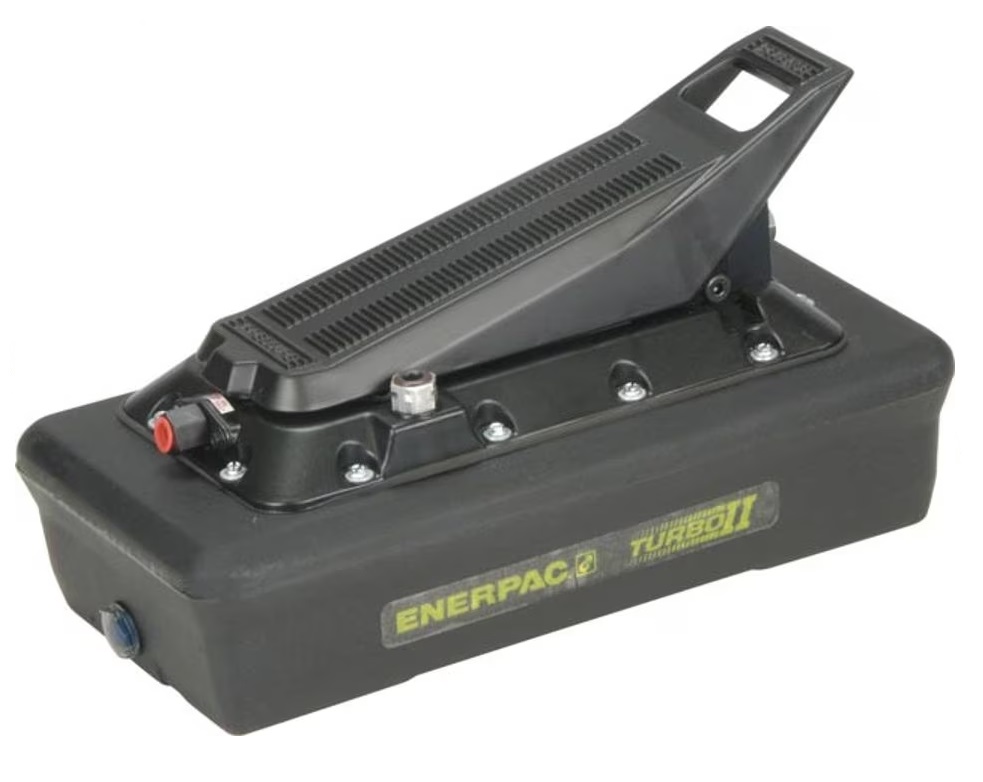

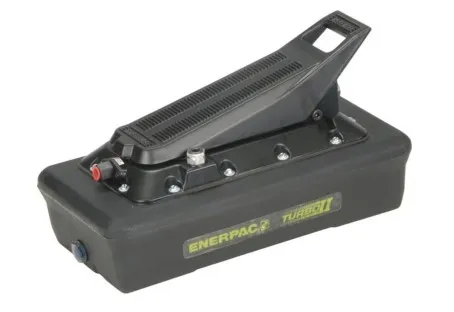

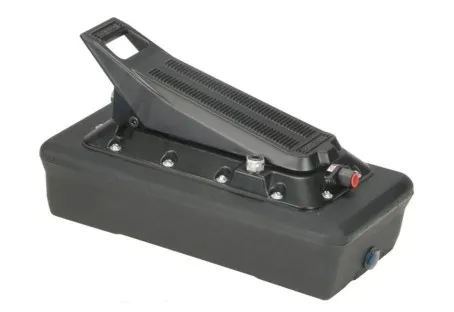

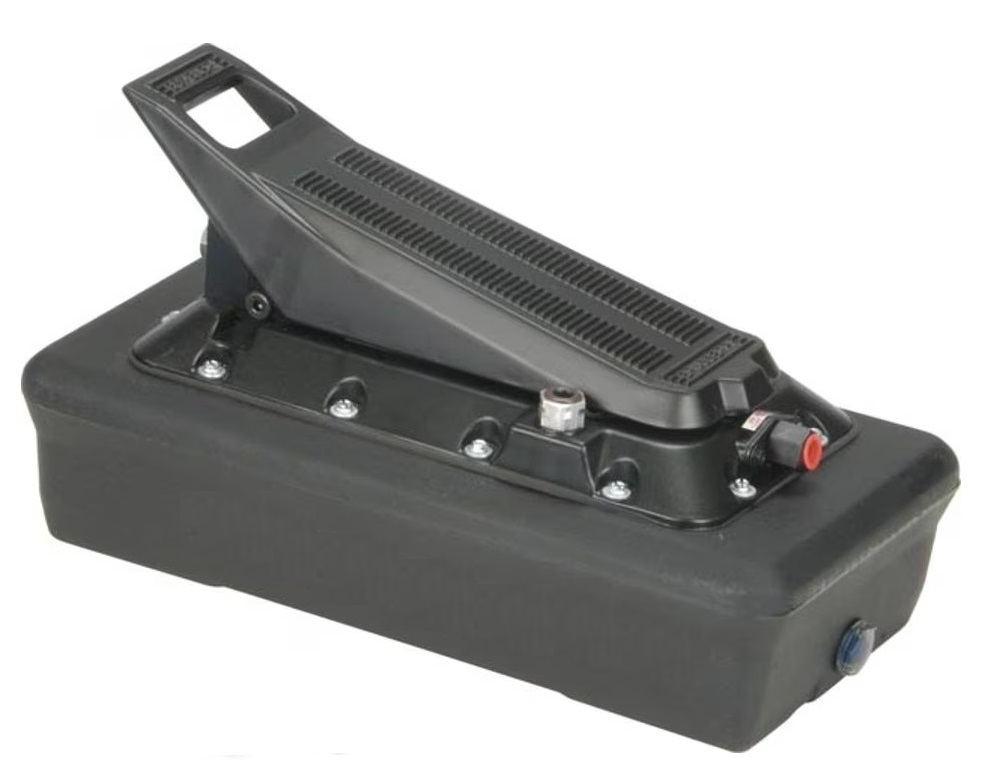

Enerpac PATG1105N Turbo II Air Hydraulic Pump, Hand/Foot Operated

Enerpac PATG1105N Turbo II Air Hydraulic Pump, Hand/Foot Operated. Ideal for use with all Enerpac Single Acting Cylinders, it will generate the hydraulic pressure you need using the air pressure you have available and includes a 3-way, 3-position valve for Advance / Hold / Retract functions. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi. The PATG1105N is fitted with the larger 3770cm3 reservoir.

Enerpac PATG1105N Turbo II Air-Hydraulic Pump suits medium or lower cycle applications. They provide all the power and speed needed for simple clamping circuits and single-acting tools. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum.

Two models are available

PATG1102N with a Reservoir Capacity / Useable Capacity of 2081 cm3

PATG1105N with a Reservoir Capacity / Useable Capacity of 3770 cm3

The Enerpac PATG1105N is part of the Turbo II Air Over Hydraulic Pump Series:

PATG - Treadle for foot or hand operation

PARG - Pendant Operation

PAMG - Manual lever operated. For double-acting applications

PACG - For remote valve mount. For work holding, 5000 psi (350 bar).

PASG - Includes mount for a single DO3 Valve.

High-efficiency cast aluminum air motor for increased life and reduced air consumption

Reinforced heavy-duty reservoir for applications in tough environments

High-efficiency cast aluminium air motor

New generation air saver piston with rugged one-piece design reduces air consumption and operating costs

Return-to-tank port for use in remote valve applications

Quieter operation - reduced noise level to 76 dBA

Operating air pressure: 2,8 - 8,8 bar, enables the pump to start at extremely low pressure

External adjustable pressure relief valve (behind sight glass)

Internal pressure relief valve provides overload protection
