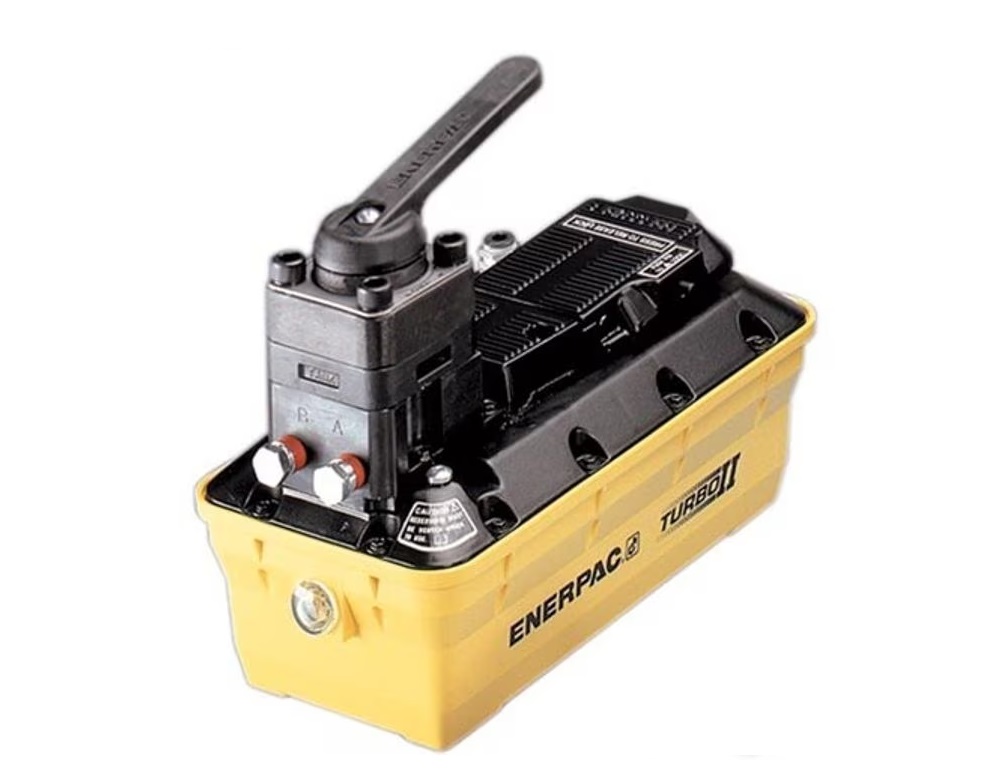

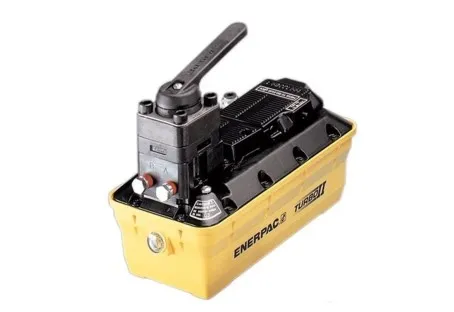

Enerpac PAMG1402N Turbo II Air Hydraulic Pump, Manual Valve

Enerpac PAMG1402N Turbo II Air Hydraulic Pump, fitted with Manual Valve and compatible with double acting tools, and provides Advance / Hold / Retract functions. They generate the hydraulic pressure you need using the air pressure you have available. PAMG Series air over hydraulic pumps include a manual lever-operated 3-way valve and they provide the power and speed needed for simple clamping circuits. Fitted with a 2081cm3 reservoir. The Air Saver Piston reduces air consumption, and the pump can start at low pressures from 50-125 psi.

Enerpac PAMG1402N Turbo II Air-Hydraulic Pumps are best suited to medium or lower-cycle applications. At only 75 dBA, the Turbo II Series helps to keep the noise level to a minimum

Two models are available - The PAMG1402N with a Reservoir Capacity / Useable Capacity of 2081 cm3 or the PAMG1405N with a Reservoir Capacity / Useable Capacity of 3770 cm3

The Enerpac PAMG1402N is part of the Turbo II Air Over Hydraulic Pump Series:

PATG - Treadle for foot or hand operation

PARG - Pendant Operation

PAMG - Manual lever operated. For double-acting applications

PACG - For remote valve mount. For work holding, 5000 psi (350 bar).

PASG - Includes mount for a single DO3 Valve.

High-efficiency cast aluminum air motor for increased life and reduced air consumption

Reinforced heavy-duty reservoir for applications in tough environments

High-efficiency cast aluminium air motor

New generation air saver piston with rugged one-piece design reduces air consumption and operating costs

Return-to-tank port for use in remote valve applications

Quieter operation - reduced noise level to 76 dBA

Operating air pressure: 2,8 - 8,8 bar, enables the pump to start at extremely low pressure

External adjustable pressure relief valve (behind sight glass)

Internal pressure relief valve provides overload protection
