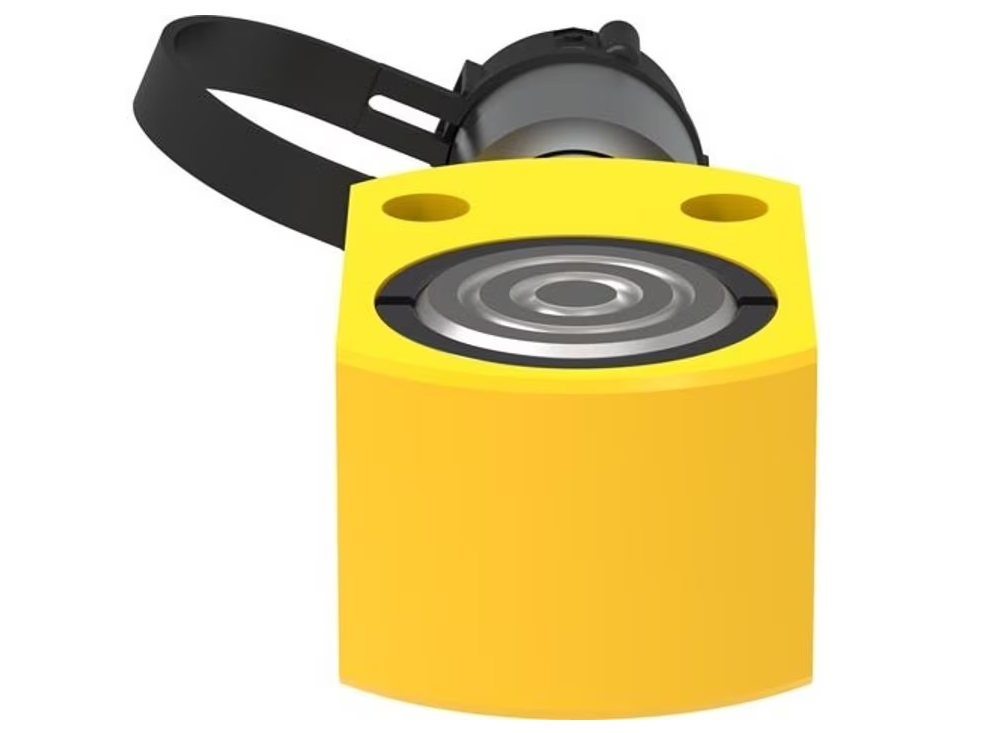

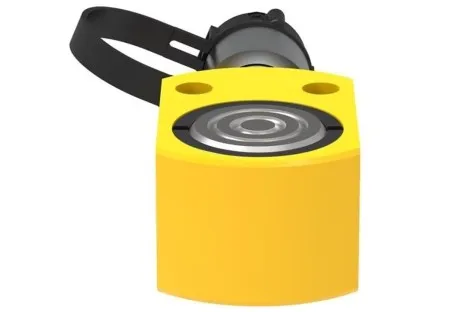

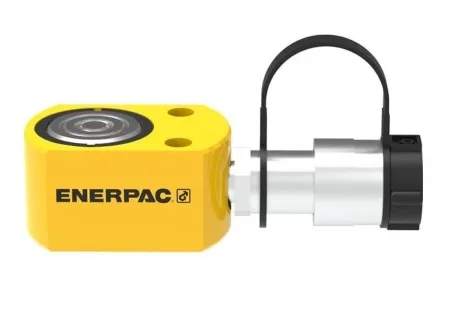

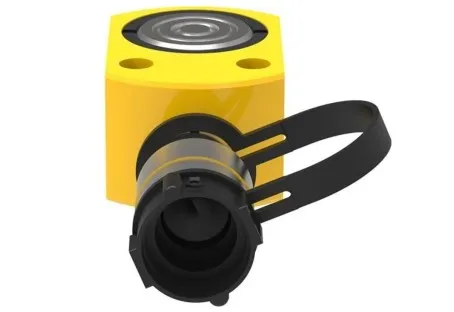

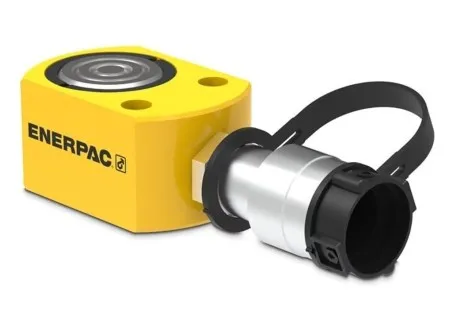

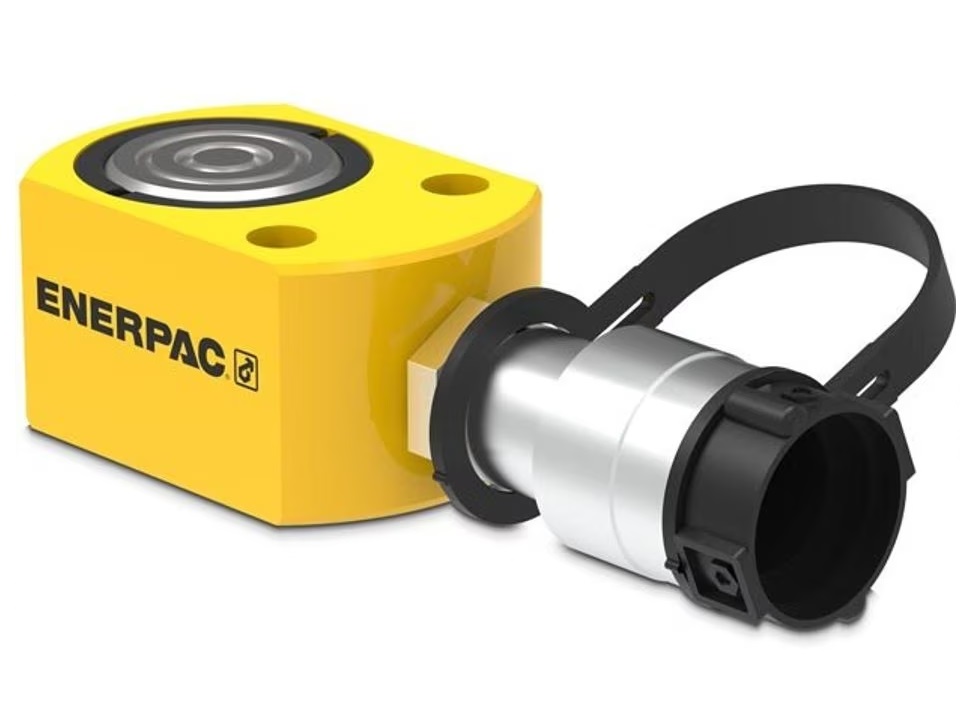

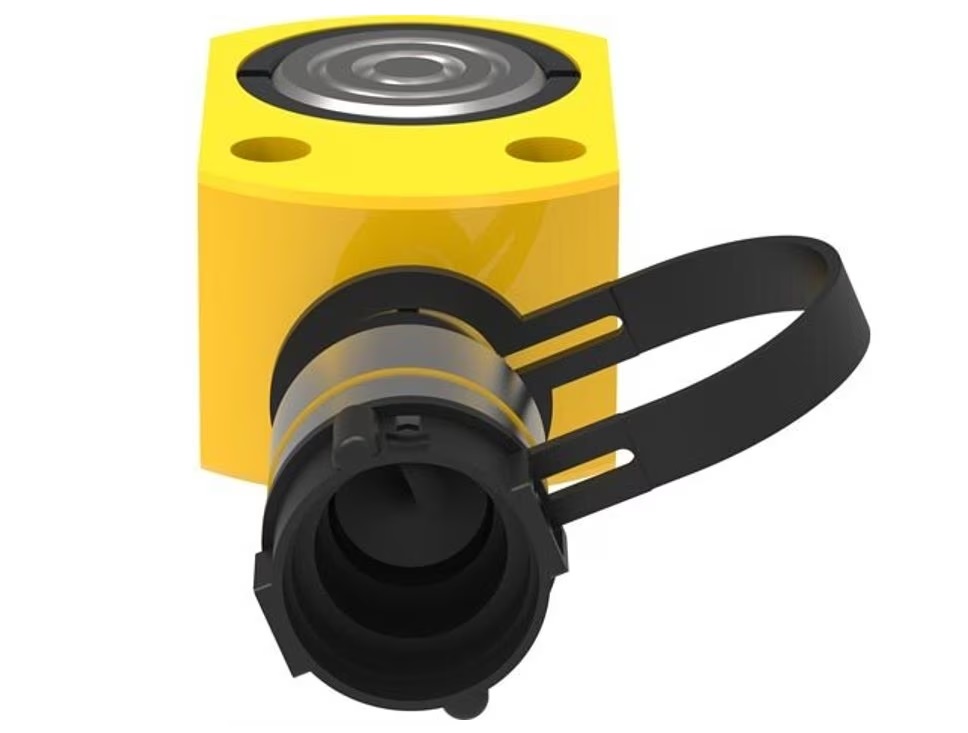

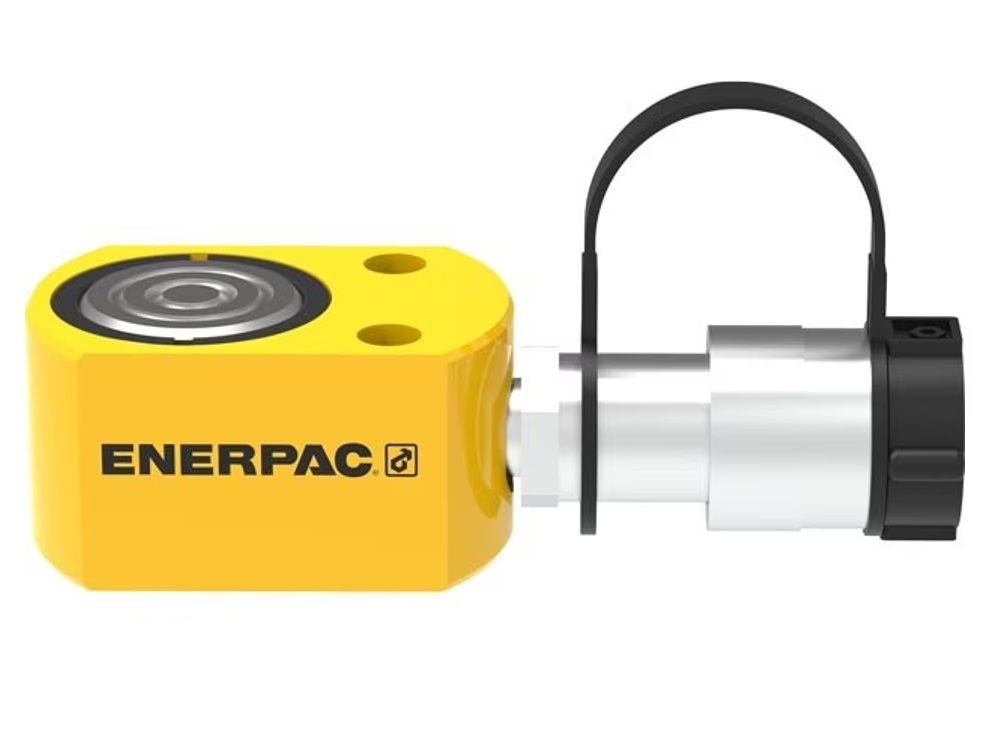

Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke
Estimated lead time:1 to 2 days delivery
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke
Description
Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited.
£384.99 ex VAT
£461.99 inc VAT
Related products
RC50
Enerpac RC50 General Purpose Hydraulic Cylinder 5 Ton, 16 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£314.99 ex VAT
£377.99 inc VAT
RC51
Enerpac RC51 General Purpose Hydraulic Cylinder 5 Ton, 25 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£349.99 ex VAT
£419.99 inc VAT
HC7206
The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.
£123.99 ex VAT
£148.79 inc VAT
P39
The Enerpac P39 Single Speed Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. Each model in the series features an all-steel construction ideal long-lasting performance.
£399.99 ex VAT
£479.99 inc VAT
HC7206C
The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.
£154.99 ex VAT
£185.99 inc VAT
RCS101
Enerpac RCS101 Low Height Hydraulic Cylinder 10 Ton, 38 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice where space is limited or constrained.
£394.99 ex VAT
£473.99 inc VAT
RCS201
Enerpac RCS201 Low Height Hydraulic Cylinder 20 Ton, 45 mm Stroke provides superior durability, performance longevity, safety, and quality in a compact and convenient footprint giving a perfect choice where space is limited or constrained.
£509.99 ex VAT
£611.99 inc VAT
Enerpac RSM100 Low Height Hydraulic Cylinder 10 Ton, 11 mm Stroke provides superior durability, safety, and quality in a compact and convenient format. The RSM-Series Low Profile Hydraulic Cylinders are the perfect choice for general lifting and production applications where space is limited. A low collapsed height, short stroke, and flat sides enable safety and stability in both vertical and horizontal orientations.
Why use the Enerpac RSM-Series Low Profile Hydraulic Cylinders? - Many low-profile hydraulic cylinders rely on the weight of the load to retract the plunger. The Enerpac RSM cylinders are different and include a powerful return spring, which is faster, more convenient, and more productive.
RSM-Series Cylinders are a popular choice. Not only for general lifting but also for production applications. Two through mounting holes in each cylinder make it easy to clamp onto machinery and other fixtures.
10-tonne, 11mm stroke Enerpac RSM100 Low Height Hydraulic Cylinder
Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return type | Oil Capacity Advance | Coupler | Weight |
RSM100 | 10 Tonne | 11 mm | 43 mm | 54 mm | 700 Bar | Single Acting | Spring Return | 18 cm3 | CR400 Coupler | 1.4 Kg |
The Full range of The ENERPAC RSM Low Height Hydraulic Cylinders - Available with different closed heights and different stroke lengths - Choose from below
Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return Type | Oil Capacity Advance | Coupler | Weight |
RSM50 | 5 Tonne | 6 mm | 32 mm | 38 mm | 700 Bar | Single Acting | Spring Return | 4 cm3 | AR400 Coupler | 1.0 Kg |
RSM100 | 10 Tonne | 11 mm | 43 mm | 54 mm | 700 Bar | Single Acting | Spring Return | 18 cm3 | CR400 Coupler | 1.4 Kg |
RSM200 | 20 Tonne | 11 mm | 51 mm | 62 mm | 700 Bar | Single Acting | Spring Return | 32 cm3 | CR400 Coupler | 3.1 Kg |
RSM300 | 30 Tonne | 13 mm | 58 mm | 71 mm | 700 Bar | Single Acting | Spring Return | 55 cm3 | CR400 Coupler | 4.5 Kg |
RSM500 | 50 Tonne | 16 mm | 66 mm | 82 mm | 700 Bar | Single Acting | Spring Return | 99 cm3 | CR400 Coupler | 6.8Kg |
RSM750 | 75 Tonne | 16 mm | 79 mm | 95 mm | 700 Bar | Single Acting | Spring Return | 164 cm3 | CR400 Coupler | 11.3 Kg |
RSM1000 | 100 Tonne | 16 mm | 85 mm | 101 mm | 700 Bar | Single Acting | Spring Return | 203 cm3 | CR400 Coupler | 14.5 Kg |
RSM1500 | 150 Tonne | 16 mm | 100 mm | 116 mm | 700 Bar | Single Acting | Spring Return | 317 cm3 | CR400 Coupler | 26.3 Kg |
What is frequently bought with the 10-tonne, 11mm stroke Enerpac RSM100 Low Height Hydraulic Cylinder
HC7206 High-Pressure Hydraulic Hose x 1.8m Long.
GA45GC 45° Angled Gauge Adaptor Assembly.
P39 Single Speed Steel Hydraulic Hand Pump.
Alternative pumps available
XC1202MB Cordless Hydraulic Pump.
XA12 Air-Driven Hydraulic Foot Pump.
PATG1102N Turbo II air Hydraulic Pump.
PUJ1201B Two-Speed Economy Electric Hydraulic Pump.
Key Features on the RSM Low Profile Hydraulic Cylinders
Compact, flat design for use where other cylinders will not fit.
Mounting holes permit easy fixturing.
Baked enamel finish for increased corrosion resistance.
AR400 coupler and dust cap included.
Hard chrome plated high-quality steel plungers.
Grooved plunger ends require no saddle.
Single-acting spring return.
RSM100, 101 kN Capacity, 11 mm Stroke, Low Height Hydraulic Cylinder (RSM100, 11.2 Ton Capacity, .44 in Stroke, Low Height Hydraulic Cylinder)
Model: RSM100
ECCN: EAR99
Harmonization: 8412210075
Series: RSM
Product Line: Industrial Tools
RSM-series, Low-Height Cylinders
Compact, flat design for use where most other cylinders will not fit.
Single-acting, spring return.
RSM750, 1000, and 1500 have handles for easy carrying.
Mounting holes permit easy fixturing.
Baked enamel finish for increased corrosion resistance.
CR400 coupler and dust cap included on all models).
Hard chrome plated high-quality steel plungers.
Grooved plunger ends require no saddle.
Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return type | Oil Capacity Advance | Coupler | Weight |
RSM100 | 10 Tonne | 11 mm | 43 mm | 54 mm | 700 Bar | Single Acting | Spring Return | 18 cm3 | CR400 Coupler | 1.4 Kg |
The Full range of The ENERPAC RSM Low Height Hydraulic Cylinders - Available with different closed heights and different stroke lengths - Choose from below
Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return Type | Oil Capacity Advance | Coupler | Weight |
RSM50 | 5 Tonne | 6 mm | 32 mm | 38 mm | 700 Bar | Single Acting | Spring Return | 4 cm3 | AR400 Coupler | 1.0 Kg |
RSM100 | 10 Tonne | 11 mm | 43 mm | 54 mm | 700 Bar | Single Acting | Spring Return | 18 cm3 | CR400 Coupler | 1.4 Kg |
RSM200 | 20 Tonne | 11 mm | 51 mm | 62 mm | 700 Bar | Single Acting | Spring Return | 32 cm3 | CR400 Coupler | 3.1 Kg |
RSM300 | 30 Tonne | 13 mm | 58 mm | 71 mm | 700 Bar | Single Acting | Spring Return | 55 cm3 | CR400 Coupler | 4.5 Kg |
RSM500 | 50 Tonne | 16 mm | 66 mm | 82 mm | 700 Bar | Single Acting | Spring Return | 99 cm3 | CR400 Coupler | 6.8Kg |
RSM750 | 75 Tonne | 16 mm | 79 mm | 95 mm | 700 Bar | Single Acting | Spring Return | 164 cm3 | CR400 Coupler | 11.3 Kg |
RSM1000 | 100 Tonne | 16 mm | 85 mm | 101 mm | 700 Bar | Single Acting | Spring Return | 203 cm3 | CR400 Coupler | 14.5 Kg |
RSM1500 | 150 Tonne | 16 mm | 100 mm | 116 mm | 700 Bar | Single Acting | Spring Return | 317 cm3 | CR400 Coupler | 26.3 Kg |
Why purchase equipment from Enerpac?
As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
