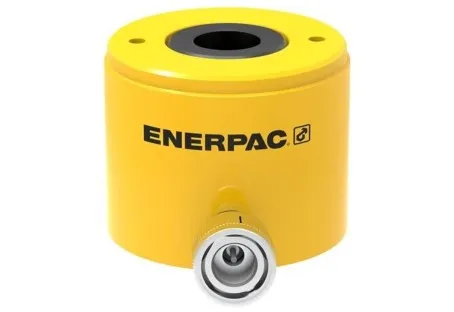

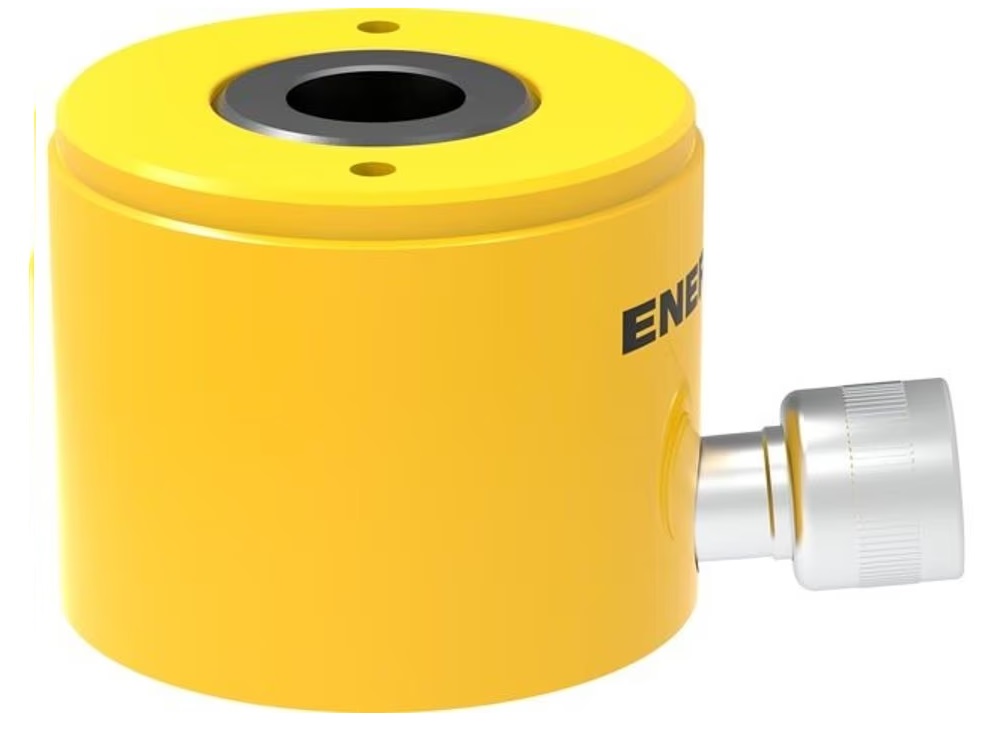

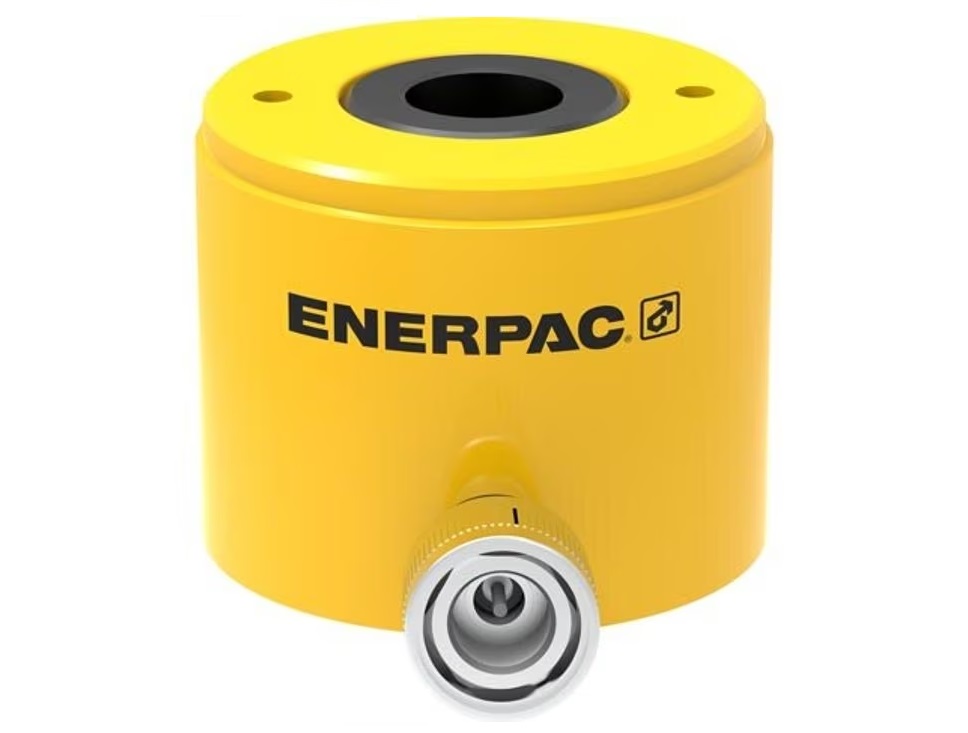

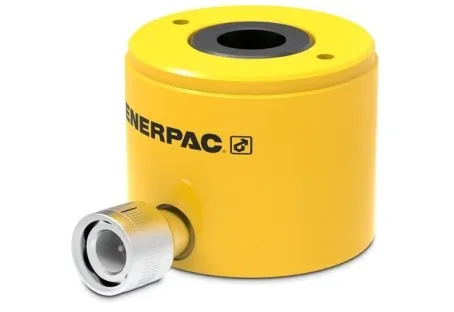

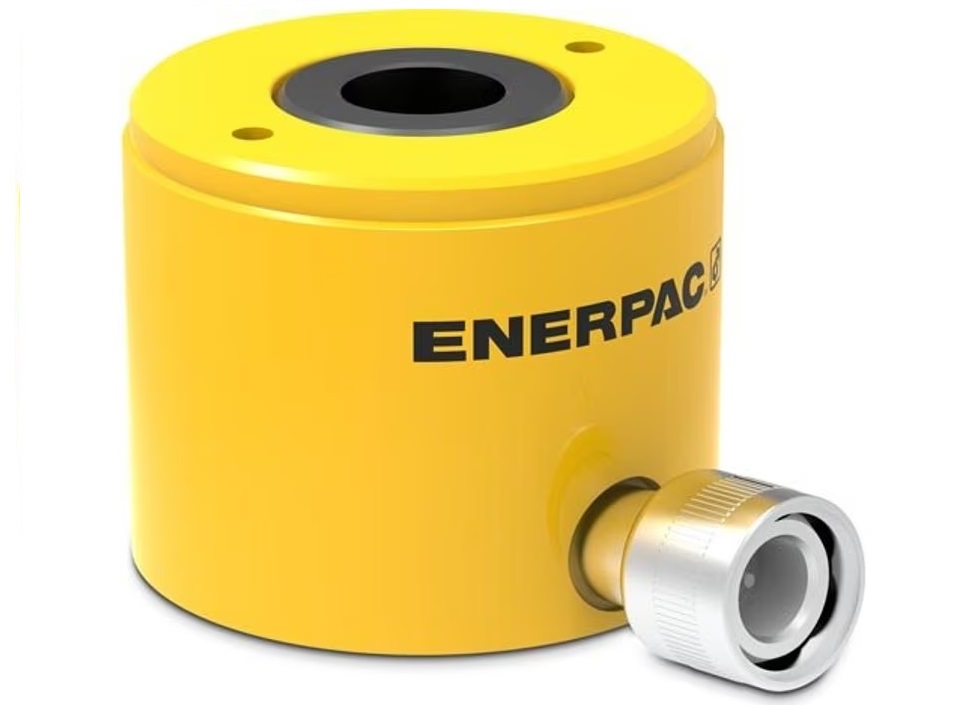

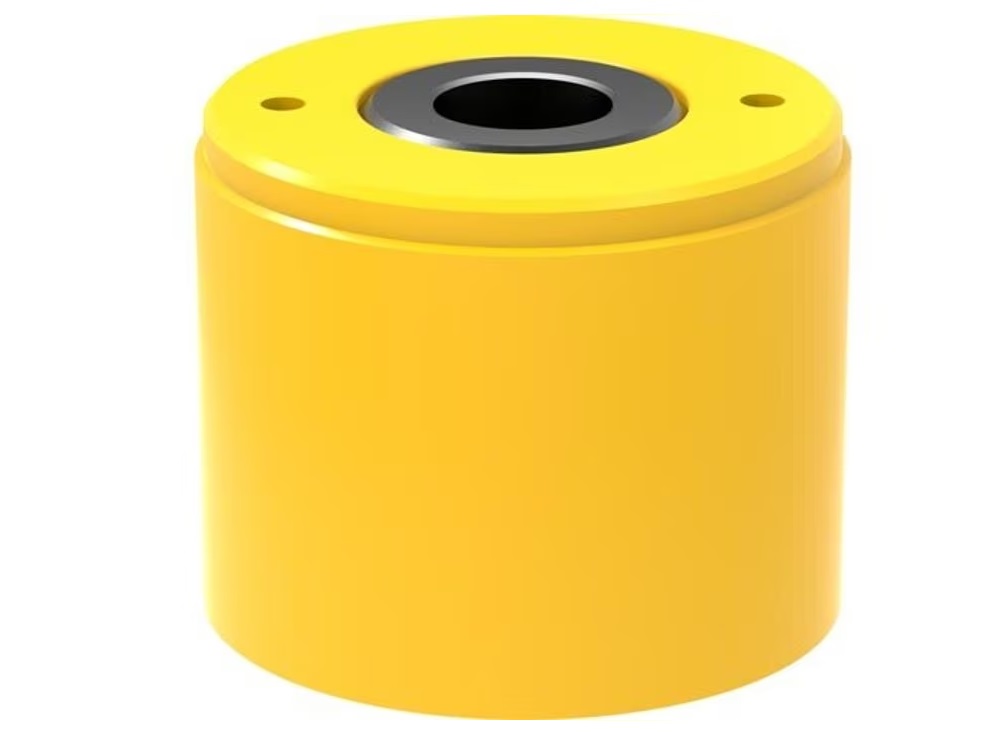

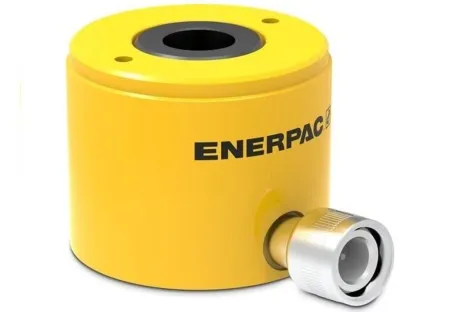

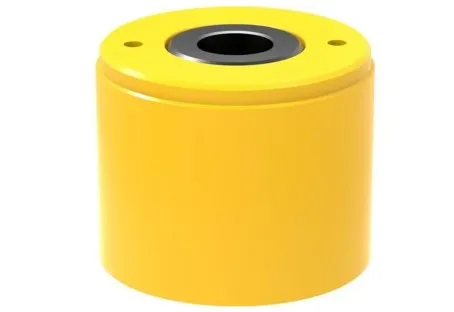

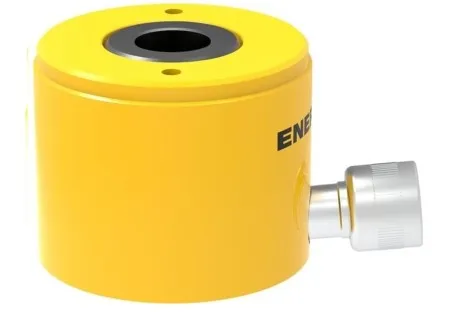

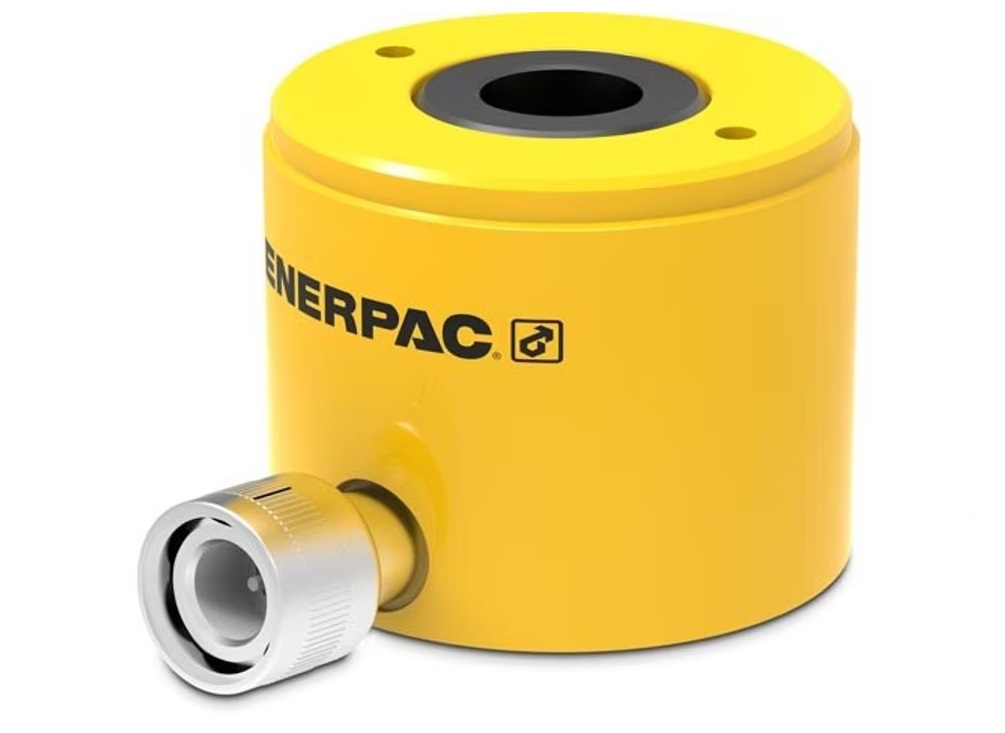

Enerpac RCH120 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne, 8 mm Stroke
Description
Enerpac RCH120 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne, 8 mm Stroke offer versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications
£599.99 ex VAT
£719.99 inc VAT
Related products
P392
The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.
£534.99 ex VAT
£641.99 inc VAT
HC7206C
The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.
£154.99 ex VAT
£185.99 inc VAT
RCH121
Enerpac RCH121 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne, 42 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications
£639.99 ex VAT
£767.99 inc VAT
RCH1211
Enerpac RCH1211 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne, 42 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications
£639.99 ex VAT
£767.99 inc VAT

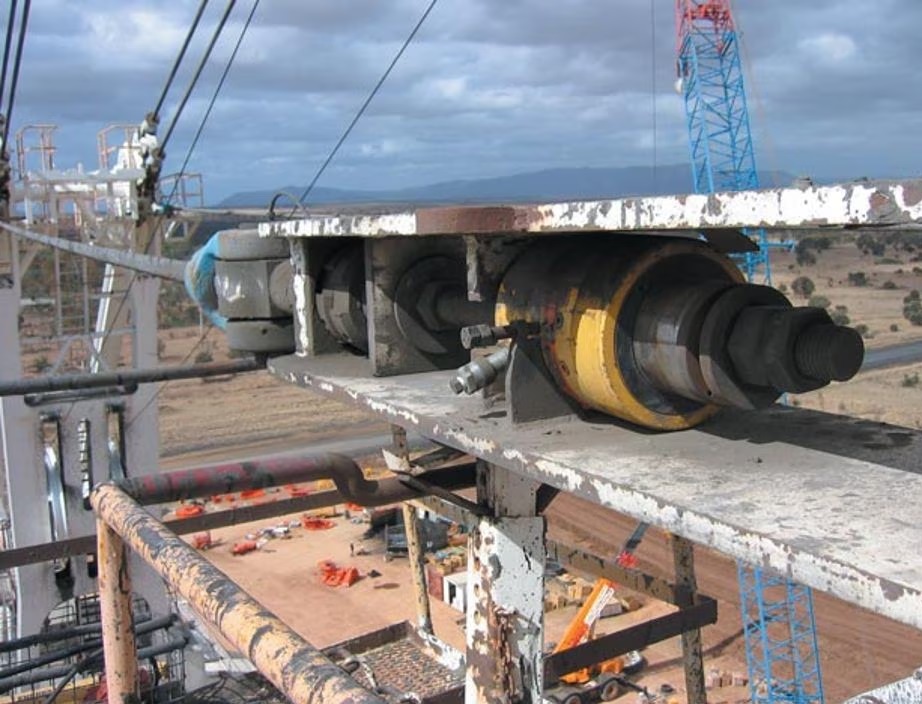

Enerpac RCH120 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne, 8 mm Stroke offers versatility in testing, maintenance, and tensioning applications. The hollow plunger design allows for push, pull, or lifting applications. The centre hole design has base holes and collar threads for easy fixturing. For models over 20 tons, the RCH series has a nickel-plated floating centre tube to reduce side load damage and increase the product life.
Please note that the RCH120 includes AR630 coupler and has 1/4" NPTF port.
Why use the Enerpac RCH-Series Single Acting Hollow Plunger Hydraulic Cylinders? - Enerpac cylinders are built to withstand tough conditions and demanding applications. These RCH cylinders have a baked enamel finish to resist corrosion. They offer versatility in testing, maintenance, and tensioning applications.
12-tonne, 8mm stroke Enerpac RCH120 Hollow Plunger Cylinder - Single Acting
Model | Capacity | Stroke | Collapsed Height | Extended Height | Centre Hole Dia | Plunger Type | Operating Pressure | Oil Capacity Advance | Coupler | Weight |
RCH120 | 12 Tonne | 8 mm | 55 mm | 63 mm | 19.5 mm | Hollow | 700 bar | 14 cm3 | AR630 Coupler | 1.5 Kg |
The Full range of The ENERPAC RCH-Series, Hollow Plunger Cylinders - Available with different closed heights and different stroke lengths - Choose from below
Model | Capacity | Stroke | Collapsed Height | Extended Height | Centre Hole Dia | Plunger Type | Operating Pressure | Oil Capacity Advance | Coupler | Weight |
RCH120 | 12 Tonne | 8 mm | 55 mm | 63 mm | 19.5 mm | Hollow | 700 bar | 14 cm3 | AR630 Coupler | 1.5 Kg |
RCH121 | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | AR630 Coupler | 2.8 Kg |
RCH1211 | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | AR630 Coupler | 2.8 Kg |
RCH121H | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | CR400 Coupler | 2.8 Kg |
RCH123 | 12 Tonne | 76 mm | 184 mm | 260 mm | 19.5 mm | Hollow | 700 bar | 136 cm3 | CR400 Coupler | 4.4 Kg |
What is frequently bought with the Enerpac RCH120 Single Acting Hollow Plunger Hydraulic Cylinder 12 Tonne 8 mm Stroke
HC7206C High-Pressure Hydraulic Hose x 1.8m Long.
GA45GC 45° Angled Gauge Adaptor Assembly.
P392 Two Speed Steel Lightweight Hydraulic Hand Pump.
Alternative pumps available
XC1202MB Cordless Hydraulic Pump.
XA12 Air-Driven Hydraulic Foot Pump.
PATG1102N Turbo II air Hydraulic Pump.
PUJ1201B Two-Speed Economy Electric Hydraulic Pump.
Key Features on the RCH Series Hollow Plunger Cylinders
Hollow plunger design allows for both pull and push forces.
Single-acting spring return.
Nickel-plated, floating centre tube on models over 218 kNs increases product life.
Baked enamel finish for increased corrosion resistance.
Collar threads for easy fixturing.
Includes AR630 coupler and has 1/4 NPTF port.
RCH120, 125 kN Capacity, 8 mm Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder (RCH120, 13.8 Ton Capacity, 0.77 in Stroke, Single-Acting, Hollow Plunger Hydraulic Cylinder)
Model: RCH120
ECCN: EAR99
Harmonization: 8412210075
Series: RCH Product Line: Industrial Tools
RCH Series Hollow Plunger Cylinders
Hollow plunger design allows for both, pull and push forces.
Single-acting, spring return.
Nickel-plated, floating centre tube on models over 20 tonnes increases product life.
Baked enamel finish for increased corrosion resistance.
Collar threads for easy fixturing.
RCH120 includes AR630 coupler and has 1/4" NPTF port.
RCH121 and RCH1211 have FZ1630 reducer and AR630 coupler (all other models feature CR400 coupler)
Model | Capacity | Stroke | Collapsed Height | Extended Height | Centre Hole Dia | Plunger Type | Operating Pressure | Oil Capacity Advance | Coupler | Weight |
RCH120 | 12 Tonne | 8 mm | 55 mm | 63 mm | 19.5 mm | Hollow | 700 bar | 14 cm3 | AR630 Coupler | 1.5 Kg |
The Full range of The ENERPAC RCH-Series, Hollow Plunger Cylinders - Available with different closed heights and different stroke lengths - Choose from below
Model | Capacity | Stroke | Collapsed Height | Extended Height | Centre Hole Dia | Plunger Type | Operating Pressure | Oil Capacity Advance | Coupler | Weight |
RCH120 | 12 Tonne | 8 mm | 55 mm | 63 mm | 19.5 mm | Hollow | 700 bar | 14 cm3 | AR630 Coupler | 1.5 Kg |
RCH121 | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | AR630 Coupler | 2.8 Kg |
RCH1211 | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | AR630 Coupler | 2.8 Kg |
RCH121H | 12 Tonne | 42 mm | 120 mm | 162 mm | 19.5 mm | Hollow | 700 bar | 75 cm3 | CR400 Coupler | 2.8 Kg |
RCH123 | 12 Tonne | 76 mm | 184 mm | 260 mm | 19.5 mm | Hollow | 700 bar | 136 cm3 | CR400 Coupler | 4.4 Kg |
