Enerpac Pressure Gauge, 63 mm Face G2535L
Estimated lead time:Available from stock 1 - 2 days max delivery time
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Enerpac Pressure Gauge, 63 mm Face G2535L
Brand:
Description

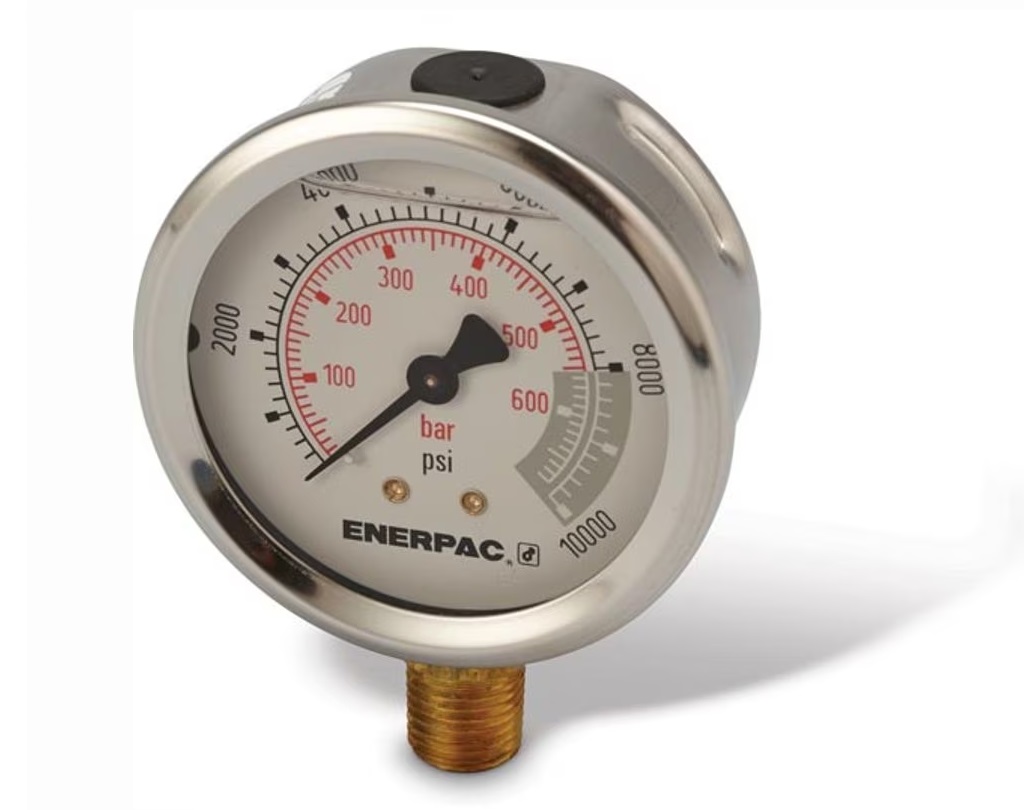

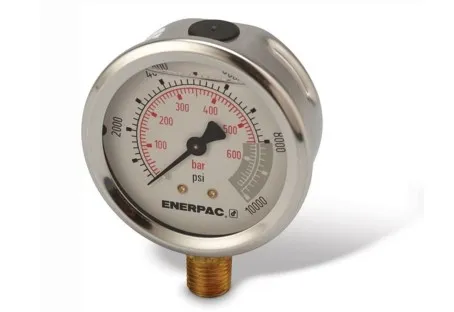

Enerpac Pressure Gauge, 63 mm Face G2535L is a lower mount Glycerine filled pressure gauge with dual scale face that shows both psi and bar readings
£93.99 ex VAT
£112.79 inc VAT
Add to cart
Add to quoteRelated products
Enerpac Pressure Gauge, 63 mm Face G2535L is a lower mount Glycerine filled pressure gauge with dual scale face that shows both psi and bar readings. This G-Series Liquid Filled Pressure Gauge contains glycerine to protect pressure-sensing parts from vibration, sudden pressure changes, and moisture.
The dual scale face shows both psi and bar readings, and the extensive range includes a wide selection of models with maximum working pressures ranging from 100 to 15000 psi (7 to 1000 bar).
| Model | Max Operating Pressure | Style | Face Diameter | Accuracy Percentage of full scale | Mount | Major Graduation | Minor Graduation | Thread |
| G2535L | 700 Bar | Glycerine Filled | 63 mm | 1.5 | Lower Mount | 100 bar | 10 | 1/4" NPTF Male |
When using your gauges for high-cycle applications, we recommend using gauge snubbers or needle valves.
Dual scale reading calibrated in bar and psi.
All pressure sensing parts are sealed and dampened by glycerine for long-life.
Includes safety blow-out disk and pressure-equalizing membrane.
Copper alloy, coiled safety Bourdon tube for 70 bar and higher.
± 1.5% accuracy of full scale.
Gauge snubbers or needle valves are recommended for high-cycle applications.
Enerpac Pressure Gauge, 63 mm Face G2535L
Model: G2535L
ECCN: EAR99
Harmonization: 9026208000
Series: G
Product Line: Industrial Tools, Workholding Tools
| Model | Max Operating Pressure | Style | Face Diameter | Accuracy Percentage of full scale | Mount | Major Graduation | Minor Graduation | Thread |
| G2535L | 700 Bar | Glycerine Filled | 63 mm | 1.5 | Lower Mount | 100 bar | 10 | 1/4" NPTF Male |
When using your gauges for high-cycle applications, we recommend using gauge snubbers or needle valves.
Dual scale reading calibrated in bar and psi.
All pressure-sensing parts are sealed and dampened by glycerine for a long-life.
Includes safety blow-out disk and pressure-equalizing membrane.
Copper alloy, coiled safety Bourdon tube for 70 bar and higher.
± 1.5% accuracy of full scale.
Gauge snubbers or needle valves are recommended for high-cycle applications.
