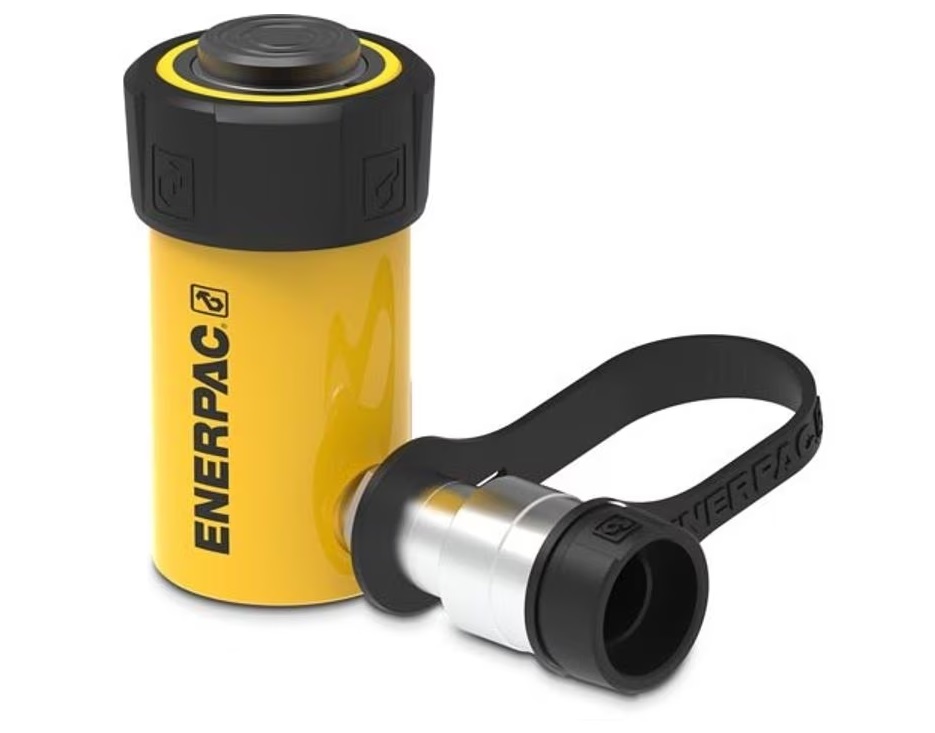

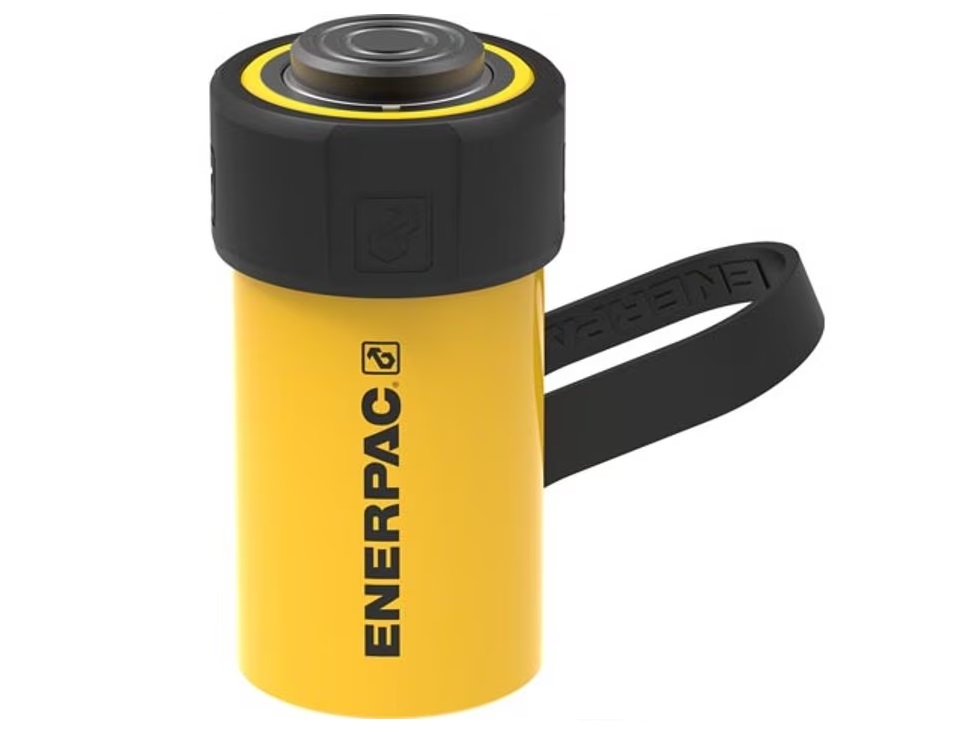

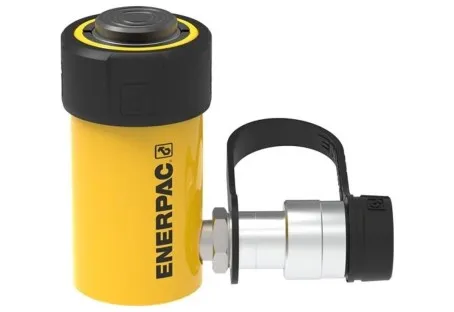

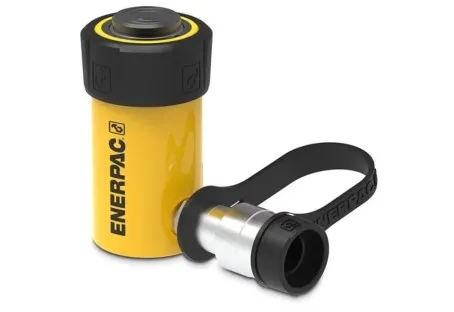

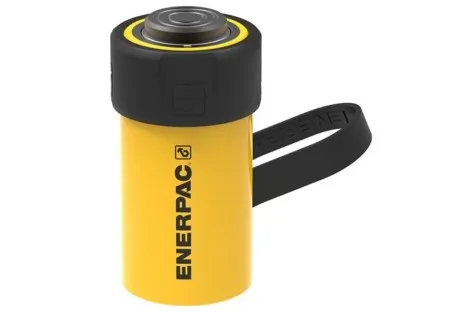

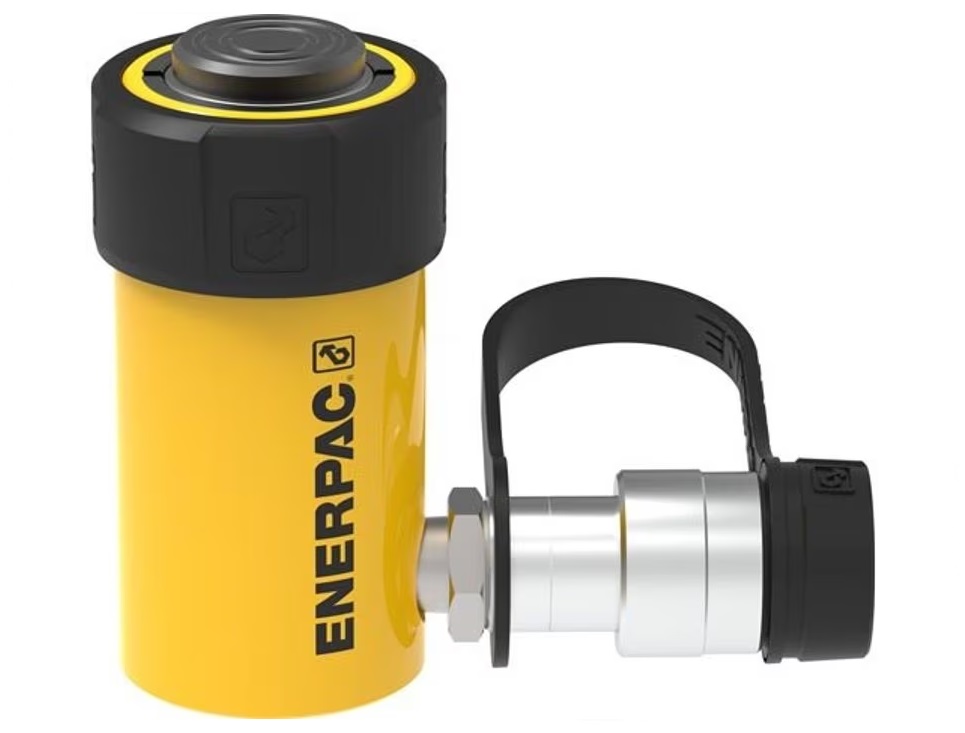

Enerpac RC102 General Purpose Hydraulic Cylinder 10 Ton, 54 mm Stroke
Estimated lead time:1 to 2 days delivery
Please call us if you need this item sooner
& COLLECT
delivery
DELIVERY
(Call us)
Seen this product cheaper elsewhere?
We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.
Price match
promise
Enerpac RC102 General Purpose Hydraulic Cylinder 10 Ton, 54 mm Stroke
Brand:
Description
Enerpac RC102 General Purpose Hydraulic Cylinder 10 Ton, 54 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£414.98 ex VAT
£497.98 inc VAT
Add to cart
Add to quoteRelated products
Enerpac RC50 General Purpose Hydraulic Cylinder 5 Ton, 16 mm Stroke
RC50
Enerpac RC50 General Purpose Hydraulic Cylinder 5 Ton, 16 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£314.99 ex VAT
£377.99 inc VAT
Enerpac RC51 General Purpose Hydraulic Cylinder 5 Ton, 25 mm Stroke
RC51
Enerpac RC51 General Purpose Hydraulic Cylinder 5 Ton, 25 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£349.99 ex VAT
£419.99 inc VAT
Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke
RC101
Enerpac RC101 General Purpose Hydraulic Cylinder 10 Ton, 26 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£374.99 ex VAT
£449.99 inc VAT
Enerpac RC104 General Purpose Hydraulic Cylinder 10 Ton, 105 mm Stroke
RC104
Enerpac RC104 General Purpose Hydraulic Cylinder 10 Ton, 105 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£457.99 ex VAT
£549.59 inc VAT
Enerpac HC7206 High Pressure Hydraulic Hose x 1.8m
HC7206
The Enerpac HC7206 High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206 High-Pressure hose has an operating pressure of 700 Bar.
£123.99 ex VAT
£148.79 inc VAT
Enerpac P39 Single Speed Hydraulic Hand Pump
P39
The Enerpac P39 Single Speed Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. Each model in the series features an all-steel construction ideal long-lasting performance.
£399.99 ex VAT
£479.99 inc VAT
Enerpac P391 Single Speed Lightweight Hydraulic Hand Pump
P391
The Enerpac P391 Single Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. They offer the simplicity needed for a wide range of industrial applications
£424.99 ex VAT
£509.99 inc VAT
Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump
P392
The Enerpac P392 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.
£534.99 ex VAT
£641.99 inc VAT
Enerpac P141 Single Speed Lightweight Hydraulic Hand Pump
P141
The Enerpac P141 Single Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. They offer the simplicity needed for a wide range of industrial applications
£354.99 ex VAT
£425.99 inc VAT
Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump
P142
The Enerpac P142 Two Speed Lightweight Hydraulic Hand Pump is a convenient alternative to heavier steel pumps without any sacrifice in performance or safety. The 2-stage operation reduces the number of handle strokes by as much as 78% compared to a single-speed pump.
£399.99 ex VAT
£479.99 inc VAT
Enerpac P80 Two Speed Ultima Steel Hydraulic Hand Pump
P80
The Enerpac P80 Two Speed Ultima Steel Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. 2 stage pump, reduces the number of handle strokes by as much as 78% compared to single speed
£759.98 ex VAT
£911.98 inc VAT
Enerpac P801 Two Speed Ultima Steel Hydraulic Hand Pump
P801
The Enerpac P801 Two Speed Ultima Steel Hydraulic Hand Pump belongs to the Ultima Steel Hand Pumps series that are durable, portable, and highly efficient. 2 stage pump, reduces the number of handle strokes by as much as 78% compared to single speed
£1,039.99 ex VAT
£1,247.99 inc VAT
Enerpac HC7210 High Pressure Hydraulic Hose x 3m
HC7210
The Enerpac HC710 High-Pressure Hydraulic Hose x 3.0m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7210 High-Pressure hose has an operating pressure of 700 Bar.
£153.99 ex VAT
£184.79 inc VAT
Enerpac HC7220 High Pressure Hydraulic Hose x 6.1m
HC7220
The Enerpac HC7220 High-Pressure Hydraulic Hose x 6.1m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7220 High-Pressure hose has an operating pressure of 700 Bar.
£210.99 ex VAT
£253.19 inc VAT
Enerpac HC7206C High Pressure Hydraulic Hose x 1.8m
HC7206C
The Enerpac HC7206C High-Pressure Hydraulic Hose x 1.8m long is available for next-day delivery from the ULS Lifting online store. Used to connect Cylinders to Pumps. Manufactured from thermo-plastic hoses for demanding applications. The HC7206C High-Pressure hose has an operating pressure of 700 Bar.
£154.99 ex VAT
£185.99 inc VAT
Enerpac RC151 General Purpose Hydraulic Cylinder 15 Ton, 25 mm Stroke
RC151
Enerpac RC151 General Purpose Hydraulic Cylinder 15 Ton, 25 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£514.99 ex VAT
£617.99 inc VAT
Enerpac RC152 General Purpose Hydraulic Cylinder 15 Ton, 51 mm Stroke
RC152
Enerpac RC152 General Purpose Hydraulic Cylinder 15 Ton, 51 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
£571.99 ex VAT
£686.39 inc VAT
Enerpac RC102 General Purpose Hydraulic Cylinder 10 Ton, 54 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.
Superior versatility, durability, and, quality. RC-Series Hydraulic Cylinders are our most versatile cylinder and the driving force of the Enerpac range. They feature a robust bearing system for superior durability and a hybrid spring-return system for faster retraction speed.
10-tonne, 54mm stroke Enerpac RC102 General Purpose Hydraulic Cylinder
| Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return type | Oil Capacity Advance | Coupler | Weight |
| RC102 | 10 Tonne | 54 mm | 121 mm | 175 mm | 700 Bar | Single Acting | Spring Return | 78 cm3 | CR400 Coupler | 2.3 Kg |
RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.
The Full range of ENERPAC 10-tonne RC-Series Single-Acting Cylinders - Available with different closed heights and different stroke lengths - Choose from below
| Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return Type | Oil Capacity Advance | Coupler | Weight |
| RC101 | 10 Tonne | 26 mm | 90 mm | 116 mm | 700 Bar | Single Acting | Spring Return | 38 cm3 | CR400 Coupler | 1.8 Kg |
| RC102 | 10 Tonne | 54 mm | 121 mm | 175 mm | 700 Bar | Single Acting | Spring Return | 78 cm3 | CR400 Coupler | 2.3 Kg |
| RC104 | 10 Tonne | 105 mm | 171 mm | 276 mm | 700 Bar | Single Acting | Spring Return | 152 cm3 | CR400 Coupler | 3.3 Kg |
| RC106 | 10 Tonne | 156 mm | 248 mm | 404 mm | 700 Bar | Single Acting | Spring Return | 226 cm3 | CR400 Coupler | 4.4 Kg |
| RC108 | 10 Tonne | 203 mm | 298 mm | 501 mm | 700 Bar | Single Acting | Spring Return | 294 cm3 | CR400 Coupler | 5.4 Kg |
| RC1010 | 10 Tonne | 257 mm | 349 mm | 606 mm | 700 Bar | Single Acting | Spring Return | 373 cm3 | CR400 Coupler | 6.4 Kg |
| RC1012 | 10 Tonne | 304 mm | 400 mm | 704 mm | 700 Bar | Single Acting | Spring Return | 441 cm3 | CR400 Coupler | 6.8 Kg |
| RC1014 | 10 Tonne | 356 mm | 451 mm | 807 mm | 700 Bar | Single Acting | Spring Return | 516 cm3 | CR400 Coupler | 8.2 Kg |
What is frequently bought with the 10-tonne, 54mm stroke Enerpac RC102 General Purpose Hydraulic Cylinder
HC7206 High-Pressure Hydraulic Hose x 1.8m Long
GA45GC 45° Angled Gauge Adaptor Assembly
P39 Single Speed Steel Hydraulic Hand Pump
Alternative pumps available
XC1202MB cordless hydraulic Pump.
XA12 Air Driven Hydraulic Foot Pump
PATG1102N Turbo II air Hydraulic Pump
PUJ1201B Two-Speed Economy Electric Hydraulic Pump
More information about the Enerpac RC Series Single Acting Cylinder Range
New TRIO Bearing System
Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.
Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.
New high-performance Polyethylene seals last longer than ever, improving lifespan and keeping you working for longer.
New TRIO Stop Ring
Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load.
Capable of taking full cylinder extension force.
Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.
New TRIO Spring System
Hybrid pre-tensioned return springs for up to 3x faster retraction and increased productivity.
High-strength steel wire improves spring life.
Spring retention design improves serviceability while allowing higher pre-load during assembly.
Spring is easily removed without special tools.
Durable Piston Rod
High-strength steel plunger for improved life and sideload resistance.
Nickel-plated plunger coating improves corrosion protection.
Internal plunger threads for easy tool fixturing.
Enhanced Ergonomics
Standard carry handles on cylinders from 15 up to 25 kg. Sizes above 25 kg include certified lifting eyes or optional handles.
Base mounting holes enable easy fixturing.
Improved Saddle Retention
Hardened plunger saddle protects plunger end during all lifting operations.
Easily removable for access to plunger mounting threads.
Tilt and smooth saddles are available as accessories (compatible with the new range of CATS-Series Tilt Saddles).
Enduring Compatibility
For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions, and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.
RC102, 101 kN Capacity, 54 mm Stroke, General Purpose Hydraulic Cylinder (RC102, 11.2-ton Capacity, 2.13 in Stroke, General Purpose Hydraulic Cylinder)
Series: RC. Product Line: Enerpac Industrial Tools
Model: RC102 - ECCN: EAR99 - Harmonization: 8412210075
| Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return type | Oil Capacity Advance | Coupler | Weight |
| RC101 | 10 Tonne | 26 mm | 90 mm | 116 mm | 700 Bar | Single Acting | Spring Return | 38 cm3 | CR400 Coupler | 1.8 Kg |
RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.
The Full range of ENERPAC 10-tonne RC-Series Single-Acting Cylinders - Available with different closed heights and different stroke lengths - Choose from below
| Model | Capacity | Stroke | Collapsed Height | Extended Height | Operating Pressure | Return Type | Return Type | Oil Capacity Advance | Coupler | Weight |
| RC101 | 10 Tonne | 26 mm | 90 mm | 116 mm | 700 Bar | Single Acting | Spring Return | 38 cm3 | CR400 Coupler | 1.8 Kg |
| RC102 | 10 Tonne | 54 mm | 121 mm | 175 mm | 700 Bar | Single Acting | Spring Return | 78 cm3 | CR400 Coupler | 2.3 Kg |
| RC104 | 10 Tonne | 105 mm | 171 mm | 276 mm | 700 Bar | Single Acting | Spring Return | 152 cm3 | CR400 Coupler | 3.3 Kg |
| RC106 | 10 Tonne | 156 mm | 248 mm | 404 mm | 700 Bar | Single Acting | Spring Return | 226 cm3 | CR400 Coupler | 4.4 Kg |
| RC108 | 10 Tonne | 203 mm | 298 mm | 501 mm | 700 Bar | Single Acting | Spring Return | 294 cm3 | CR400 Coupler | 5.4 Kg |
| RC1010 | 10 Tonne | 257 mm | 349 mm | 606 mm | 700 Bar | Single Acting | Spring Return | 373 cm3 | CR400 Coupler | 6.4 Kg |
| RC1012 | 10 Tonne | 304 mm | 400 mm | 704 mm | 700 Bar | Single Acting | Spring Return | 441 cm3 | CR400 Coupler | 6.8 Kg |
| RC1014 | 10 Tonne | 356 mm | 451 mm | 807 mm | 700 Bar | Single Acting | Spring Return | 516 cm3 | CR400 Coupler | 8.2 Kg |
Why purchase equipment from Enerpac?
As a leading hydraulic tool innovator for 60+ years with several first-to-market products, Enerpac Solutions has lifted and moved some of the largest structures on earth. The latest advancements in quality, reliability, safety, and precision are what you will find in every Enerpac lifting tool from simple bottle jacks, cylinder, and hand pump sets to a wide selection of best-in-class cylinder and pump lifting systems. And when the load requires a unique lift from above or below, rely on synchronized, integrated heavy-lifting technologies designed for 1,000 tons or more.
