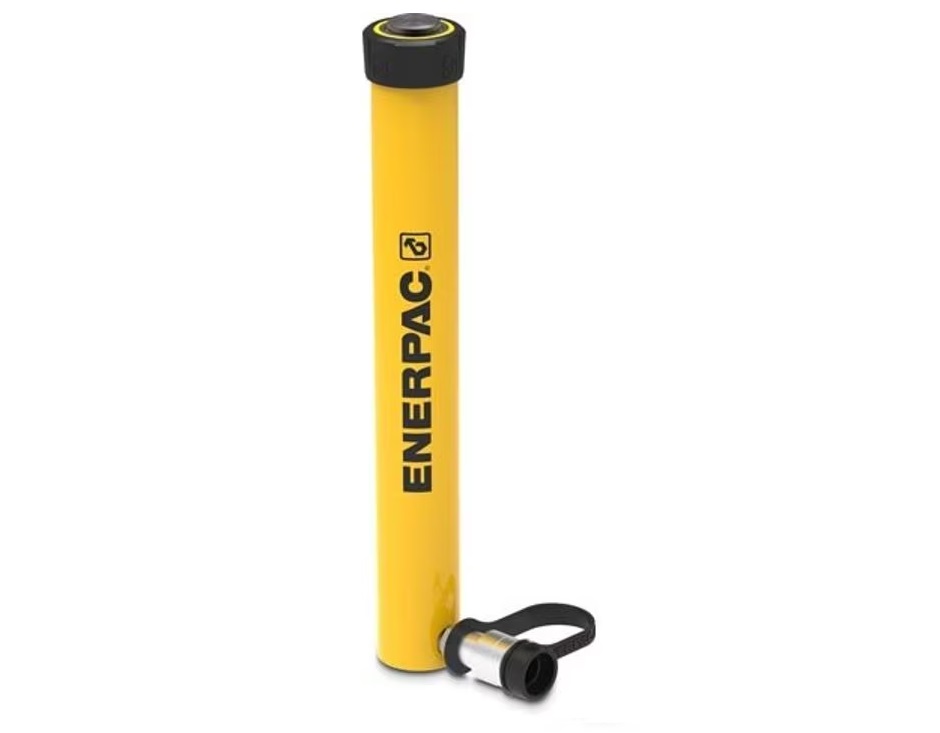

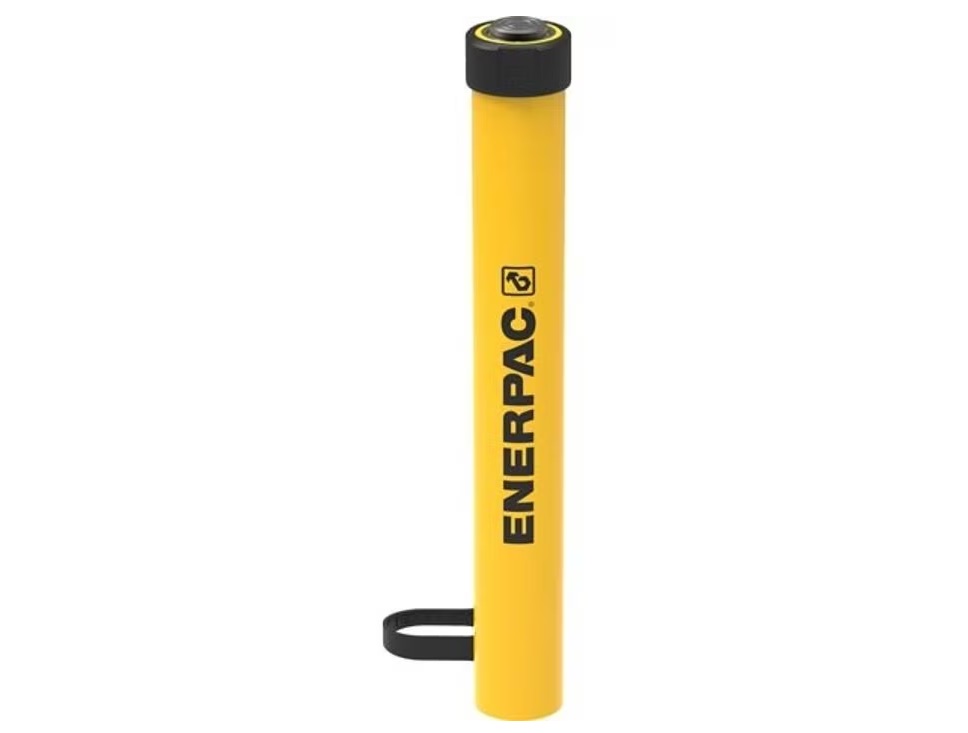

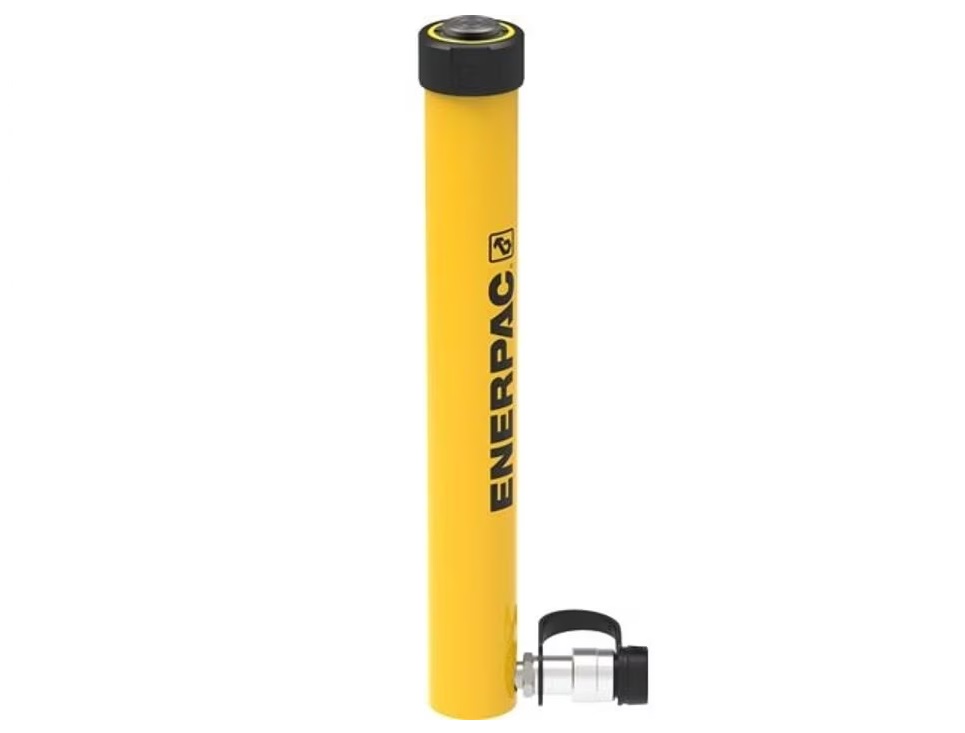

Enerpac RC1014 General Purpose Hydraulic Cylinder 10 Ton, 356 mm Stroke

Enerpac RC1014 General Purpose Hydraulic Cylinder 10 Ton, 356 mm Stroke single-acting hydraulic cylinder that is suitable for a wide range of applications; lifting, pushing, or pressing of equipment. RC-Series Hydraulic Cylinders include a hybrid spring-return system for fast retraction and enhanced productivity.

Superior versatility, durability, and, quality. RC-Series Hydraulic Cylinders are our most versatile cylinder and the driving force of the Enerpac range. They feature a robust bearing system for superior durability and a hybrid spring-return system for faster retraction speed.

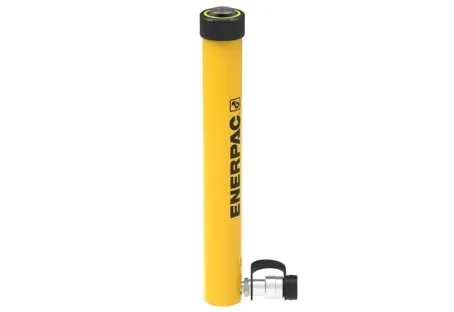

10-tonne, 356mm stroke Enerpac RC1014 General Purpose Hydraulic Cylinder

RC-TRIO Series Cylinders - The next evolution of the legendary Enerpac RC-Series hydraulic cylinder. The driving force of the Enerpac cylinder range, the RC-TRIO is as versatile as ever. It features a Trio Bearing System for enhanced durability and a hybrid spring-return system for faster retraction and even greater productivity.

The Full range of ENERPAC 10-tonne RC-Series Single-Acting Cylinders - Available with different closed heights and different stroke lengths - Choose from below

What is frequently bought with the 10-tonne, 356mm stroke Enerpac RC1014 General Purpose Hydraulic Cylinder

HC7206 High-Pressure Hydraulic Hose x 1.8m Long

GA45GC 45° Angled Gauge Adaptor Assembly

P392 Two-Speed Lightweight Hydraulic Hand Pump

Alternative pumps available

XC1202MB cordless hydraulic Pump.

XA12 Air Driven Hydraulic Foot Pump

PATG1102N Turbo II air Hydraulic Pump

PUD1301B Two-Speed Economy Electric Hydraulic Pump

More information about the Enerpac RC Series Single Acting Cylinder Range

New TRIO Bearing System

Includes up to 4 high-performance wear bands that offer increased resistance to damage, reducing bearing load and increasing cylinder lifespan.

Hardened composite material wear bands increase bearing surface area for greater sideload resistance - Significantly improving cylinder life.

New high-performance Polyethylene seals last longer than ever, improving lifespan and keeping you working for longer.

New TRIO Stop Ring

Part of the Trio Bearing System, the Trio Stop Ring includes an additional wear band or high-strength bronze to absorb greater side load.

Capable of taking full cylinder extension force.

Features durable wiper to help prevent contamination from entering the cylinder during retract cycles.

New TRIO Spring System

Hybrid pre-tensioned return springs for up to 3x faster retraction and increased productivity.

High-strength steel wire improves spring life.

Spring retention design improves serviceability while allowing higher pre-load during assembly.

Spring is easily removed without special tools.

Durable Piston Rod

High-strength steel plunger for improved life and sideload resistance.

Nickel-plated plunger coating improves corrosion protection.

Internal plunger threads for easy tool fixturing.

Enhanced Ergonomics

Standard carry handles on cylinders from 15 up to 25 kg. Sizes above 25 kg include certified lifting eyes or optional handles.

Base mounting holes enable easy fixturing.

Improved Saddle Retention

Hardened plunger saddle protects plunger end during all lifting operations.

Easily removable for access to plunger mounting threads.

Tilt and smooth saddles are available as accessories (compatible with the new range of CATS-Series Tilt Saddles).

Enduring Compatibility

For full compatibility and peace of mind, the new RC-Series model numbers, external dimensions, and threads remain unchanged from prior RC-Series cylinders. Ensuring compatibility with historical versions and systems.
