Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly

Estimated lead time:Available from stock 1 - 2 days max delivery time

Please call us if you need this item sooner

CLICK
& COLLECT
Next day
delivery
SAME DAY
DELIVERY
(Call us)

Seen this product cheaper elsewhere?

We will always try to offer this product at the best price. We will do our best to not just match it but to beat it.

Price match
promise

Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly

Brand:

Description

The Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly provides a window to your hydraulic system that allows for easy reading of the pressure creating a safer operation.

£201.99 ex VAT

£242.39 inc VAT

Related products

Enerpac AM21 Premounted Hydraulic Manifold

AM21

Enerpac AM21 Premounted Hydraulic Manifold complete with 1 inlet and 2 outlet ports. These Enerpac Control Manifolds will control two or four single-acting cylinders simultaneously. Supplied with 5 ports all with 3/8" NPTF Thread.

£429.99 ex VAT

£515.99 inc VAT

Enerpac AM41 Premounted Hydraulic Manifold

AM41

Enerpac AM21 Premounted Hydraulic Manifold complete with 1 inlet and 2 outlet ports. These Enerpac Control Manifolds will control two or four single-acting cylinders simultaneously. Supplied with 5 ports all with 3/8" NPTF Thread.

£826.99 ex VAT

£992.39 inc VAT

Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated

PATG1102N

Enerpac PATG1102N Turbo II Air Hydraulic Pump, Hand/Foot Operated. It will generate the hydraulic pressure you need using the air pressure you have available. PATG1102N includes a 3-way, 3-position valve for Advance / Hold / Retract functions.

£929.99 ex VAT

£1,115.99 inc VAT

Enerpac PATG1105N Turbo II Air Hydraulic Pump, Hand/Foot Operated

PATG1105N

Enerpac PATG1105N Turbo II Air Hydraulic Pump, Hand/Foot Operated. It will generate the hydraulic pressure you need using the air pressure you have available. PATG1105N includes a 3-way, 3-position valve for Advance / Hold / Retract functions.

£1,369.99 ex VAT

£1,643.99 inc VAT

Enerpac PAMG1402N Turbo II Air Hydraulic Pump, Manual Valve

PAMG1402N

Enerpac PAMG1402N Turbo II Air Hydraulic Pump, fitted with Manual Valve and compatible with double acting tools, and provides Advance / Hold / Retract functions. They generate the hydraulic pressure you need using the air pressure you have available

£1,289.99 ex VAT

£1,547.99 inc VAT

Enerpac PAMG1405N Turbo II Air Hydraulic Pump, Manual Valve

PAMG1405N

Enerpac PAMG1405N Turbo II Air Hydraulic Pump, fitted with Manual Valve and compatible with double acting tools, and provides Advance / Hold / Retract functions. They generate the hydraulic pressure you need using the air pressure you have available

£1,619.99 ex VAT

£1,943.99 inc VAT

Enerpac PUD1300E Two Speed Economy Electric Hydraulic Pump

PUD1300E

Enerpac PUD1300E Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£3,199.99 ex VAT

£3,839.99 inc VAT

Enerpac PUD1301E Two Speed Economy Electric Hydraulic Pump

PUD1301E

Enerpac PUD1301E Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£3,299.99 ex VAT

£3,959.99 inc VAT

Enerpac PUJ1200E Two Speed Economy Electric Hydraulic Pump

PUJ1200E

Enerpac PUJ1200E Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£2,619.99 ex VAT

£3,143.99 inc VAT

Enerpac PUJ1201E Two Speed Economy Electric Hydraulic Pump

PUJ1201E

Enerpac PUJ1201E Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£2,655.99 ex VAT

£3,187.19 inc VAT

Enerpac PUD1300B Two Speed Economy Electric Hydraulic Pump

PUD1300B

Enerpac PUD1300B Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£3,199.99 ex VAT

£3,839.99 inc VAT

Enerpac PUD1301B Two Speed Economy Electric Hydraulic Pump

PUD1301B

Enerpac PUD1301B Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£3,299.99 ex VAT

£3,959.99 inc VAT

Enerpac PUJ1200B Two Speed Economy Electric Hydraulic Pump

PUJ1200B

Enerpac PUJ1200B Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£2,619.99 ex VAT

£3,143.99 inc VAT

Enerpac PUJ1201B Two Speed Economy Electric Hydraulic Pump

PUJ1201B

Enerpac PUJ1201B Two Speed Economy Electric Hydraulic Pump for use with Single-Acting Cylinders. Its lightweight and compact design makes it ideal for applications that require easy transport of the pump. Best for small to medium size cylinders

£2,655.99 ex VAT

£3,187.19 inc VAT

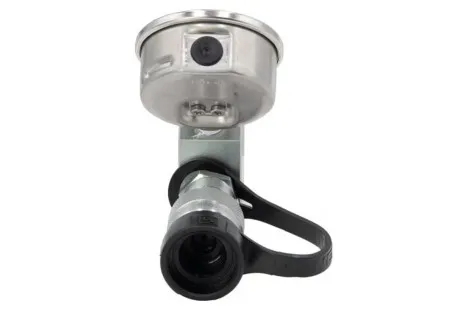

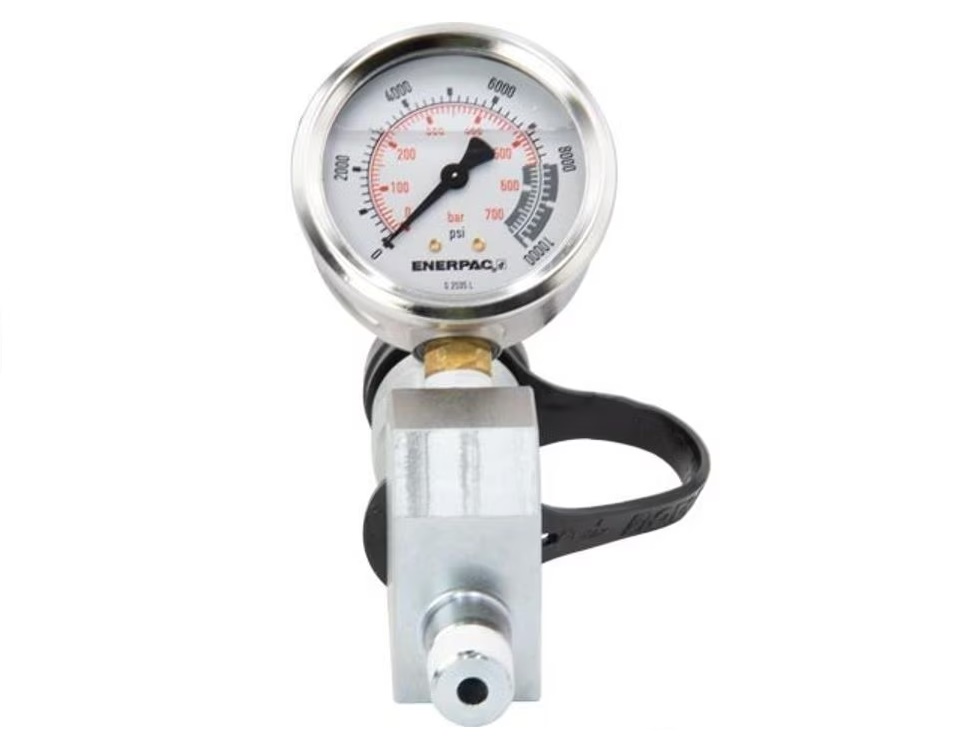

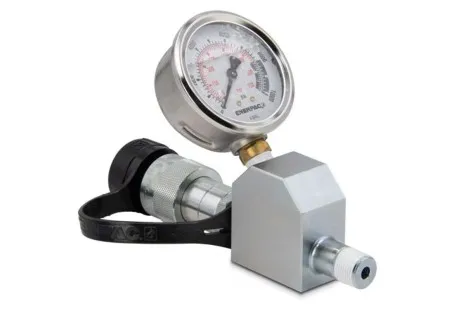

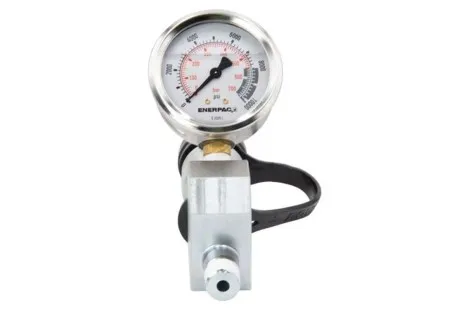

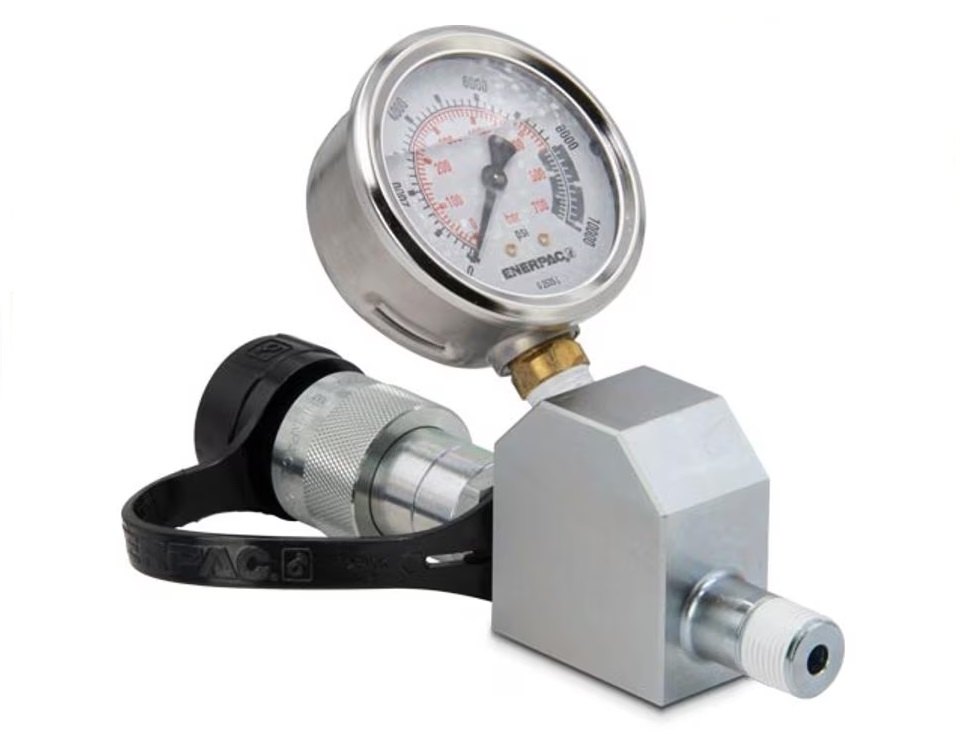

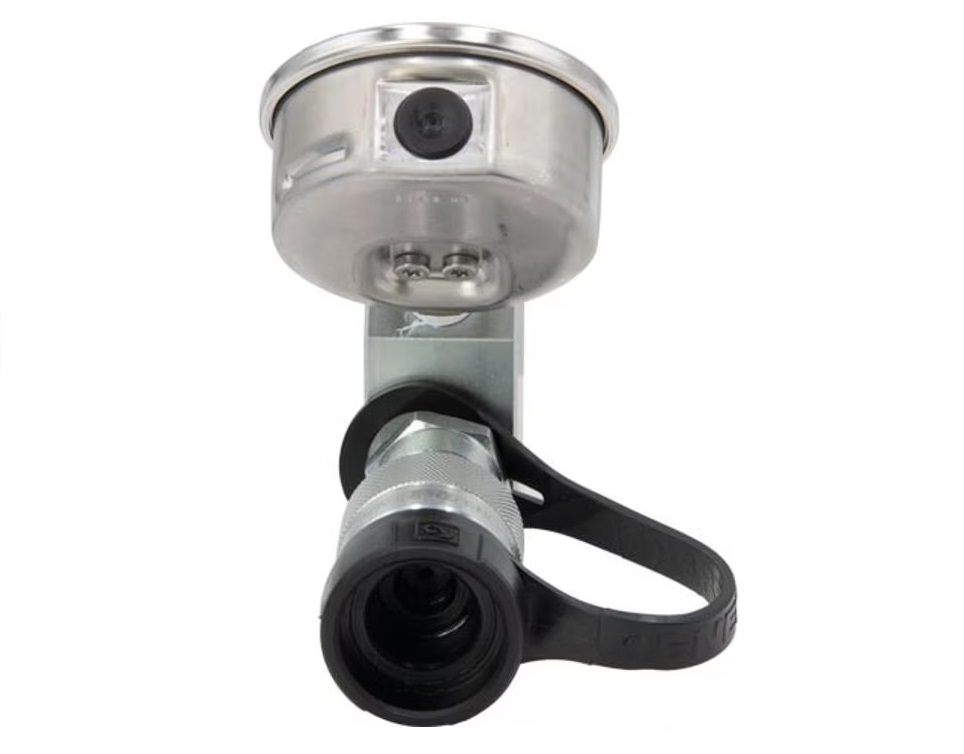

The Enerpac GA45GC, 45 Degree Angled Gauge Adaptor Assembly provides a window to your hydraulic system that allows for easy reading of the pressure creating a safer operation. This item makes up a full Pressure Gauge assembly that can be quickly and easily added to the Hydraulic Pump and hose kit.

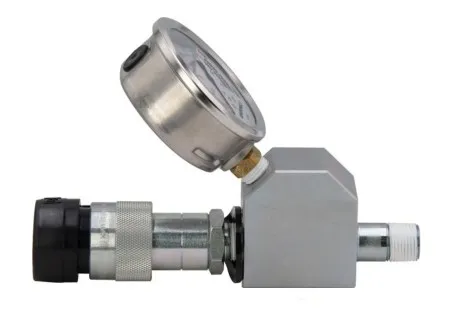

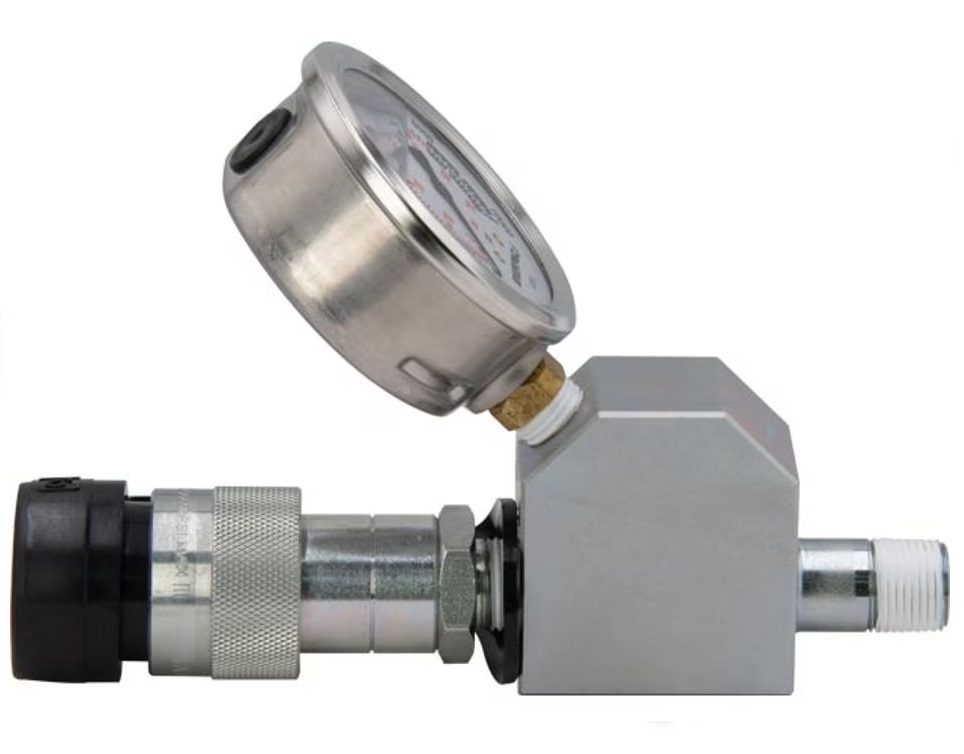

Mounted directly to the pump, the gauge adaptor is angled up at 45 degrees for better vision to the operator to be able to read the pressure accurately.

ModelMax Operating PressureStyleMajor GraduationMinor GraduationGauge PortMale EndFemale EndConnection 1
GA45GC700 BarGlycerine Filled100 bar10 barG2535L3/8" - 18NPTFCR4003/8" NPTF Male

45-degree angled gauge improves visibility.

Slim and narrow design.

Easy to fit in a broad range of systems.

Maximize controlled load movement.

Glycerine dampened gauge with dual scale.

Enerpac High Flow female coupler.



GA45GC, 45 Degree Angled Gauge Adaptor Assembly

Model: GA45GC

ECCN: EAR99

Harmonization: 9026208000

Series: GA45GC

Product Line: Industrial Tools

ModelMax Operating PressureStyleMajor GraduationMinor GraduationGauge PortMale EndFemale EndConnection 1
GA45GC700 BarGlycerine Filled100 bar10 barG2535L3/8" - 18NPTFCR4003/8" NPTF Male

45-degree angled gauge improves visibility.

Slim and narrow design.

Easy to fit in a broad range of systems.

Maximize controlled load movement.

Glycerine dampened gauge with dual scale.

Enerpac High Flow female coupler.
